Valve - Spring Free Length

  1. Measure the free length of each valve spring.
    • Refer to SPECIFICATIONS .
    • If out of specification, install new components as necessary. Refer to ENGINE article for the procedure.

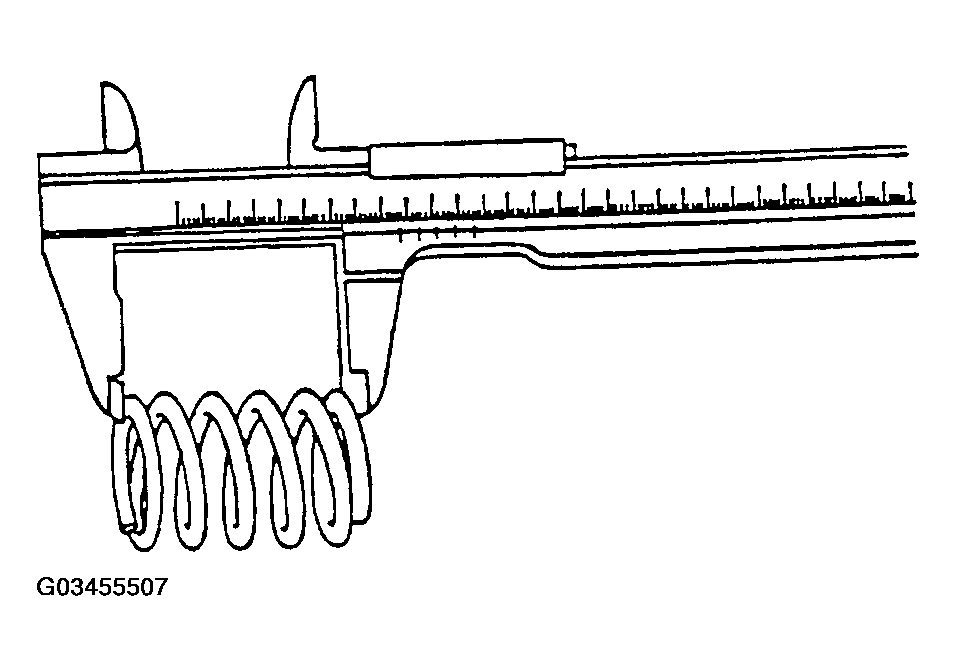

      Fig 1: Measuring Free Length Of Each Valve Spring
      G03455507Courtesy of FORD MOTOR CO.
