Air Conditioning Components - 3.9L

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

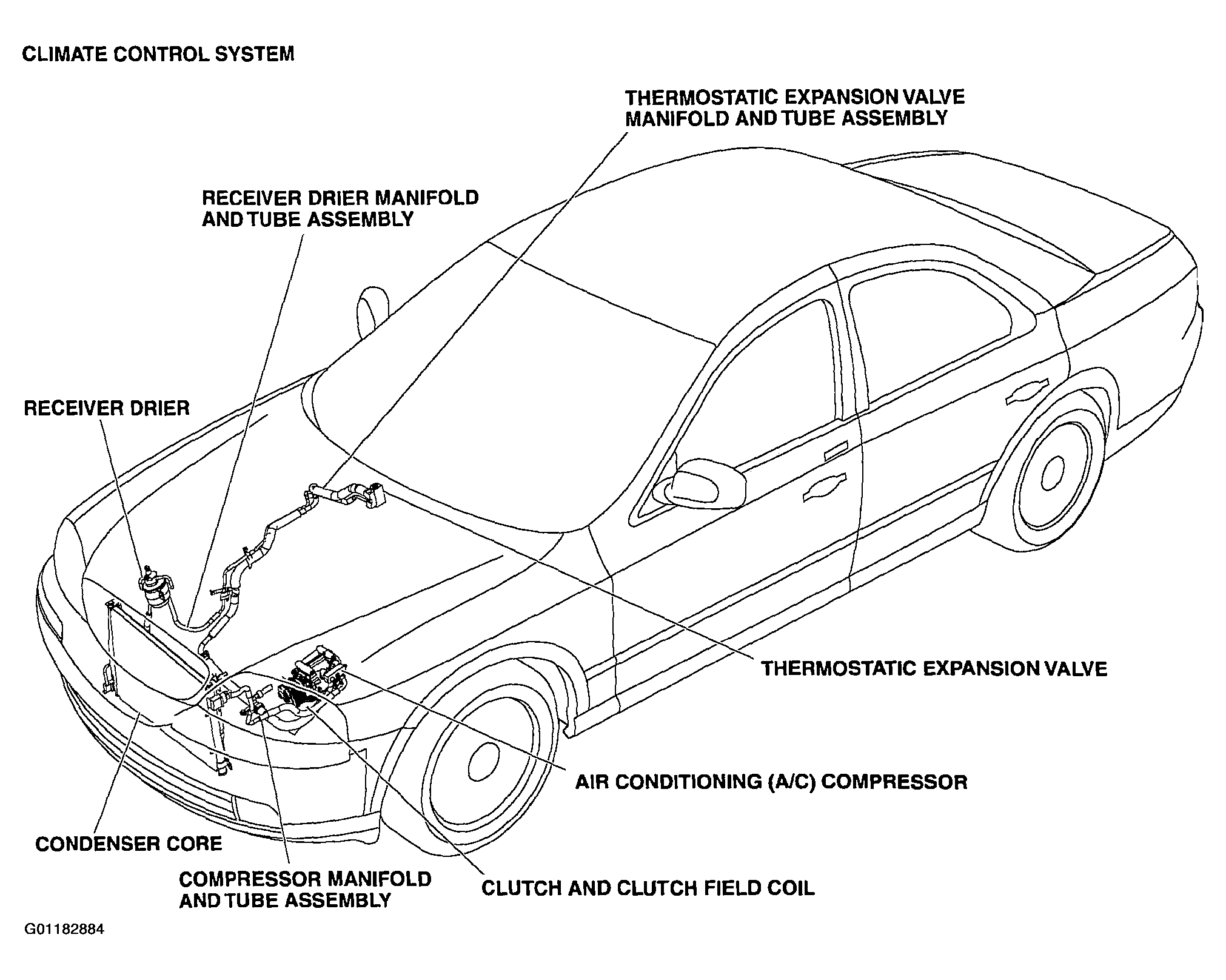

Fig 1: Identifying Air Conditioning Components Location - 3.9L
G01182884Courtesy of FORD MOTOR CO.
