Climate Control System Components - J1850 Communications Network (SCP) Linked

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

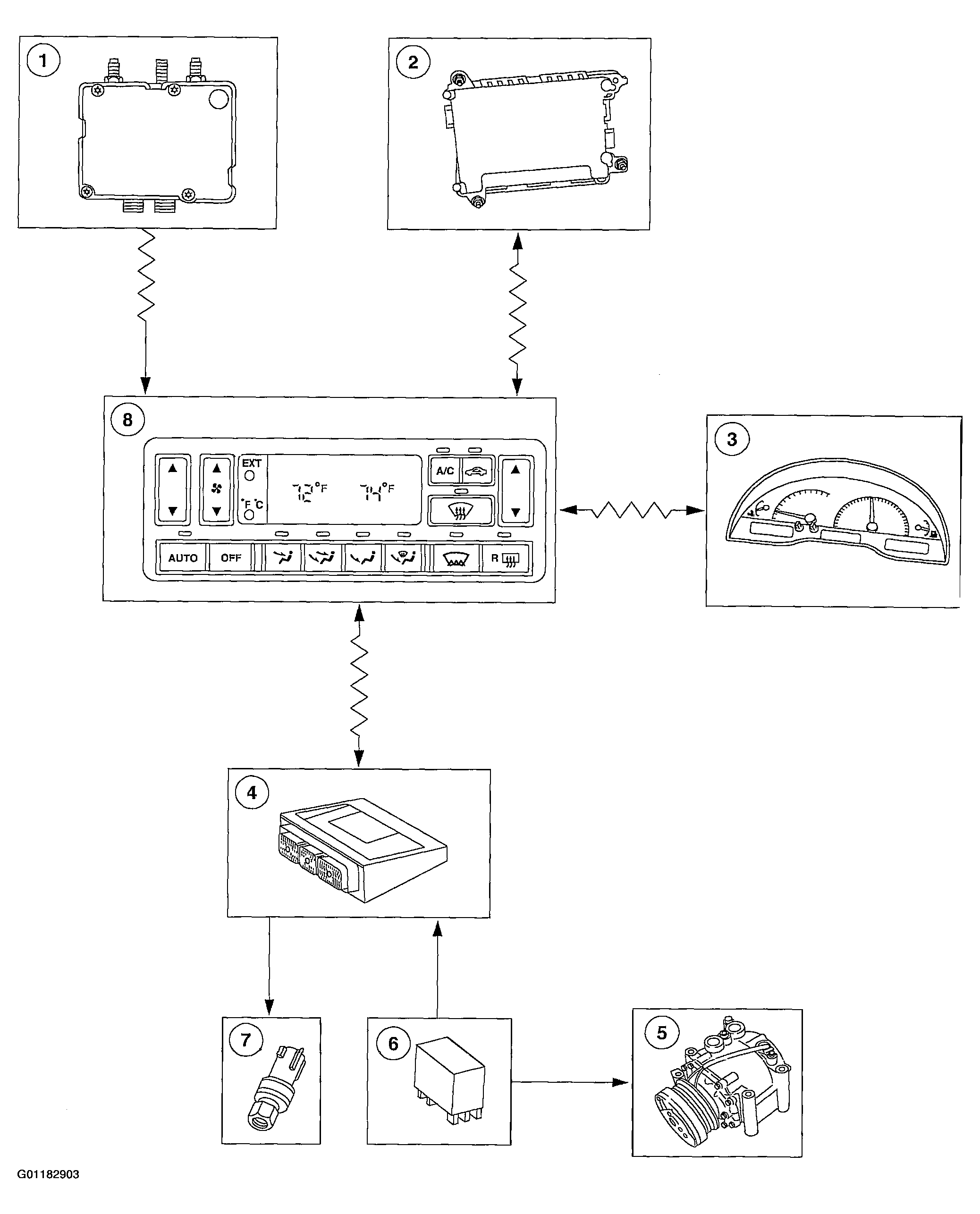

Fig 1: Identifying Climate Control System Components - J1850 Communications Network (SCP) Linked

Courtesy of FORD MOTOR CO.

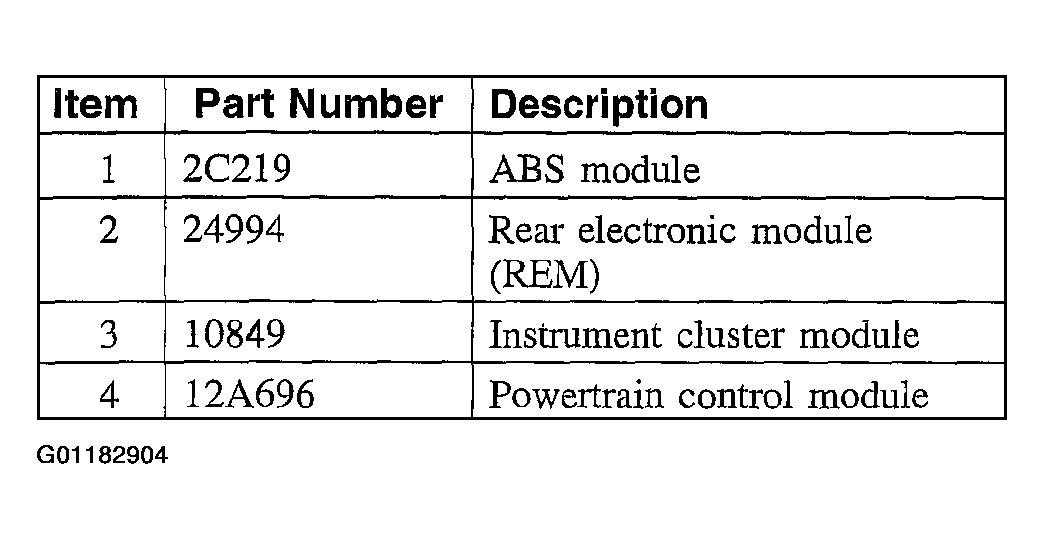

Fig 2: Climate Control System Components - J1850 Communications Network (SCP) Linked Parts Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

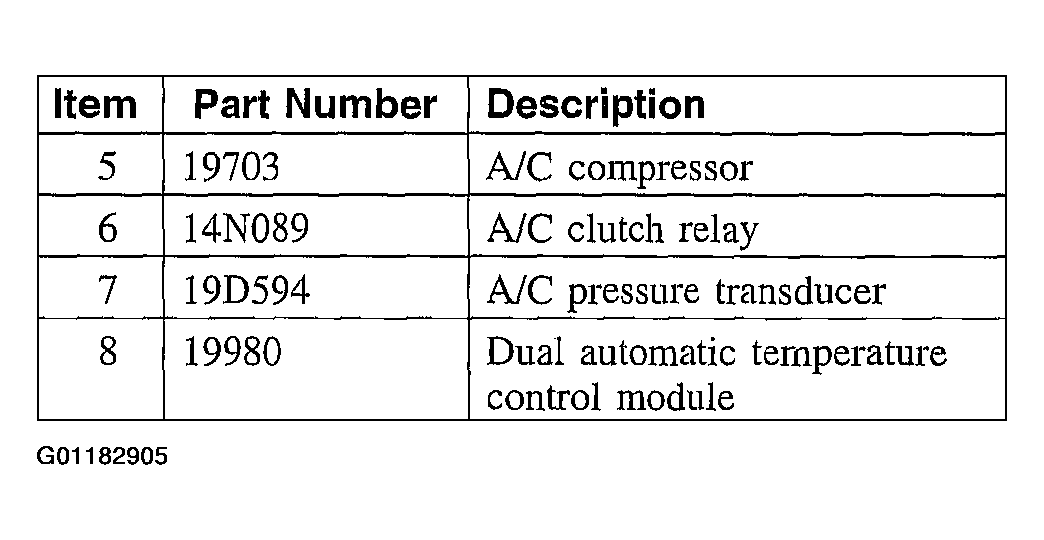

Fig 3: Climate Control System Components - J1850 Communications Network (SCP) Linked Parts Specification (2 Of 2)

Courtesy of FORD MOTOR CO.
