Pump - CII: Removal

  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Remove the drive belt. For additional information, refer to ACCESSORY DRIVE .
  3. Disconnect the generator (GEN) electrical connectors. Remove the retaining clip.

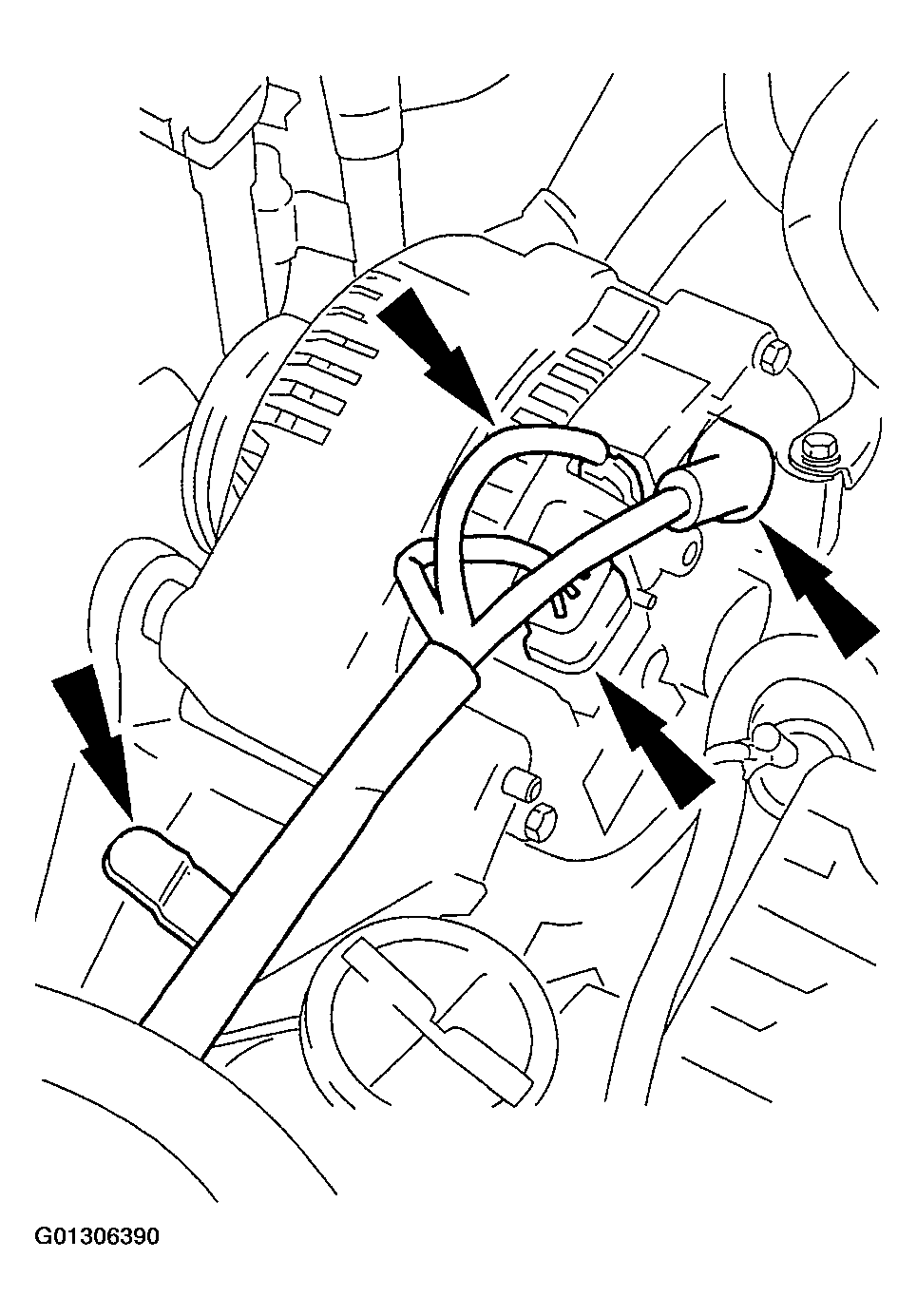

    Fig 1: Disconnecting Generator (GEN) Electrical Connectors
    G01306390Courtesy of FORD MOTOR CO.
  4. Remove the bolts.

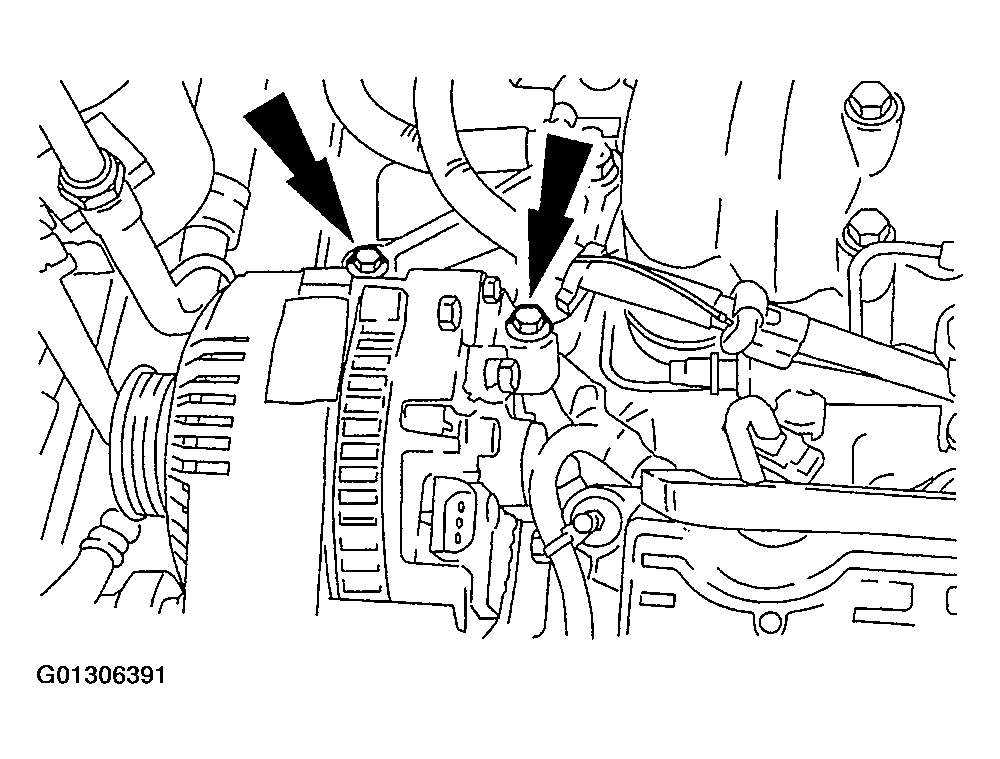

    Fig 2: Removing Bolts
    G01306391Courtesy of FORD MOTOR CO.
  5. Disconnect the power steering hoses (3A719) and (3493). Remove and discard the seal.

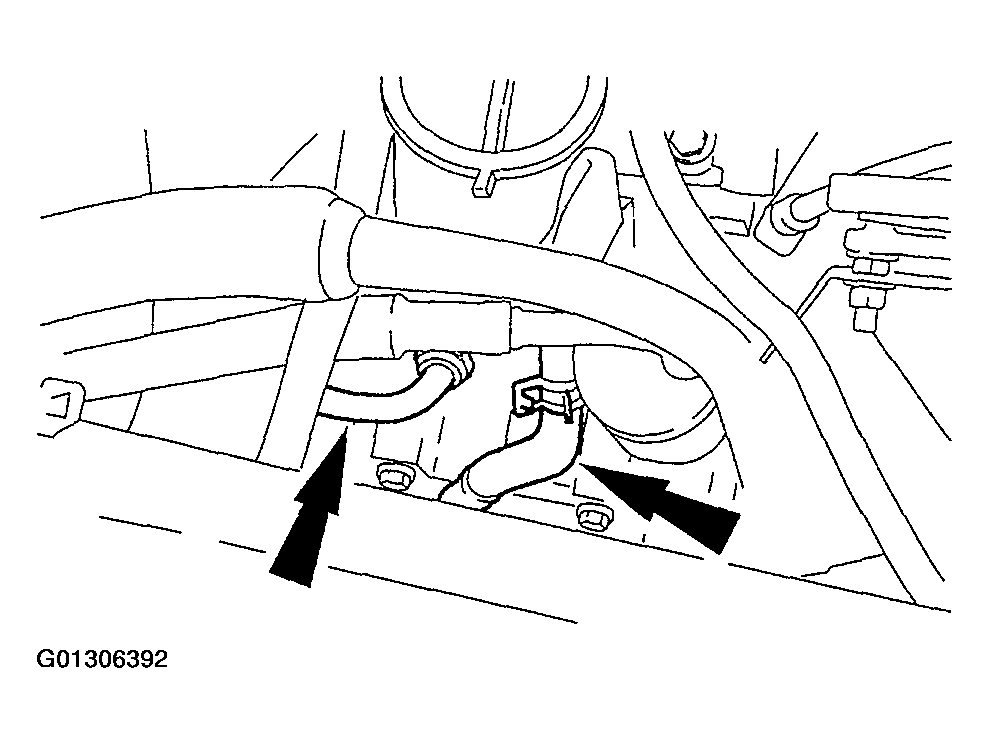

    Fig 3: Disconnecting Power Steering Hoses
    G01306392Courtesy of FORD MOTOR CO.
  6. Using the special tool, remove the power steering pump pulley.

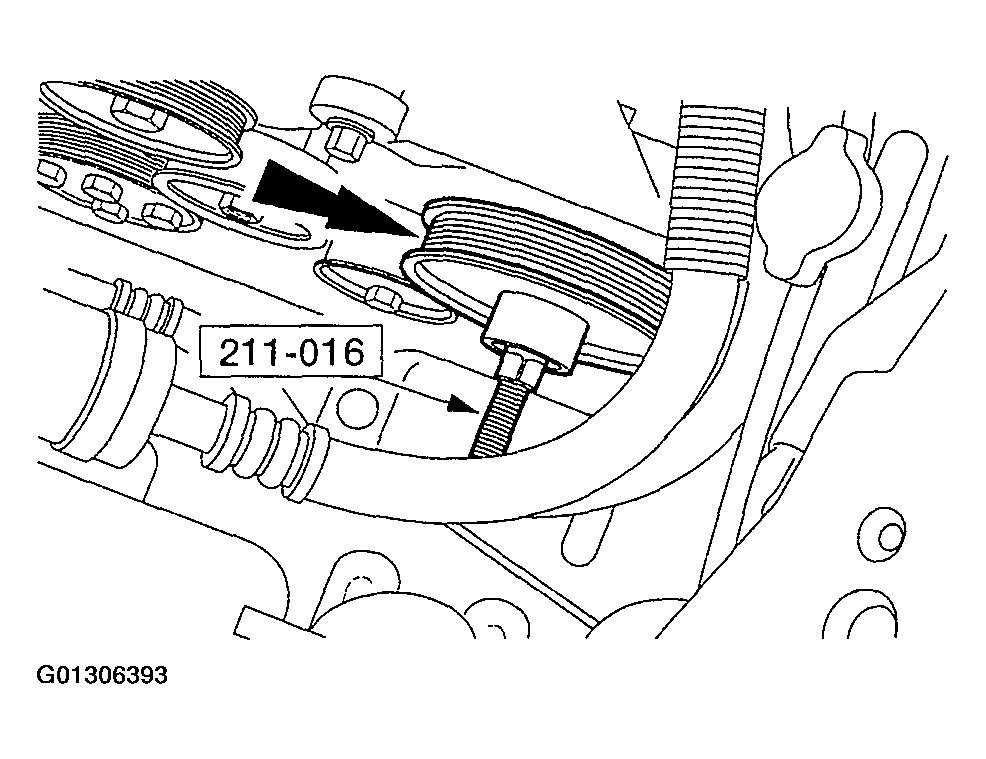

    Fig 4: Removing Power Steering Pump Pulley
    G01306393Courtesy of FORD MOTOR CO.
  7. Remove the drive belt idler pulley. For additional information, refer to ACCESSORY DRIVE .
  8. Remove the drive belt tensioner. For additional information, refer to ACCESSORY DRIVE .
  9. Remove the three bolts. Position the power steering pump (3A674) aside.

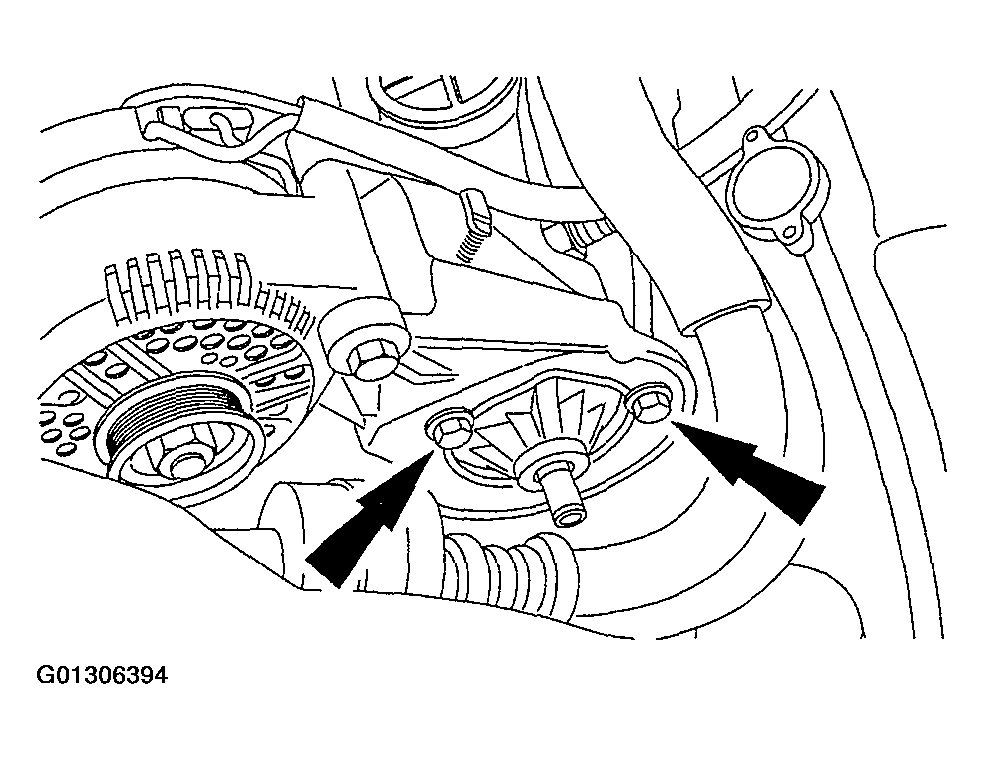

    Fig 5: Removing Three Bolts
    G01306394Courtesy of FORD MOTOR CO.
  10. Remove the two nuts and one bolt.

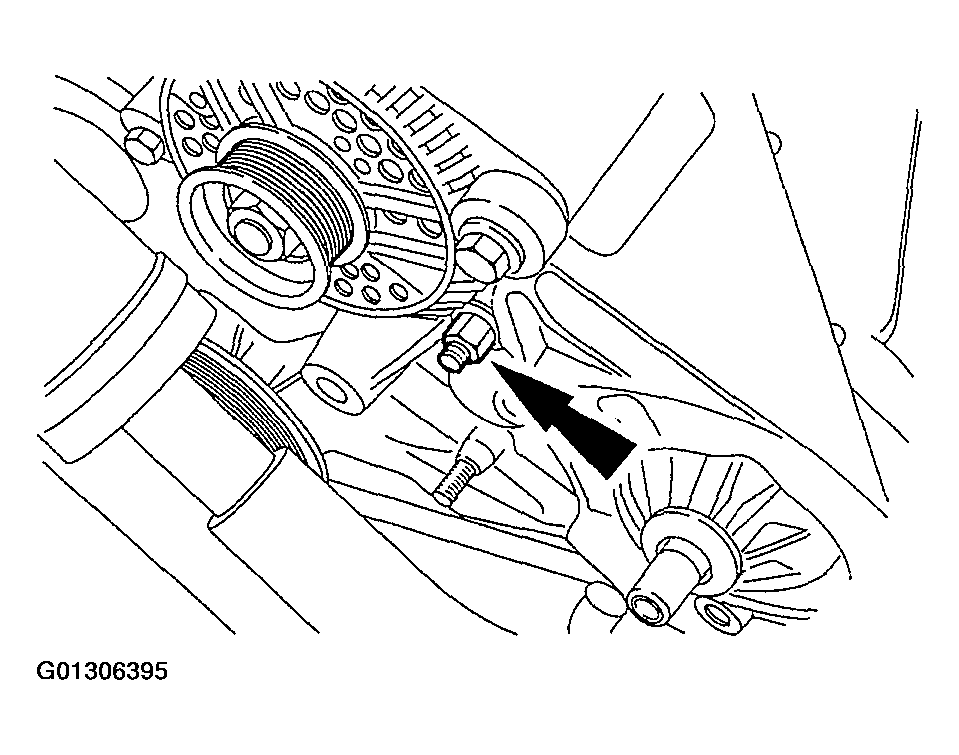

    Fig 6: Removing Nuts And Bolt
    G01306395Courtesy of FORD MOTOR CO.
  11. Position the power steering pump support forward. Remove the power steering pump.

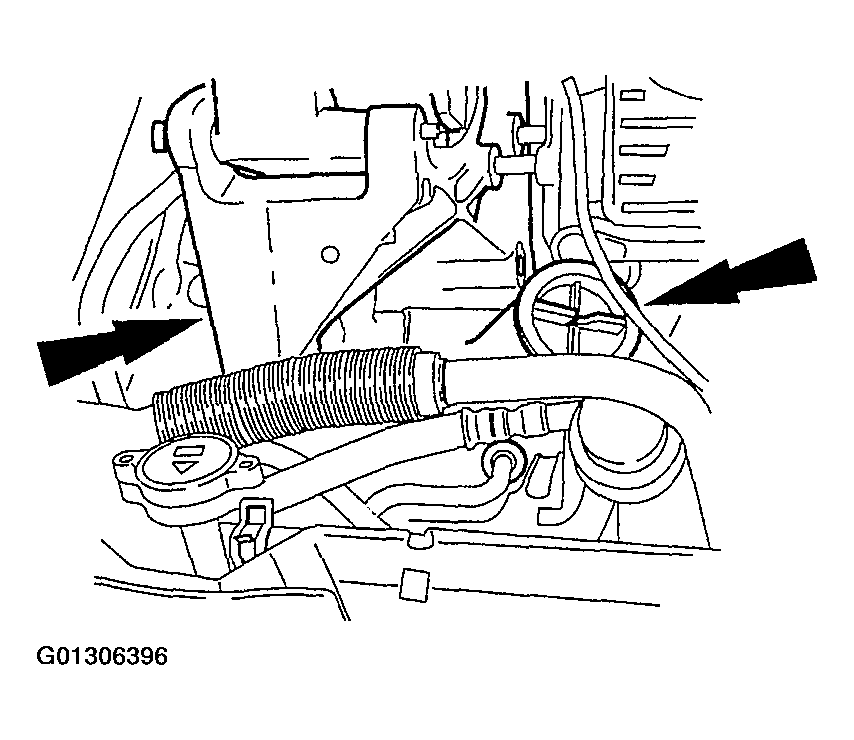

    Fig 7: Positioning Power Steering Pump Support Forward
    G01306396Courtesy of FORD MOTOR CO.
