Removal And Installation: Pump-CII: Installation

  1. To install, reverse the removal procedure.
    • Using the special tool, install a new seal on the power steering hose.

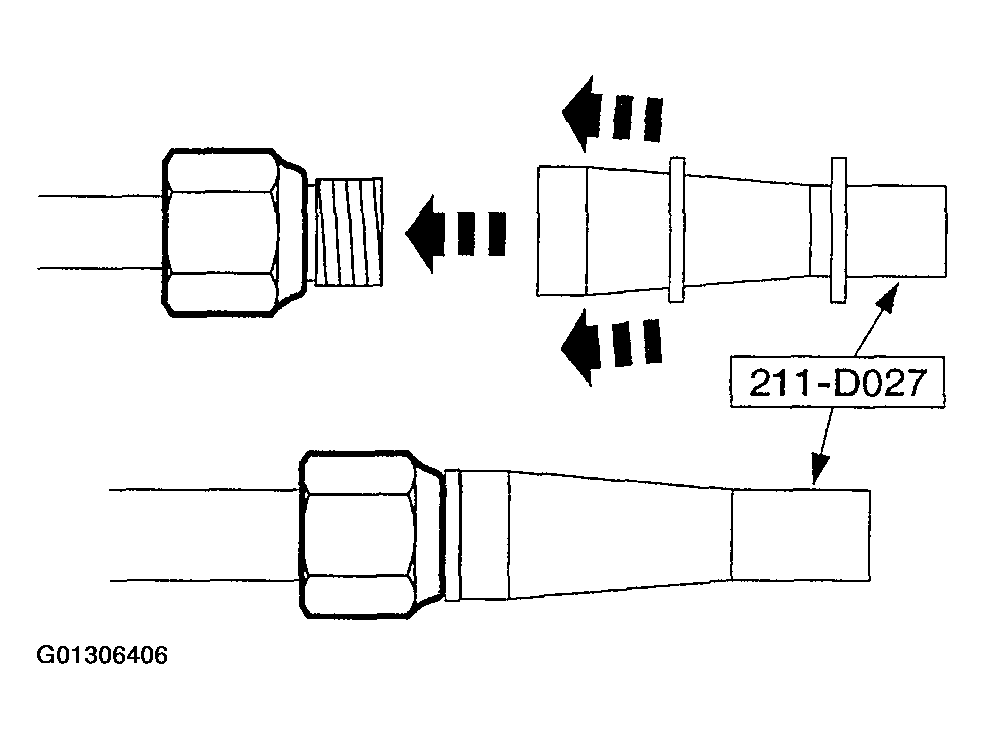

      Fig 1: Installing Seal On Power Steering Hose
      G01306406Courtesy of FORD MOTOR CO.

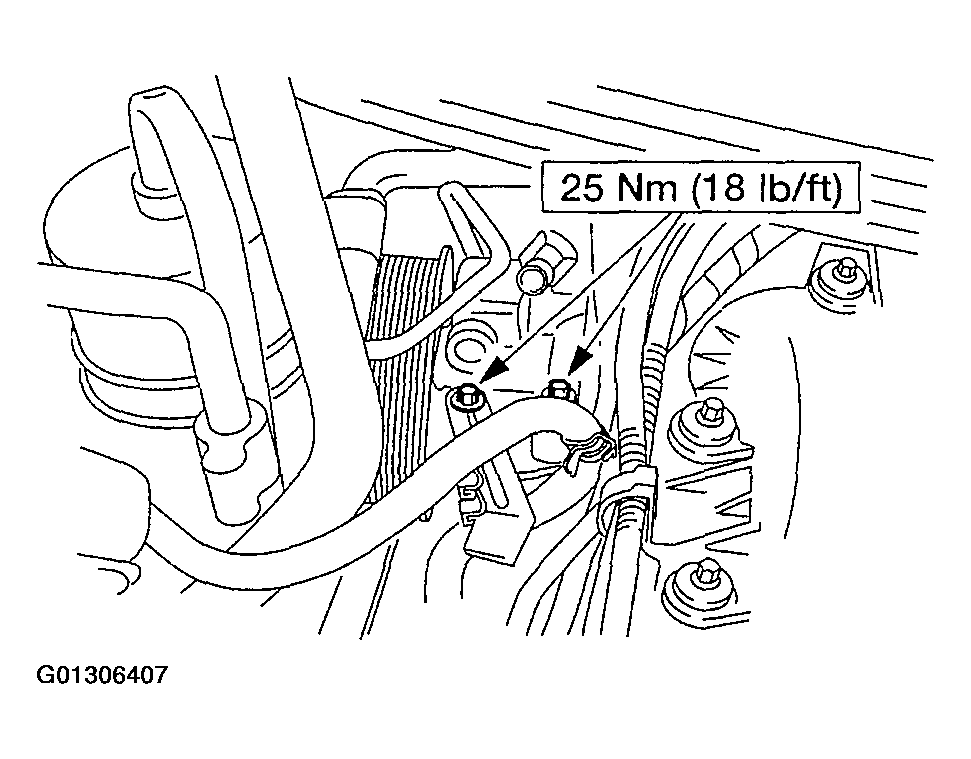

      Fig 2: Installing 4 Bolts
      G01306407Courtesy of FORD MOTOR CO.

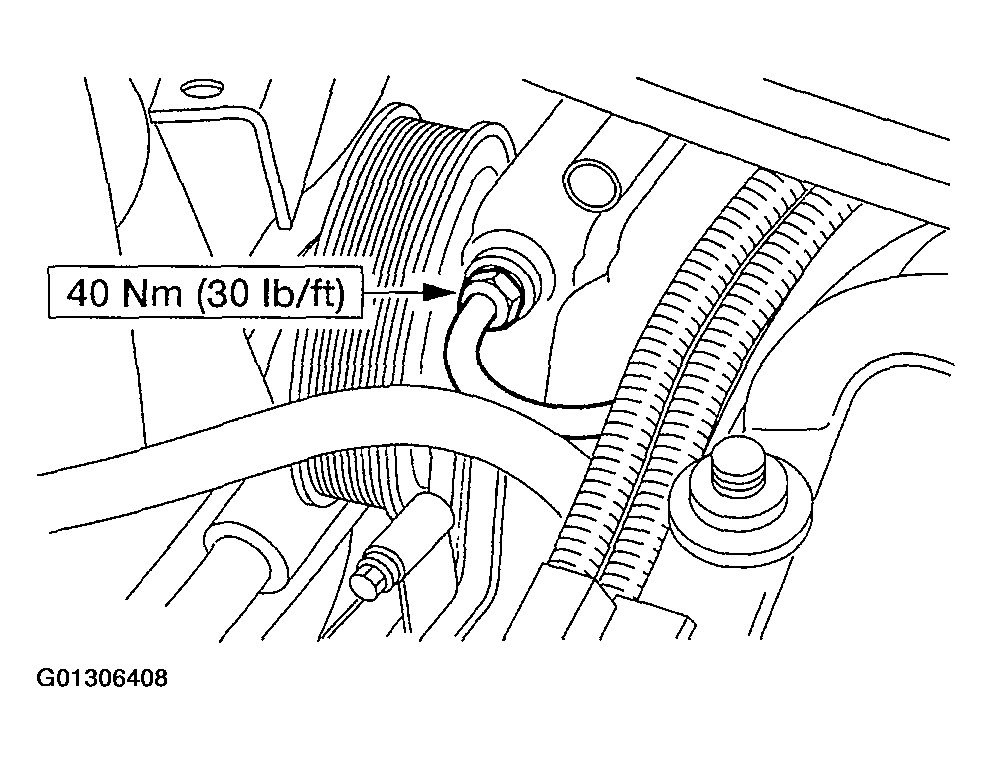

      Fig 3: Connecting Power Steering Hose
      G01306408Courtesy of FORD MOTOR CO.
