Steering Gear: Installation

Using the special tool, install new seals on the power steering lines.

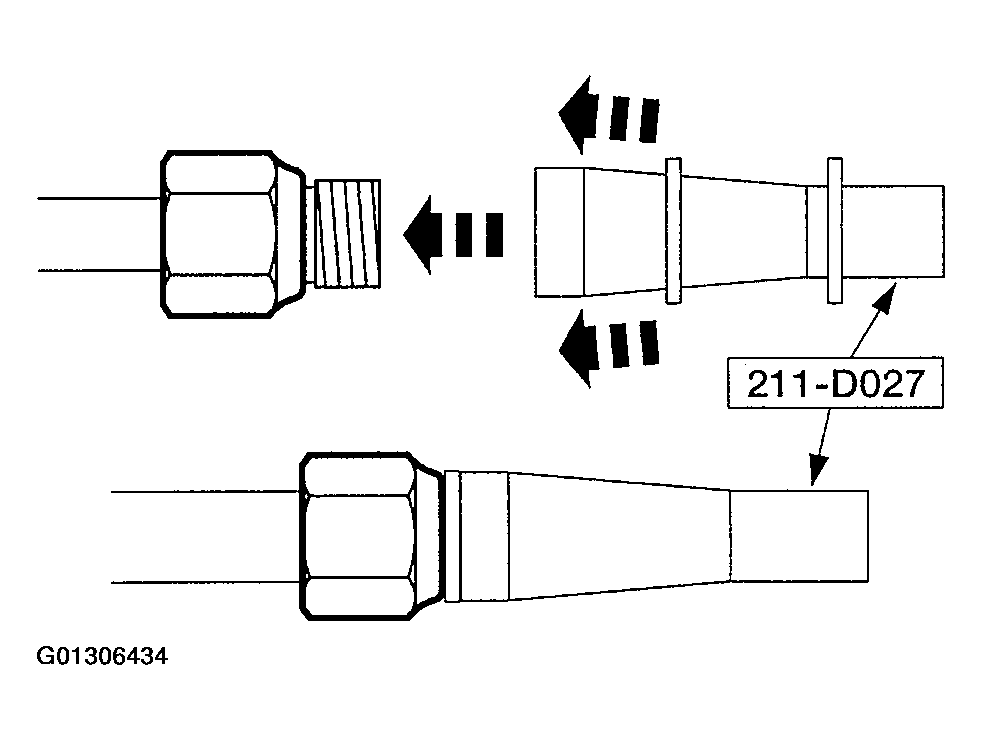

Fig 1: Installing Seals On Power Steering Lines
Courtesy of FORD MOTOR CO.
Install the steering gear through the LH wheel well.
Install the nuts.

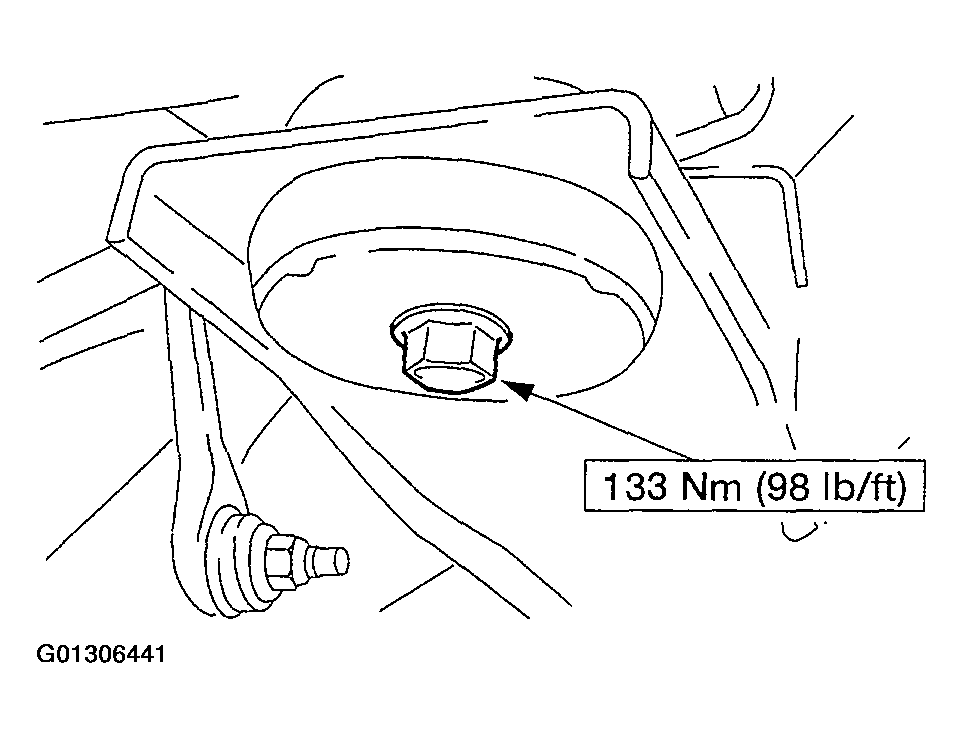

Fig 2: Installing Nuts
Courtesy of FORD MOTOR CO.

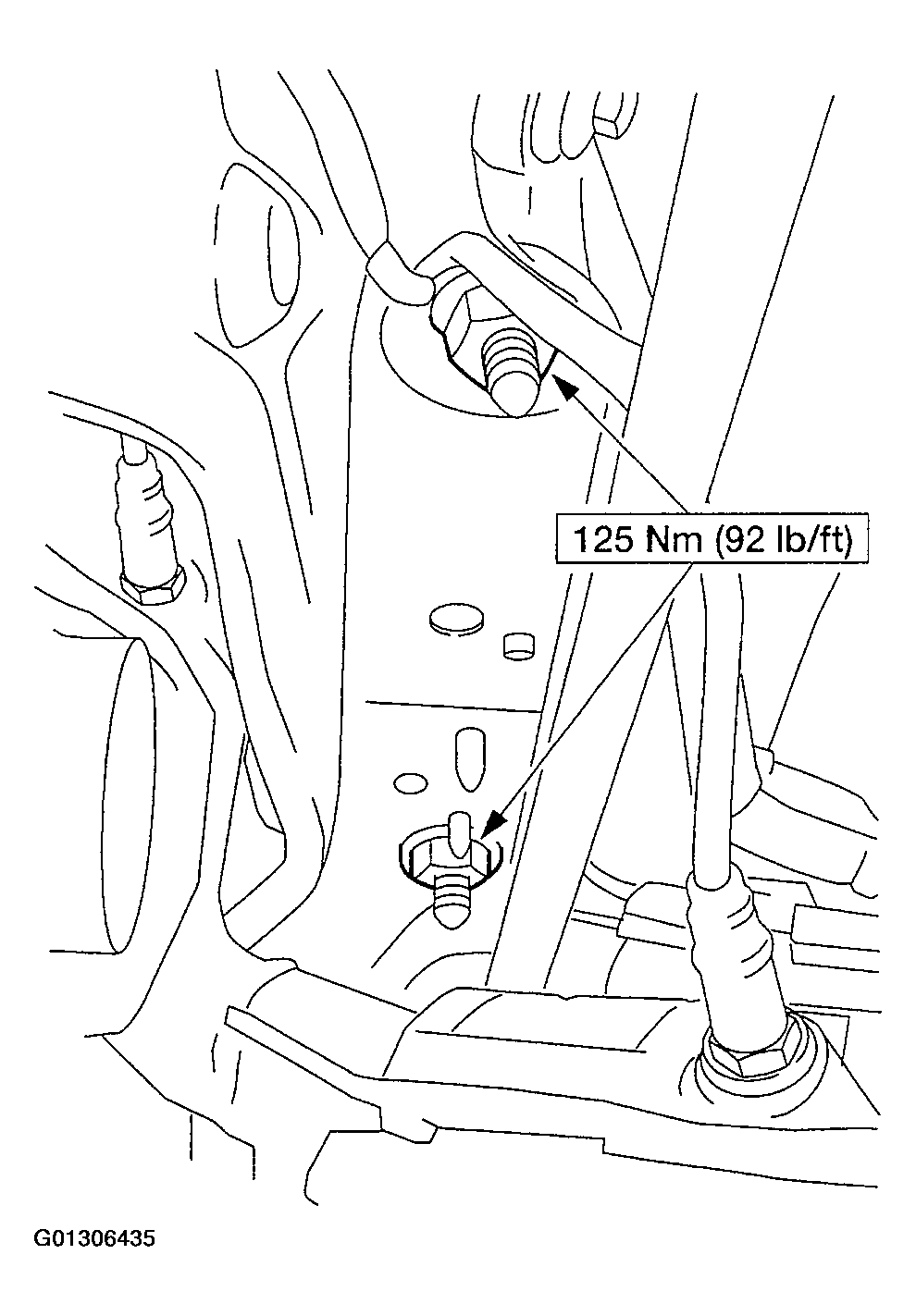

Install the bracket and screw.

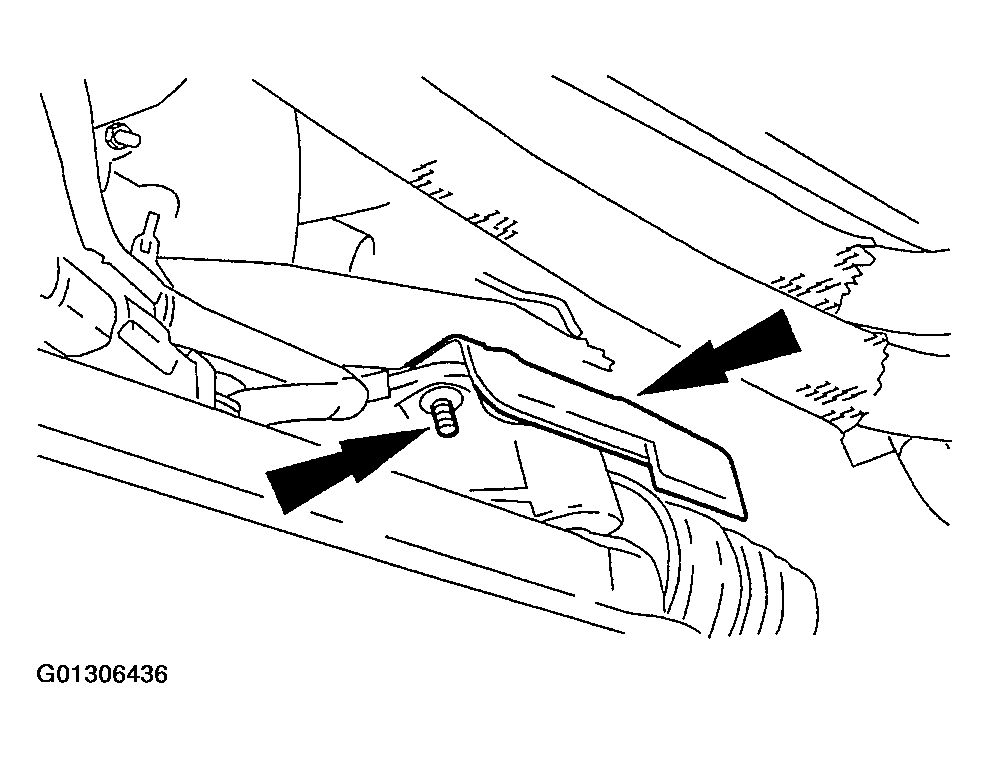

Fig 3: Installing Bracket And Screw
Courtesy of FORD MOTOR CO.
Connect the power steering lines.

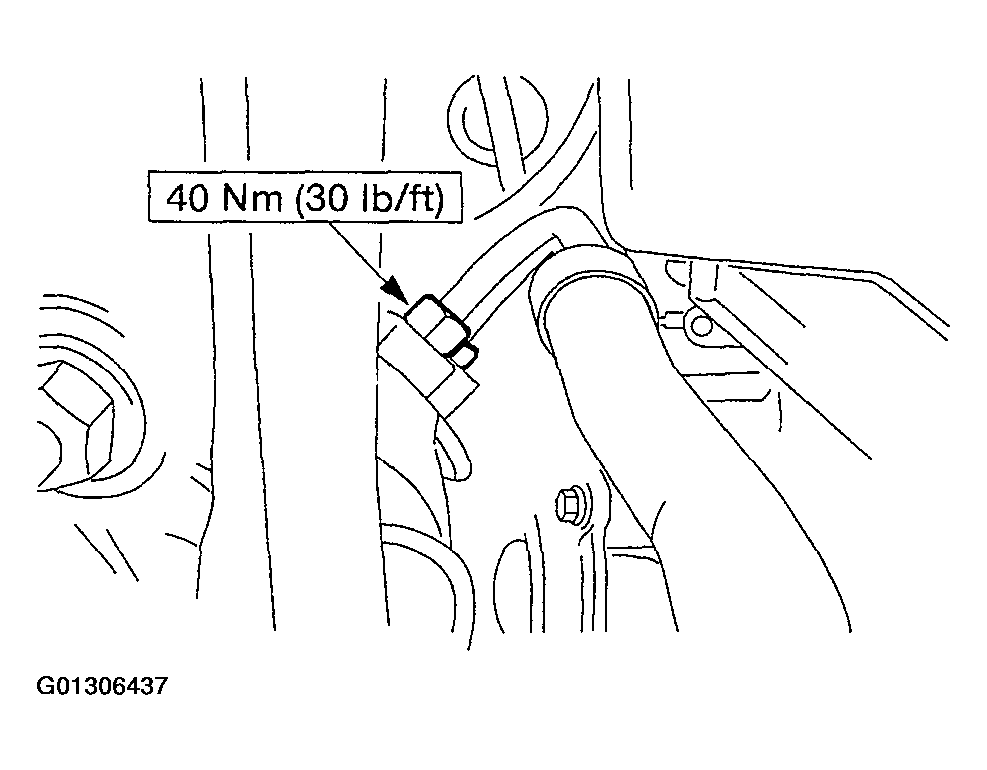

Fig 4: Connecting Power Steering Lines
Courtesy of FORD MOTOR CO.
Position the heat shield. Install a new tie strap.
Connect the intermediate steering shaft. Install a new pinch bolt and the dash weather seal.

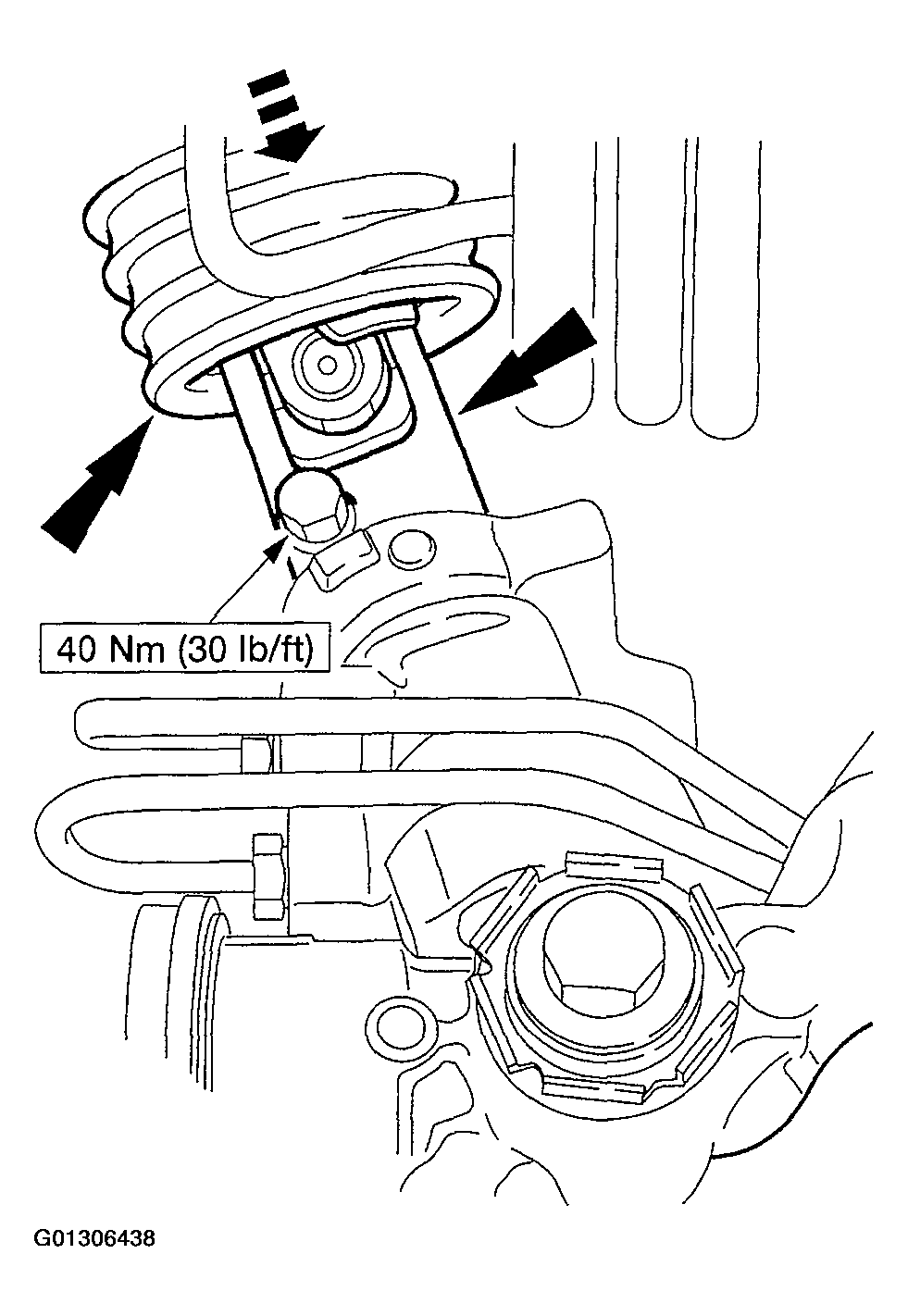

Fig 5: Connecting Intermediate Steering Shaft
Courtesy of FORD MOTOR CO.
Position the stabilizer bar and install the four bolts.

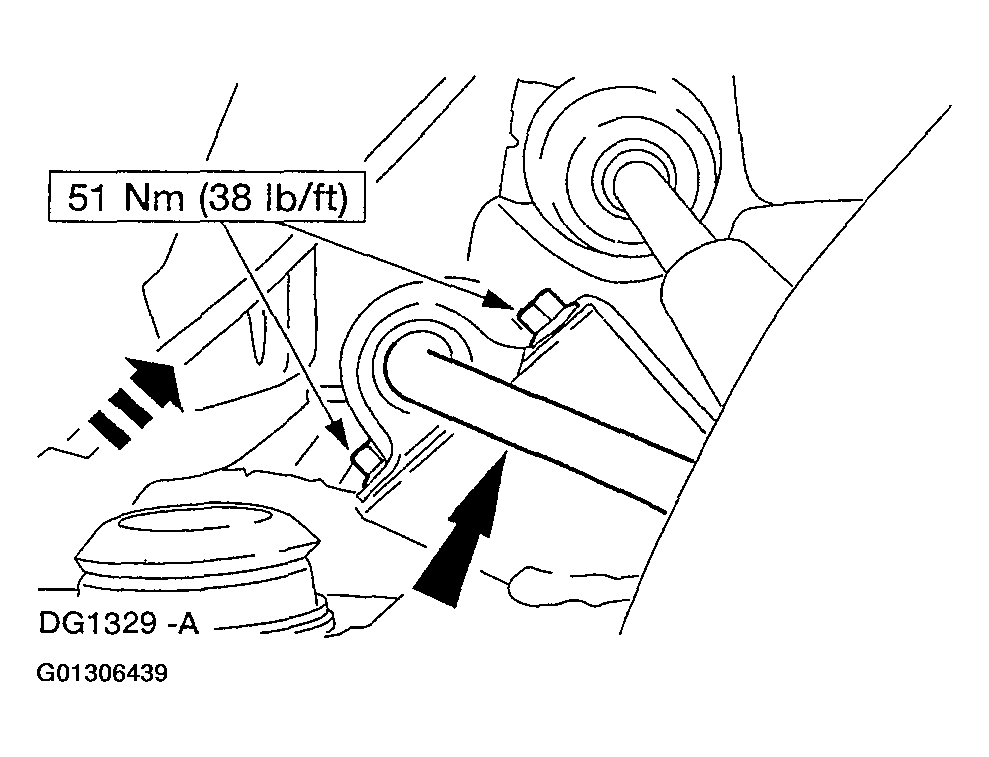

Fig 6: Installing Stabilizer Bar
Courtesy of FORD MOTOR CO.
Raise the front subframe to the body.
Attach the stabilizer bar links to the struts and install the nuts.

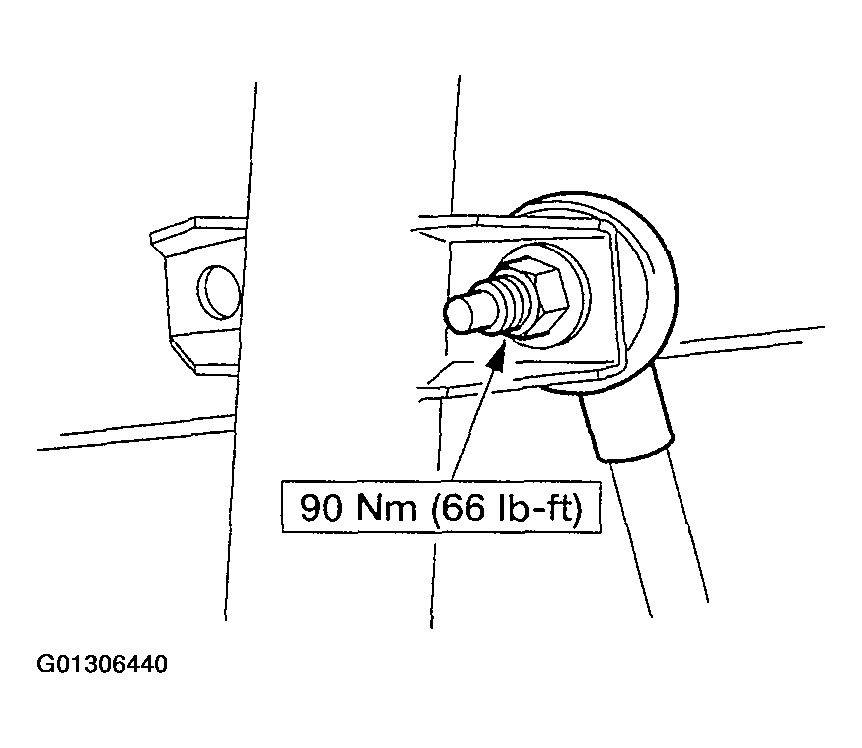

Fig 7: Attaching Stabilizer Bar Links To Struts
Courtesy of FORD MOTOR CO.
Install two new bolts.

Fig 8: Installing Bolts
Courtesy of FORD MOTOR CO.
Connect the flex pipe and install the two bolts.

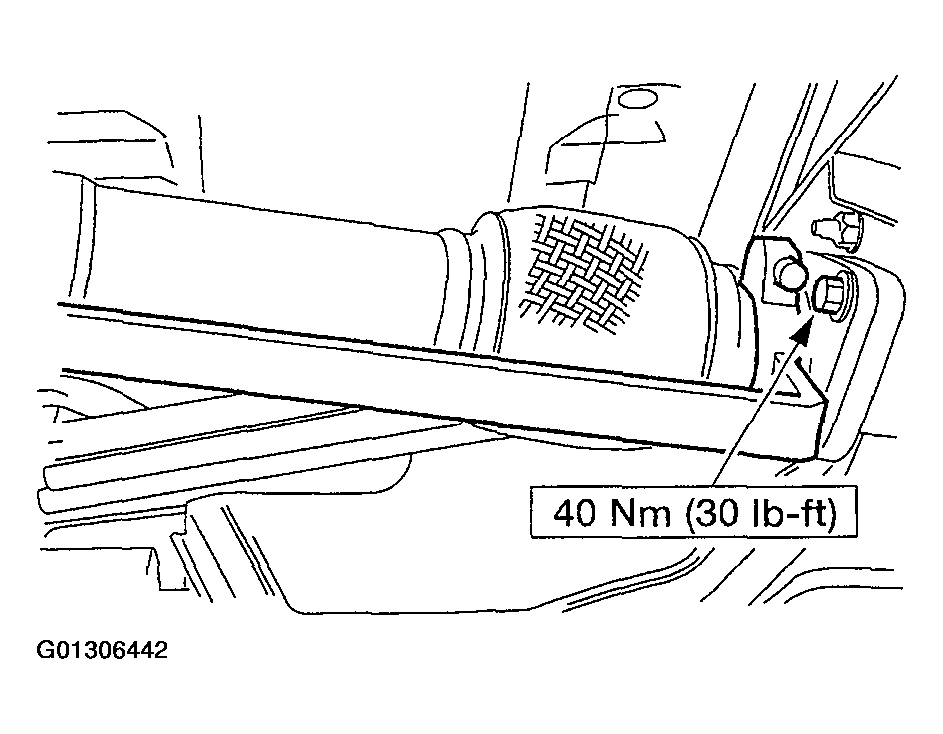

Fig 9: Connecting Flex Pipe
Courtesy of FORD MOTOR CO.
Remove the special tool.

Fig 10: Removing Special Tool
Courtesy of FORD MOTOR CO.
Connect the two heated oxygen sensor electrical connectors.

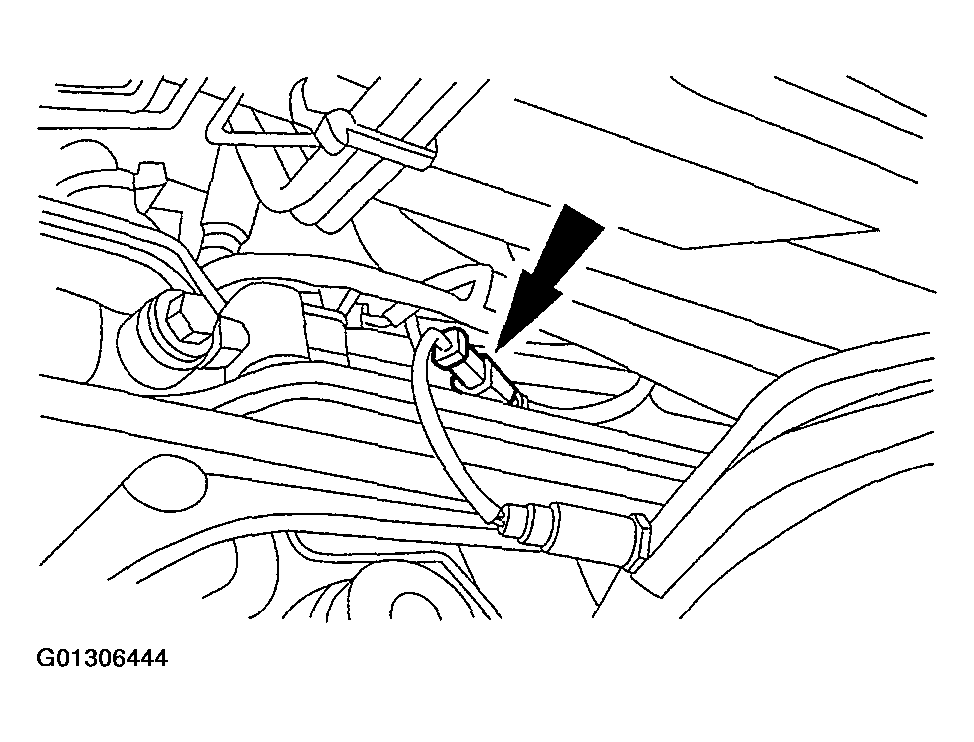

Fig 11: Connecting Electrical Connectors
Courtesy of FORD MOTOR CO.
Remove the jack stands.

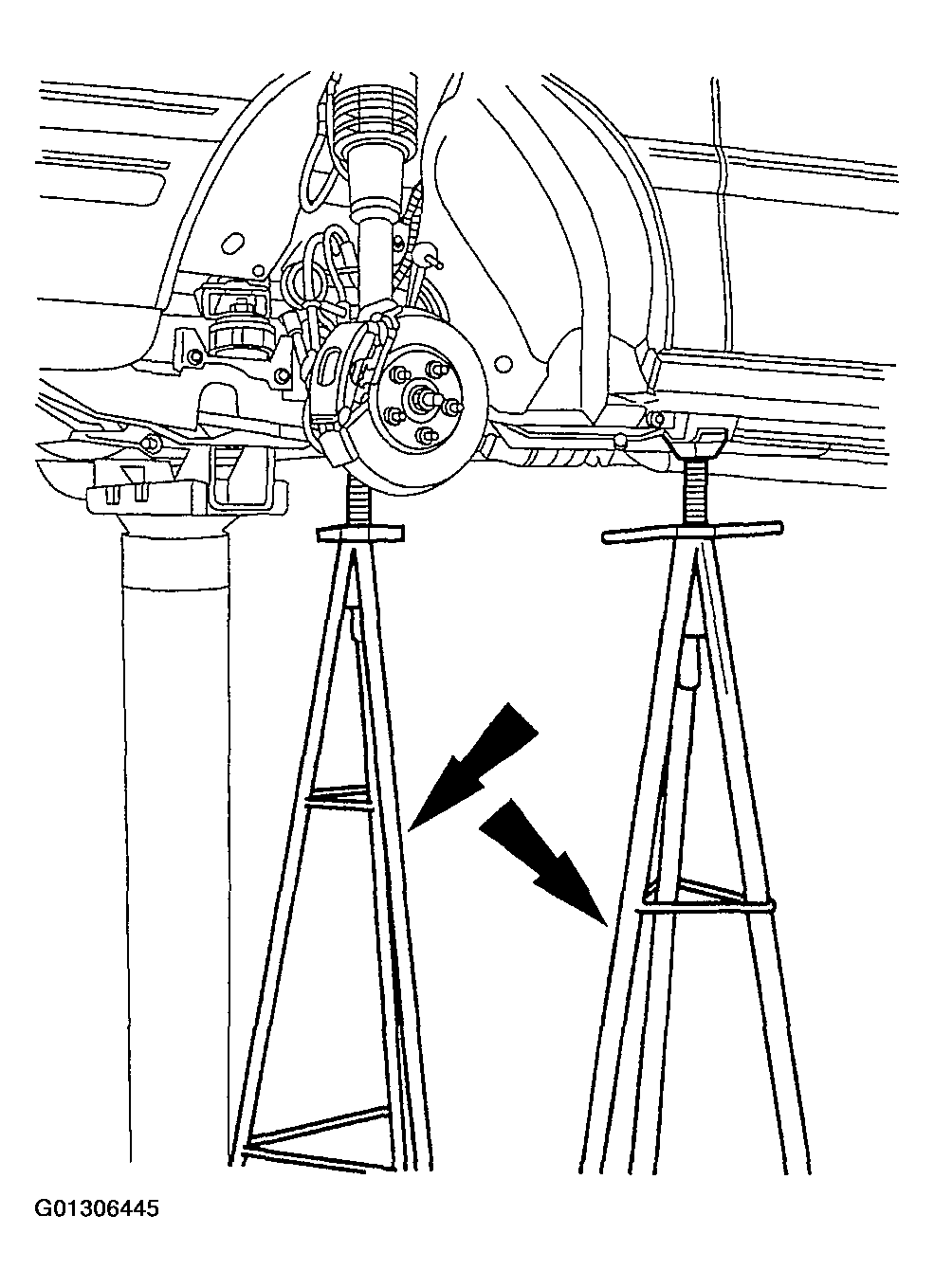

Fig 12: Removing Jack Stands
Courtesy of FORD MOTOR CO.
Connect the tie-rod ends. Install the castellated nuts and new cotter pins.

Fig 13: Installing Cotter Pins
Courtesy of FORD MOTOR CO.
Purge the power steering system and check for leaks. For additional information, refer to STEERING SYSTEM-GENERAL INFORMATION .
Install the front wheel and tire assemblies. For additional information, refer to WHEELS & TIRES .
Check and if necessary adjust the wheel alignment. For additional information, refer to SUSPENSION SYSTEM-GENERAL INFORMATION .
