Symptom Chart

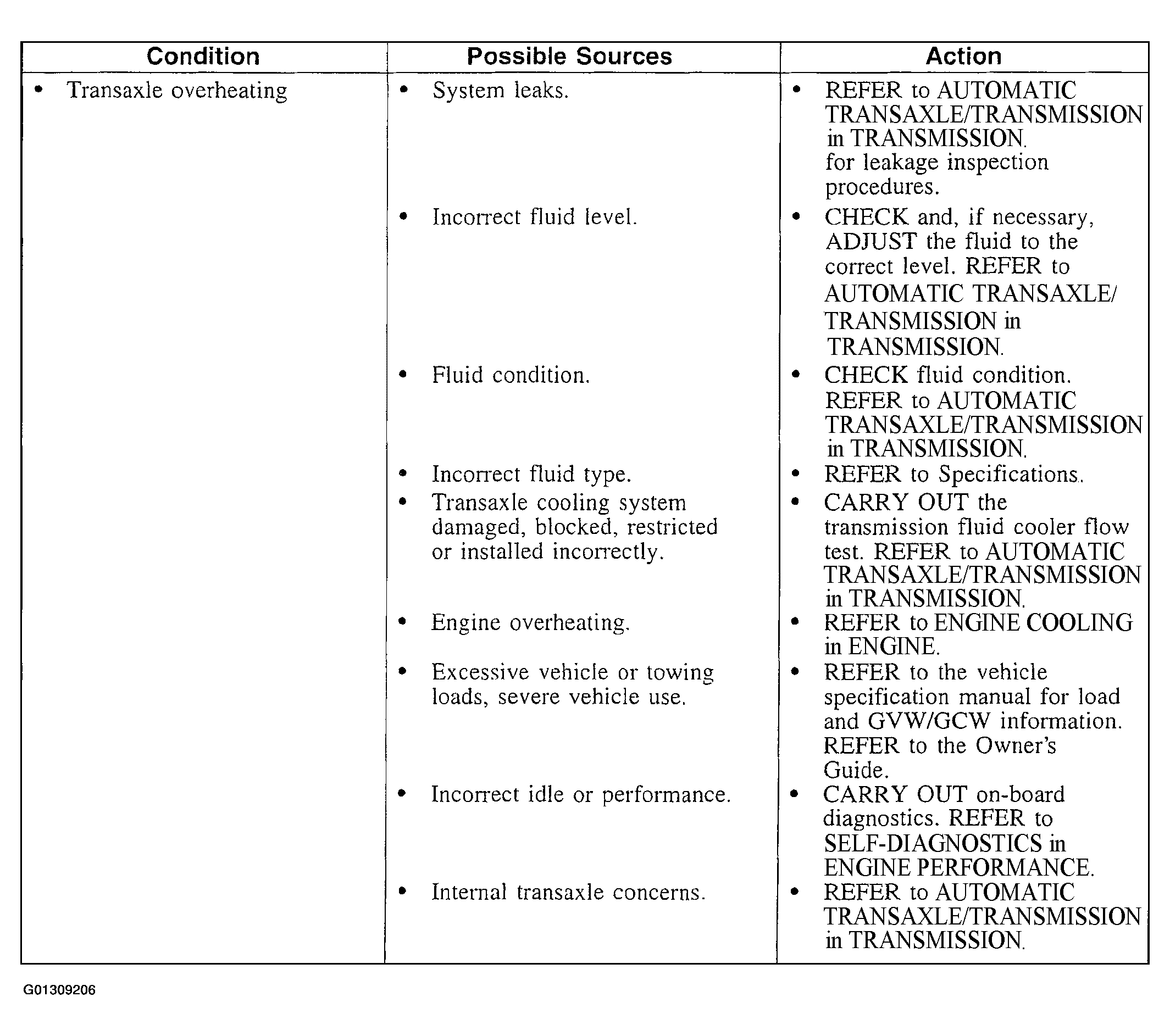

Fig 1: Transaxle Cooling System Problem Symptom Chart
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
