Removal and Installation

  1. Remove the transmission control switch (TCS).
    1. Remove the cover.
    2. Remove the TCS.

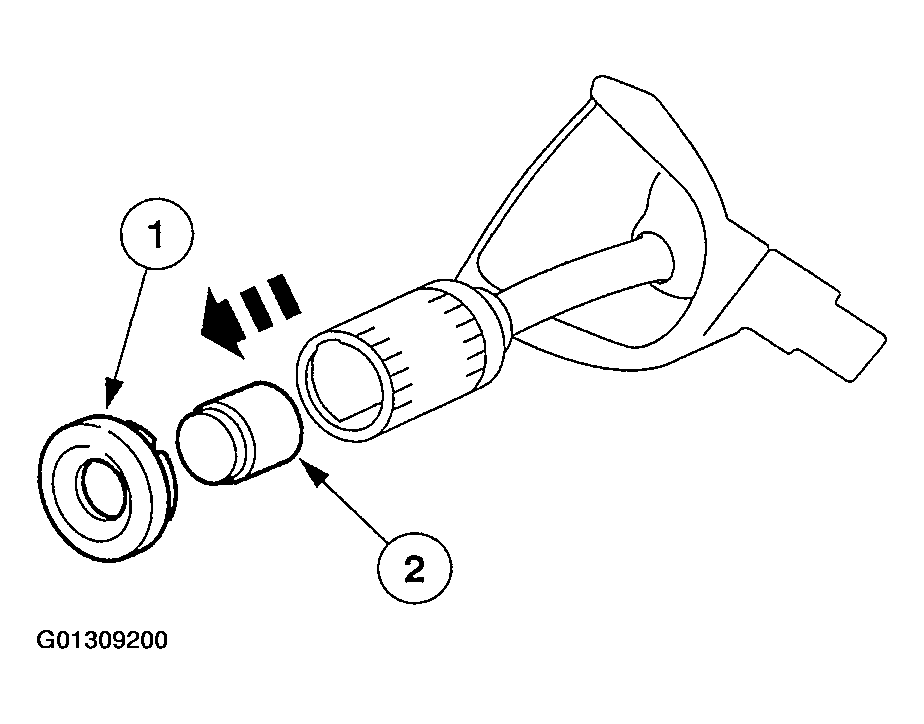

      Fig 1: Removing Transmission Control Switch
      G01309200Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
