Disassembled Views

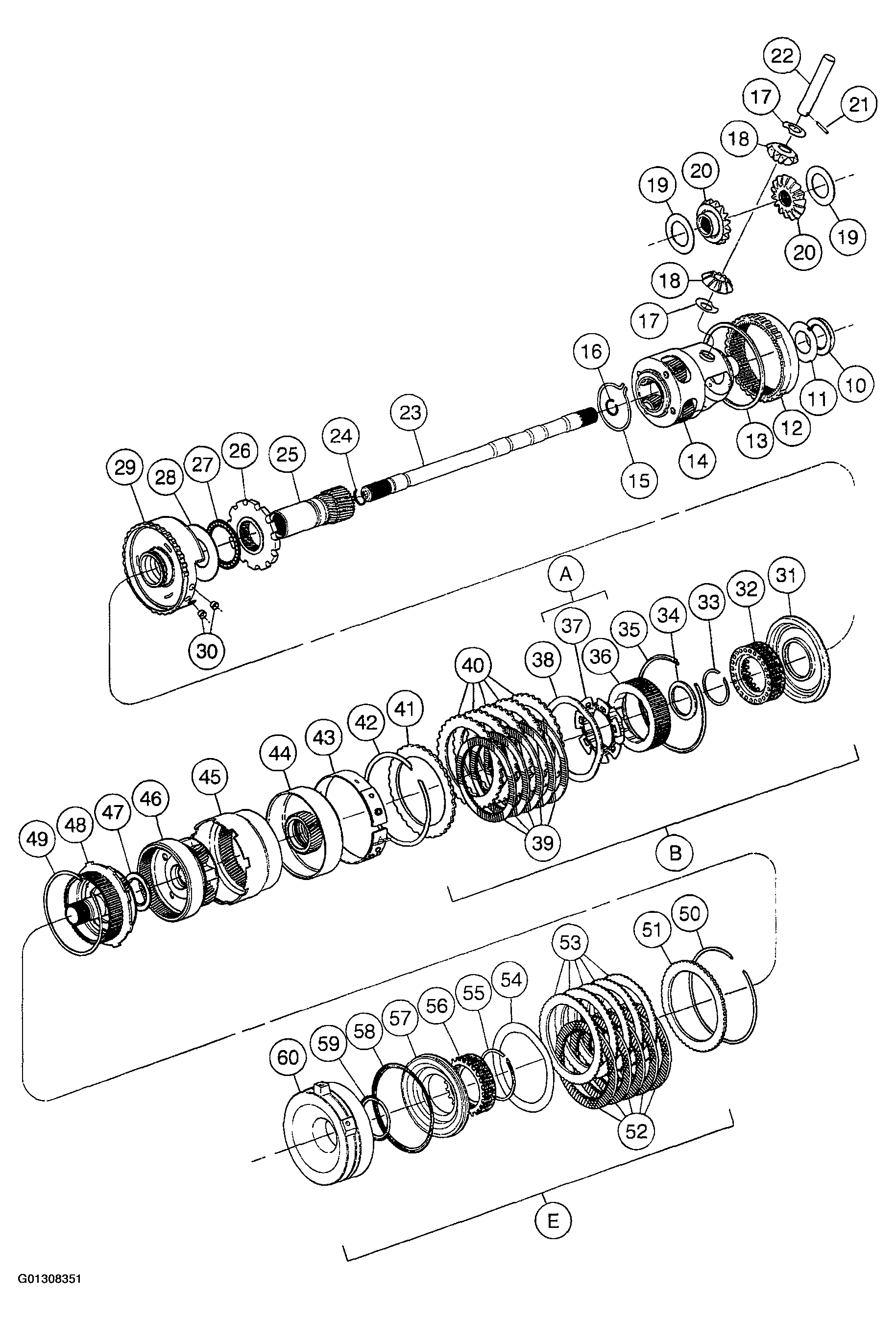

Fig 1: Disassembled View Of Transaxle Components (1 Of 4)

Courtesy of FORD MOTOR CO.

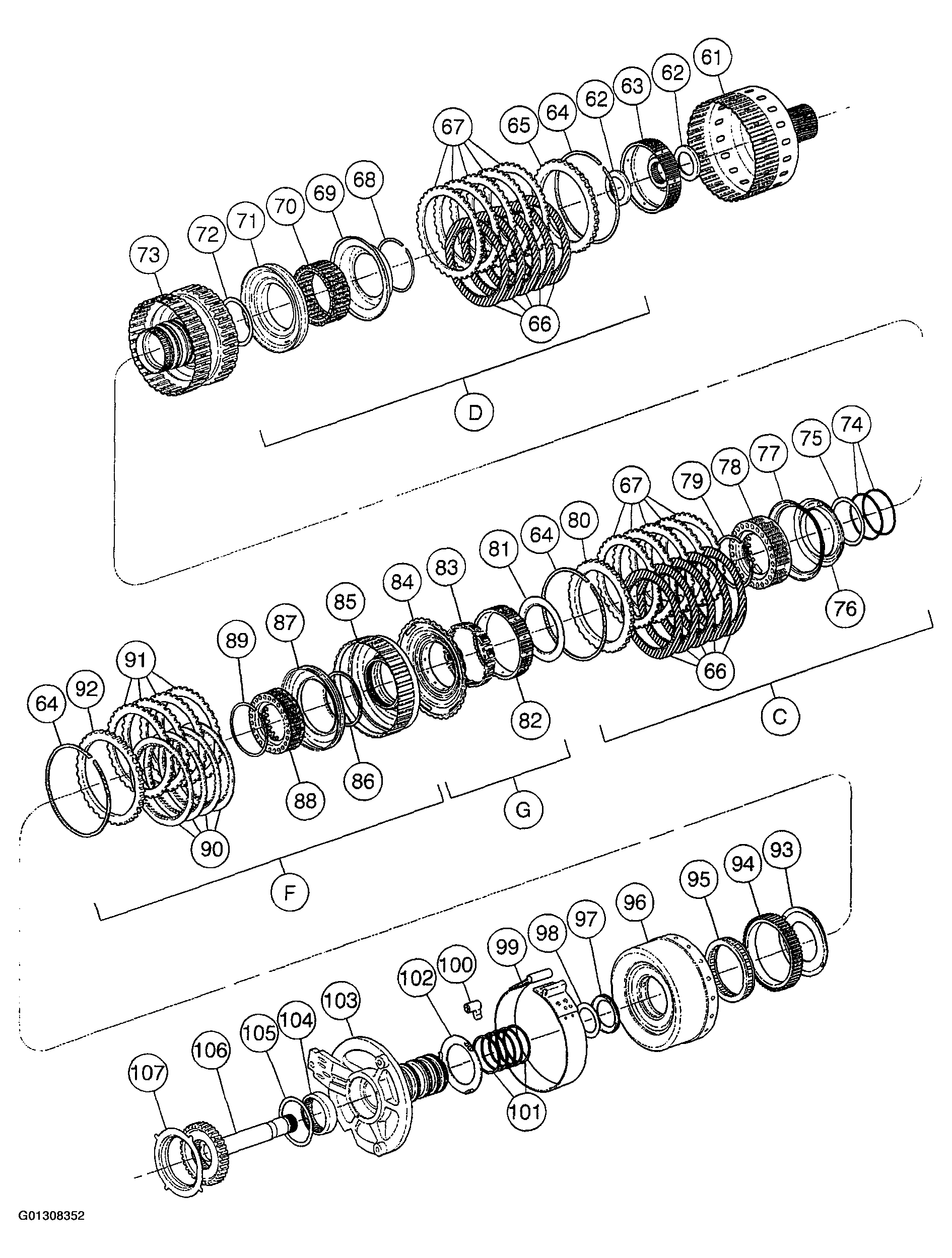

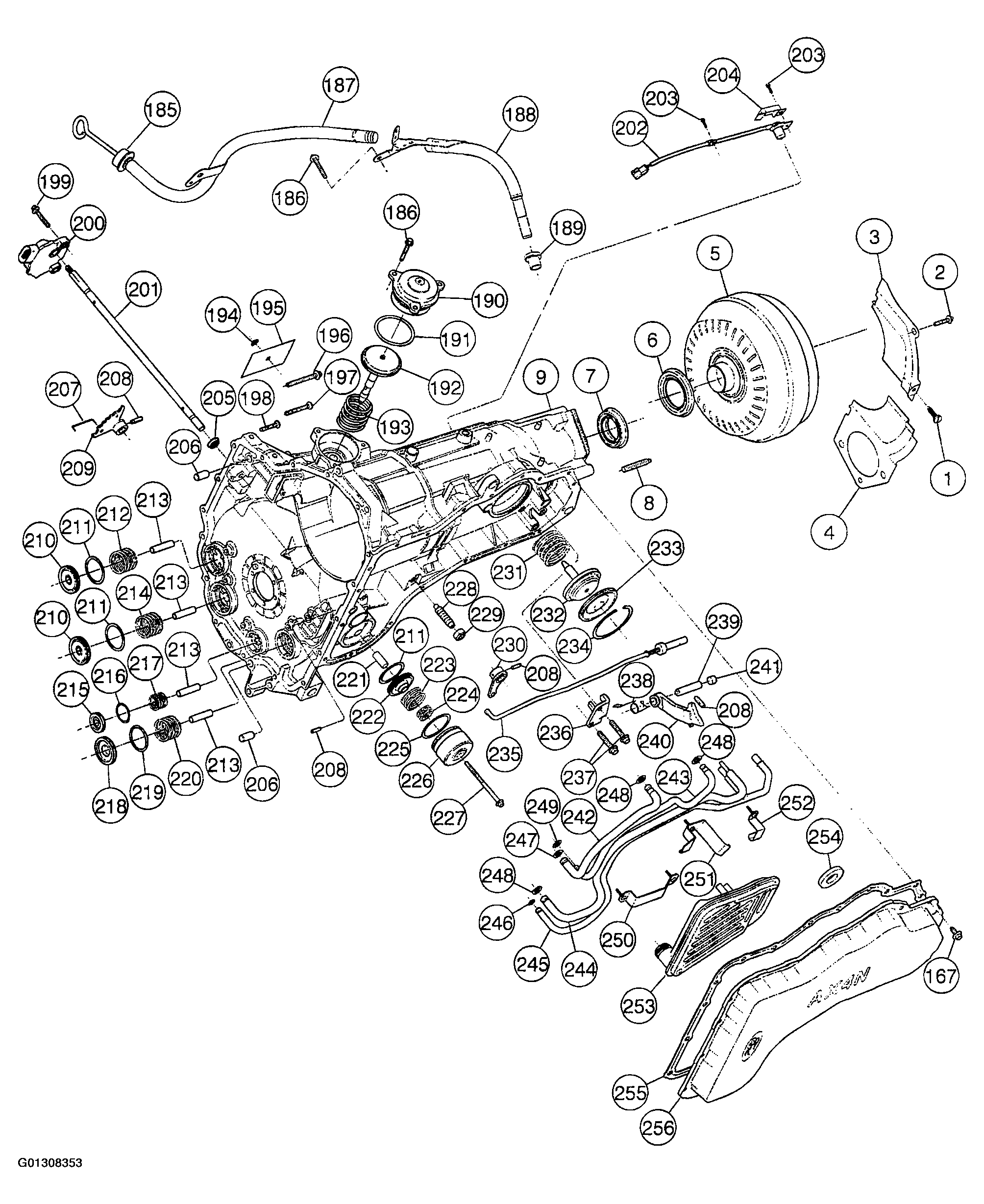

Fig 2: Disassembled View Of Transaxle Components (2 Of 4)

Courtesy of FORD MOTOR CO.

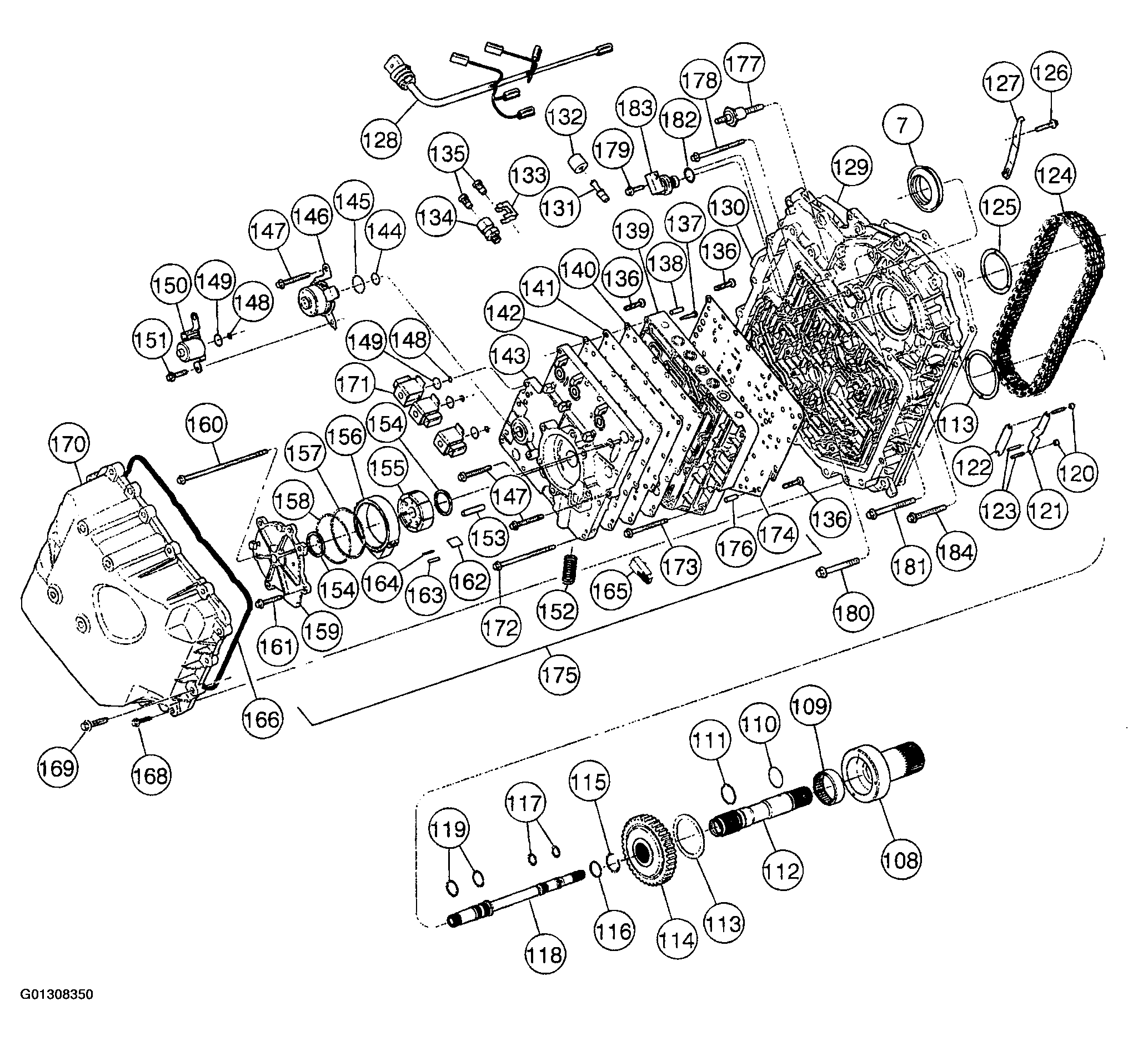

Fig 3: Disassembled View Of Transaxle Components (3 Of 4)

Courtesy of FORD MOTOR CO.

Fig 4: Disassembled View Of Transaxle Components (4 Of 4)

Courtesy of FORD MOTOR CO.

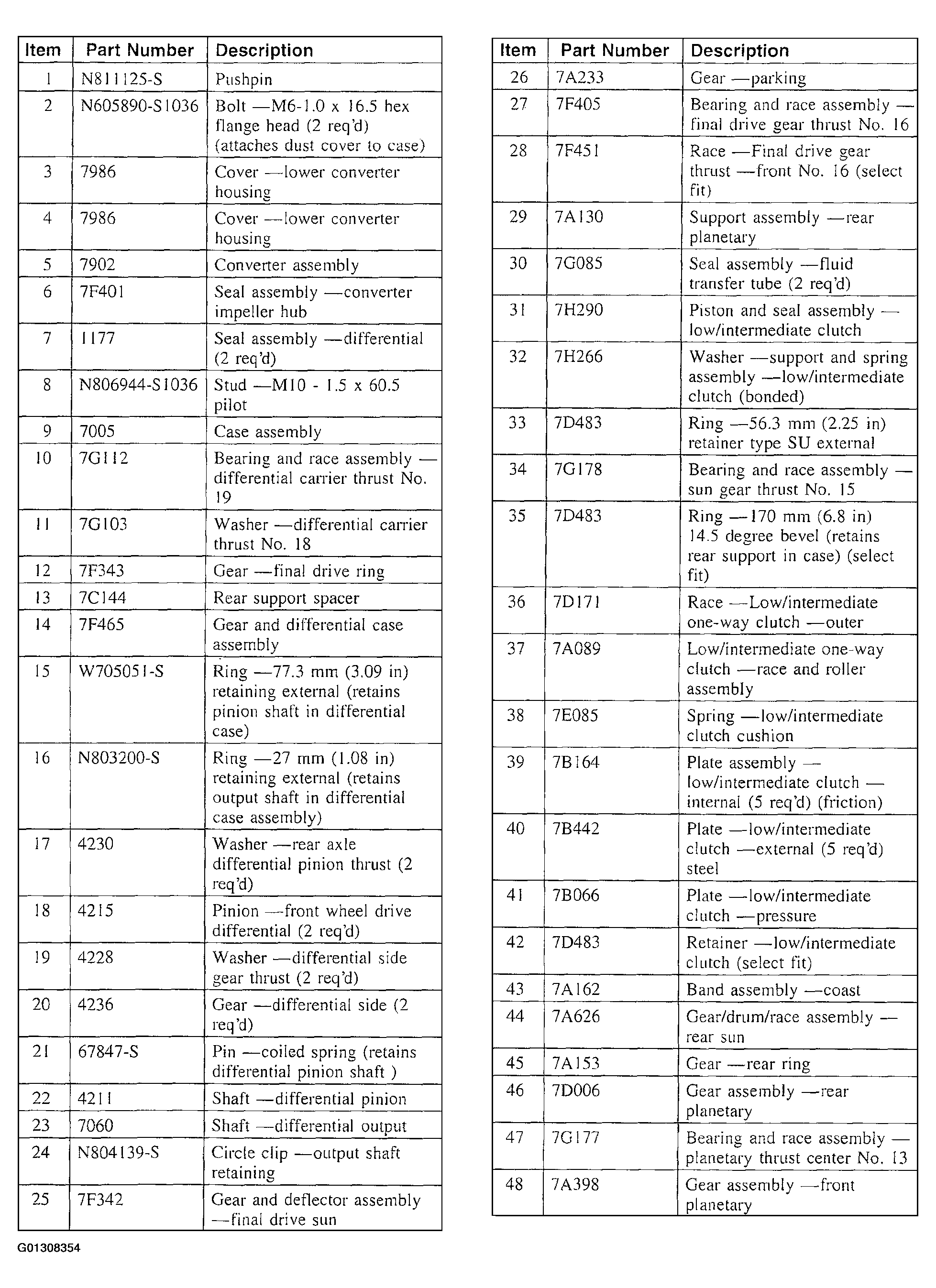

Fig 5: Identifying Transaxle Components (Items 1-48)

Courtesy of FORD MOTOR CO.

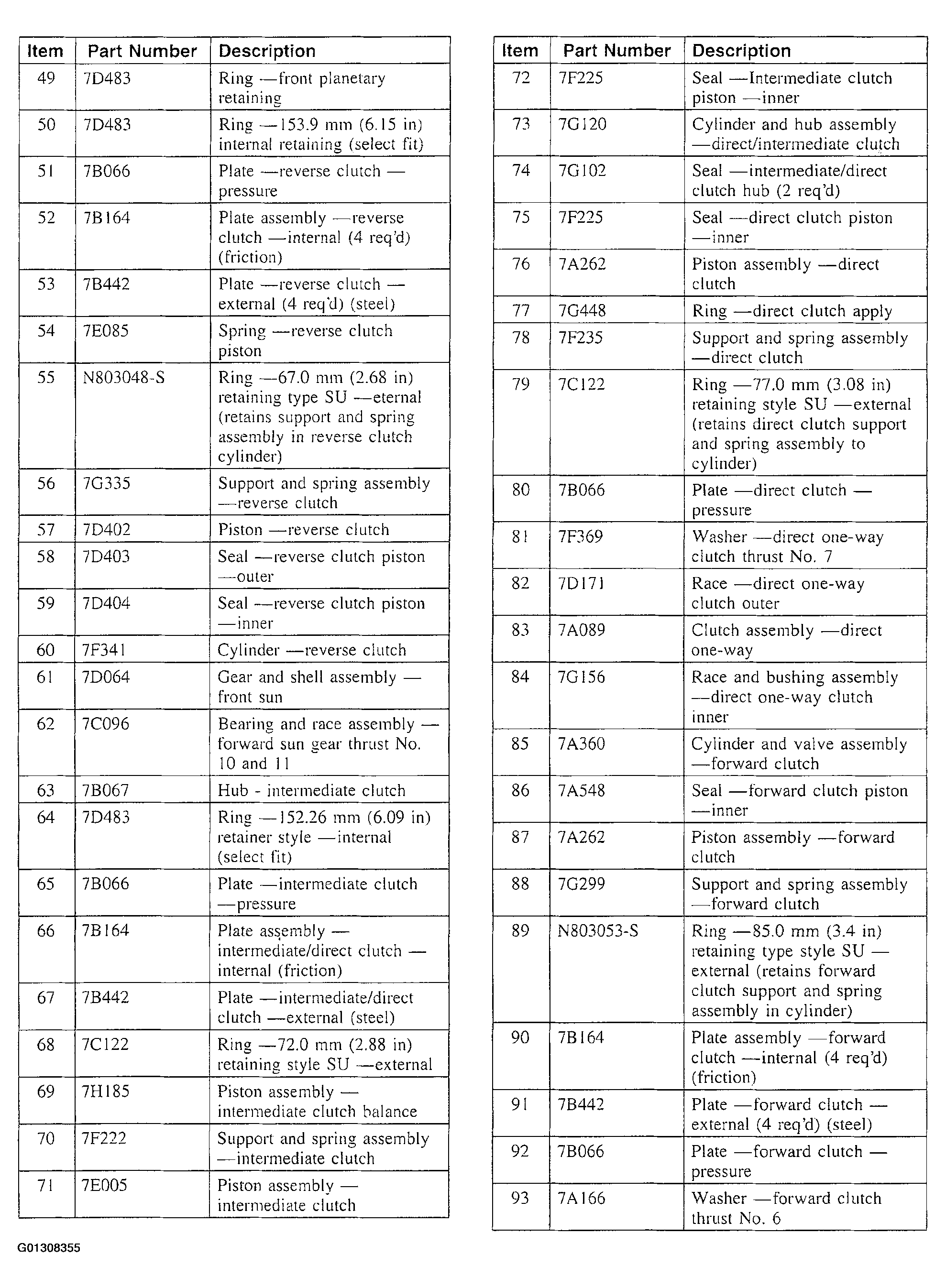

Fig 6: Identifying Transaxle Components (Items 49-93)

Courtesy of FORD MOTOR CO.

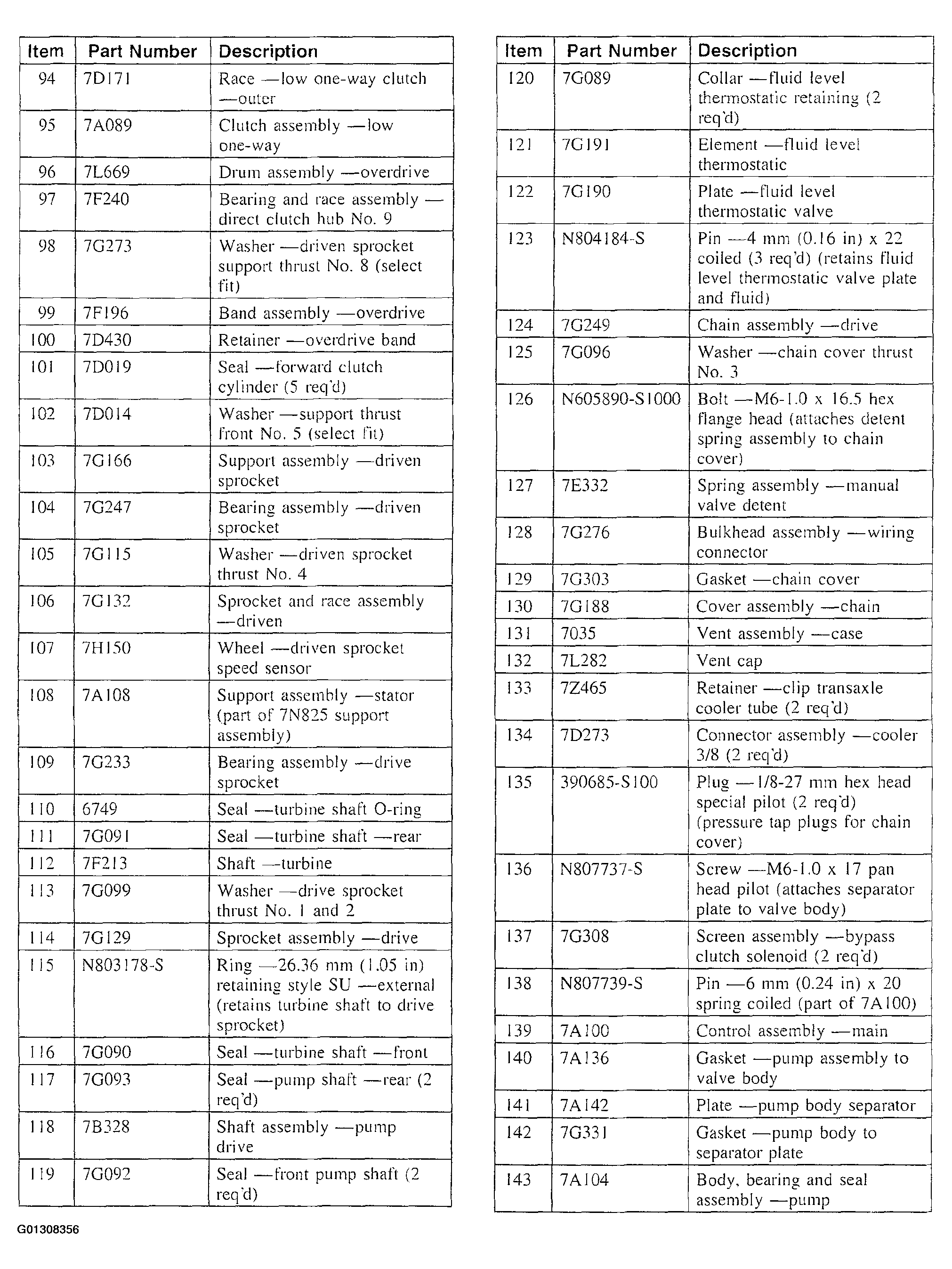

Fig 7: Identifying Transaxle Components (Items 94-143)

Courtesy of FORD MOTOR CO.

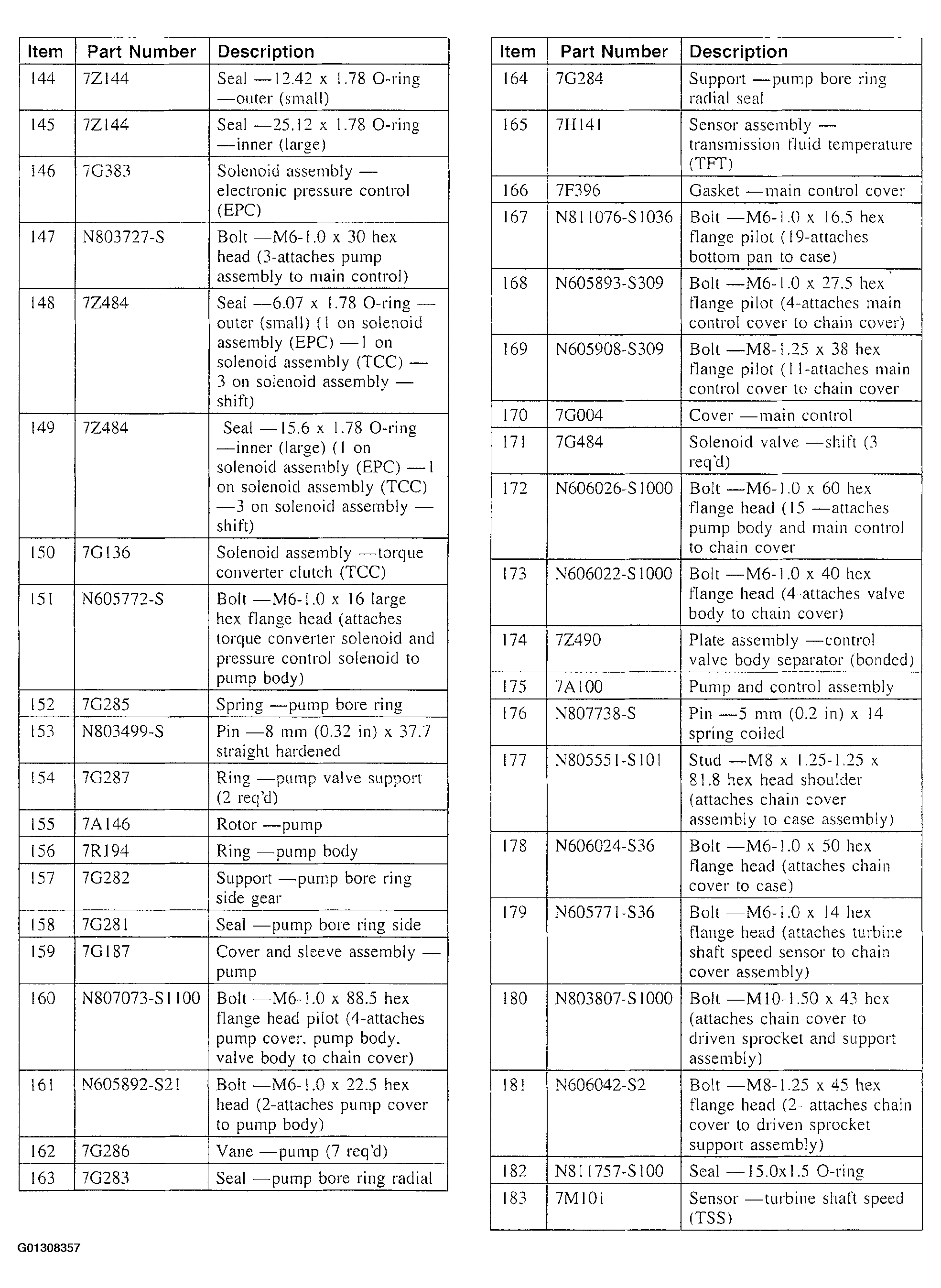

Fig 8: Identifying Transaxle Components (Items 144-183)

Courtesy of FORD MOTOR CO.

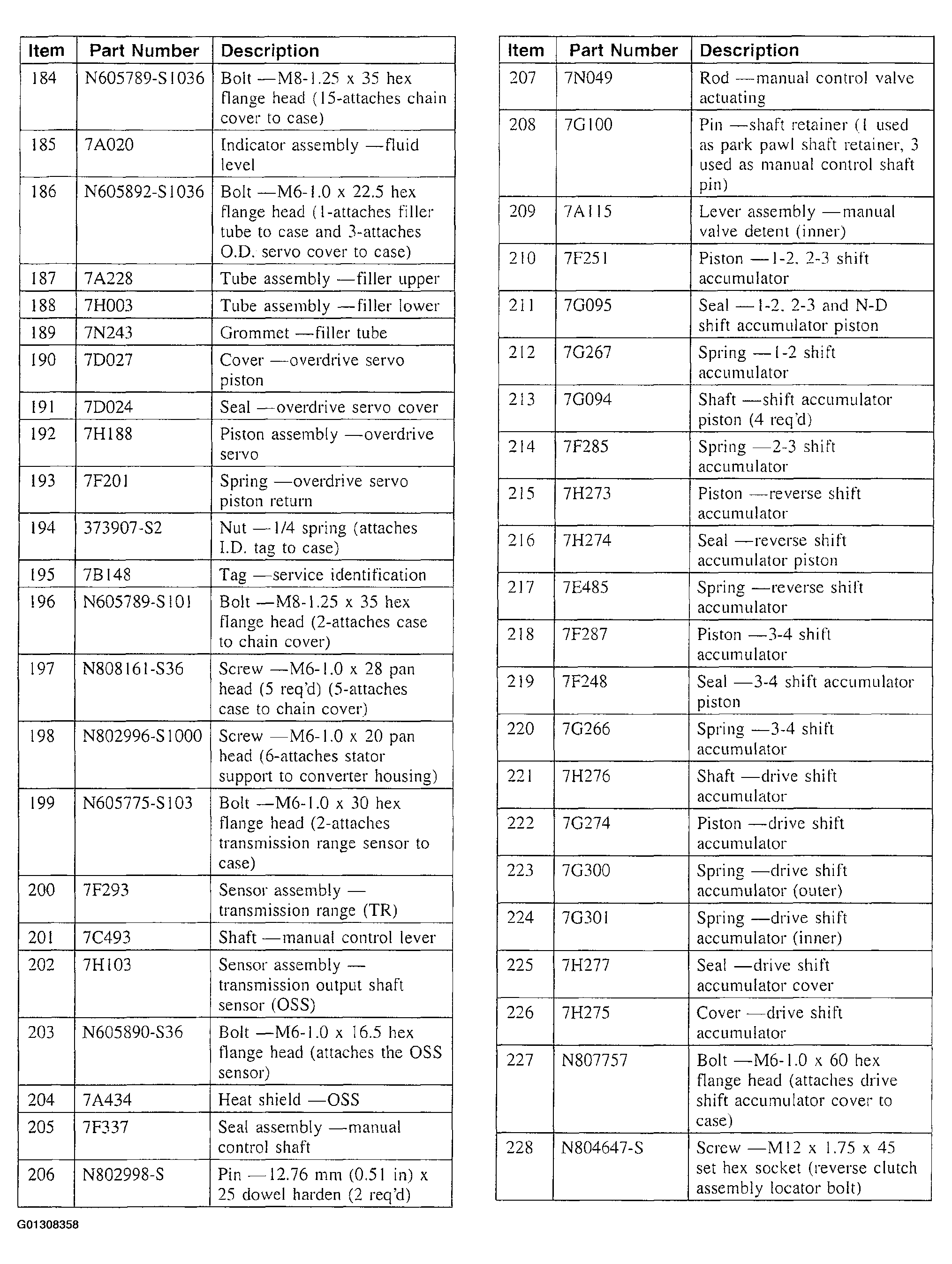

Fig 9: Identifying Transaxle Components (Items 184-228)

Courtesy of FORD MOTOR CO.

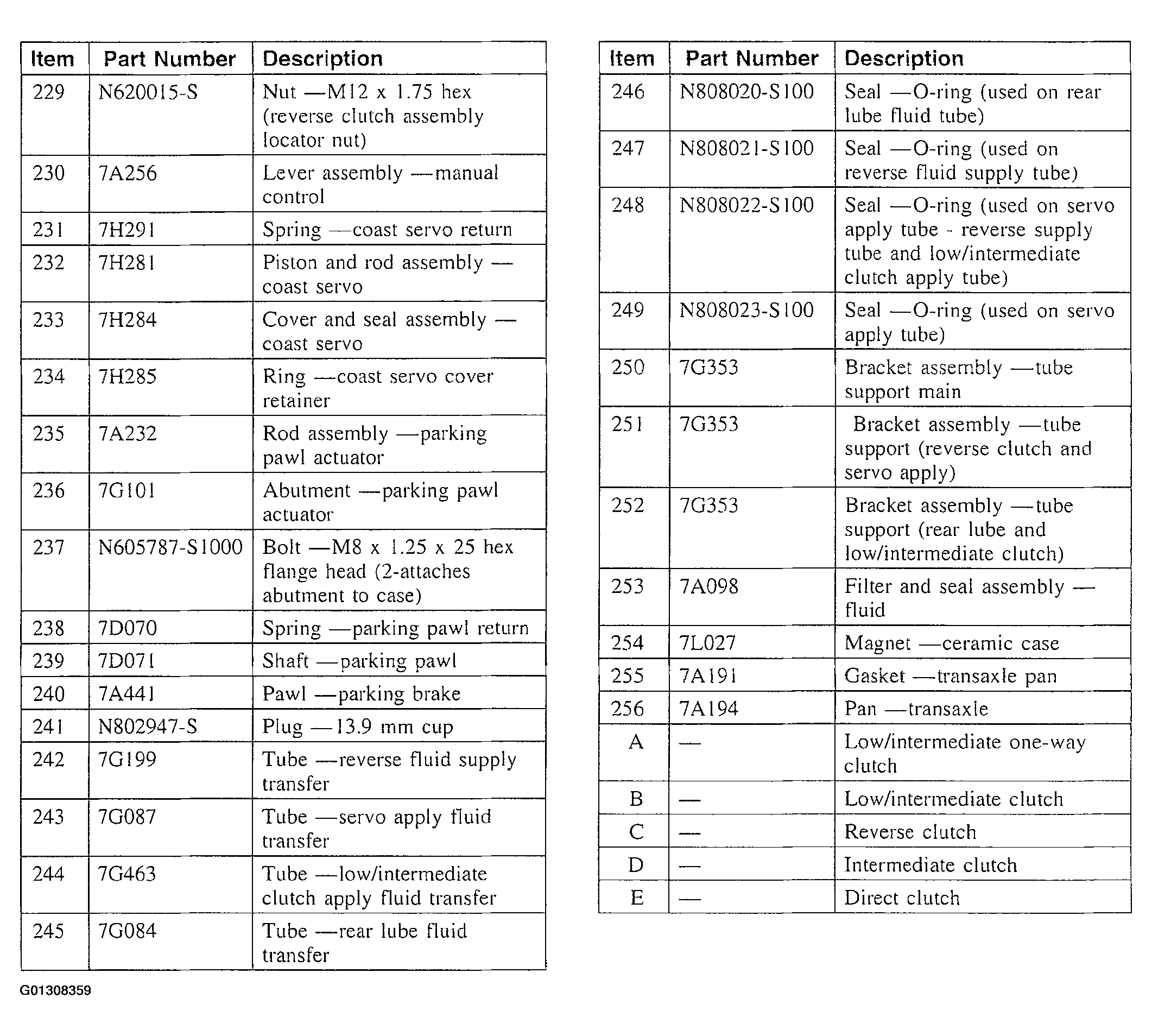

Fig 10: Identifying Transaxle Components (Items 229-256 & A-E)

Courtesy of FORD MOTOR CO.

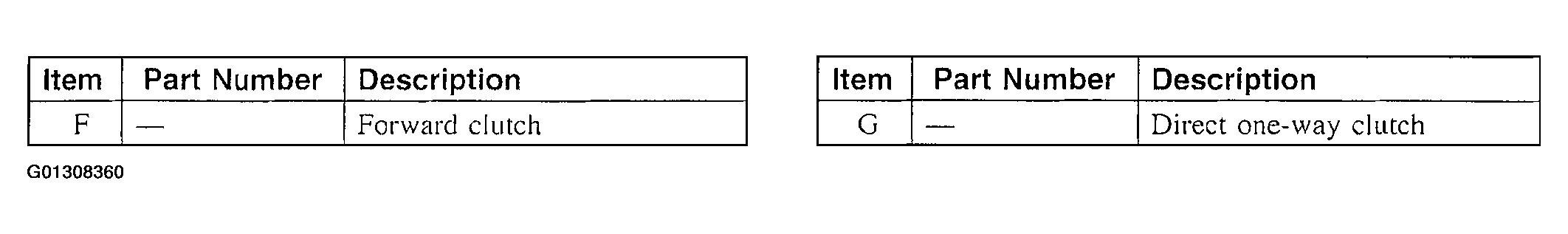

Fig 11: Identifying Transaxle Components (Items F & G)

Courtesy of FORD MOTOR CO.
