Diagnostic Flow Chart

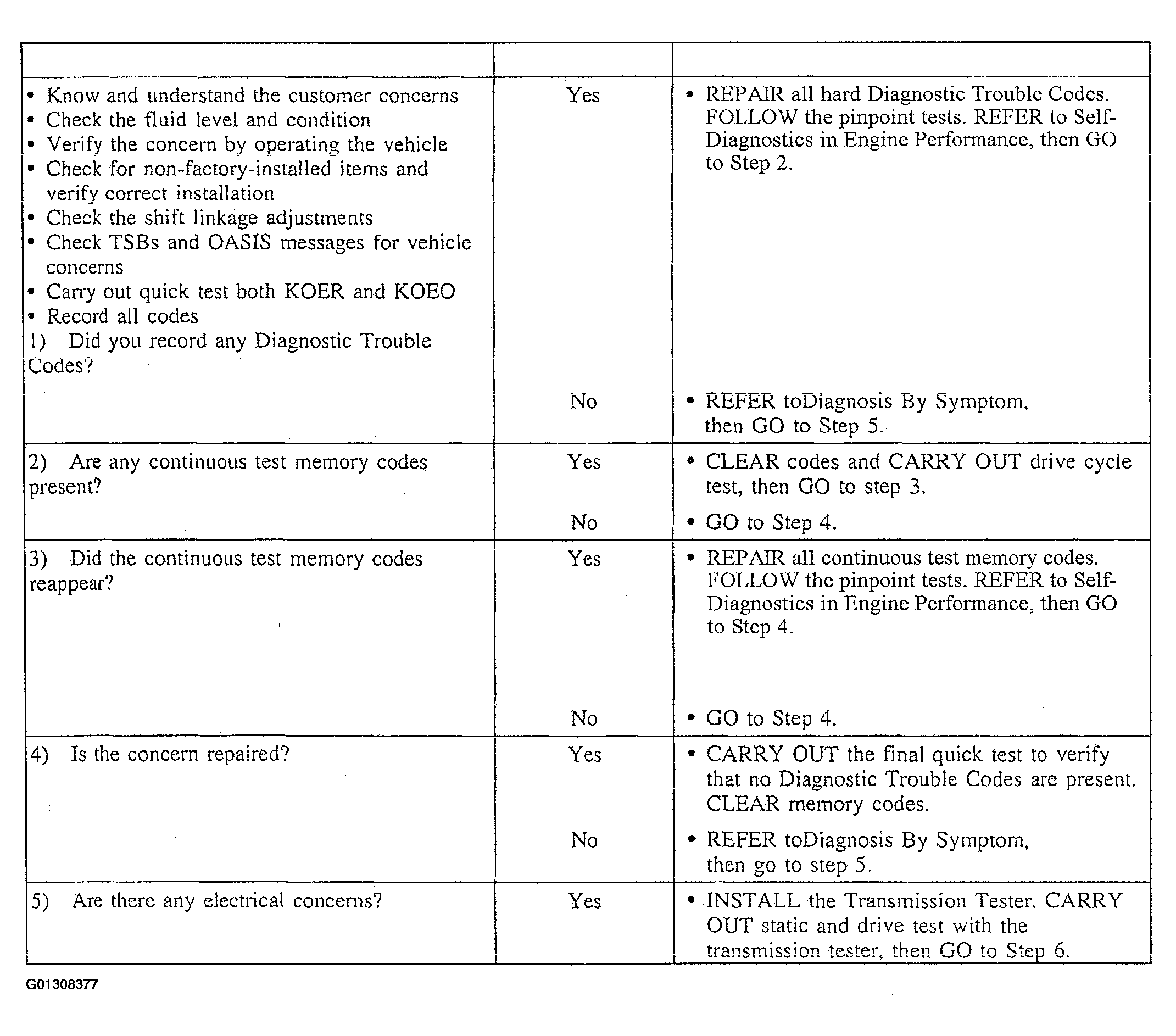

Fig 1: Transaxle - Diagnostic Flow Chart (1 Of 2)
G01308377Courtesy of FORD MOTOR CO.

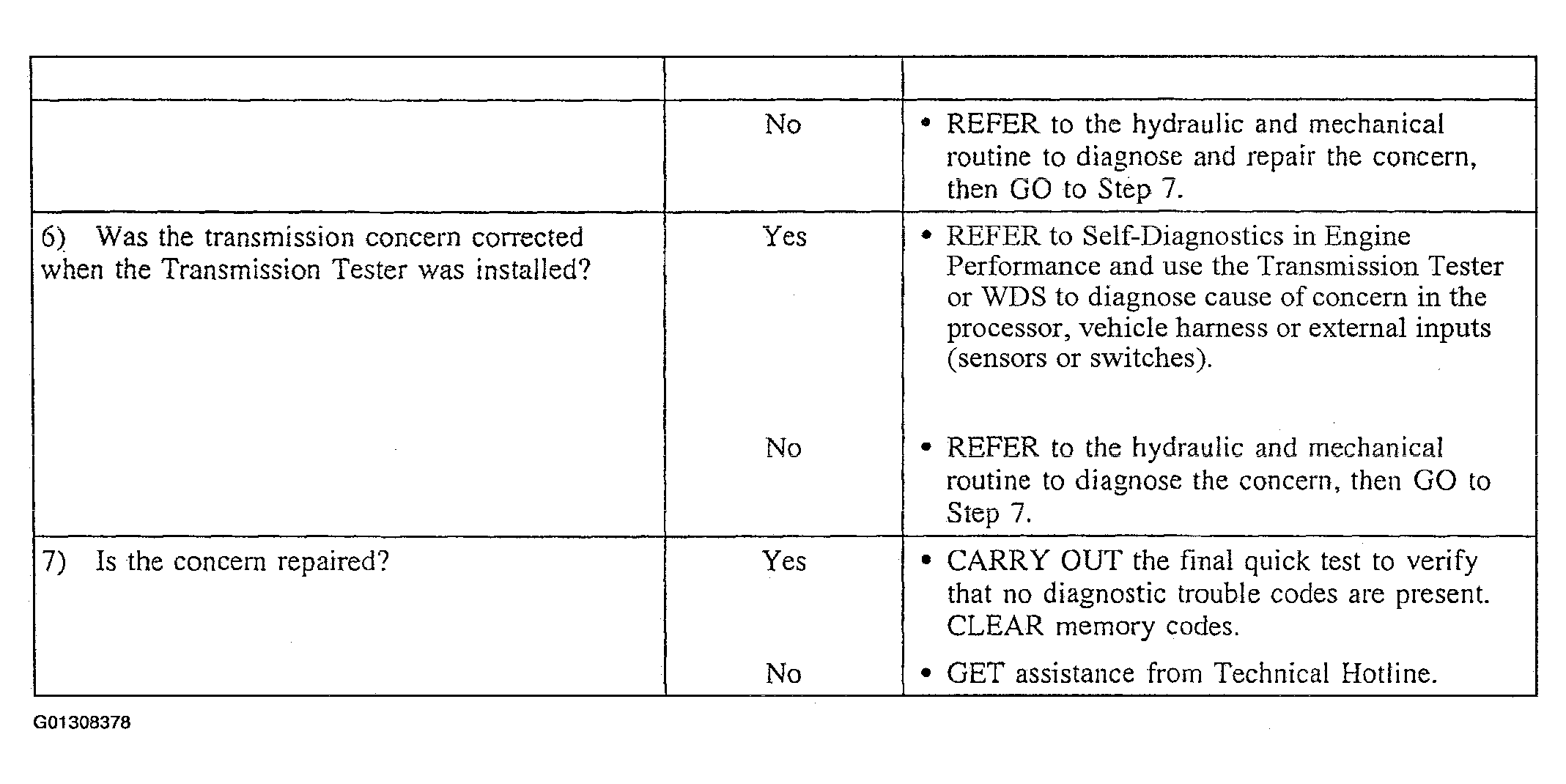

Fig 2: Transaxle - Diagnostic Flow Chart (2 Of 2)
G01308378Courtesy of FORD MOTOR CO.
