Message Center Display

The following messages may be displayed on the message center.

This message center will display CHECK TRANSMISSION if the following codes have been set.

Fig 1: Message Center Display Reference Chart (1 Of 3)

Courtesy of FORD MOTOR CO.

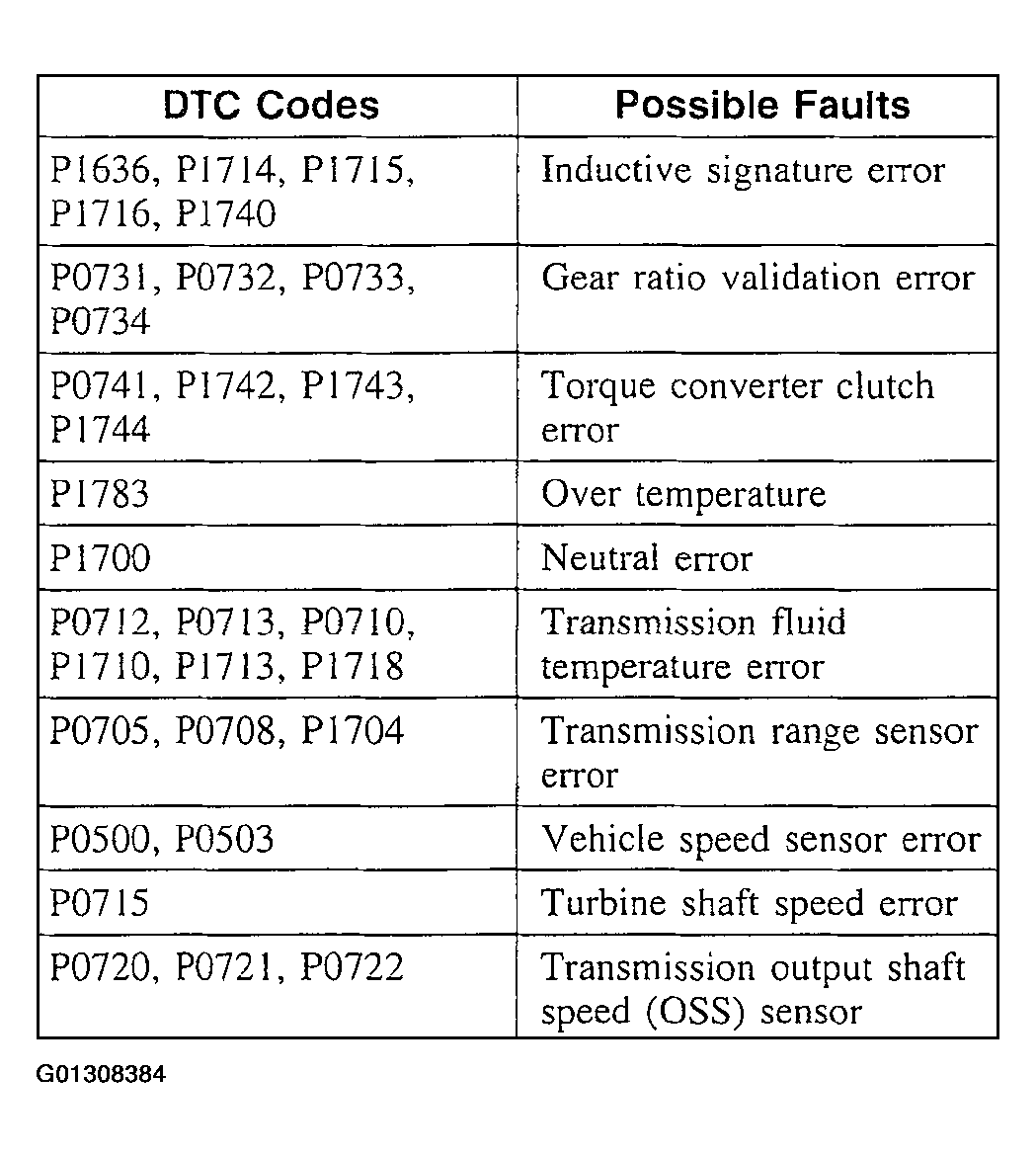

Fig 2: Message Center Display Reference Chart (2 Of 3)

Courtesy of FORD MOTOR CO.

NOTE: For codes. Refer to DIAGNOSTIC TROUBLE CODE CHARTS .

This message center will display TRANSMISSION OVERHEAT if the following code has been set.

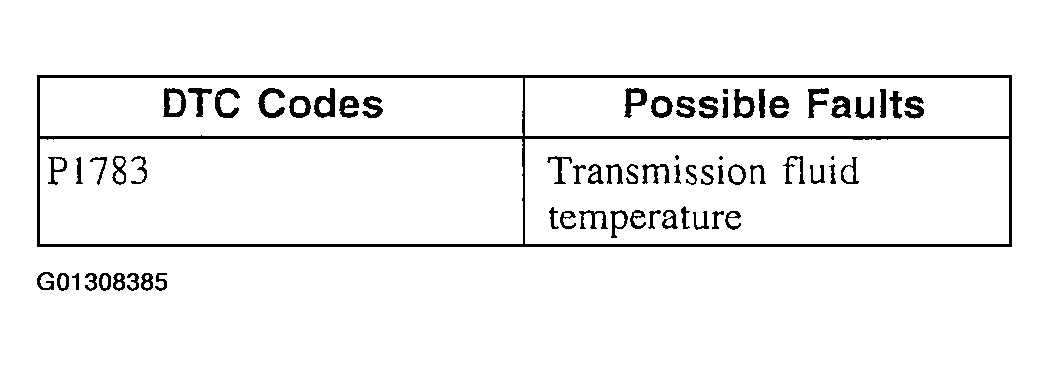

Fig 3: Message Center Display Reference Chart (3 Of 3)

Courtesy of FORD MOTOR CO.

NOTE: For DTC codes. Refer to DIAGNOSTIC TROUBLE CODE CHARTS .

NOTE: For no codes, Refer to INFORMATION AND MESSAGE CENTER .

Diagnosing an electronically controlled automatic transaxle is simplified by using the following procedures. One of the most important things to remember is that there is a definite procedure to follow. Do not take short cuts or assume that critical checks or adjustments have already been made. Follow the procedures as written to avoid missing critical components or steps. By following the diagnostic sequence, the service technician will be able to diagnose and repair the concern the first time.
