Line Pressure Test

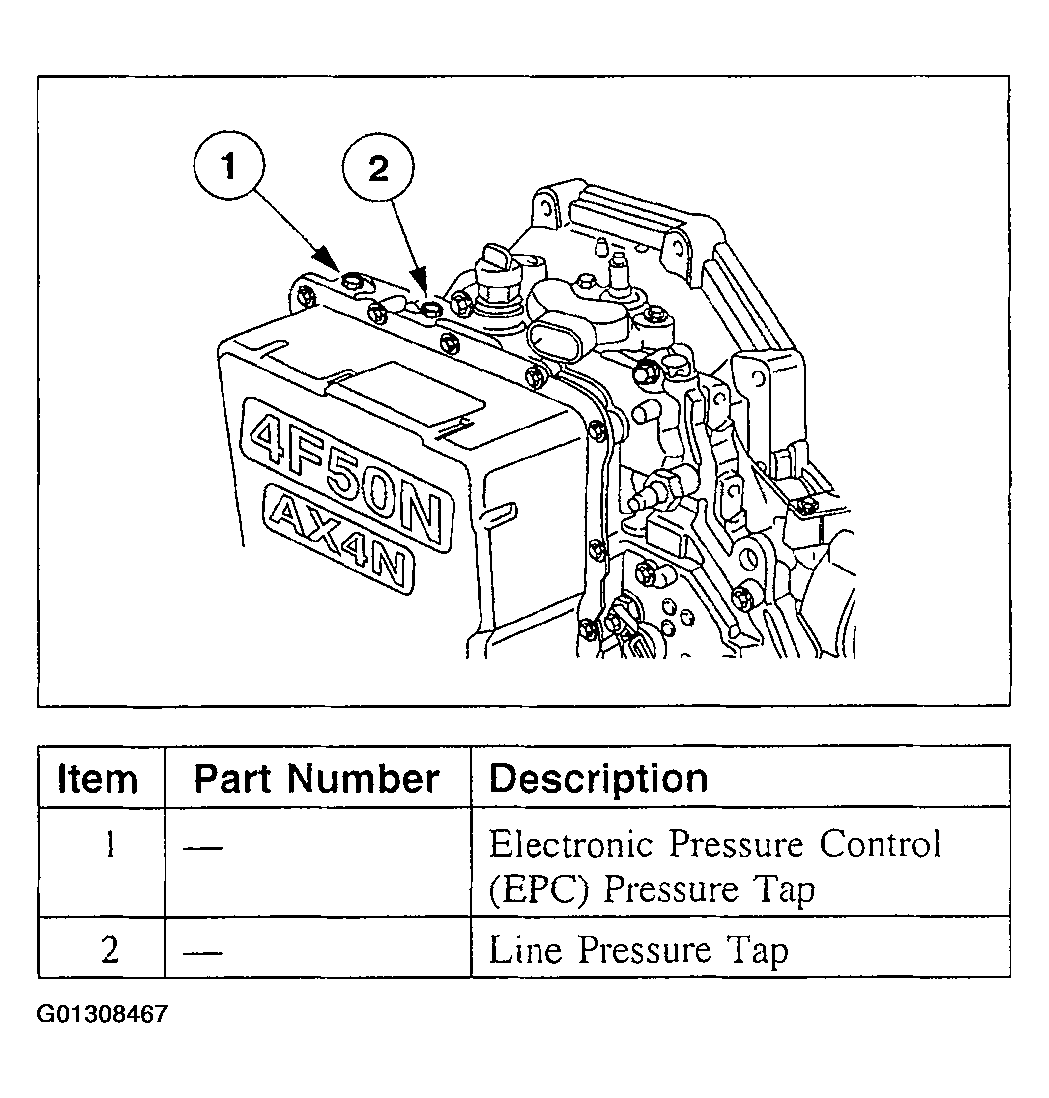

Fig 1: Locating Pressure Taps

Courtesy of FORD MOTOR CO.

CAUTION: Carry out the Line Pressure Test prior to carrying out the Stall Speed Test. If the line pressure is low at stall, do not carry out the Stall Speed Test or further transaxle damage will occur. Do not maintain wide open throttle in any transaxle range for more than five seconds.

This test verifies that the line pressure is within specification.

Connect a pressure gauge to the line pressure tap.
Start the engine and check the line pressures. See the LINE PRESSURE CHART to determine if the line pressure is within specification. See Fig 2.

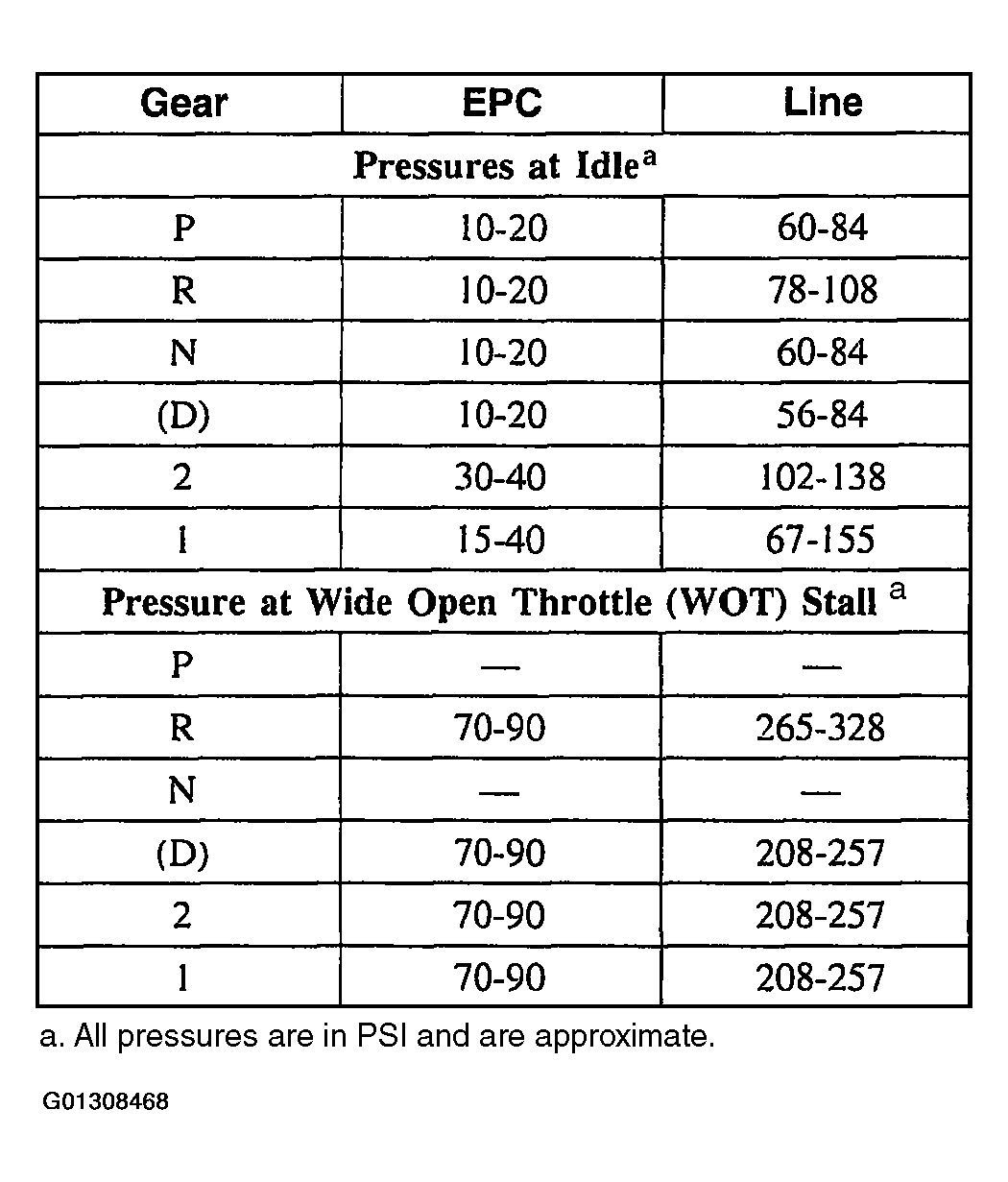

Fig 2: Line Pressure Chart

Courtesy of FORD MOTOR CO.

If the line pressure is not within specification, check EPC pressure.
Connect a pressure gauge to the EPC pressure tap.
Start the engine and check the EPC pressure. See the LINE PRESSURE CHART for specifications. See Fig 2.
If the EPC pressure is not within specification, Go to PINPOINT TEST E to diagnose the EPC operation. If EPC operation is OK, see the LINE PRESSURE DIAGNOSIS CHART for line pressure concern causes. See Fig 3.

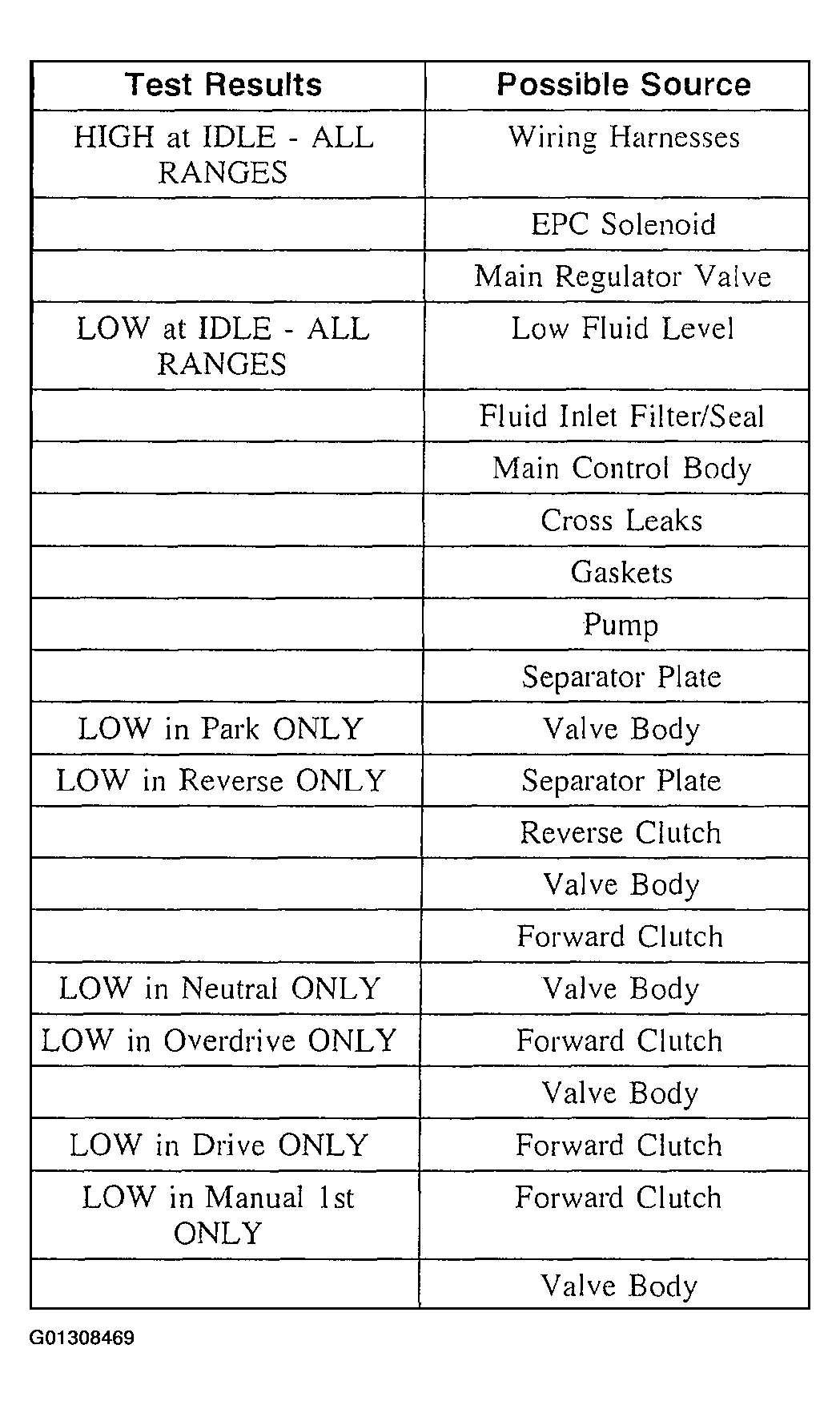

Fig 3: Line Pressure Diagnosis Chart

Courtesy of FORD MOTOR CO.
