Selective Retaining Ring

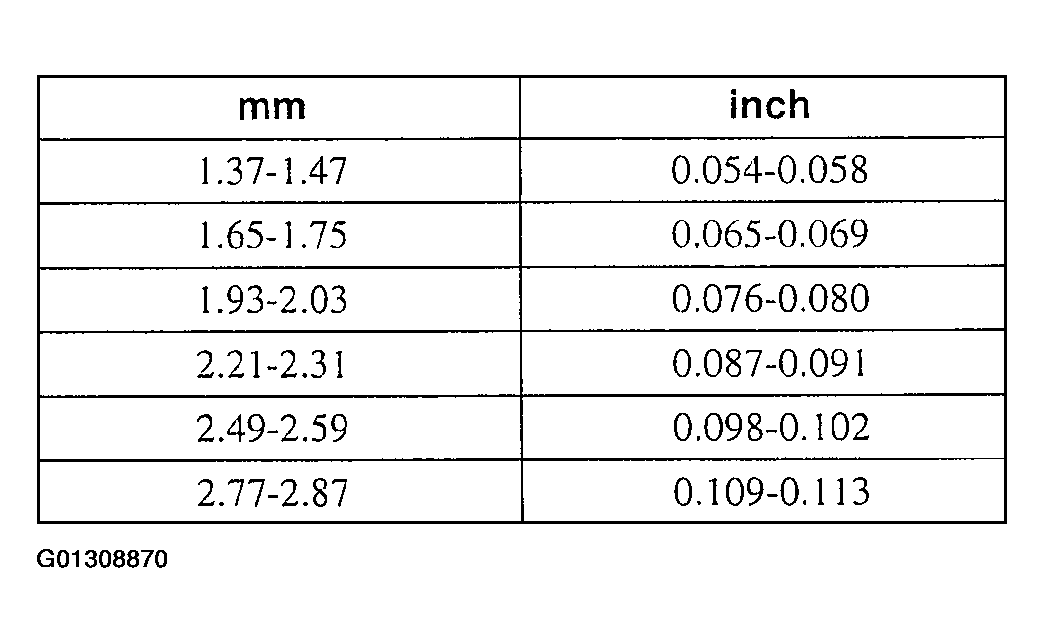

Fig 1: Selective Retaining Ring Specifications
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
