Drive Sprocket/Turbine Shaft: Disassembly

  1. Remove the drive sprocket/turbine shaft seal and O-ring.
    • Remove the drive sprocket/turbine shaft O-ring.
    • Remove the drive sprocket/turbine shaft seal.

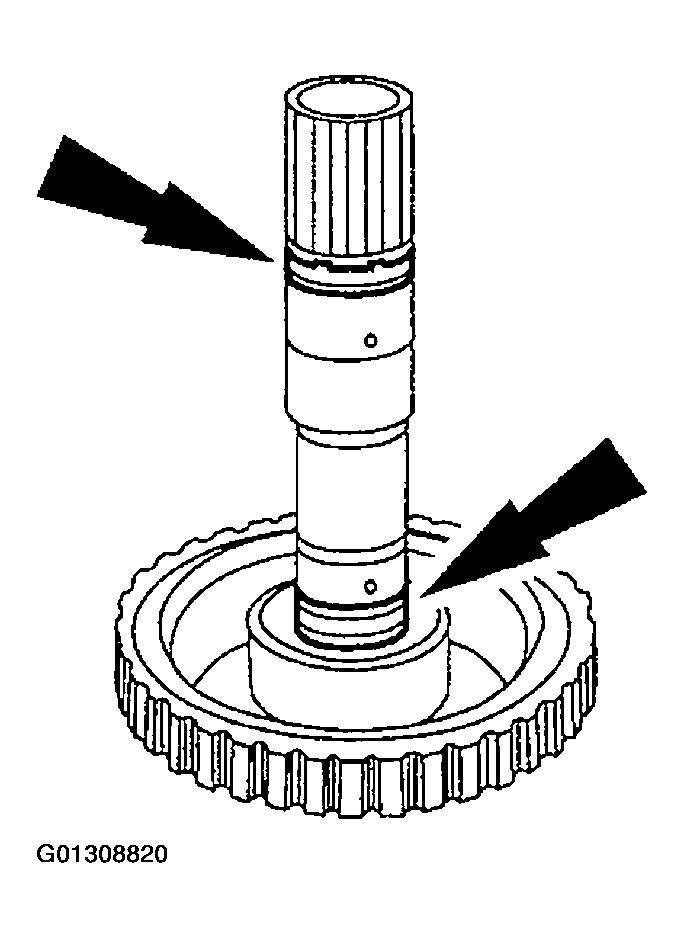

      Fig 1: Removing Drive Sprocket/Turbine Shaft Seal And O-Ring
      G01308820Courtesy of FORD MOTOR CO.
  2. Inspect the bearing race for wear. If the bearing is worn a new drive sprocket/turbine shaft will need to be installed.

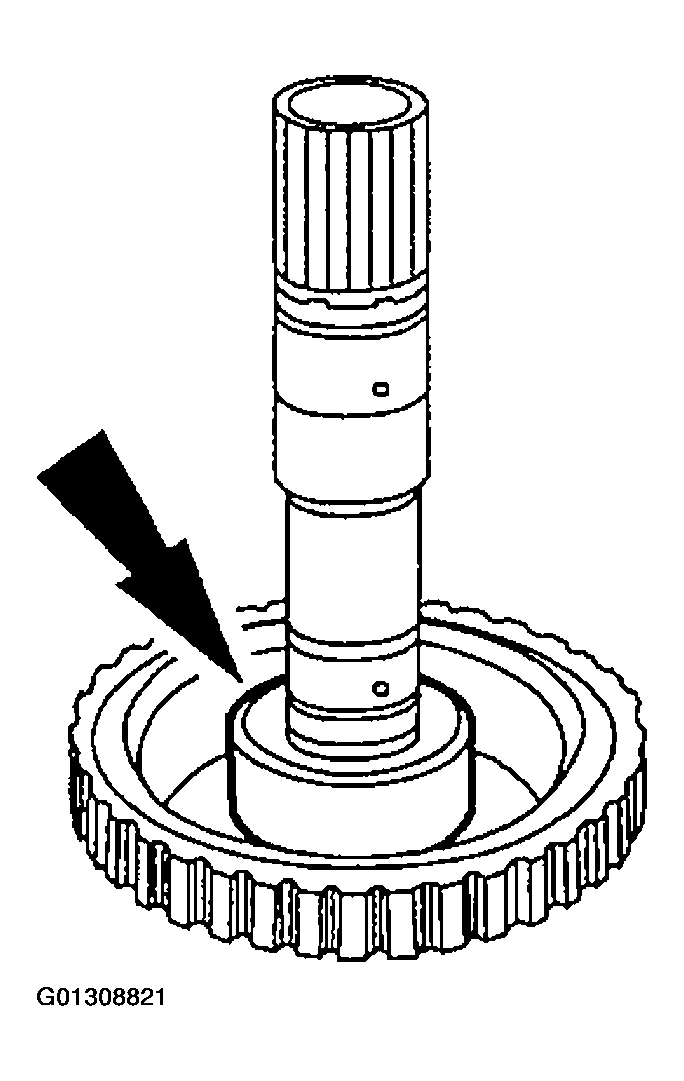

    Fig 2: Inspecting Bearing Race
    G01308821Courtesy of FORD MOTOR CO.
  3. Remove the turbine shaft front seal.

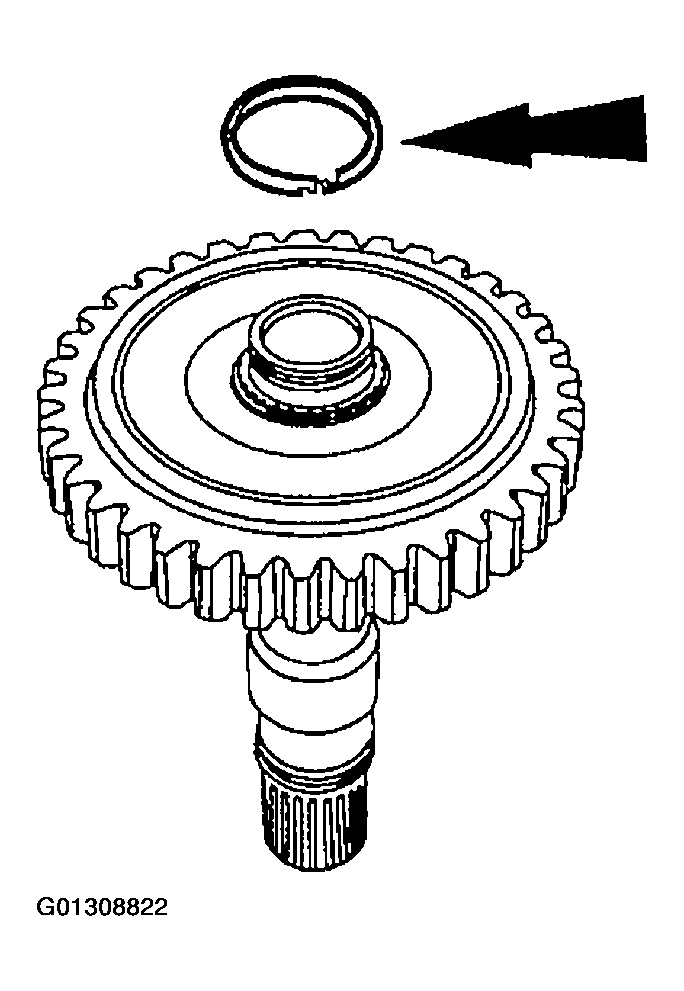

    Fig 3: Removing Turbine Shaft Front Seal
    G01308822Courtesy of FORD MOTOR CO.
