Forward Clutch Cylinder: Disassembly

  1. Remove the No. 6 forward clutch thrust washer.
    2. CAUTION: Pry evenly and do not locate screwdriver ends on or near forward clutch check ball to prevent component damage.

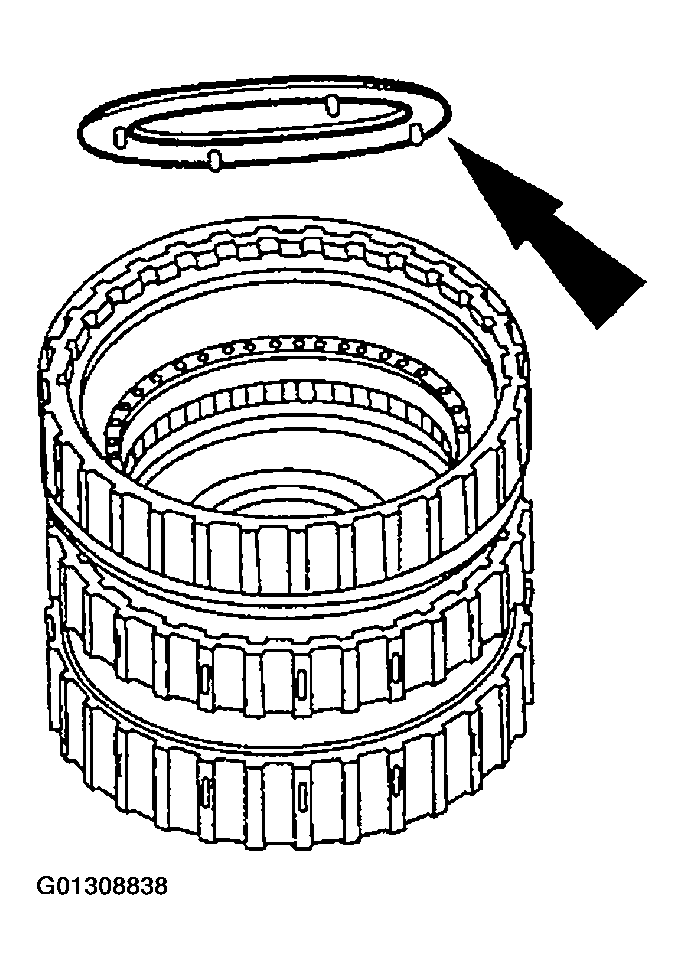

    Fig 1: Removing Forward Clutch Thrust Washer
    G01308838Courtesy of FORD MOTOR CO.

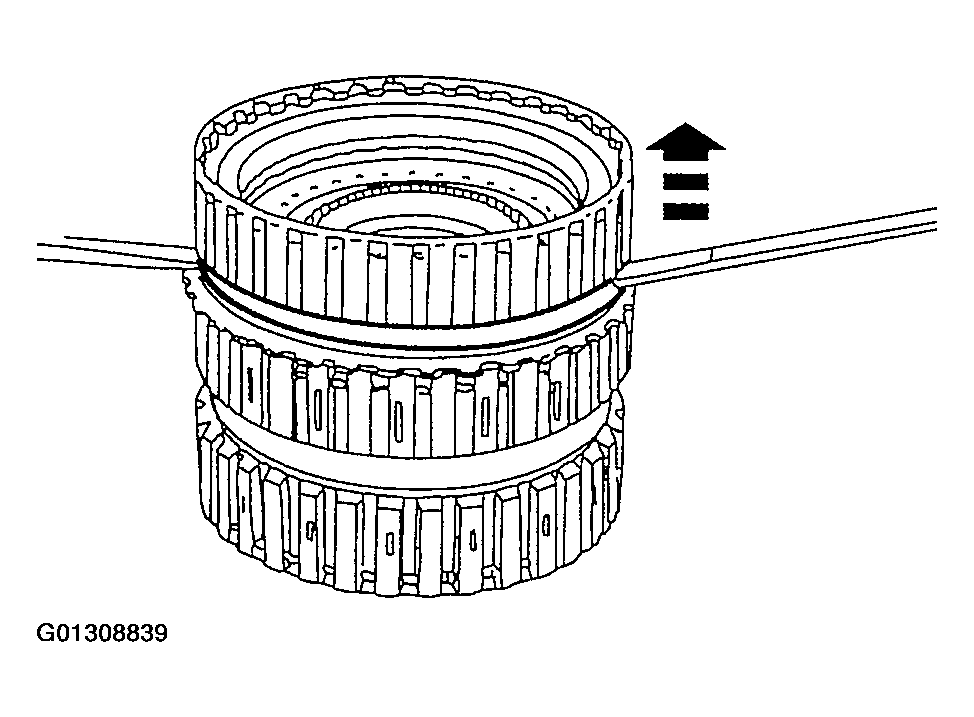

    Fig 2: Removing Forward Clutch Assembly
    G01308839Courtesy of FORD MOTOR CO.
  2. Remove the forward clutch assembly.
  3. Remove the forward clutch plates.
    1. Remove the retaining ring.
    2. Remove the pressure plate.
    3. Remove the clutch packs.

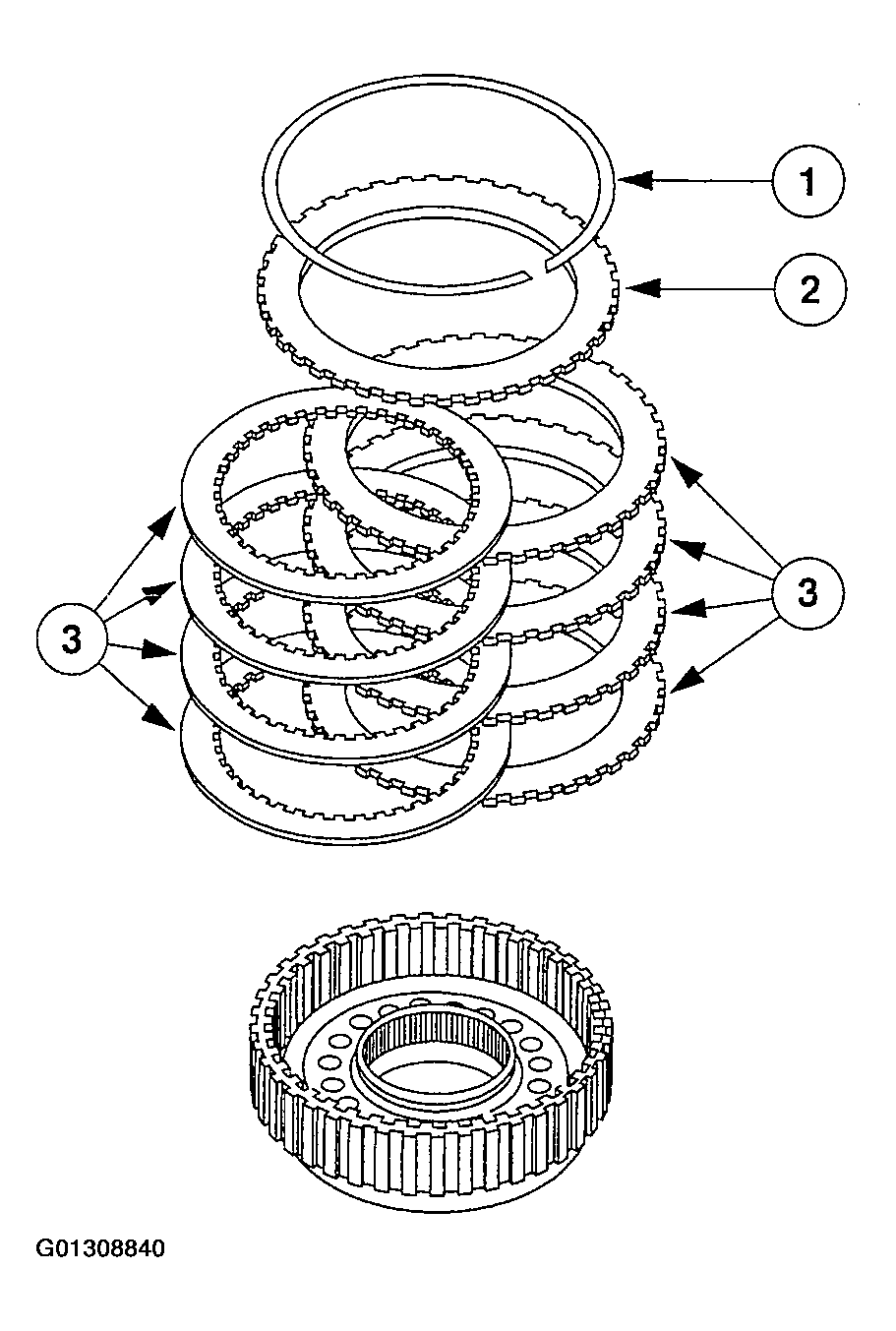

      Fig 3: Removing Forward Clutch Plates
      G01308840Courtesy of FORD MOTOR CO.
  4. Using the special tool, disassemble the forward clutch cylinder.

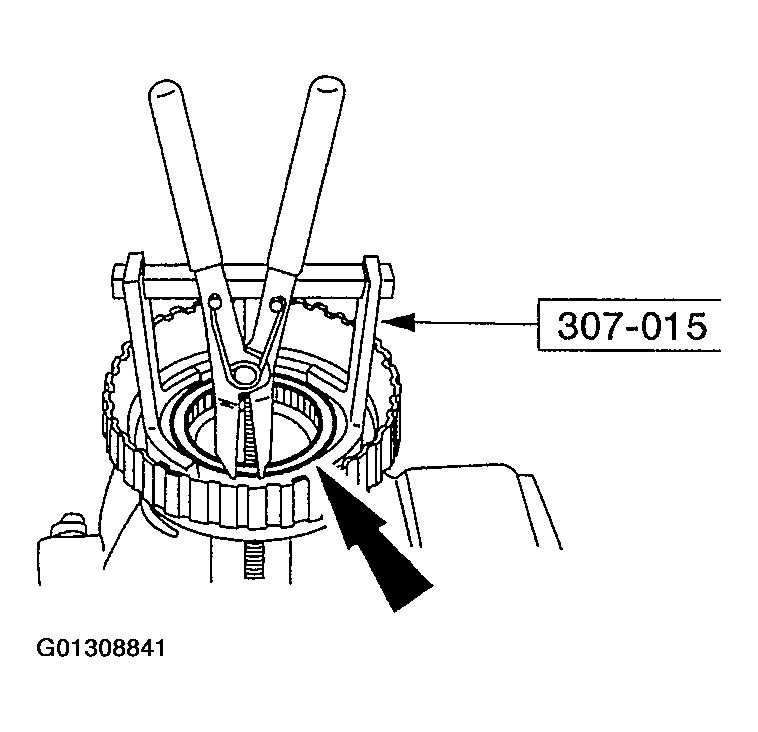

    Fig 4: Disassembling Forward Clutch Cylinder
    G01308841Courtesy of FORD MOTOR CO.
  5. Clean and reseal the forward clutch.
    1. Remove the clutch return spring.
    2. Remove the clutch piston and seal assembly.
    3. Remove the inner piston seal.

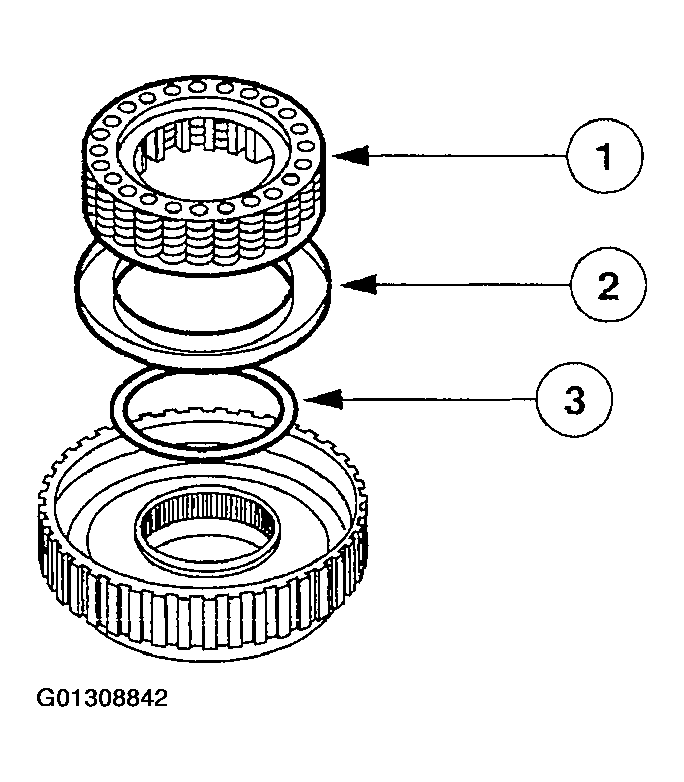

      Fig 5: Removing Clutch Piston And Seal Assembly
      G01308842Courtesy of FORD MOTOR CO.
