Intermediate Clutch Cylinder: Disassembly

  1. Remove the intermediate clutch pack.
    1. Remove the snap ring.
    2. Remove the pressure plate.
    3. Remove the clutch pack.

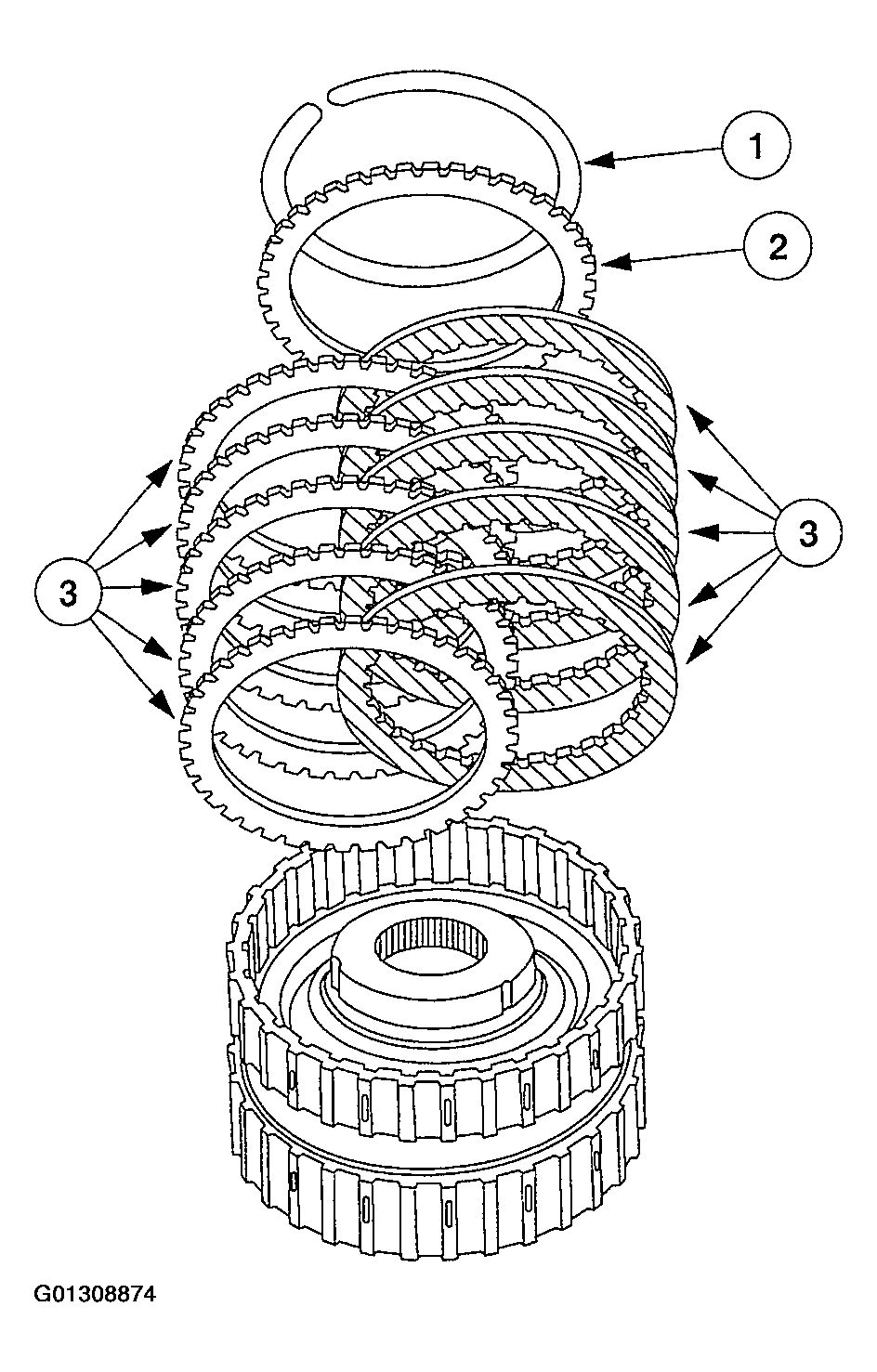

      Fig 1: Removing Intermediate Clutch Pack
      G01308874Courtesy of FORD MOTOR CO.
    2. CAUTION: Do not fully compress the intermediate clutch spring retainer.

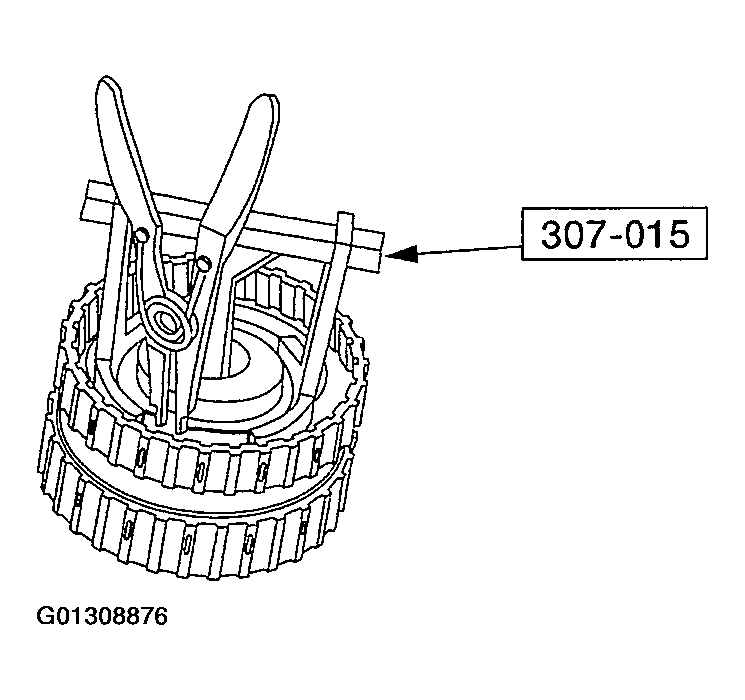

    Fig 2: Removing Snap Ring
    G01308875Courtesy of FORD MOTOR CO.
  2. Using the special tool, compress the intermediate clutch return spring and remove the snap ring.
    3. NOTE: The seal is part of the piston and is repaired as an assembly.

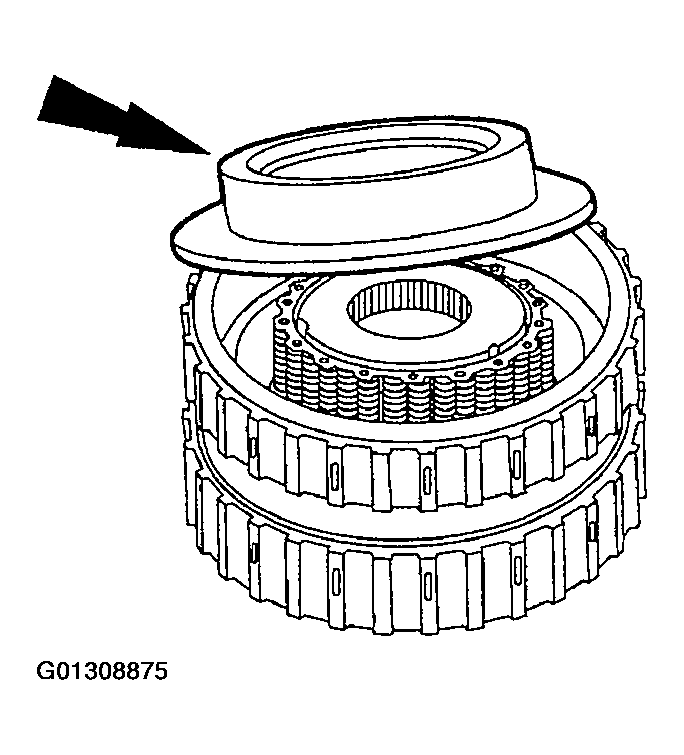

    Fig 3: Removing Intermediate Clutch Balance Piston Assembly
    G01308876Courtesy of FORD MOTOR CO.
  3. Remove the intermediate clutch balance piston assembly.
  4. Remove the intermediate clutch return spring.

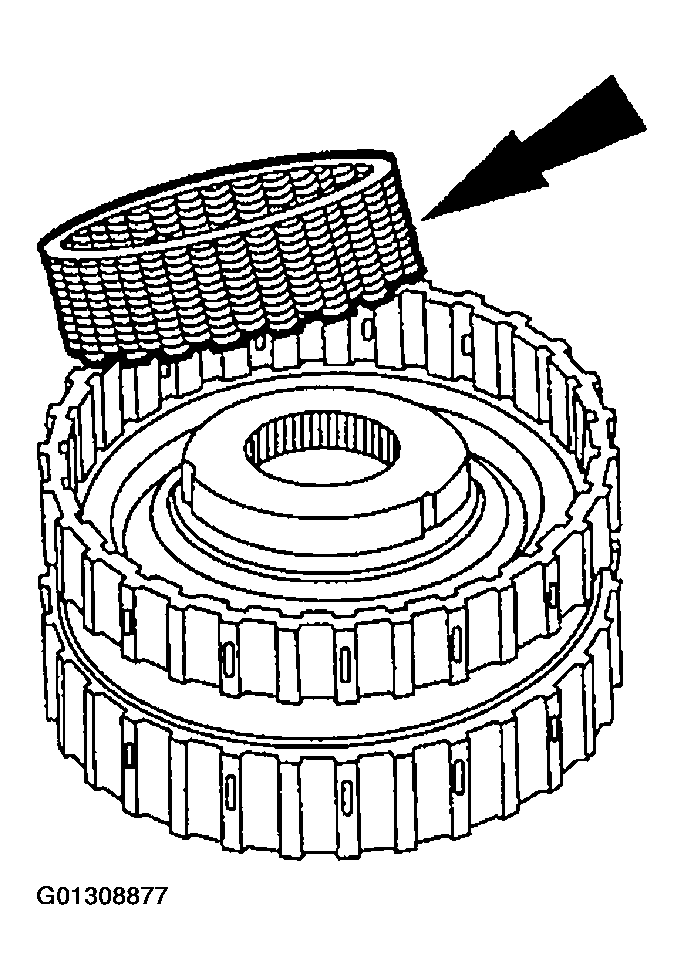

    Fig 4: Removing Intermediate Clutch Return Spring
    G01308877Courtesy of FORD MOTOR CO.
    5. NOTE: The seal is part of the piston and is repaired as an assembly.

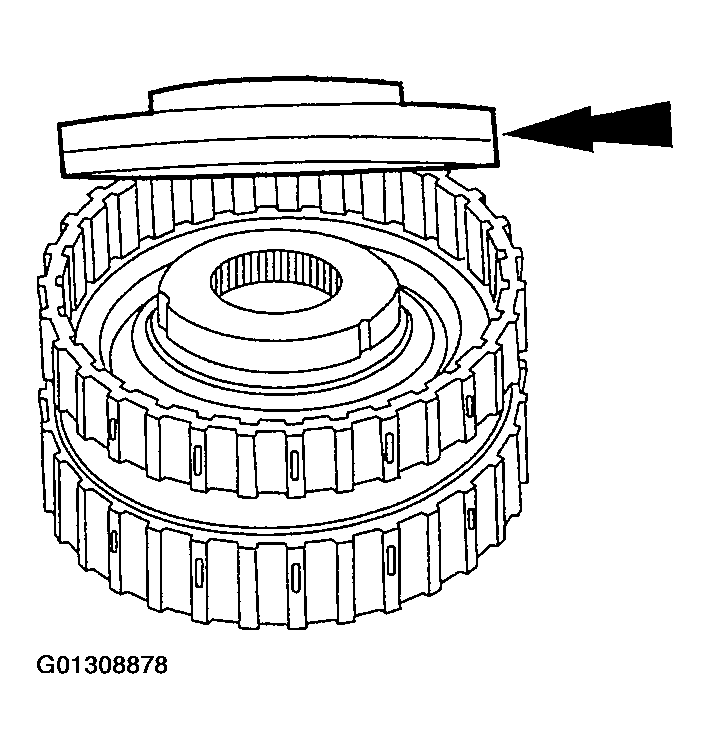

    Fig 5: Removing Intermediate Clutch Piston
    G01308878Courtesy of FORD MOTOR CO.
  5. Remove the intermediate clutch piston.
  6. Remove the intermediate clutch piston inner seal.

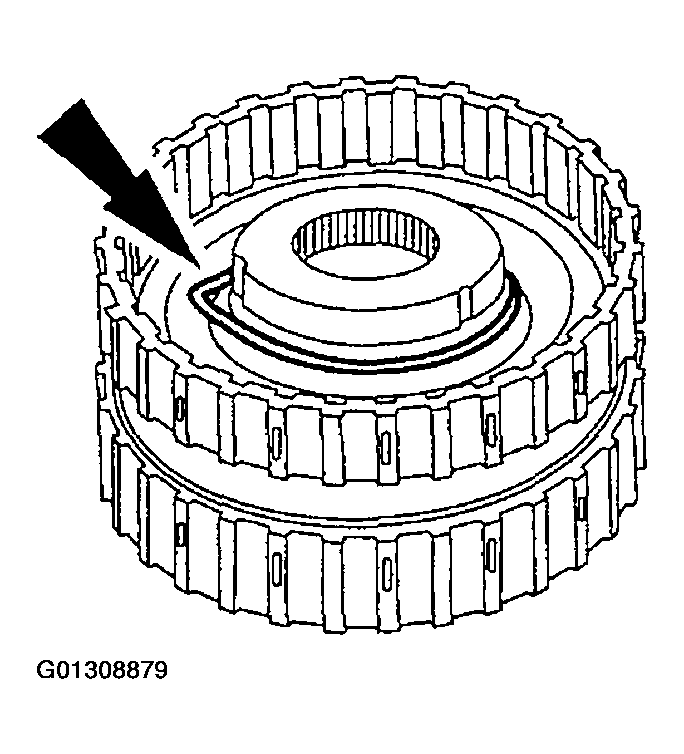

    Fig 6: Removing Intermediate Clutch Piston Inner Seal
    G01308879Courtesy of FORD MOTOR CO.
