Low-Intermediate Clutch Cylinder: Assembly

  1. Using the special tool, install the new rear lube oil transfer tube seals.

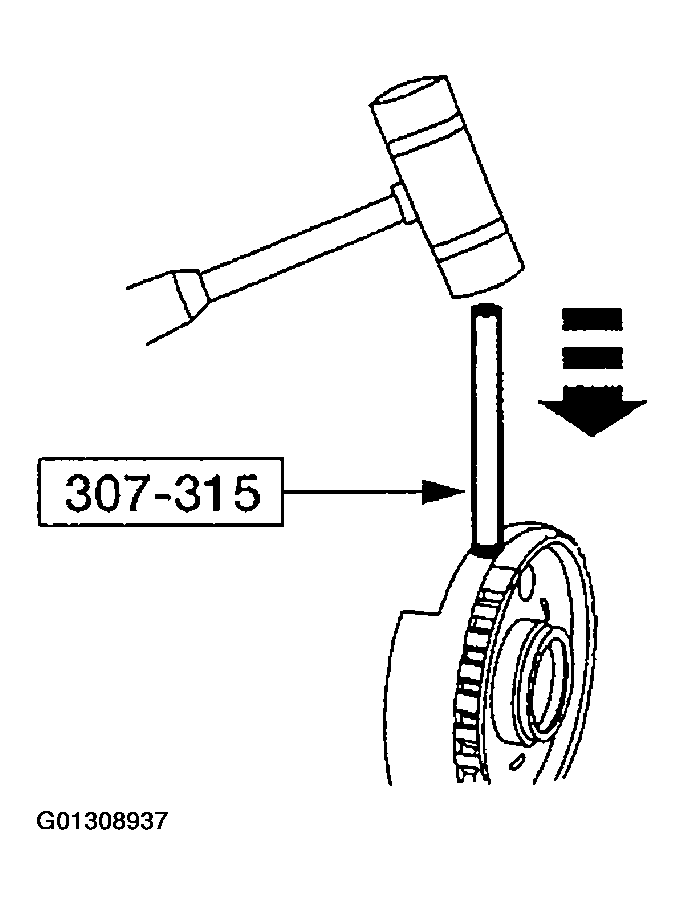

    Fig 1: Installing Rear Lube Oil Transfer Tube Seals
    G01308937Courtesy of FORD MOTOR CO.
    2. NOTE: Lightly coat all the seals and surfaces with petroleum jelly.

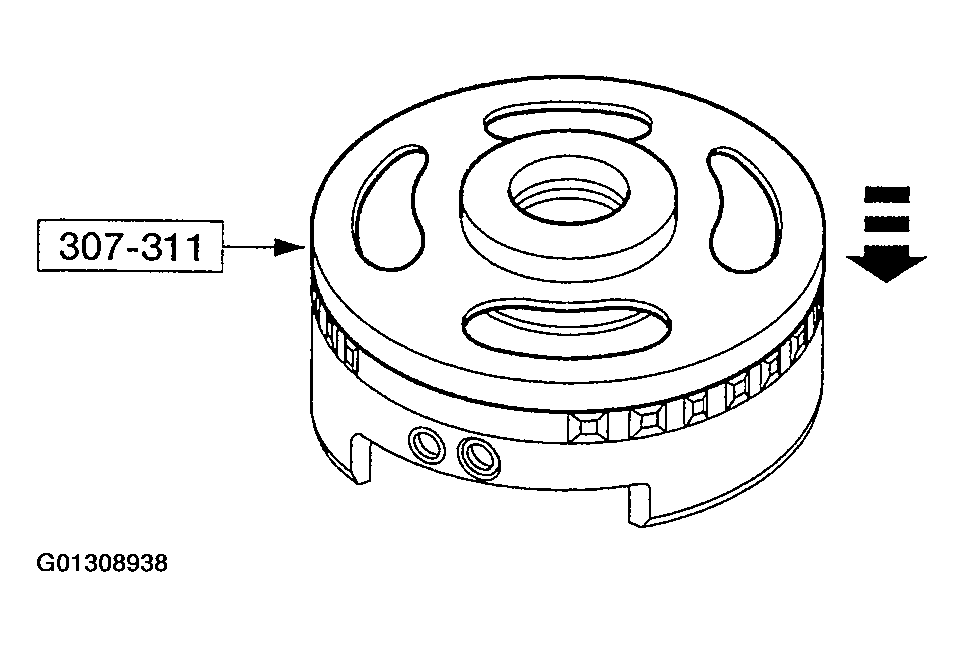

    Fig 2: Installing Low Intermediate Clutch Piston And Seal
    G01308938Courtesy of FORD MOTOR CO.
  2. Install the low intermediate clutch piston and seal using the special tool.
  3. Install the low intermediate clutch support and spring assembly.

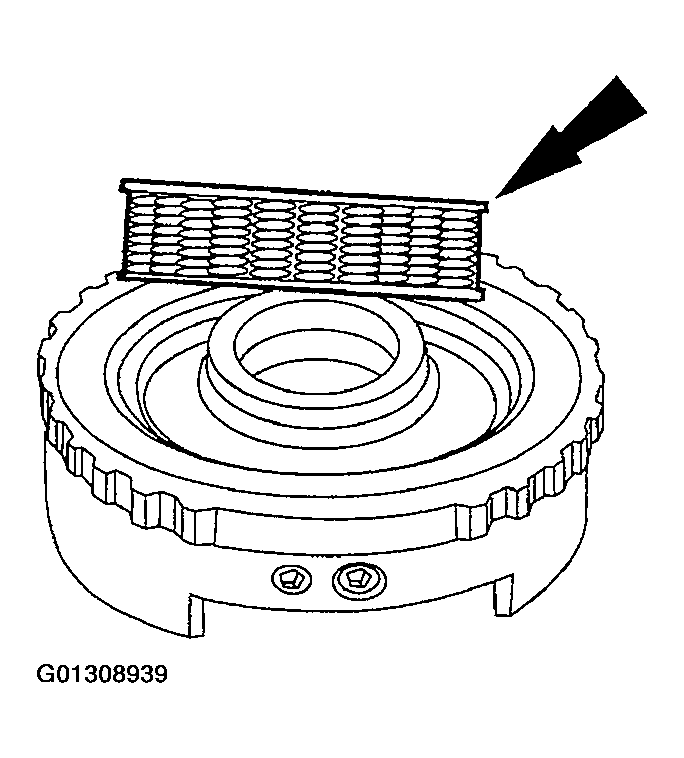

    Fig 3: Installing Low Intermediate Clutch Support And Spring Assembly
    G01308939Courtesy of FORD MOTOR CO.
    4. CAUTION: Do not fully compress the clutch spring retainer.

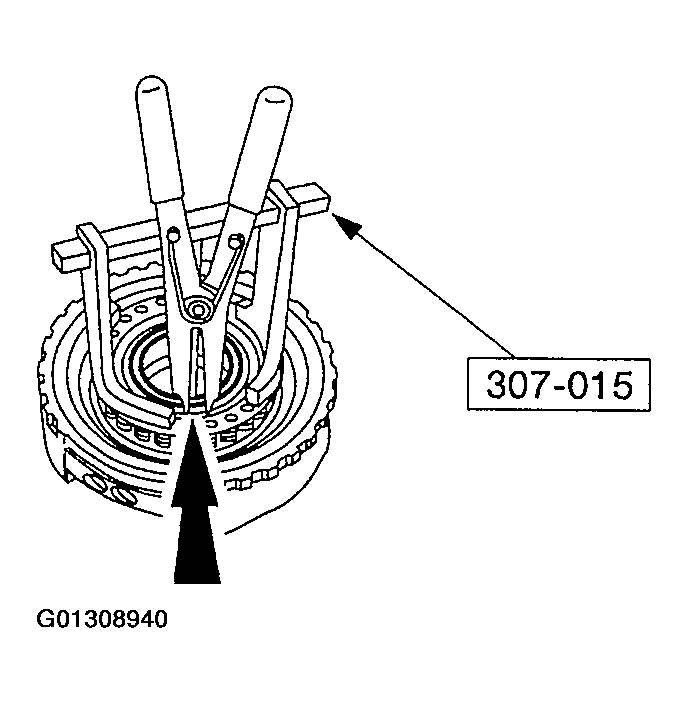

    Fig 4: Installing Snap Ring
    G01308940Courtesy of FORD MOTOR CO.
  4. Use the special tool, install the snap ring.
    5. CAUTION: Make sure the locking tabs are snapped over the retainer.

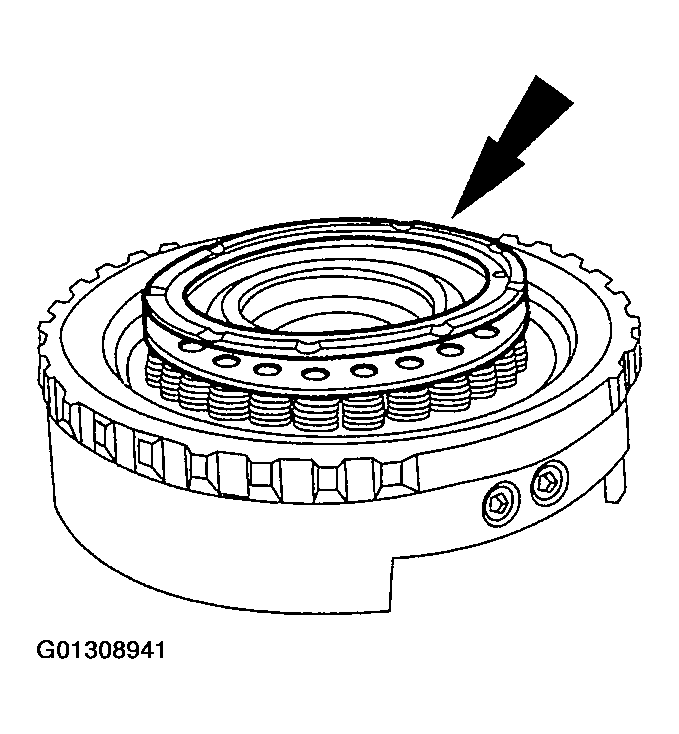

    Fig 5: Installing Plastic Spring Retainer Washer
    G01308941Courtesy of FORD MOTOR CO.
  5. Install the No. 15 plastic spring retainer washer.
    6. NOTE: The lip on the bearing goes over the hub. Use petroleum jelly to hold the bearing in place.

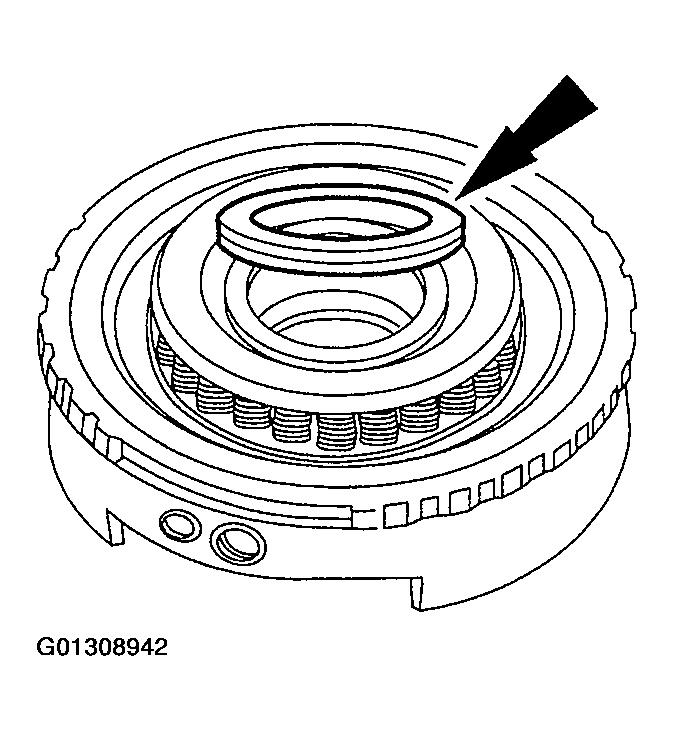

    Fig 6: Installing Rear Sun Gear Thrust Bearing And Race
    G01308942Courtesy of FORD MOTOR CO.
  6. Install the rear sun gear thrust bearing and race.
  7. Install the No. 16 final drive gear thrust assembly.
