Torque Converter End Play Check

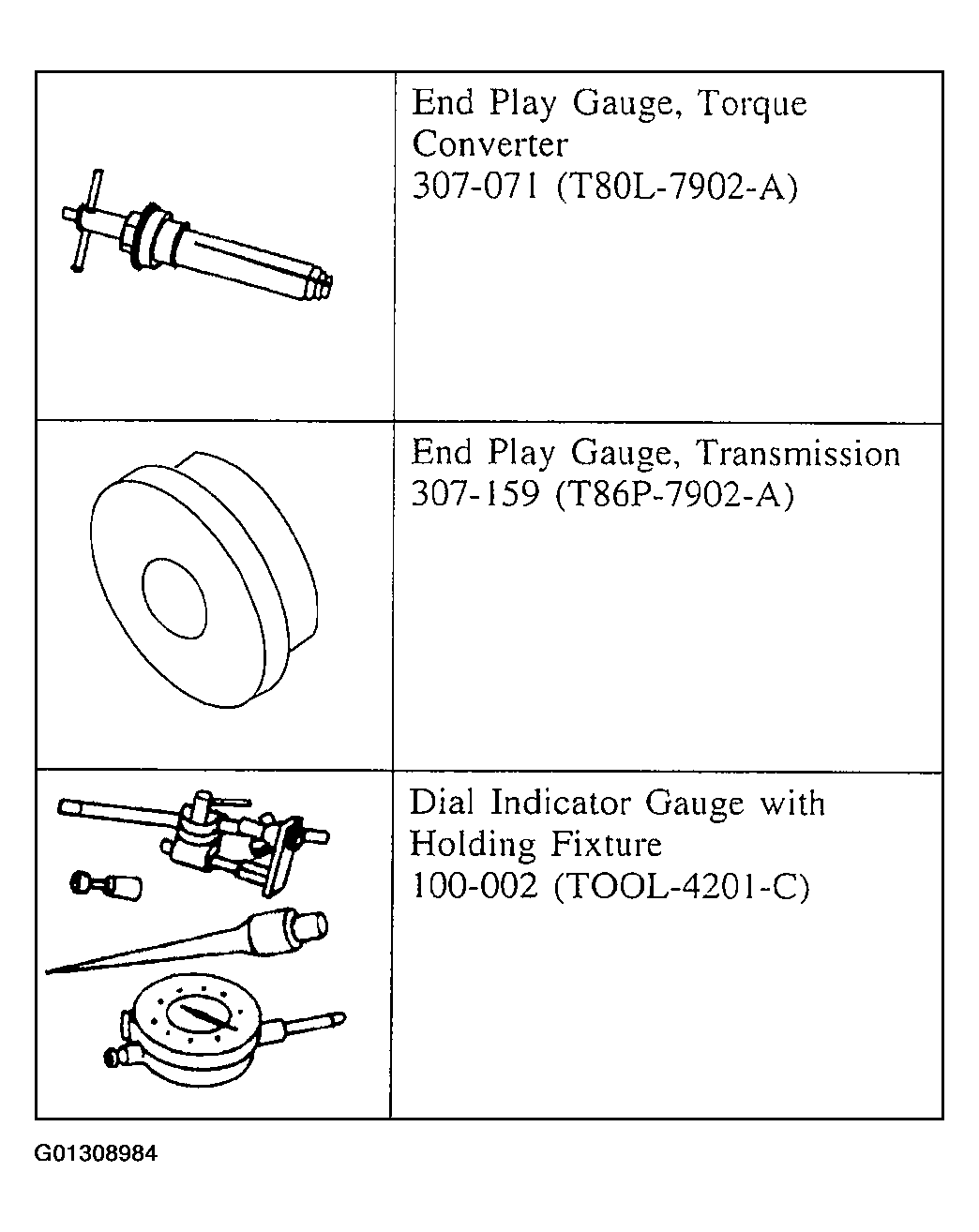

Special Tool(s)

Fig 1: Identifying Special Tools

Courtesy of FORD MOTOR CO.

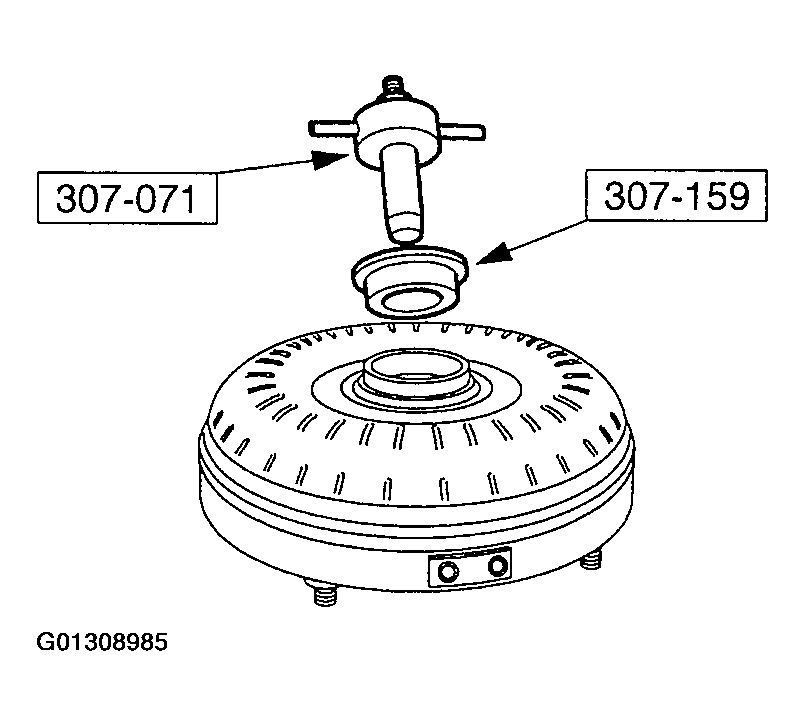

1. Install the special tools into the torque converter.
   Fig 2: Installing Special Tools Into Torque Converter

   Courtesy of FORD MOTOR CO.

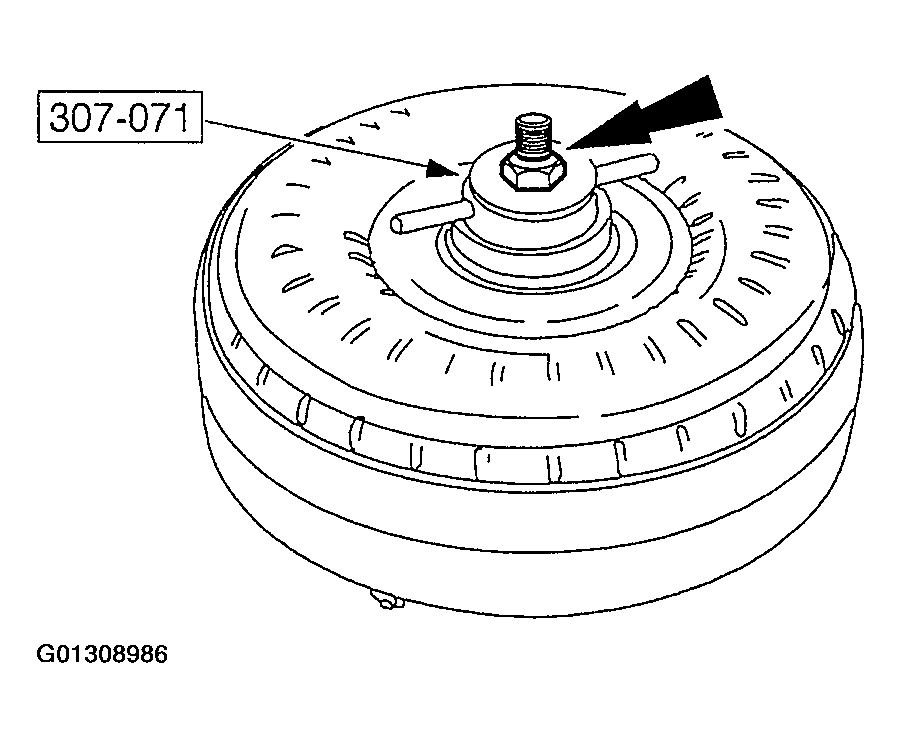

2. Tighten the nut.
   Fig 3: Tightening Nut

   Courtesy of FORD MOTOR CO.

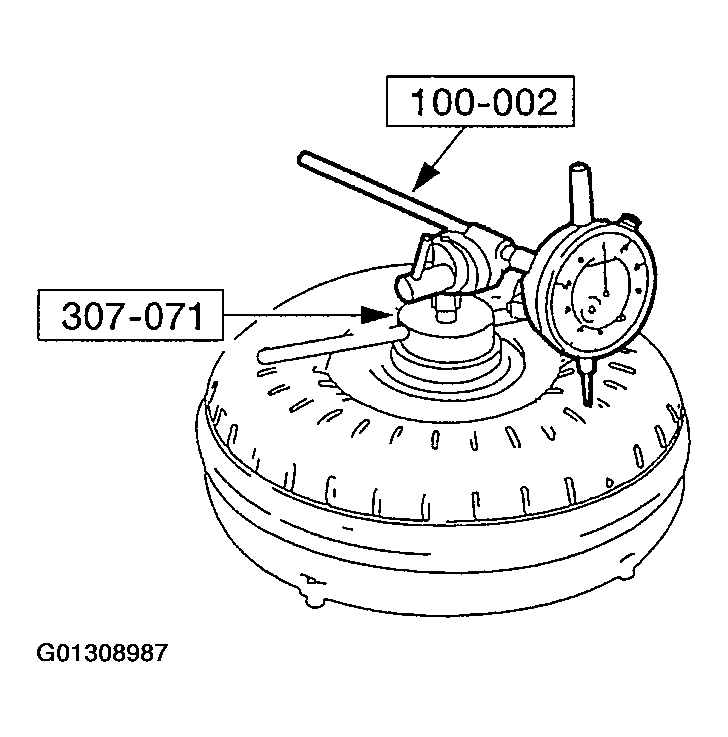

3. Install the special tool.
   Fig 4: Installing Special Tool

   Courtesy of FORD MOTOR CO.

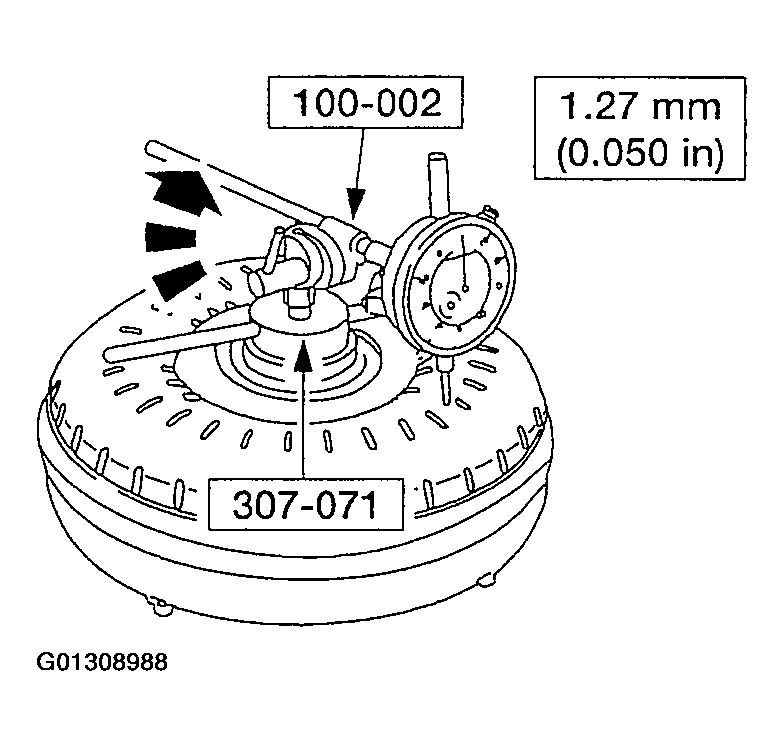

NOTE: If the indicator reading is above specification, install a new or remanufactured torque converter.
Fig 5: Measuring Torque Converter End Play
Courtesy of FORD MOTOR CO.
4. With the stylus contacting the converter shell and the dial indicator set to zero lift up on the handles of the checking tool.
