Reverse Clutch: Disassembly

  1. Remove the reverse clutch pack assembly.
    1. Remove the reverse clutch pressure plate retaining snap ring.
    2. Remove the reverse clutch pressure plate.
    3. Remove the clutch pack.
    4. Remove the wave spring.

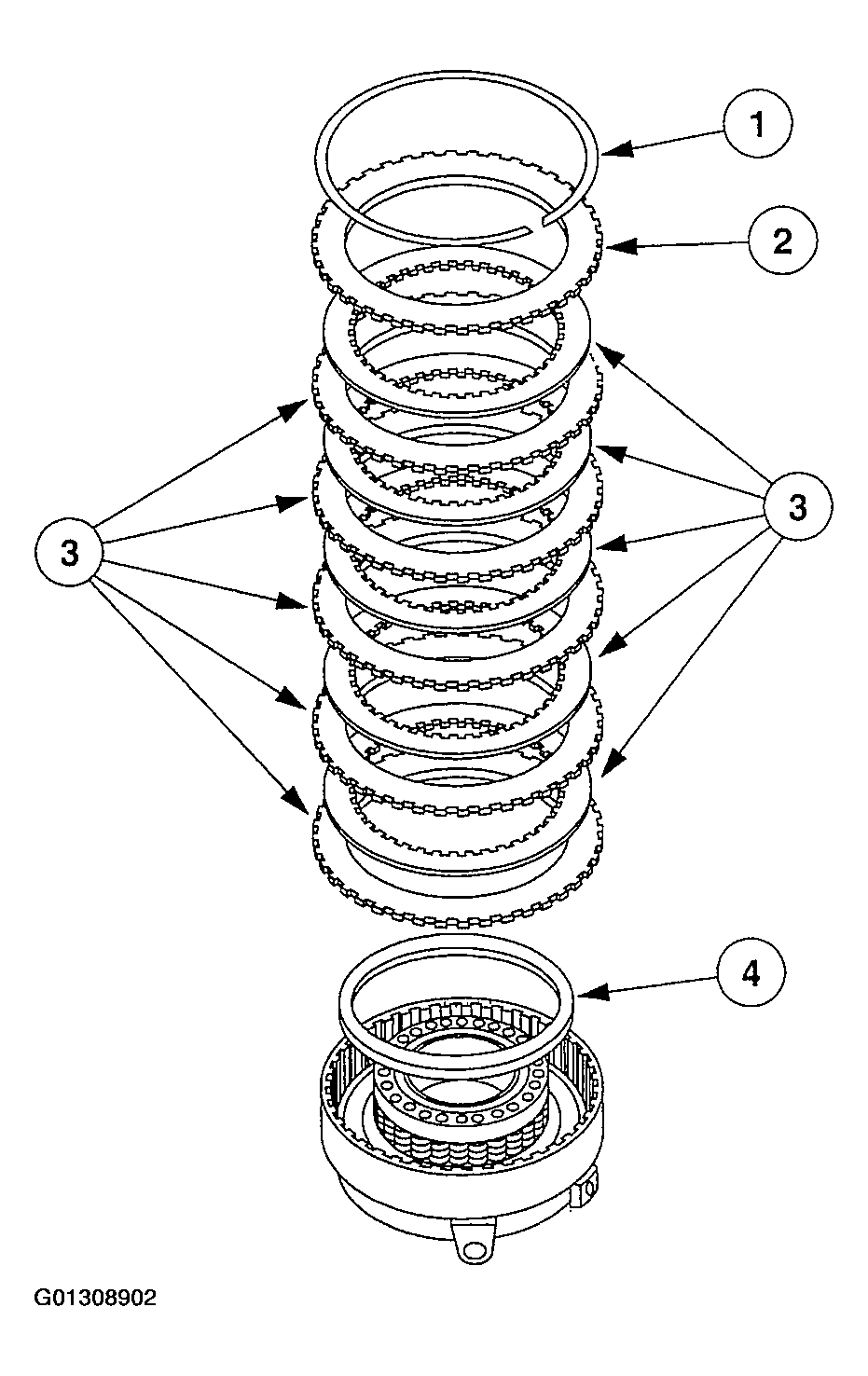

      Fig 1: Removing Reverse Clutch Pack Assembly
      G01308902Courtesy of FORD MOTOR CO.
    2. CAUTION: Do not fully compress the spring retainer.

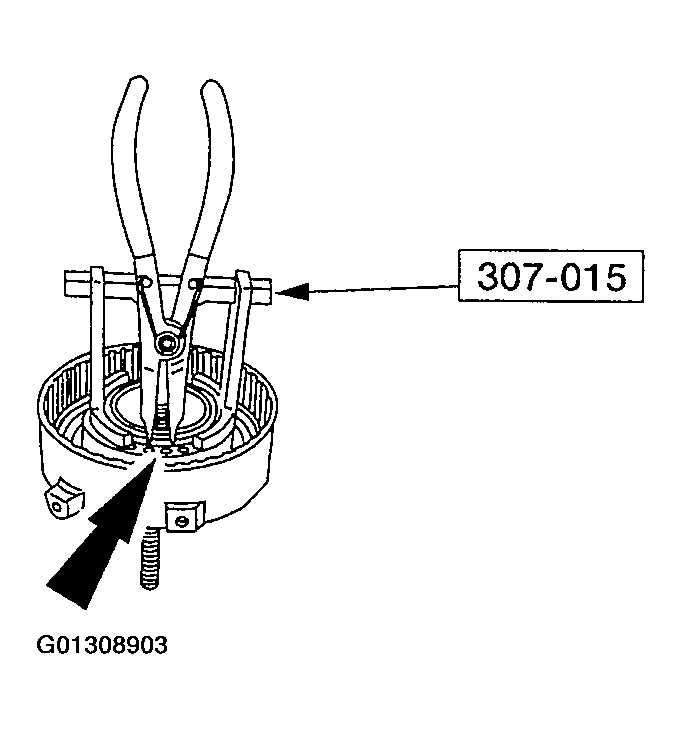

    Fig 2: Removing Snap Ring
    G01308903Courtesy of FORD MOTOR CO.
  2. Use the special tool, remove the snap ring.
  3. Remove the reverse clutch support and spring.

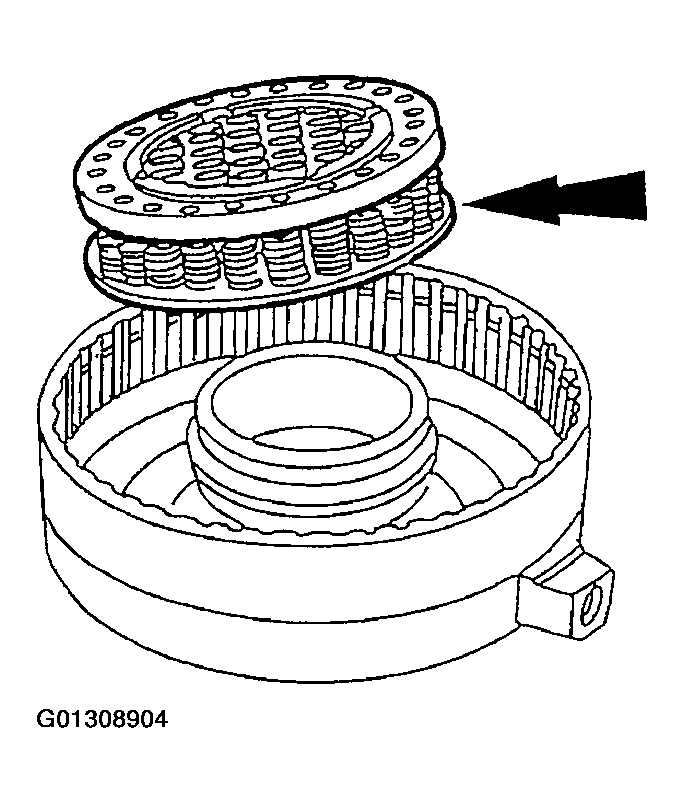

    Fig 3: Removing Reverse Clutch Support And Spring
    G01308904Courtesy of FORD MOTOR CO.
  4. Remove the reverse clutch piston.

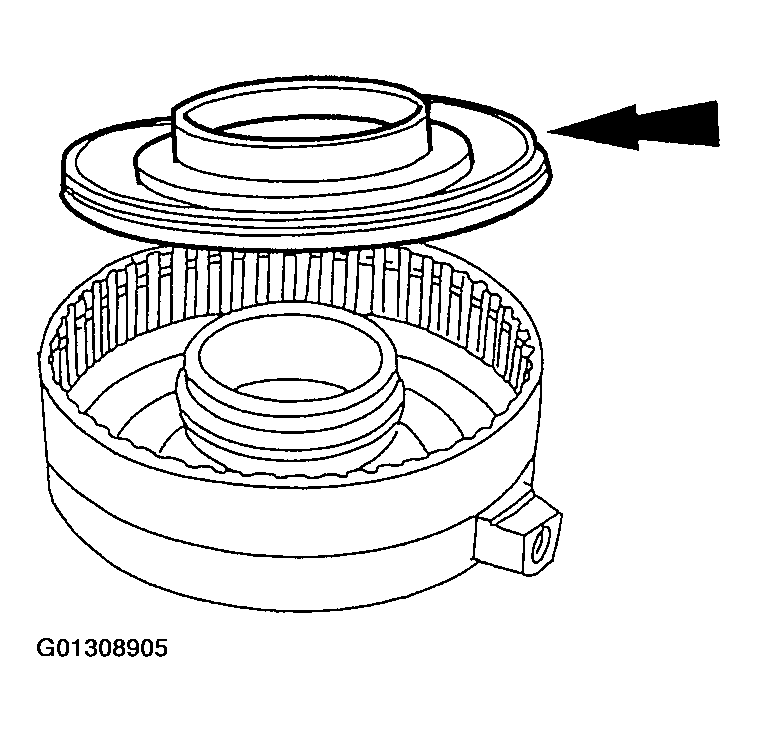

    Fig 4: Removing Reverse Clutch Piston
    G01308905Courtesy of FORD MOTOR CO.
  5. Remove the reverse clutch piston outer seal.

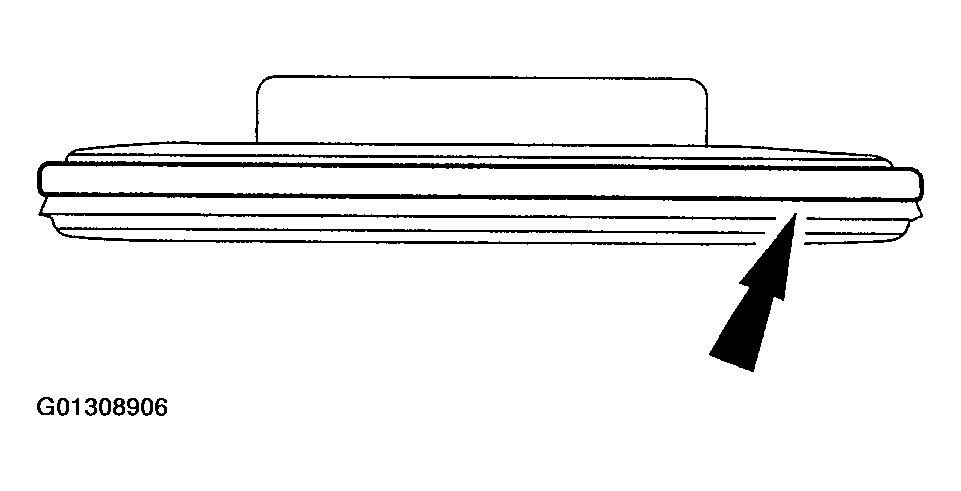

    Fig 5: Removing Reverse Clutch Piston Outer Seal
    G01308906Courtesy of FORD MOTOR CO.
  6. Remove the reverse clutch piston inner seal.

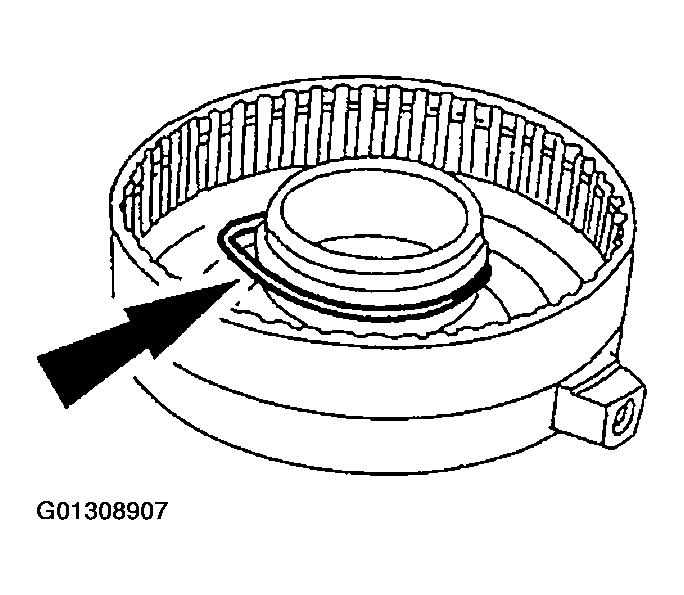

    Fig 6: Removing Reverse Clutch Piston Inner Seal
    G01308907Courtesy of FORD MOTOR CO.
