Special Tool(s)

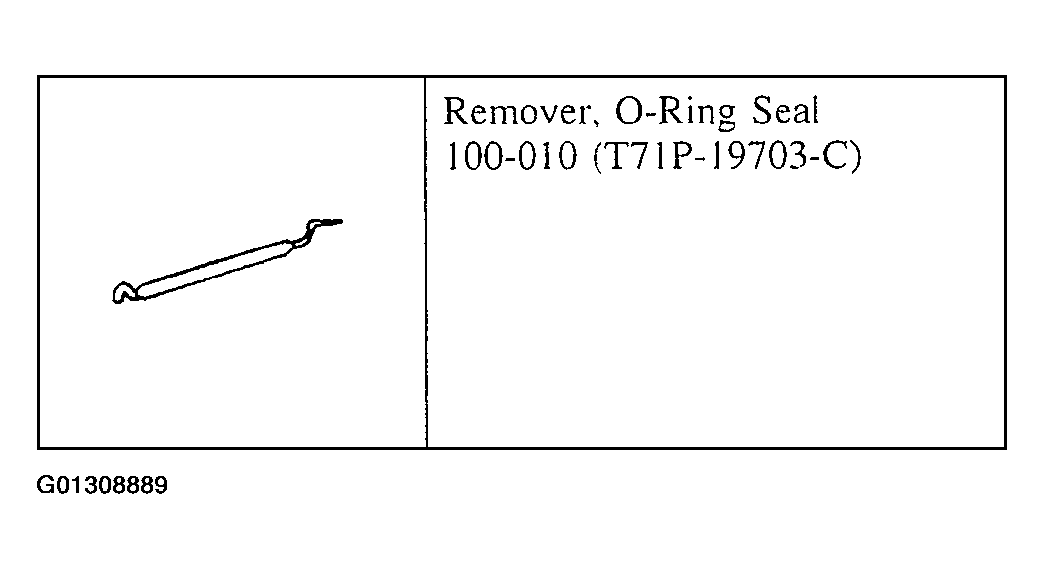

Fig 1: Identifying Special Tool
G01308889Courtesy of FORD MOTOR CO.

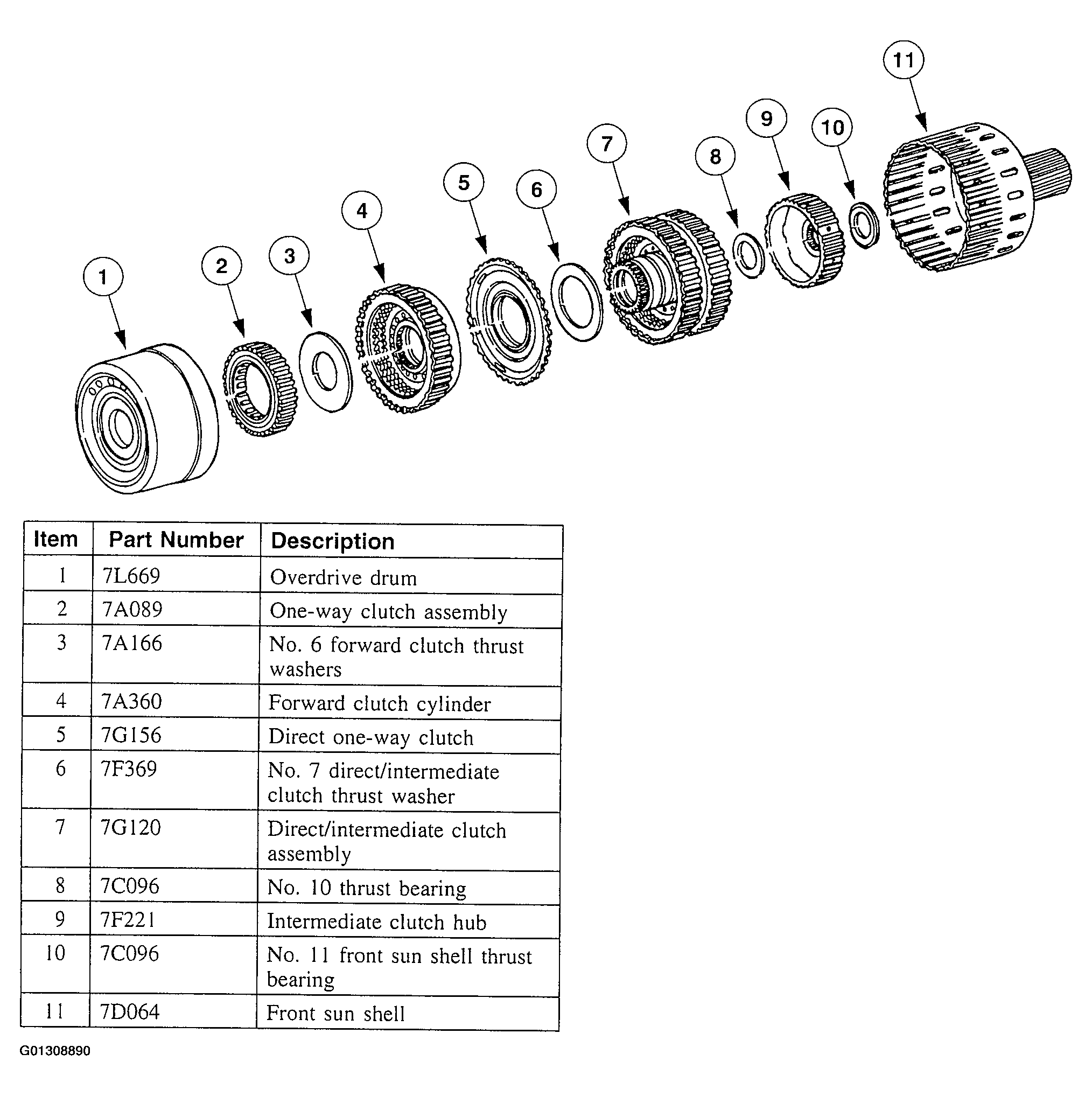

Fig 2: Exploded View Of Sun And Shell Assembly
G01308890Courtesy of FORD MOTOR CO.
