Differential Fluid Seals: Installation

  1. Using the special tool, install the LH differential seal.

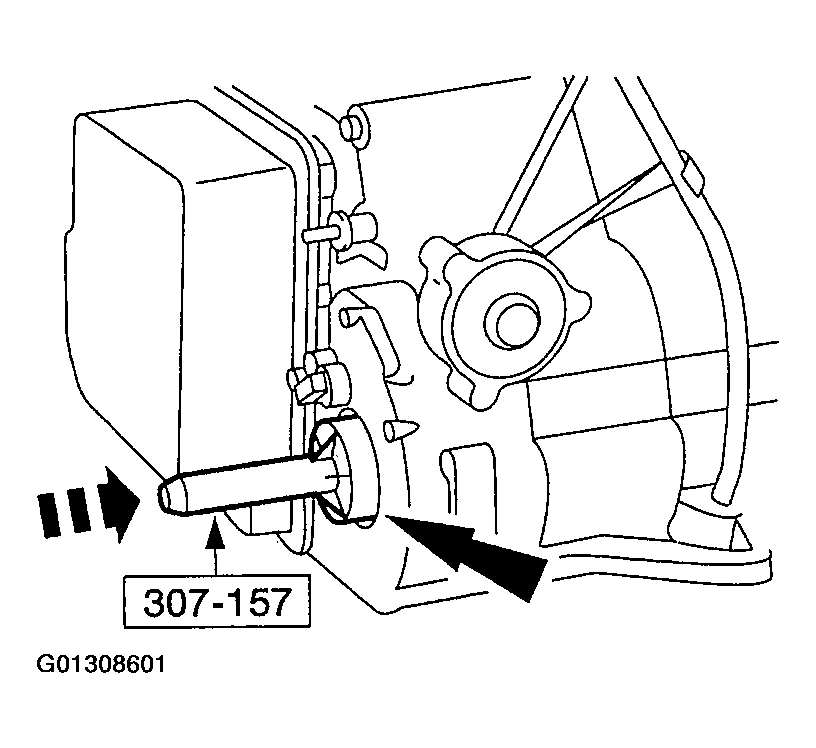

    Fig 1: Installing LH Differential Seal
    G01308601Courtesy of FORD MOTOR CO.
  2. Using the special tools, install the RH seal.

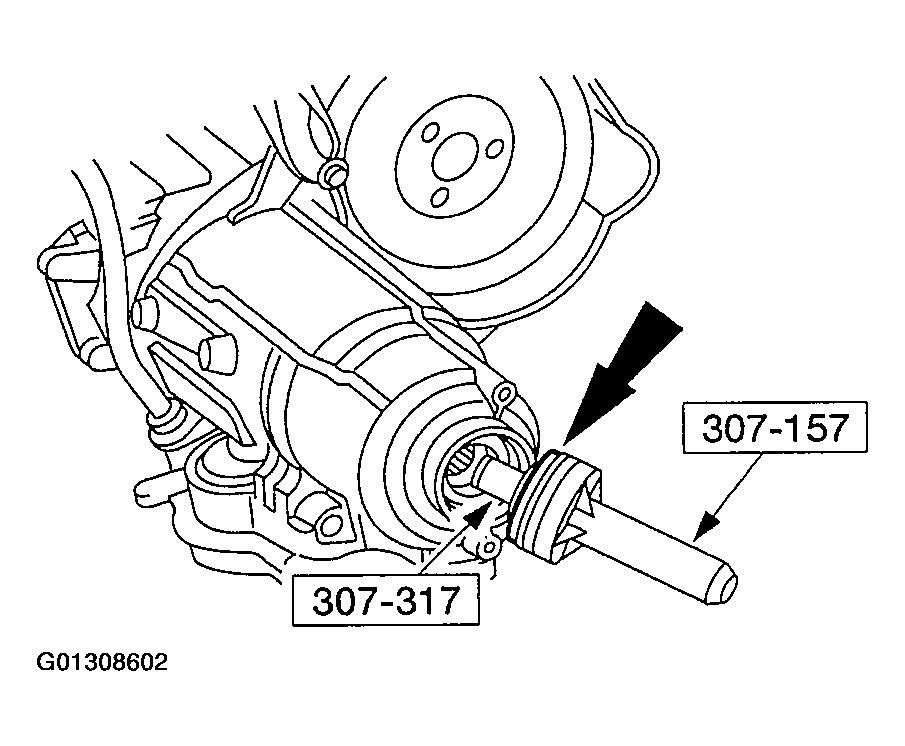

    Fig 2: Installing RH Seal
    G01308602Courtesy of FORD MOTOR CO.
  3. Install the halfshafts. Refer to AXLE SHAFTS . .
  4. Install the front wheels. For additional information, refer to WHEELS & TIRES .
  5. Lower the vehicle.
