Digital Transmission Range (TR) Sensor: Installation
- Verify that the transaxle range selector lever is in NEUTRAL.

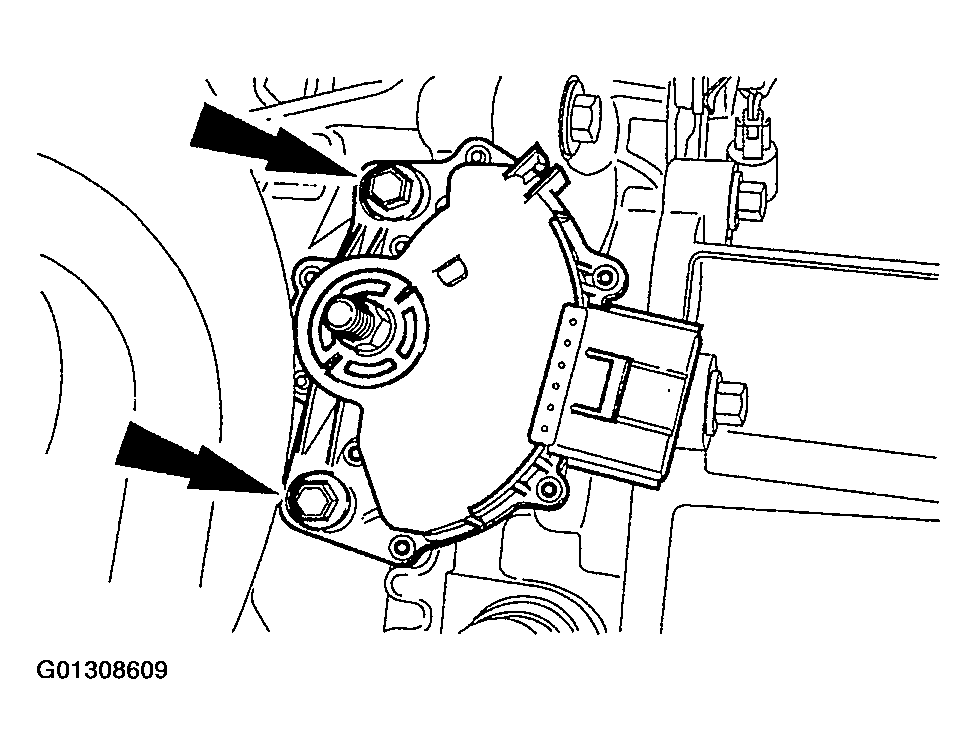

- Install the digital TR sensor and loosely install the bolts.
Courtesy of FORD MOTOR CO.

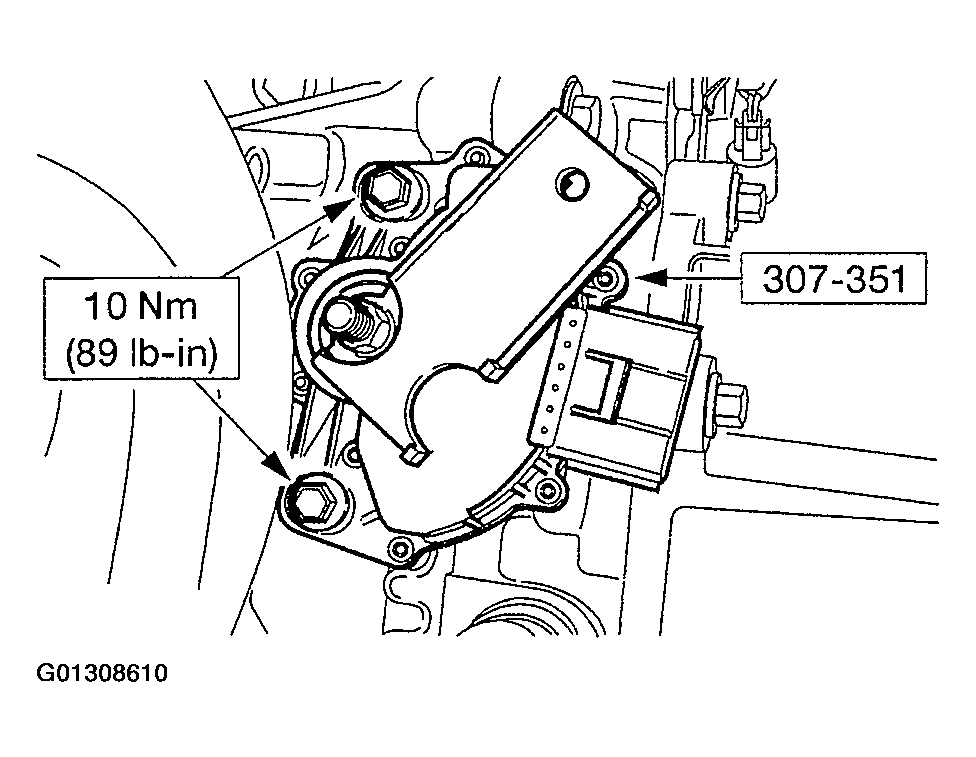

- Using the special tool, align the digital TR sensor.
Courtesy of FORD MOTOR CO.

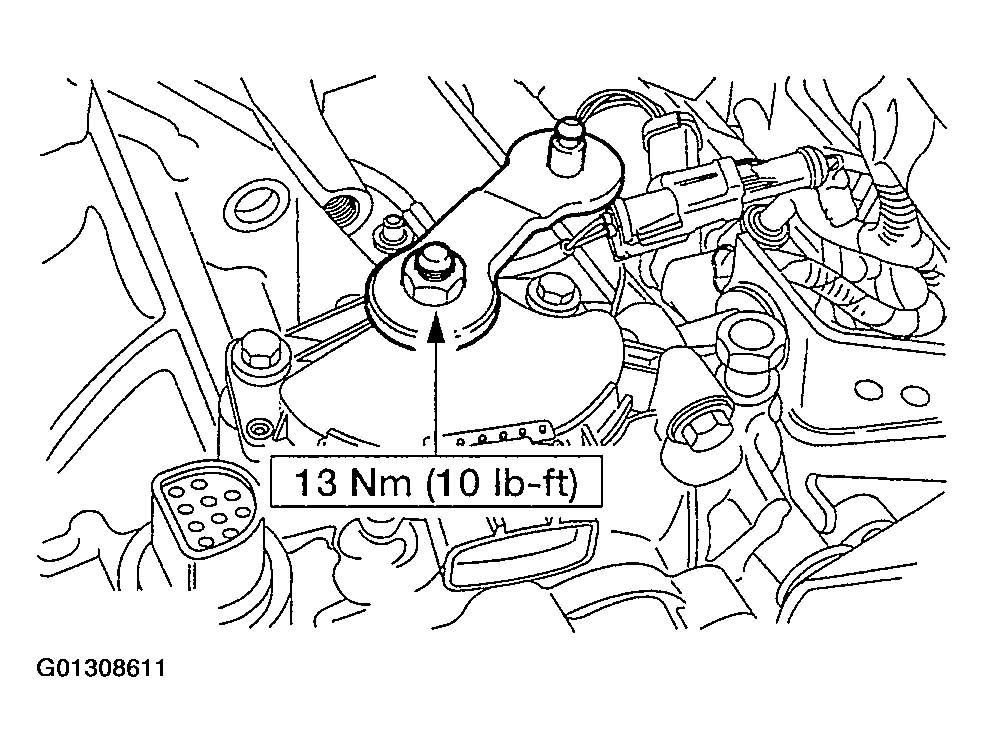

- Install the manual control lever and nut.
Courtesy of FORD MOTOR CO.

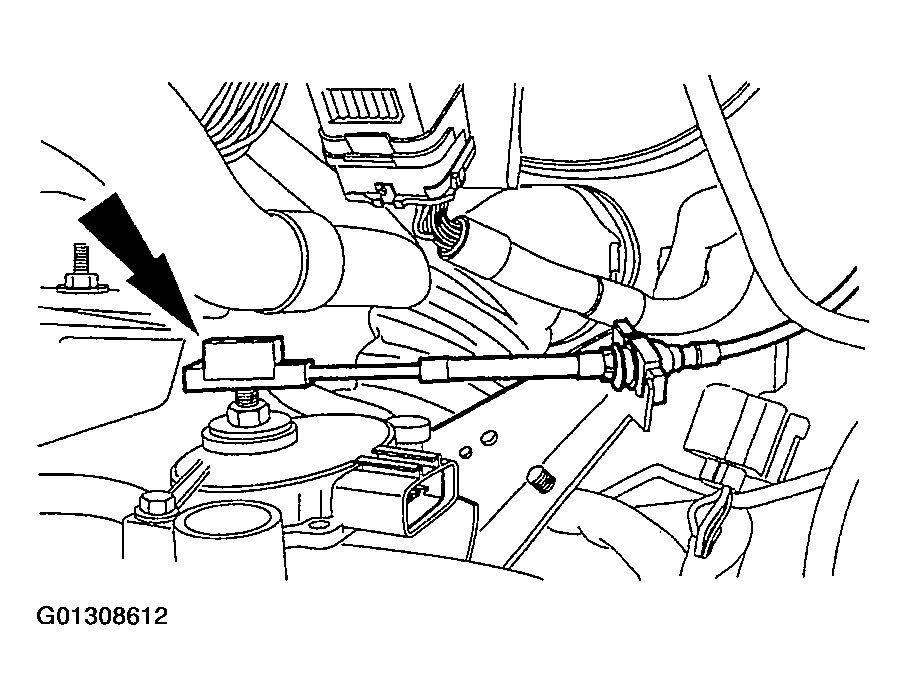

- Connect the shift cable.
Courtesy of FORD MOTOR CO.
- Verify that the shift cable is correctly adjusted. For additional information, refer to TRANSAXLE/TRANSMISSION EXTERNAL CONTROLS
.

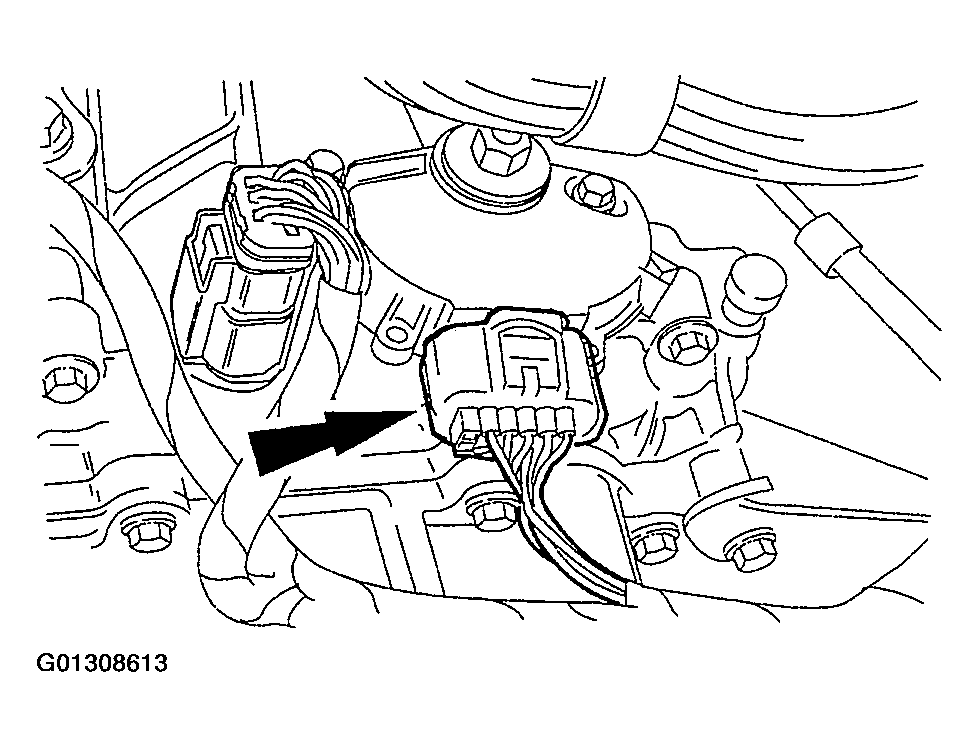

- Connect the digital TR range sensor electrical connector.
Courtesy of FORD MOTOR CO.
- Install the engine air cleaner assembly.
.
- Check for correct vehicle operation.
