Digital Transmission Range (TR) Sensor: Removal

Set the parking brake.
Place the transaxle range selector lever in NEUTRAL.

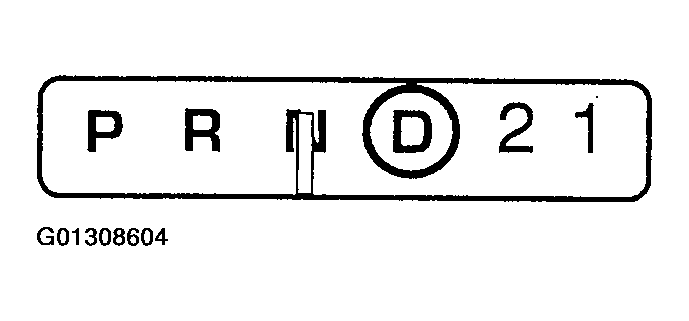

Fig 1: Placing Transaxle Range Selector Lever In NEUTRAL
Courtesy of FORD MOTOR CO.
Remove the engine air cleaner assembly. .
Disconnect the digital transmission range (TR) sensor electrical connector.

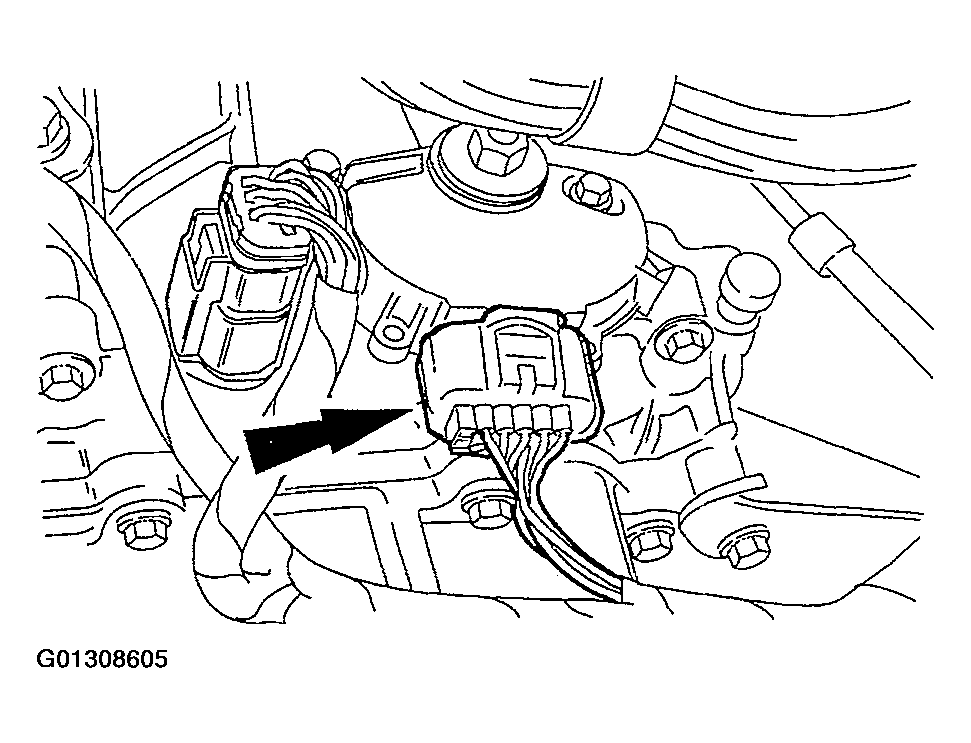

Fig 2: Disconnecting Digital Transmission Range Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Disconnect the shift cable from the manual control lever.

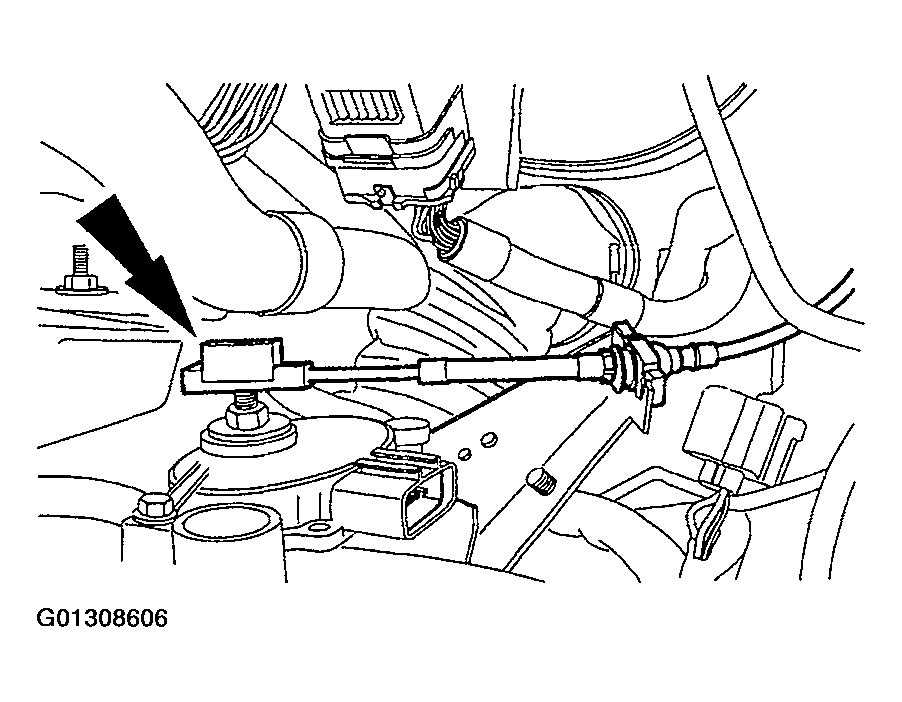

Fig 3: Disconnecting Shift Cable From Manual Control Lever
Courtesy of FORD MOTOR CO.
Remove the manual control lever.

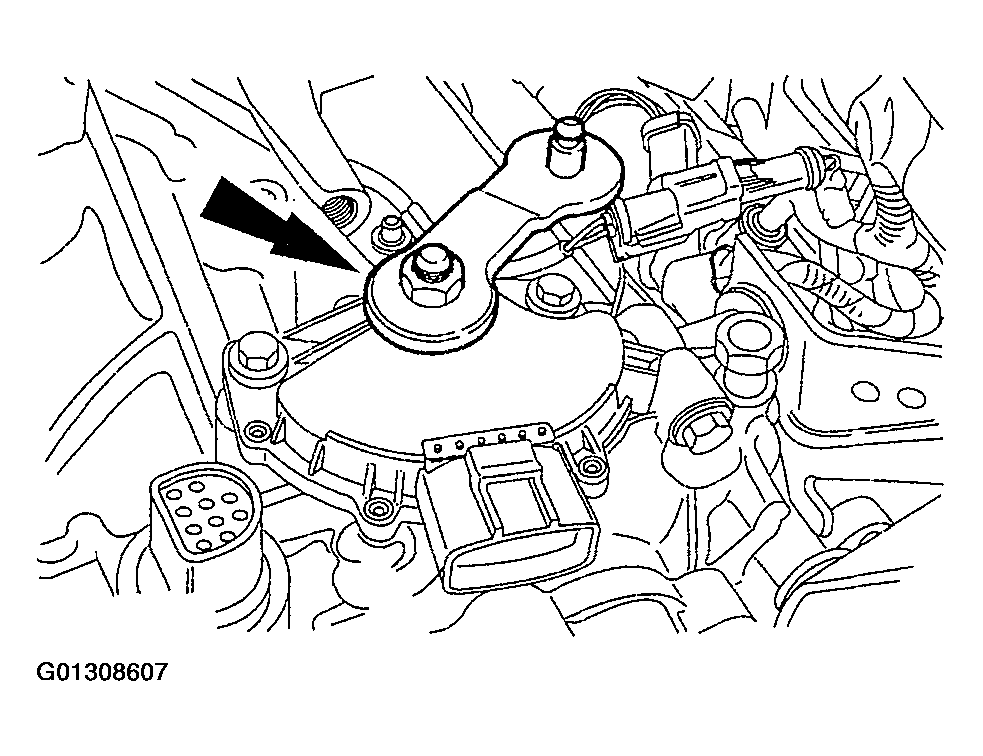

Fig 4: Removing Manual Control Lever
Courtesy of FORD MOTOR CO.
Remove the digital TR sensor.

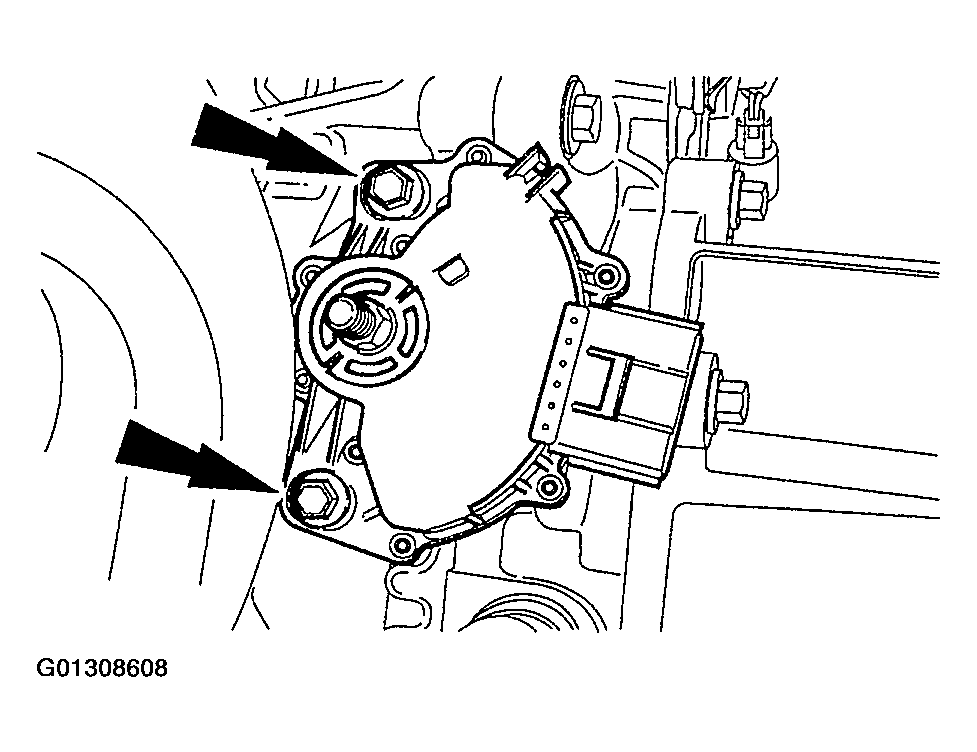

Fig 5: Removing Digital TR Sensor
Courtesy of FORD MOTOR CO.
