Engine-External Components

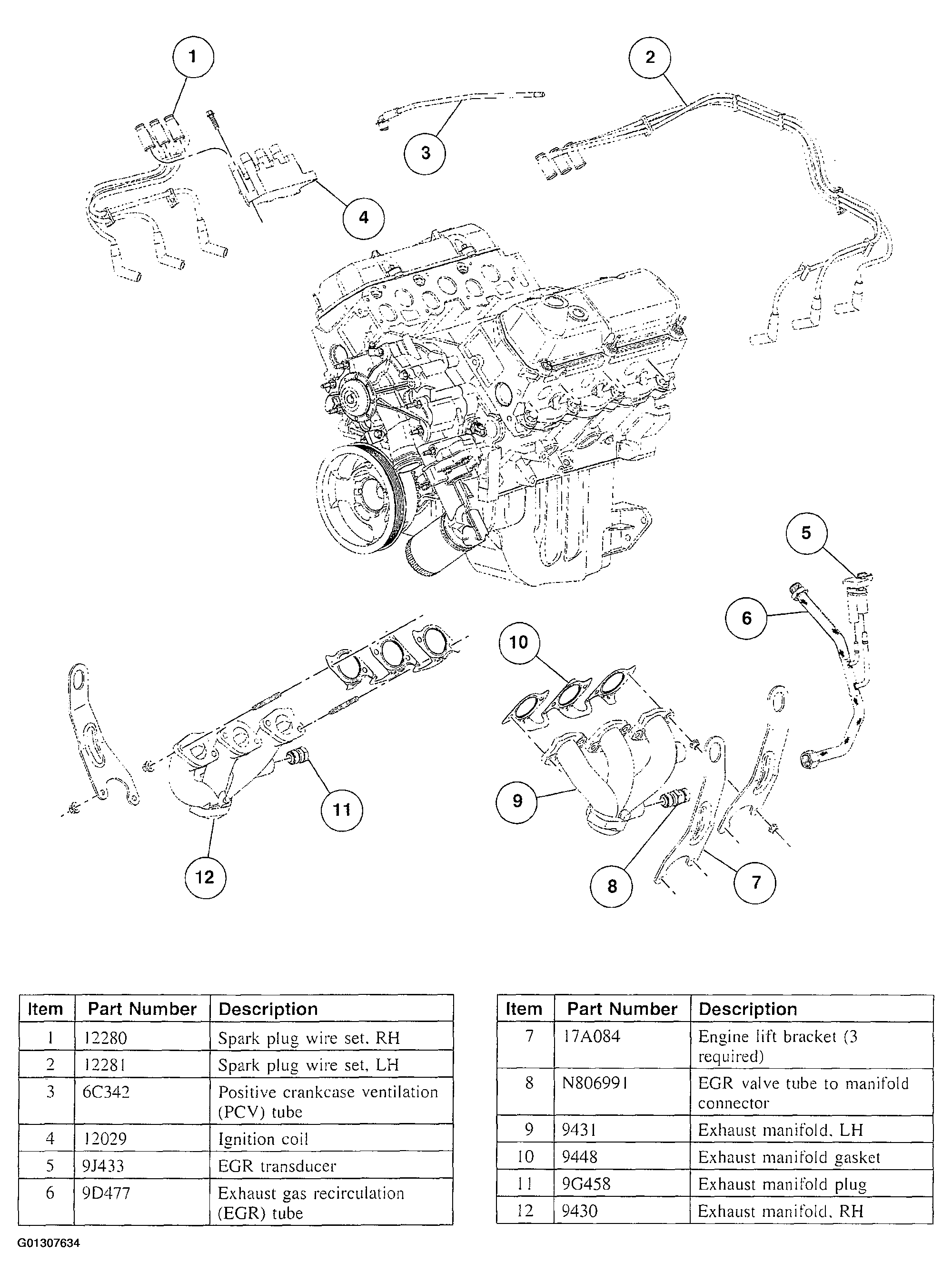

Fig 1: Exploded View Of Engine-External Components
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
