Removal and Installation

CAUTION: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan can cause engine failure.

Remove the cowl. Refer to COWL TOP VENT PANEL .
Remove the air cleaner outlet tube. .
Disconnect the accelerator and speed control cables.

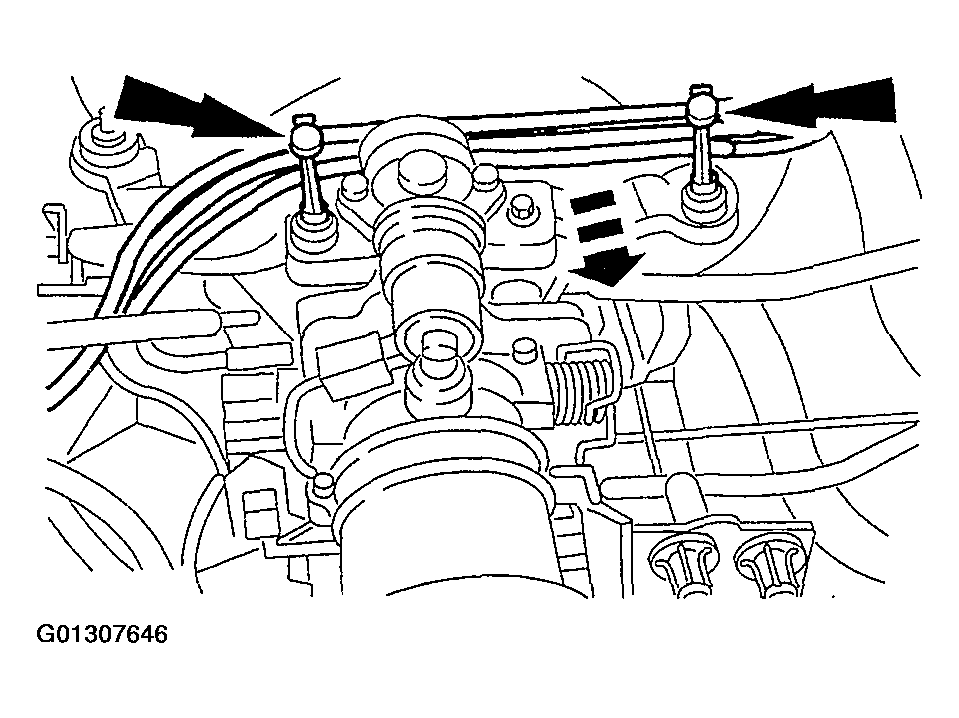

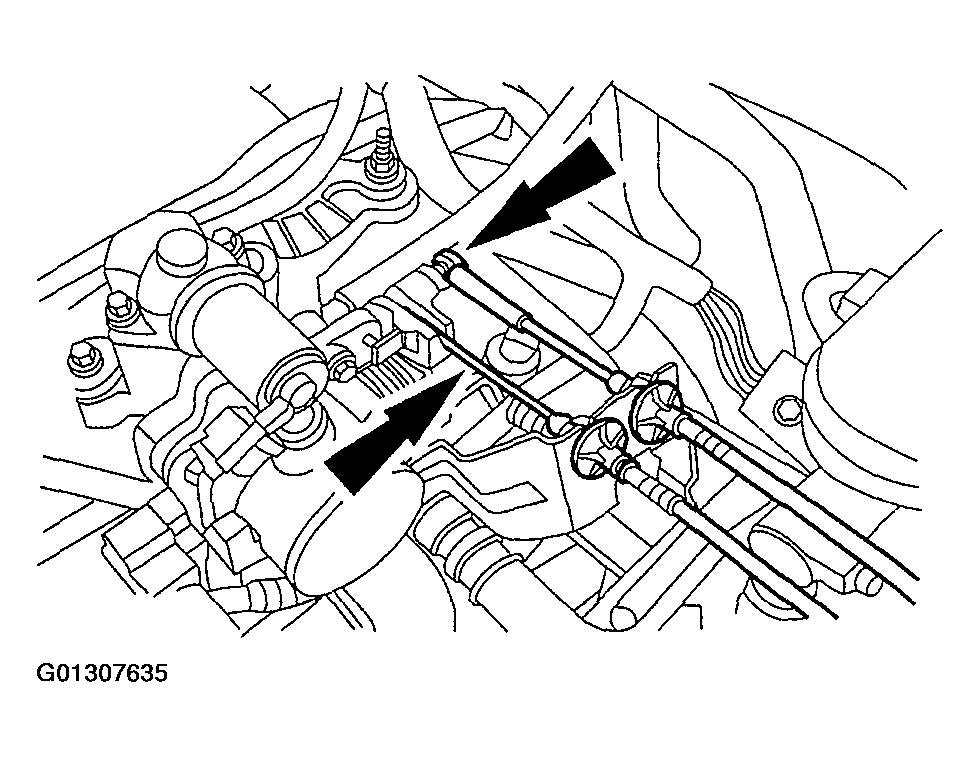

Fig 1: Identifying Accelerator & Speed Control Cables
Courtesy of FORD MOTOR CO.
Position the bracket aside.

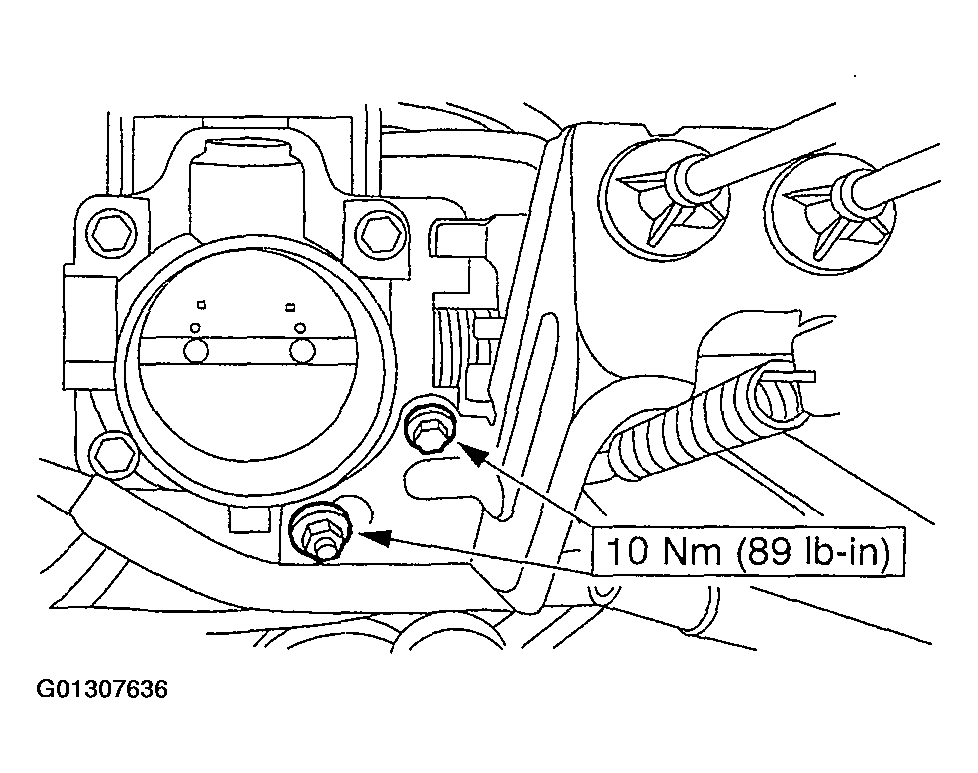

Fig 2: Identifying Tightening Torque Of Bracket Bolt
Courtesy of FORD MOTOR CO.
Disconnect the idle air control (IAC) valve and throttle position (TP) sensor electrical connectors.

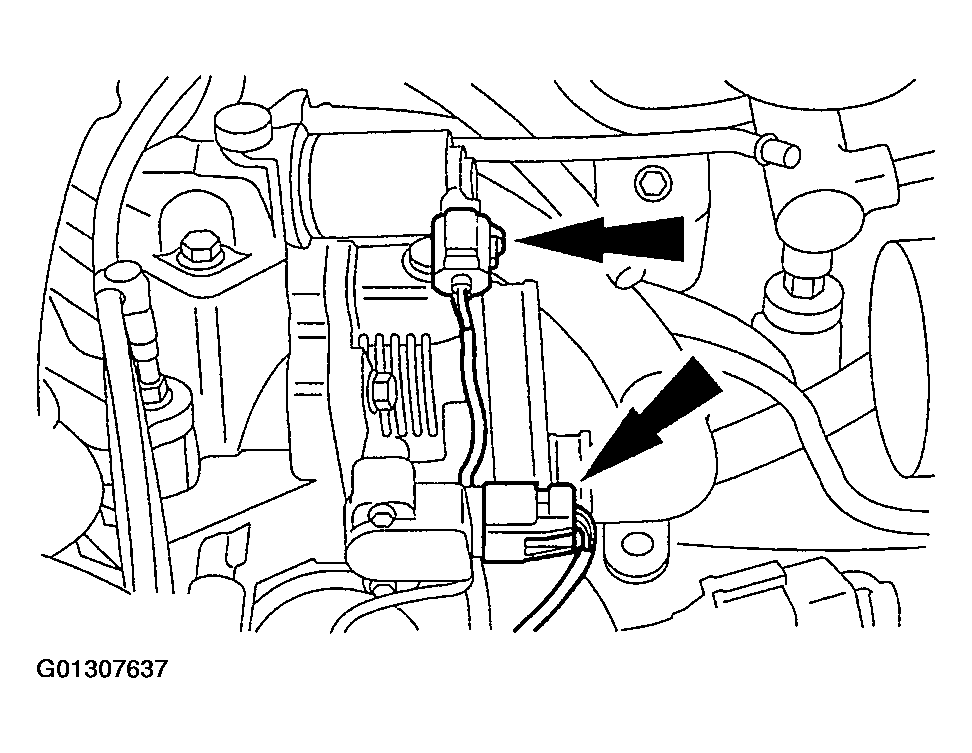

Fig 3: Locating Idle Air Control (IAC) Valve & Throttle Position (TP) Sensor Electrical Connectors
Courtesy of FORD MOTOR CO.
Disconnect the evaporative emissions return tube.

Fig 4: Identifying Evaporative Emissions Return Tube
Courtesy of FORD MOTOR CO.

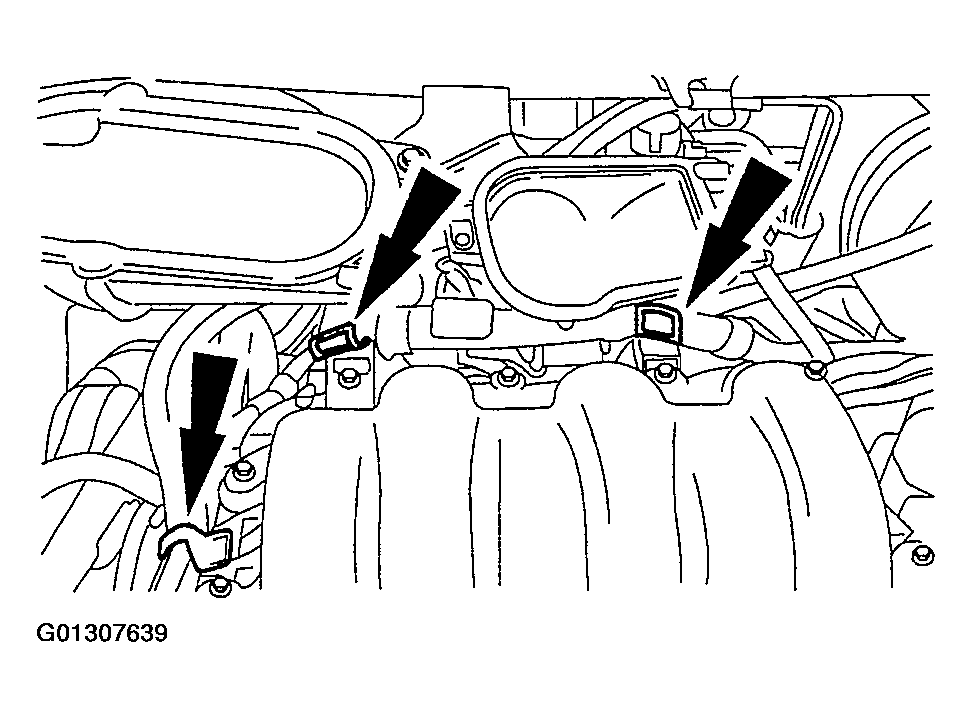

Remove the fuel tube retaining clip and the wire harness pin-type retainers.

Fig 5: Identifying Fuel Tube Retaining Clip & Wire Harness Pin-Type Retainers
Courtesy of FORD MOTOR CO.
Disconnect the brake booster vacuum hose.

Fig 6: Identifying Brake Booster Vacuum Hose
Courtesy of FORD MOTOR CO.

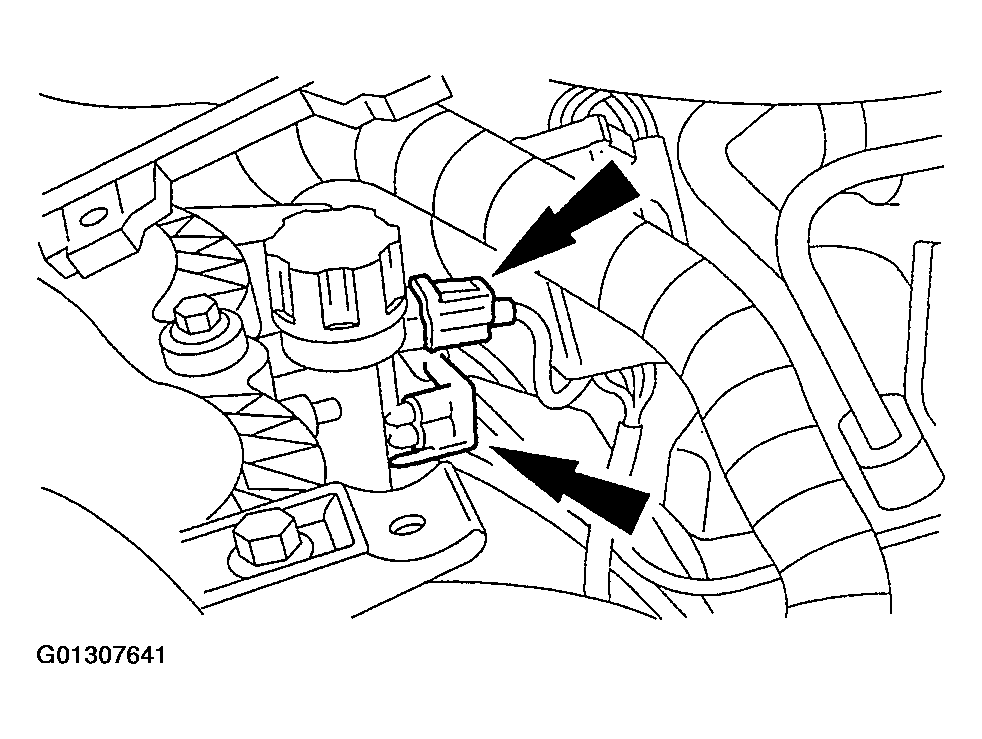

Disconnect the exhaust gas recirculation (EGR) vacuum regulator solenoid electrical and vacuum connections.

Fig 7: Locating Exhaust Gas Recirculation (EGR) Vacuum Regulator Solenoid Electrical & Vacuum Connections
Courtesy of FORD MOTOR CO.

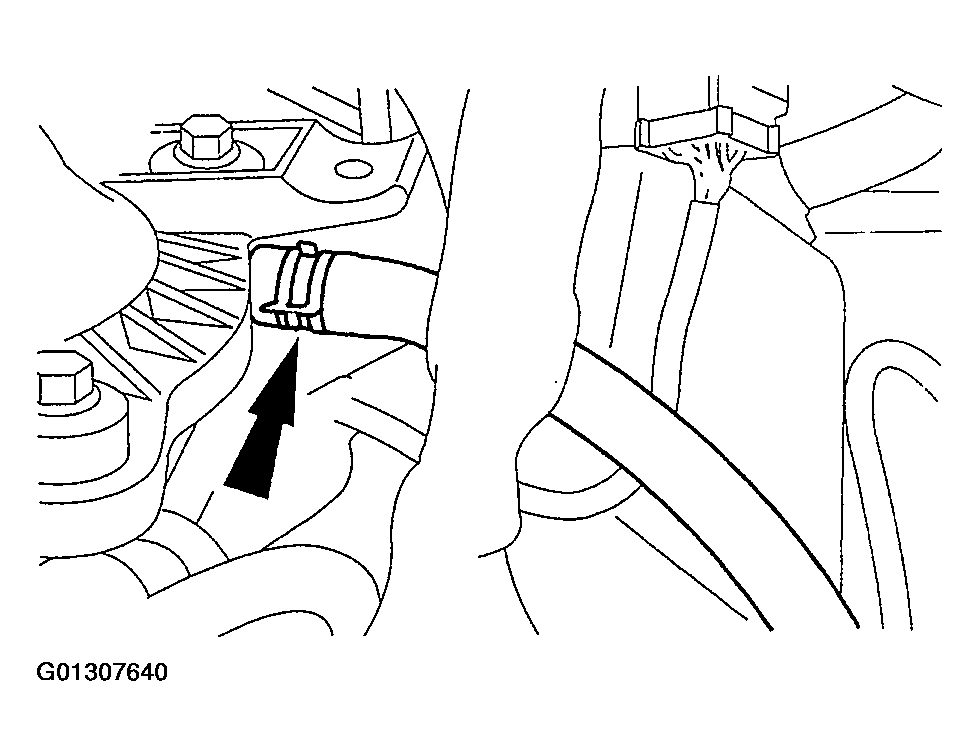

Disconnect the vacuum hose.

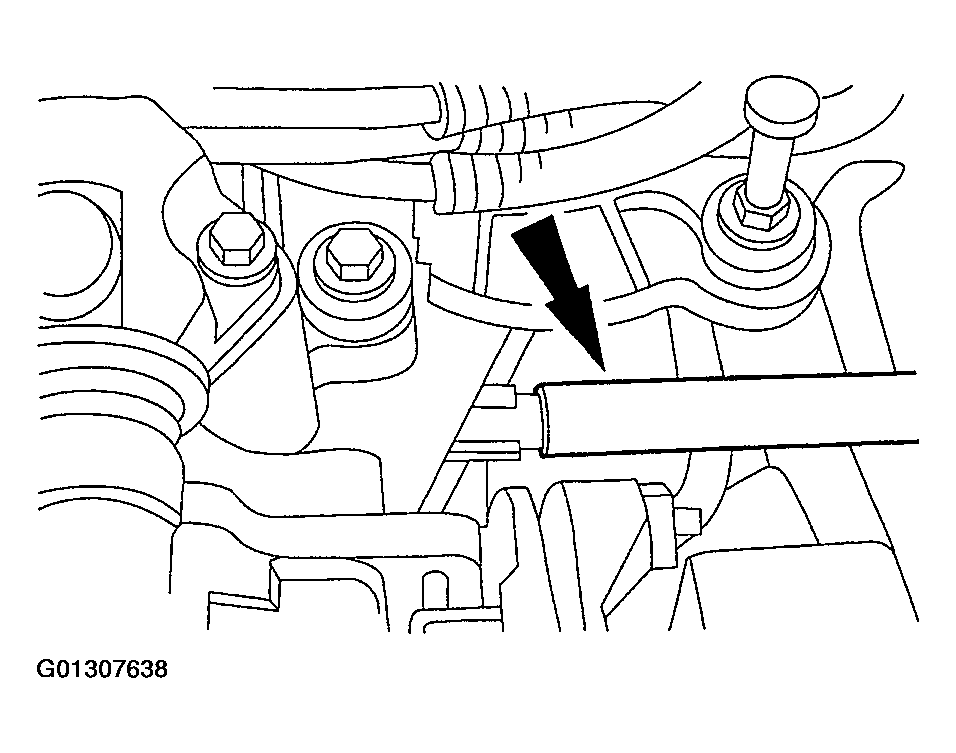

Fig 8: Identifying Vacuum Hose
Courtesy of FORD MOTOR CO.
Disconnect the fuel pressure regulator vacuum tube.

Fig 9: Identifying Fuel Pressure Regulator Vacuum Tube
Courtesy of FORD MOTOR CO.

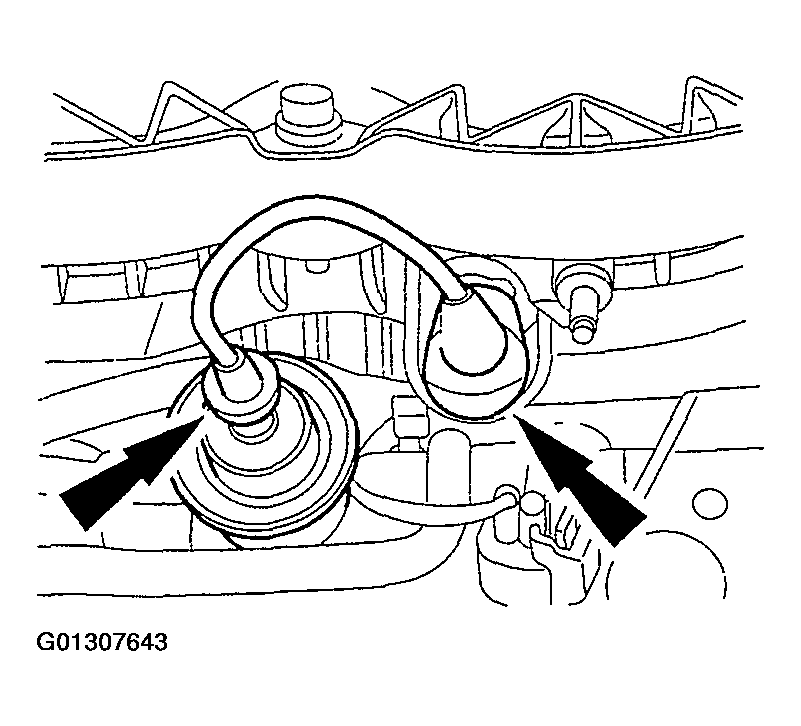

Disconnect the differential pressure feedback EGR system electrical and vacuum connections.

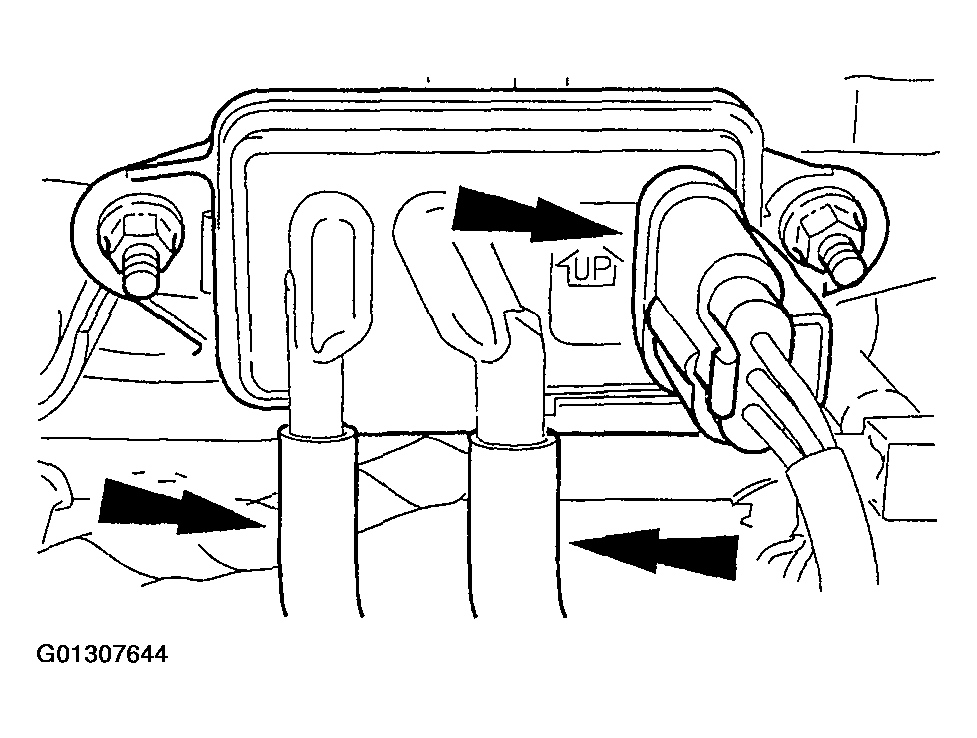

Fig 10: Locating Differential Pressure Feedback EGR System Electrical & Vacuum Connections
Courtesy of FORD MOTOR CO.

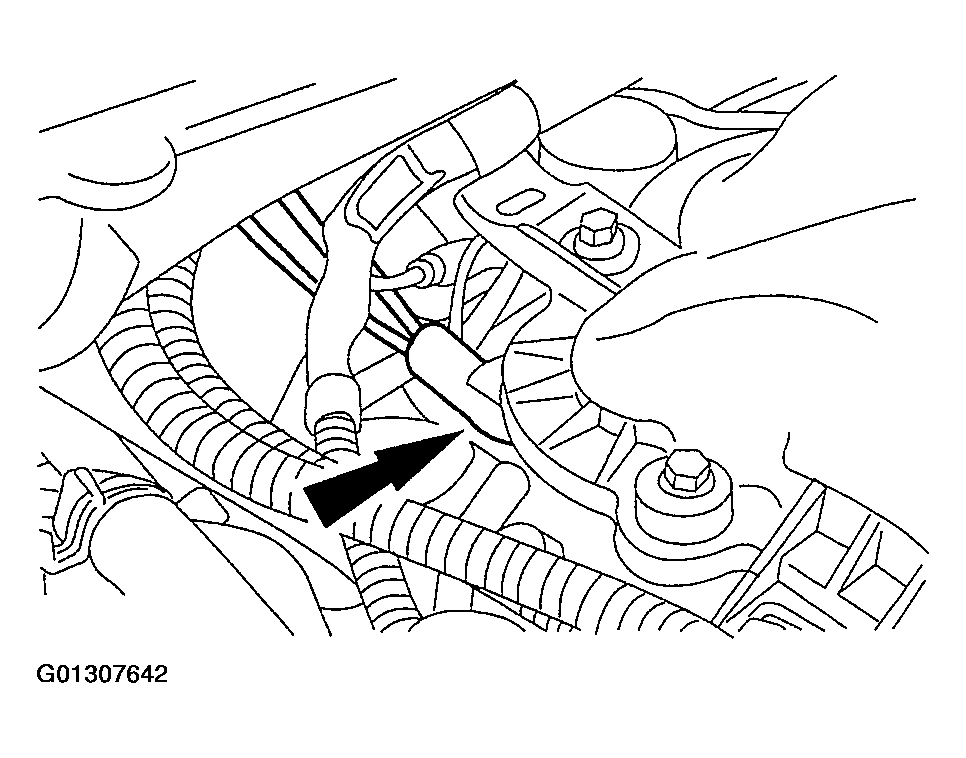

Disconnect the PCV hose.

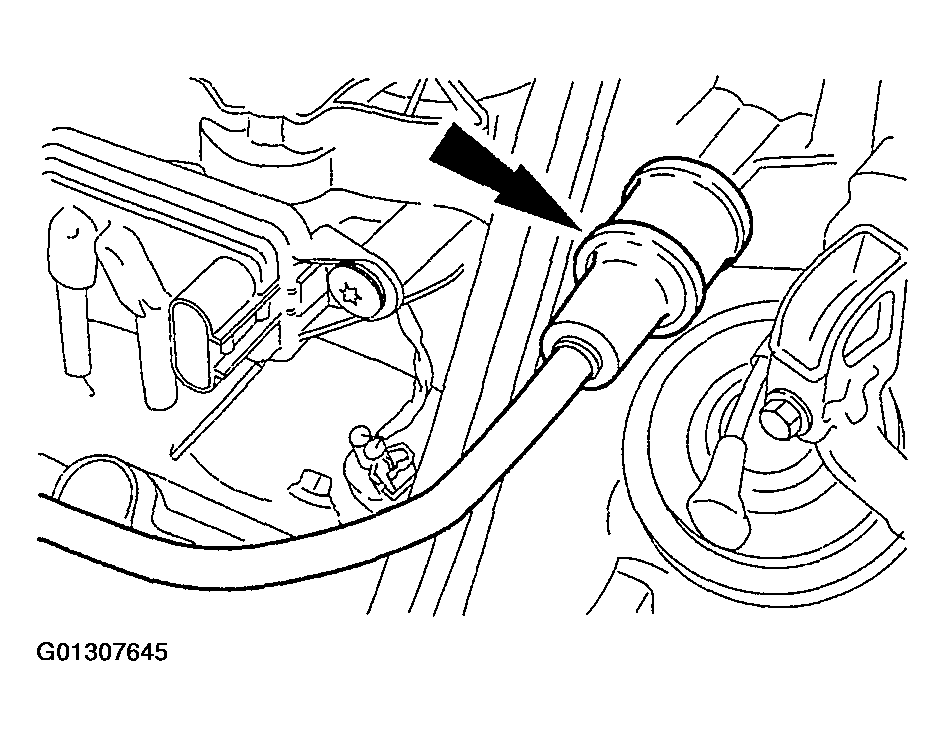

Fig 11: Identifying PCV Hose
Courtesy of FORD MOTOR CO.
Position the spark plug wires aside.

Fig 12: Positioning Spark Plug Wires Aside
Courtesy of FORD MOTOR CO.
Remove the upper intake manifold.

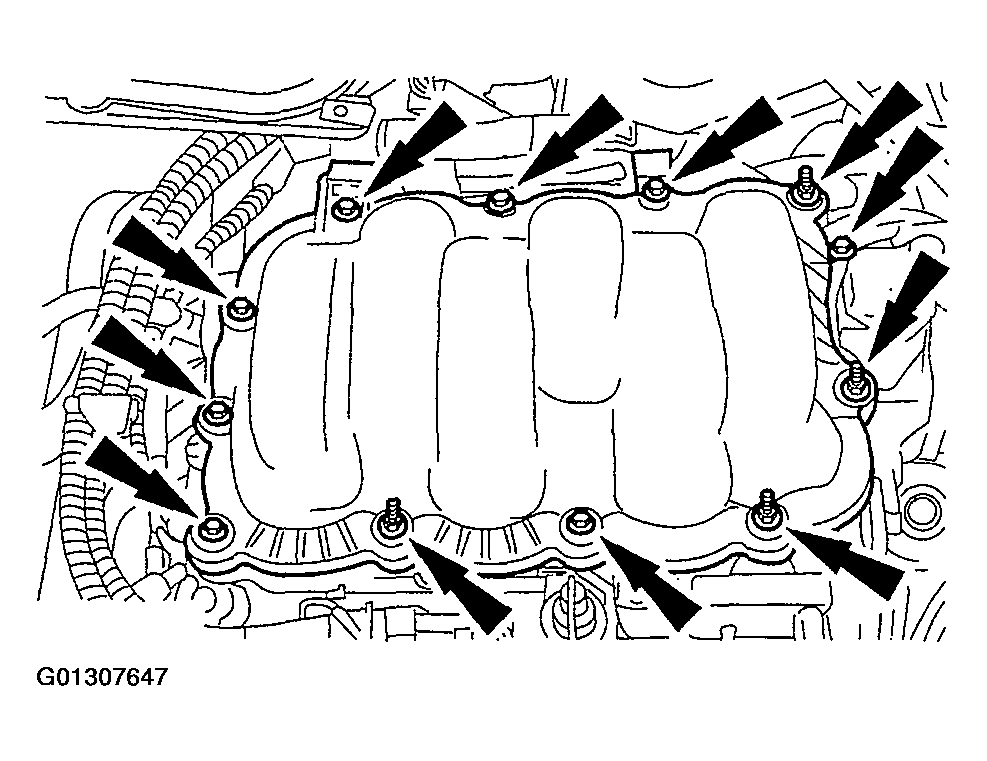

Fig 13: Identifying Upper Intake Manifold Bolts
Courtesy of FORD MOTOR CO.
Remove the upper intake manifold spacer.

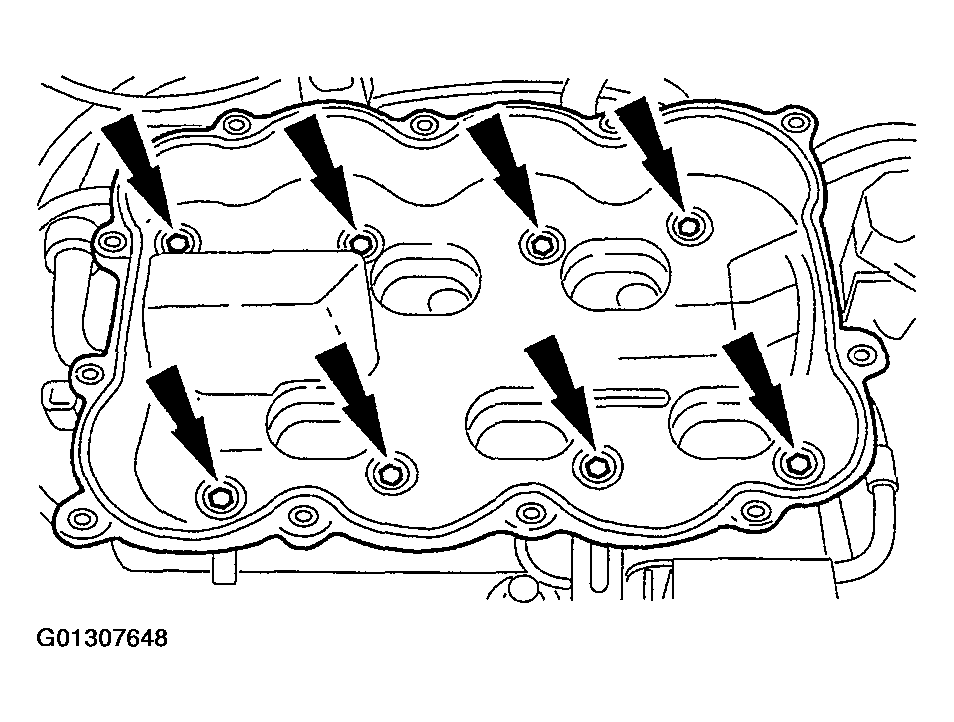

Fig 14: Identifying Upper Intake Manifold Spacer Bolts
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure. Tighten the upper intake manifold spacer and the upper intake manifold in the sequences shown.

Fig 15: Upper Intake Manifold Spacer Bolt Tightening Torque
Courtesy of FORD MOTOR CO.

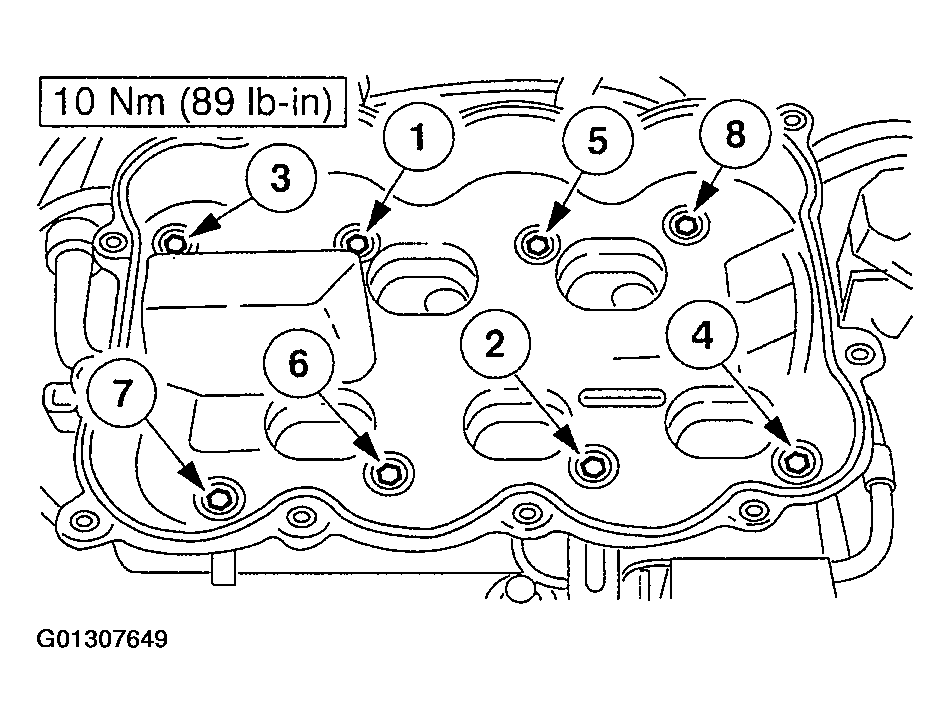

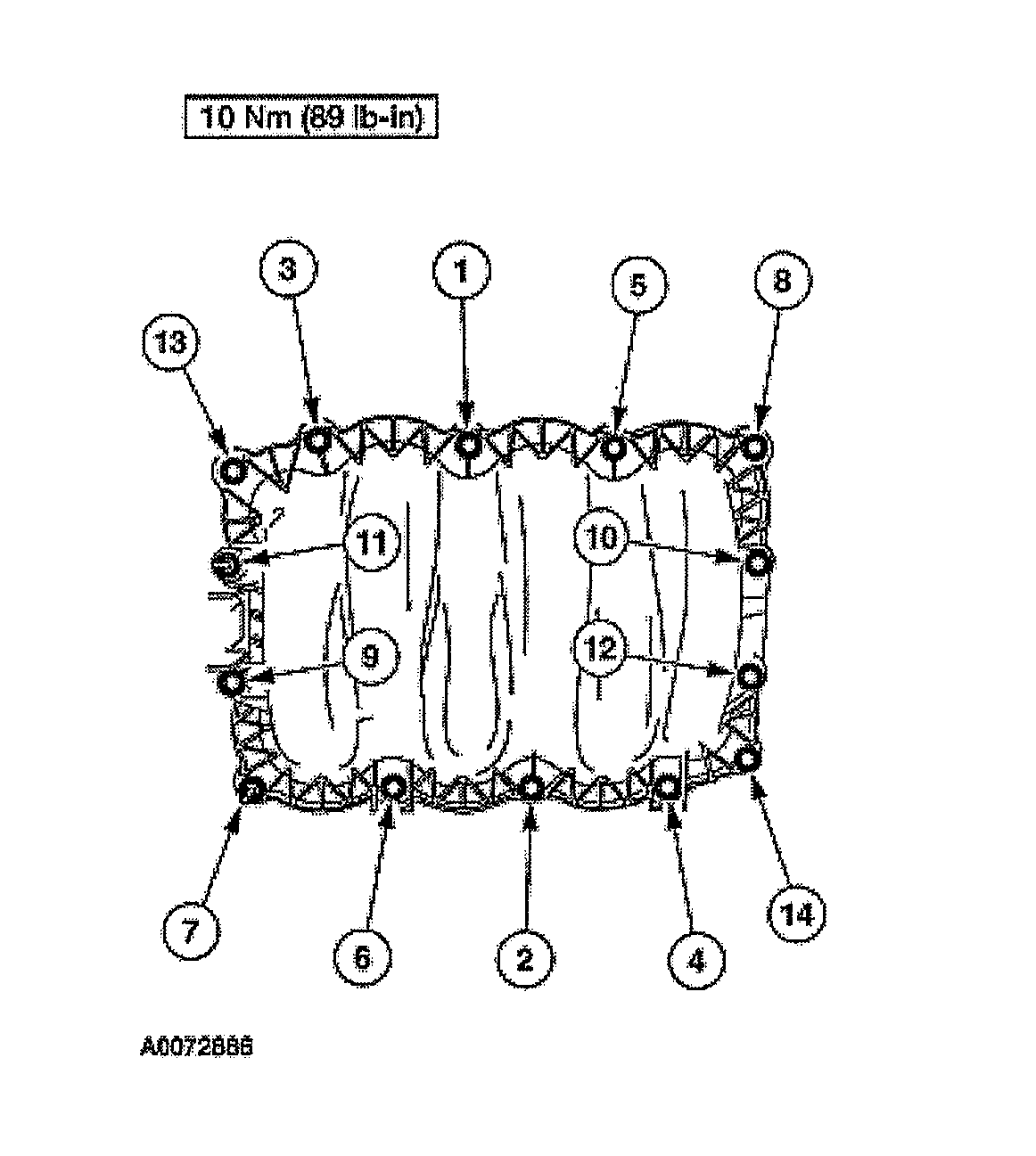

Fig 16: Upper Intake Manifold Bolt Tightening Torque
Courtesy of FORD MOTOR CO.
