Engine-Front Components

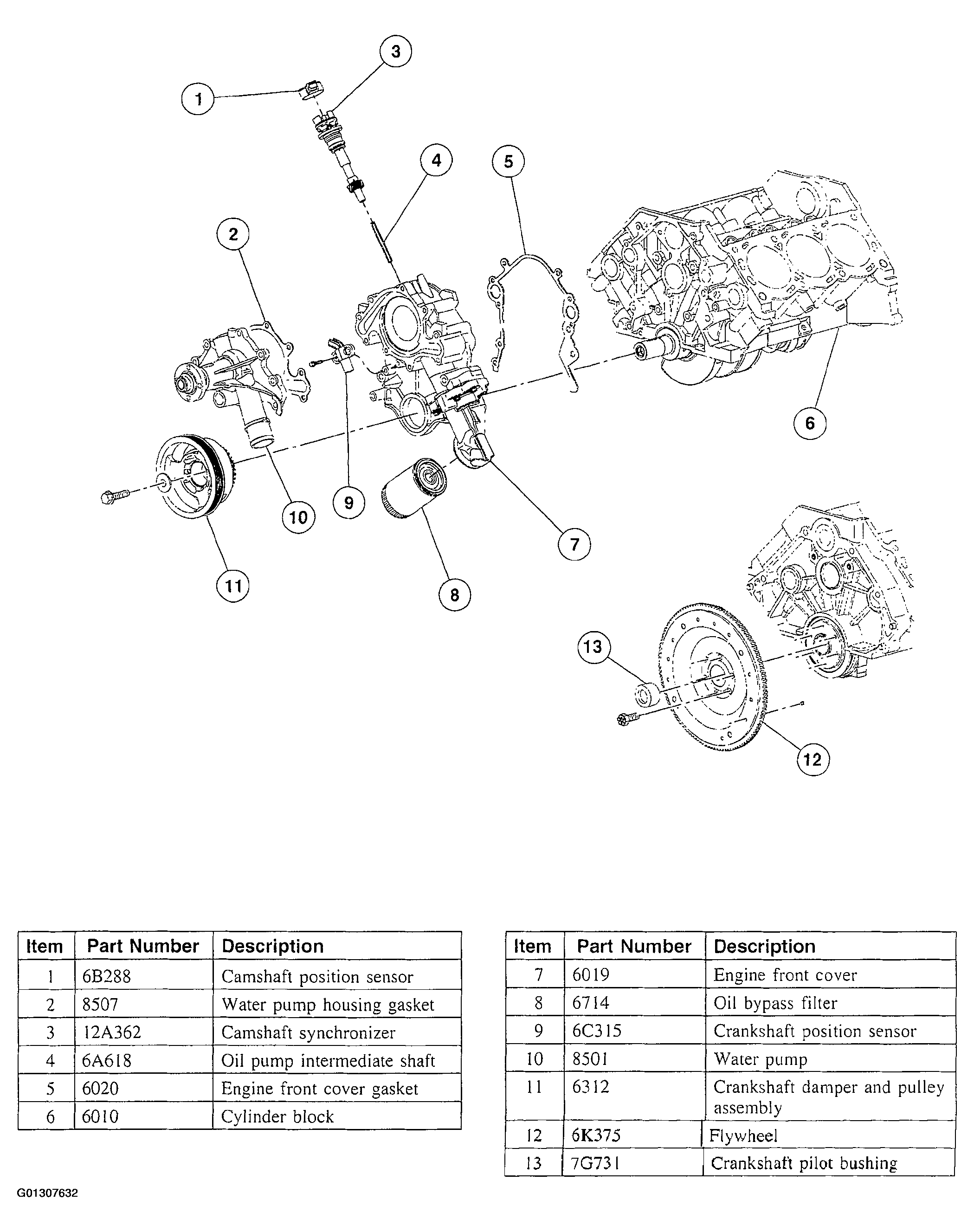

Fig 1: Exploded View Of Engine-Front Components
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
