Module Controlled Functions - Remote Anti-Theft Personality (Rap) Module: Notes

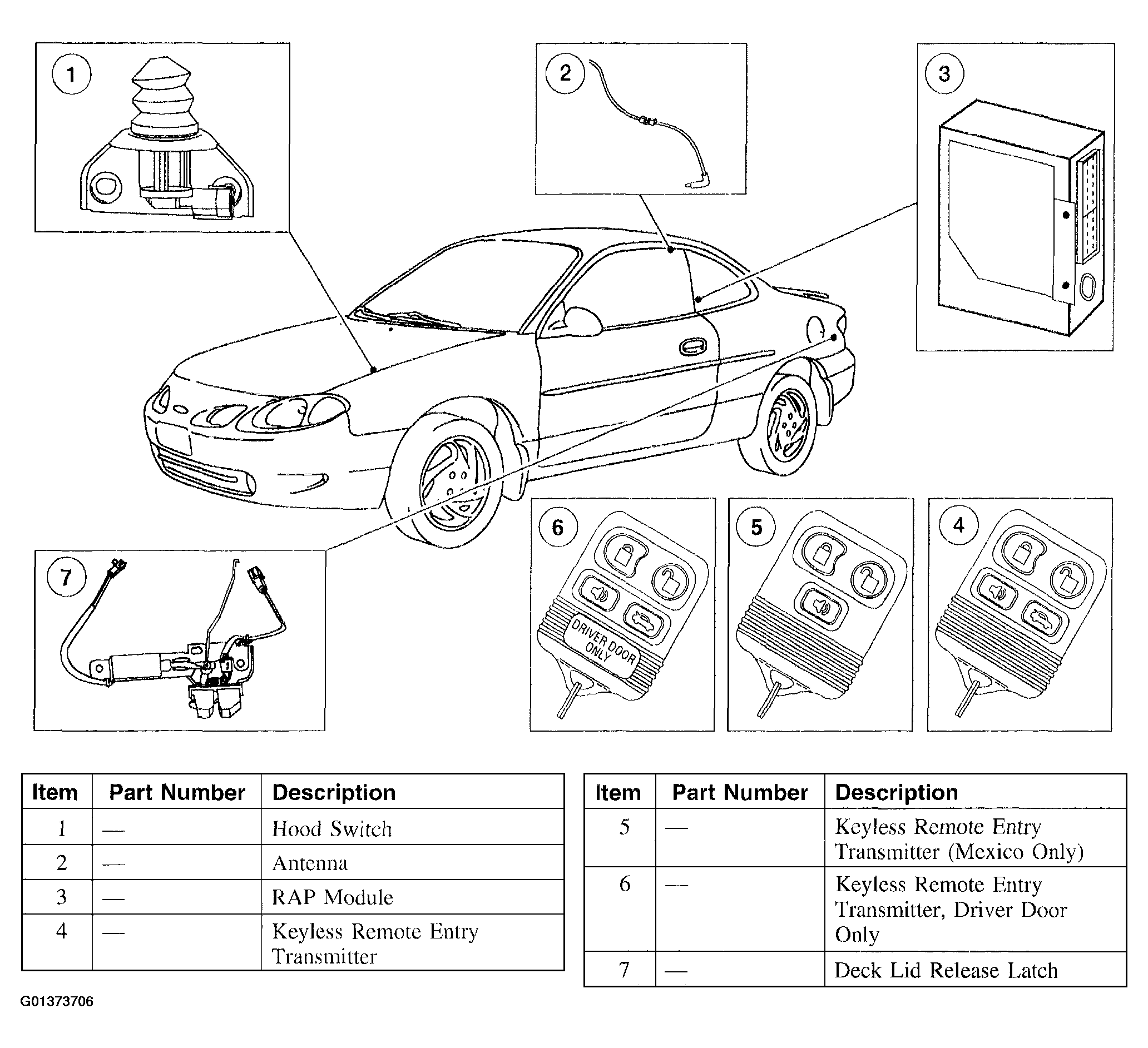

Fig 1: Identifying RAP System Components

Courtesy of FORD MOTOR CO.

The remote anti-theft personality (RAP) module uses a keyless remote entry transmitter to lock/unlock the door(s) and arm/disarm anti-theft (if equipped). Three levels of the RAP module are available:

• Driver door remote system with anti-theft.
• Two-door remote entry with anti-theft.
• Anti-theft only (available only in Mexico).

All levels of the RAP module use a keyless remote entry transmitter that emits a radio frequency called a transmitter identification code (TIC). TICs can be retrieved using a scan tool.
