Seat-Front, Seat Back: Disassembly

NOTE: Coupe seat shown, Sedan, Wagon similar.
  1. Disassemble the front seat; refer to SEAT-FRONT .
  2. Remove the front seat back head restraint.
    1. Press the button.
    2. Remove the front seat back head restraint.

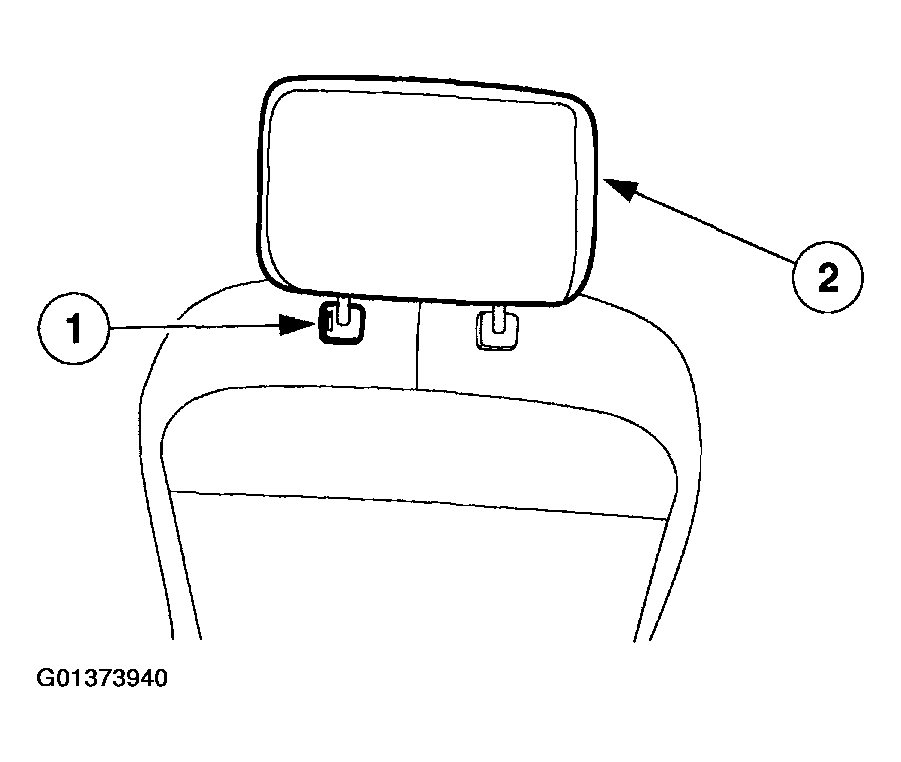

    Fig 1: Removing Front Seat Back Head Restraint
    G01373940Courtesy of FORD MOTOR CO.
  3. Remove the rear seat access lever trim.
    1. Remove the knob.
    2. Remove the screw.
    3. Remove the rear seat access lever trim.

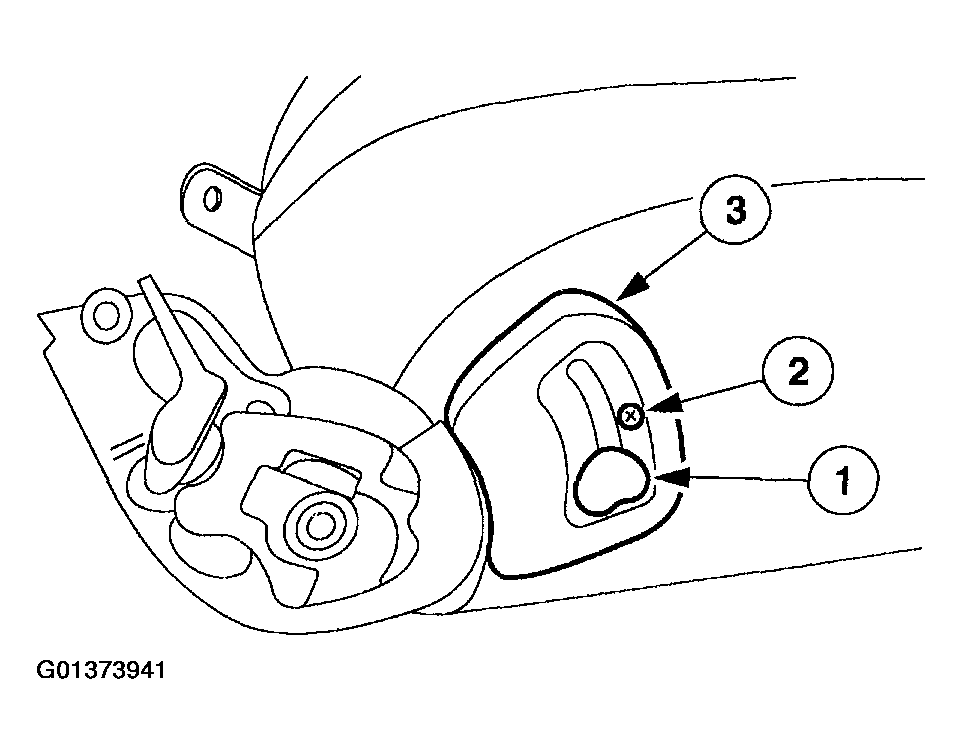

    Fig 2: Removing Rear Seat Access Lever Trim
    G01373941Courtesy of FORD MOTOR CO.
  4. Unhook the retainer.

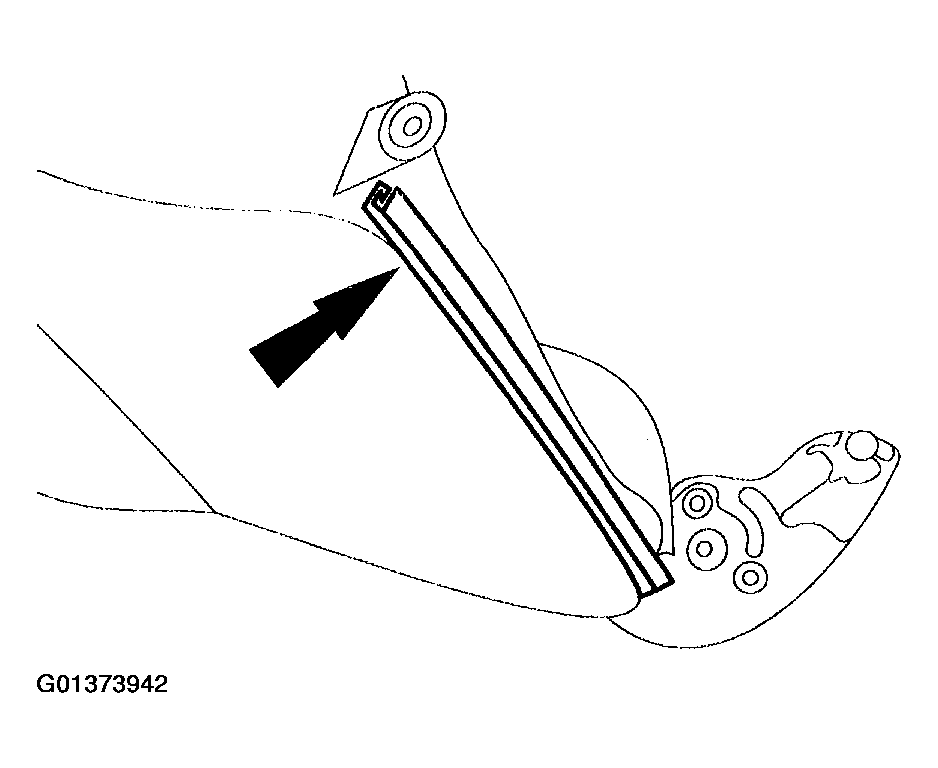

    Fig 3: Identifying Unhook Retainer
    G01373942Courtesy of FORD MOTOR CO.
  5. Invert the front seat back trim up to the hog rings.

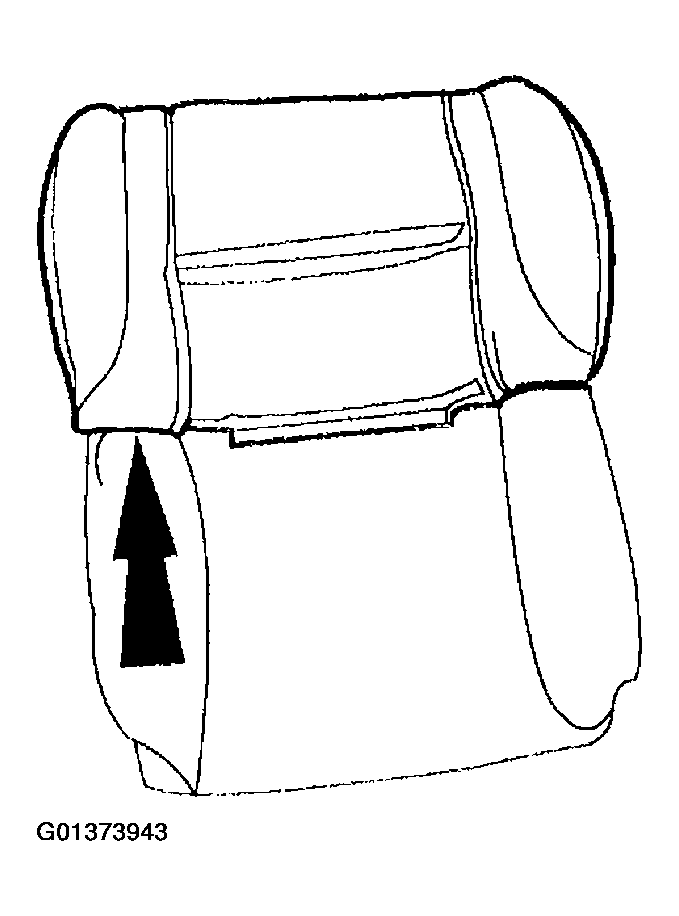

    Fig 4: Inverting Front Seat Back Trim Up To Hog Rings
    G01373943Courtesy of FORD MOTOR CO.
  6. Remove the hog rings from the front side of the front seat back.

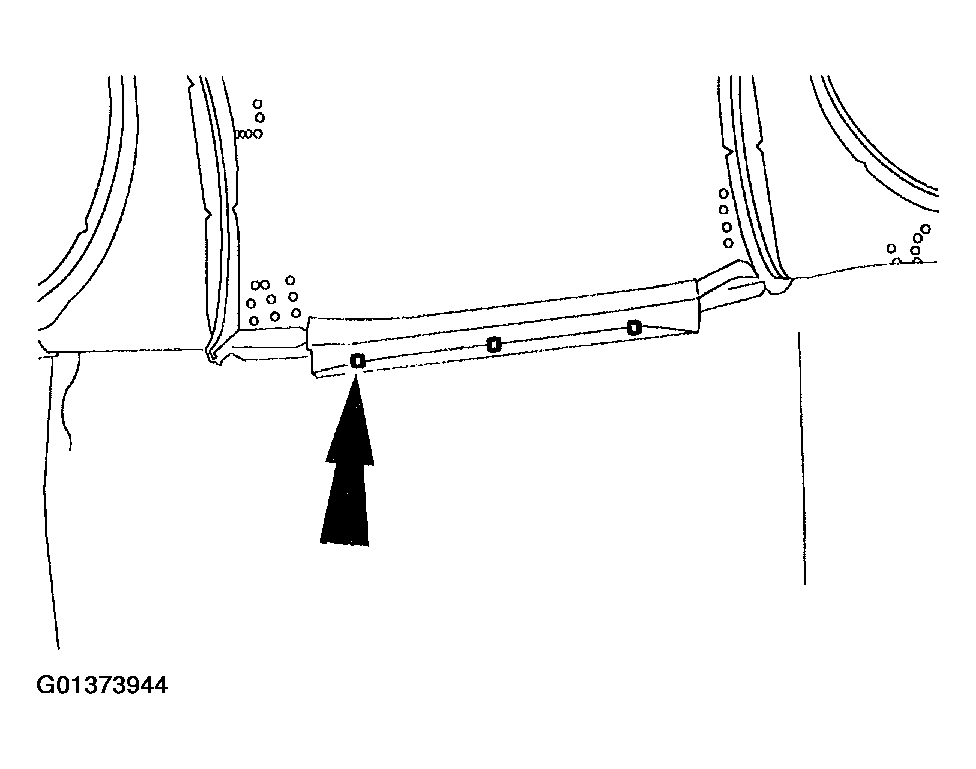

    Fig 5: Removing Hog Rings From Front Side Of Front Seat Back
    G01373944Courtesy of FORD MOTOR CO.
  7. Remove the hog rings from the back side of the front seat back.

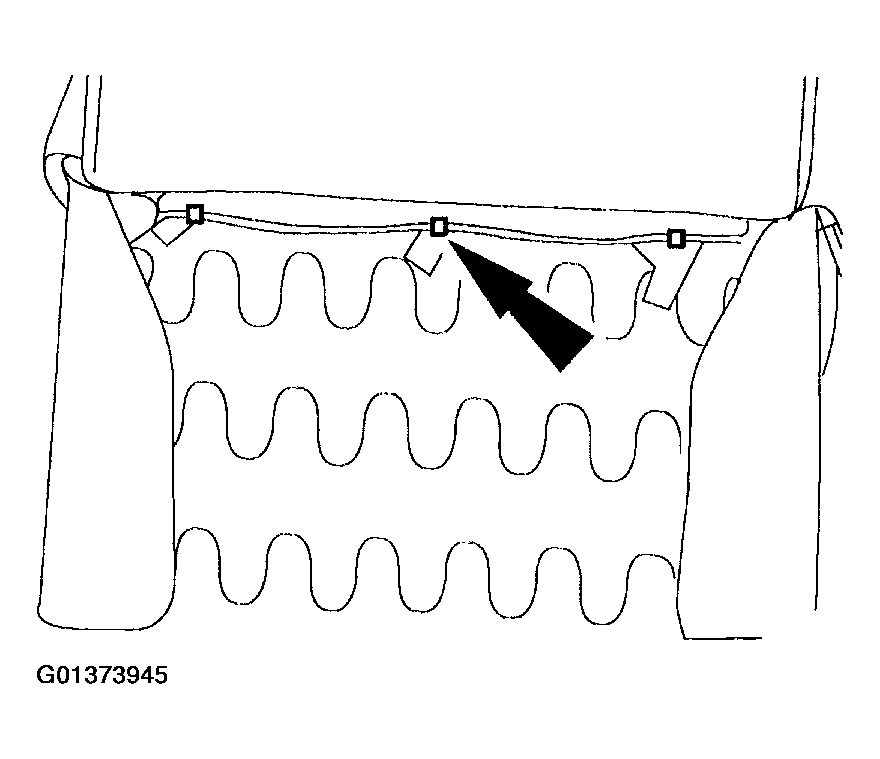

    Fig 6: Removing Hog Rings From Back Side Of Front Seat Back
    G01373945Courtesy of FORD MOTOR CO.
  8. Invert the front seat back trim completely.

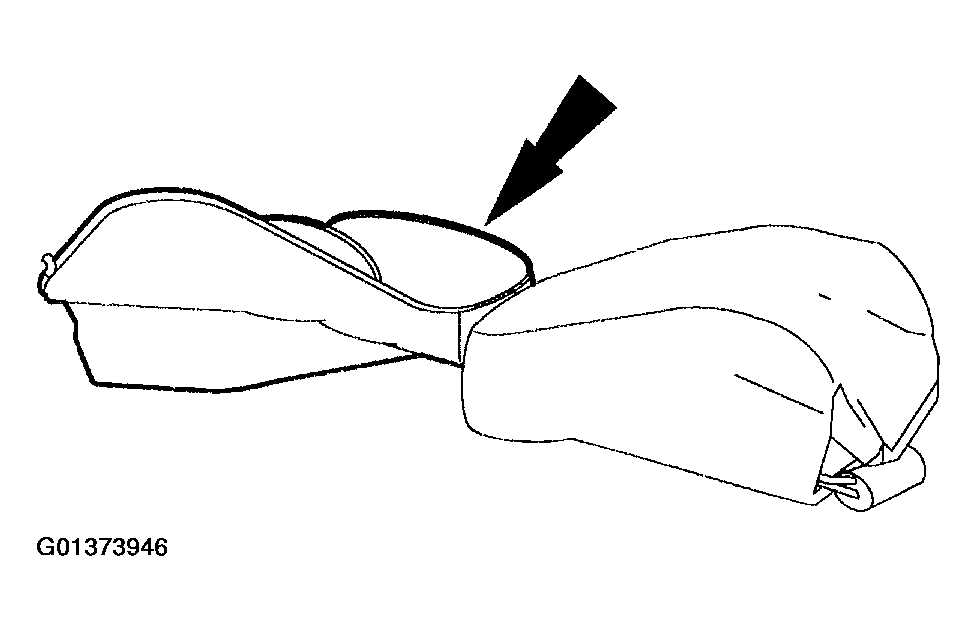

    Fig 7: Inverting Front Seat Back Trim Completely
    G01373946Courtesy of FORD MOTOR CO.
    9. NOTE: RH shown, LH similar.

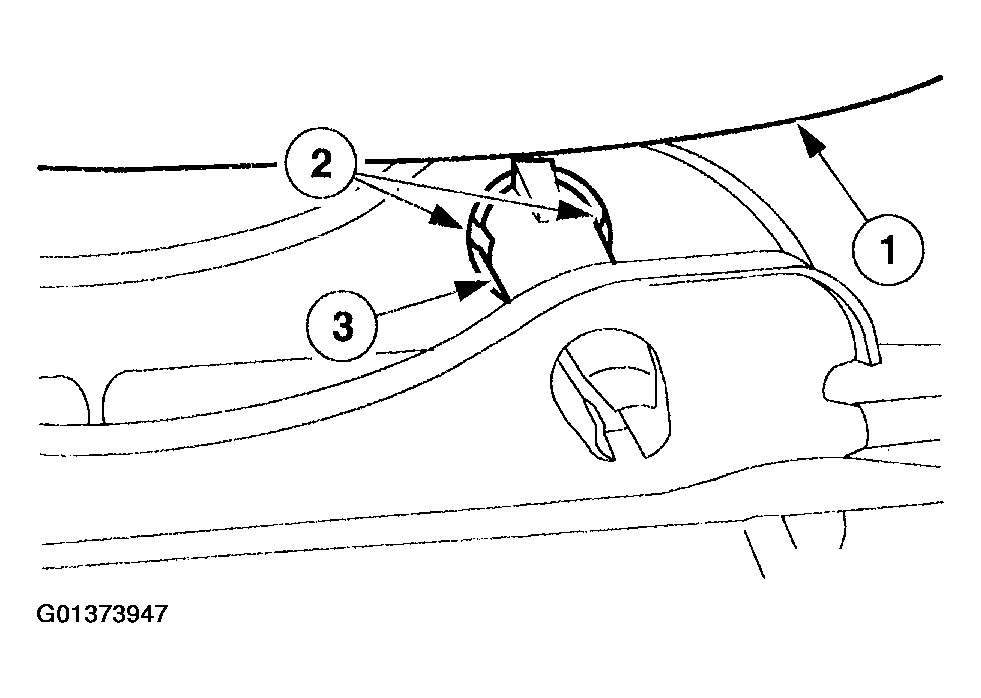

    Fig 8: Removing Front Seat Back Head Restraint Sleeves
    G01373947Courtesy of FORD MOTOR CO.
  9. Remove the front seat back head restraint sleeves.
    1. Position the front seat back cushion aside.
    2. Squeeze the tabs.
    3. Remove the front seat back head restraint sleeves.
  10. Remove the front seat back head restraint sleeves from the front seat back trim.
  11. Remove the seat back pad from the seat back frame.

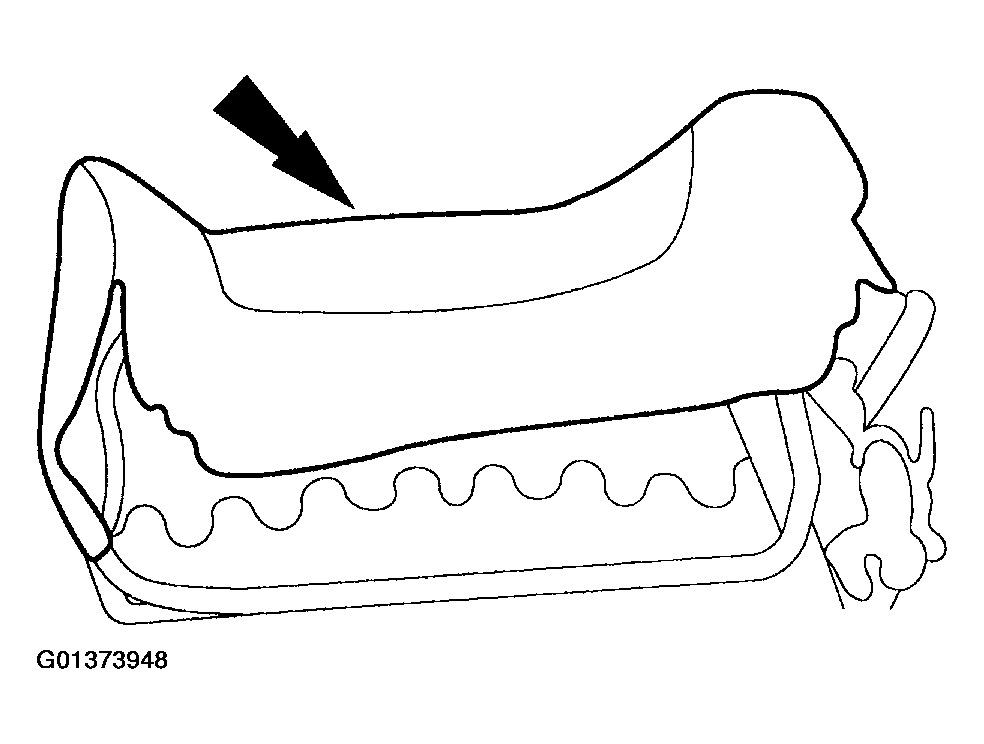

    Fig 9: Removing Seat Back Pad From Seat Back Frame
    G01373948Courtesy of FORD MOTOR CO.
  12. Remove the rear seat access lever trim support bracket.
    1. Remove the screws.
    2. Remove the rear seat access lever trim support bracket.

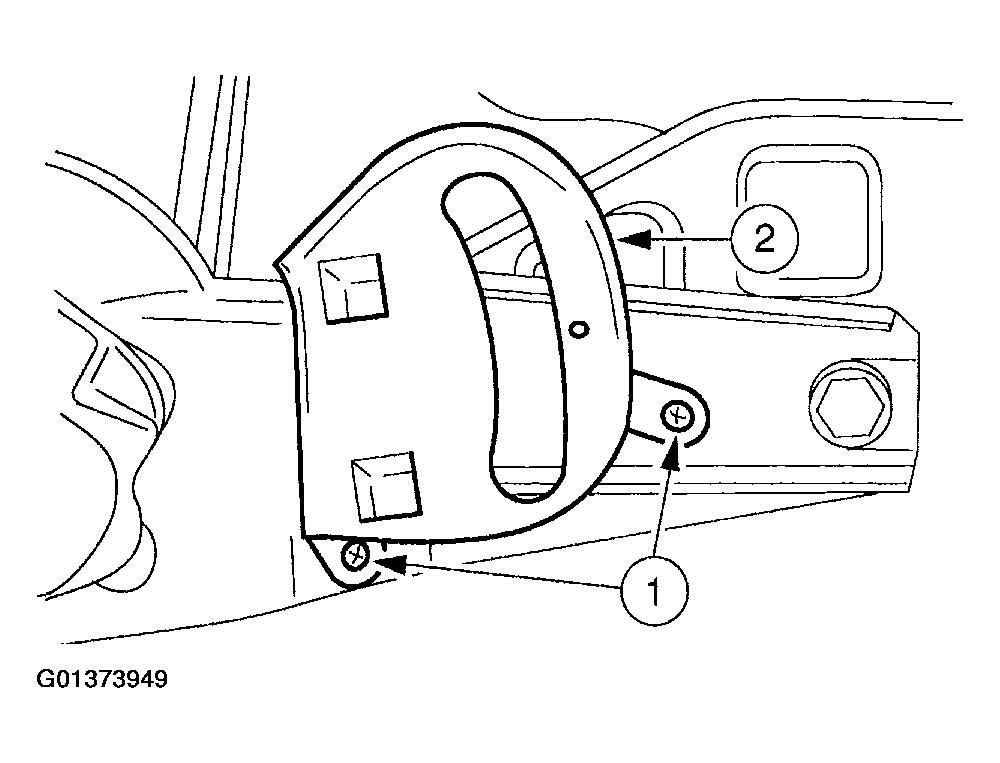

    Fig 10: Removing Rear Seat Access Lever Trim Support Bracket
    G01373949Courtesy of FORD MOTOR CO.
  13. Remove the front seat back latch.
    1. Remove the bolts.
    2. Remove the front seat back latch.

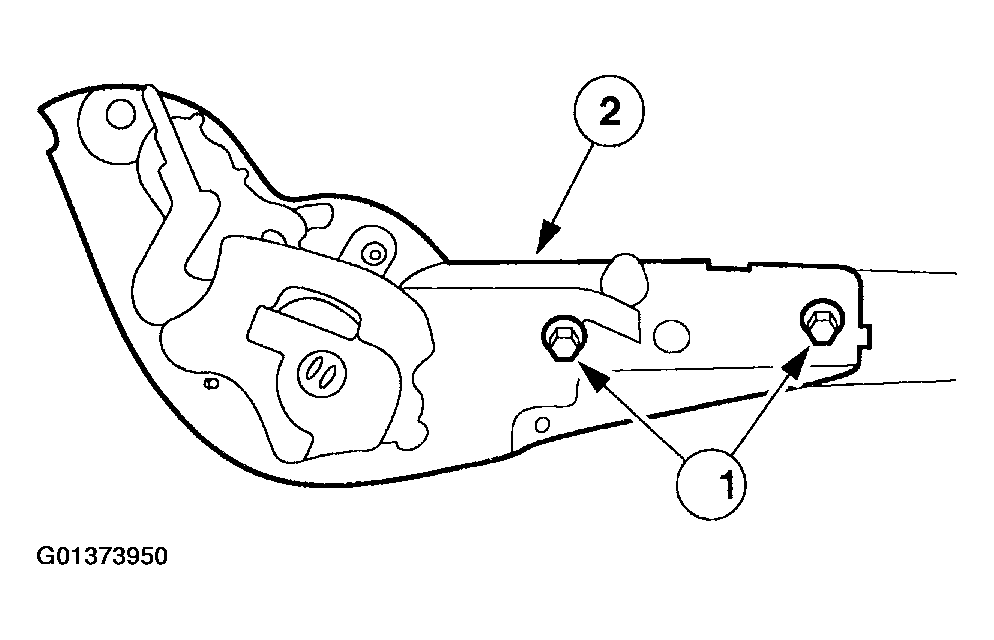

    Fig 11: Removing Front Seat Back Latch
    G01373950Courtesy of FORD MOTOR CO.
