Disassembly And Assembly: Seat-Front: Assembly

  1. Install the front seat inboard pivot bolt.

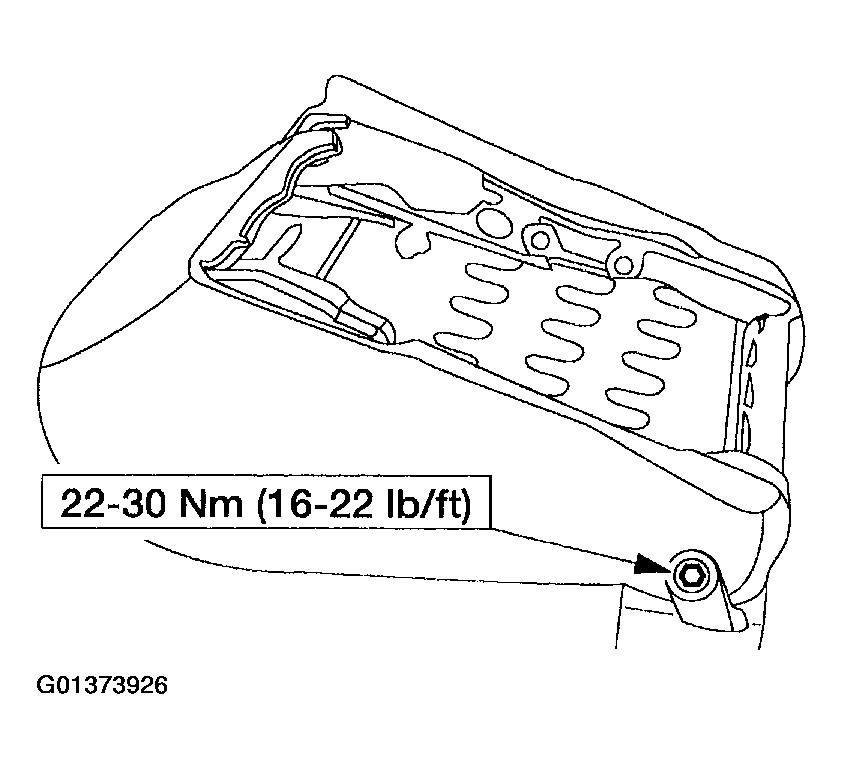

    Fig 1: Installing Front Seat Inboard Pivot Bolt
    G01373926Courtesy of FORD MOTOR CO.
  2. Install the front seat back latch to seat base bolts.

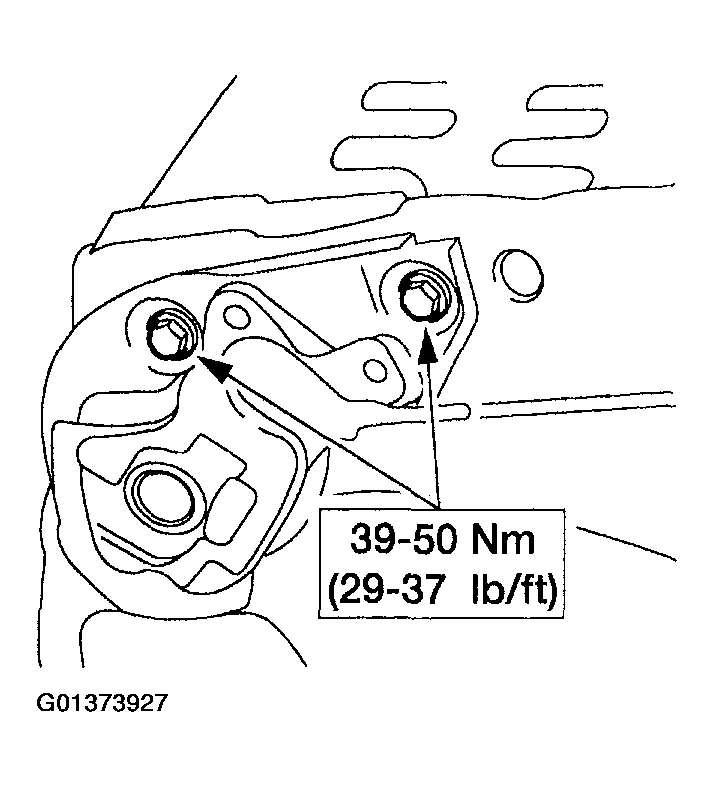

    Fig 2: Installing Front Seat Back Latch To Seat Base Bolts
    G01373927Courtesy of FORD MOTOR CO.
  3. Install the front seat back latch cover.
    1. Position the front seat back latch cover.
    2. Install the screws.

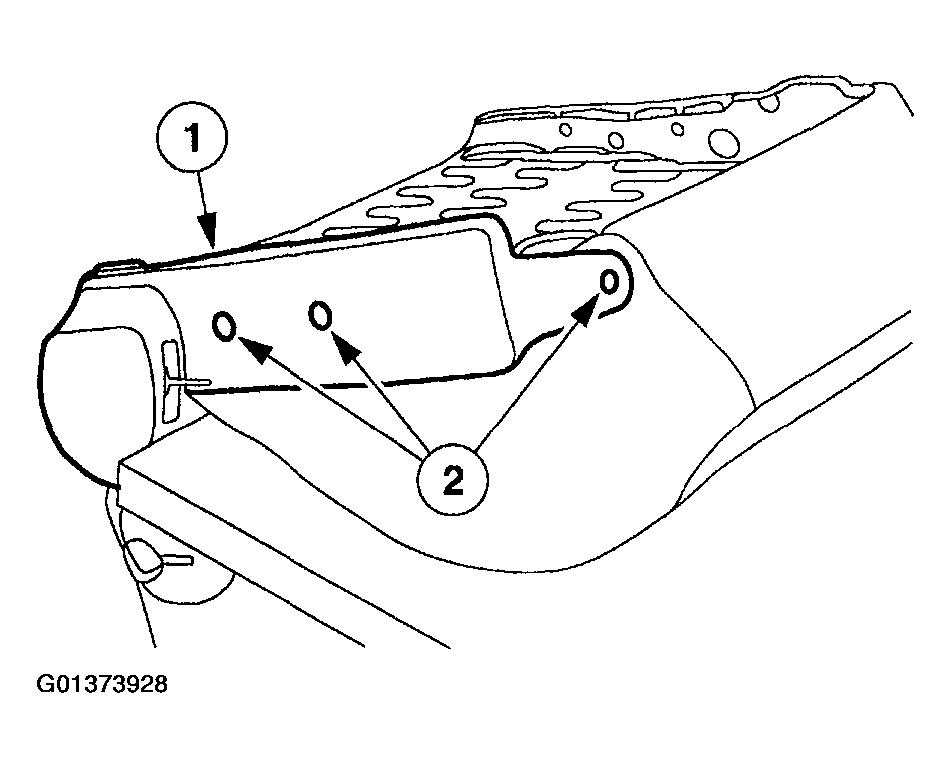

    Fig 3: Installing Front Seat Back Latch Cover Screws
    G01373928Courtesy of FORD MOTOR CO.
  4. Install the front seat back recline lever.

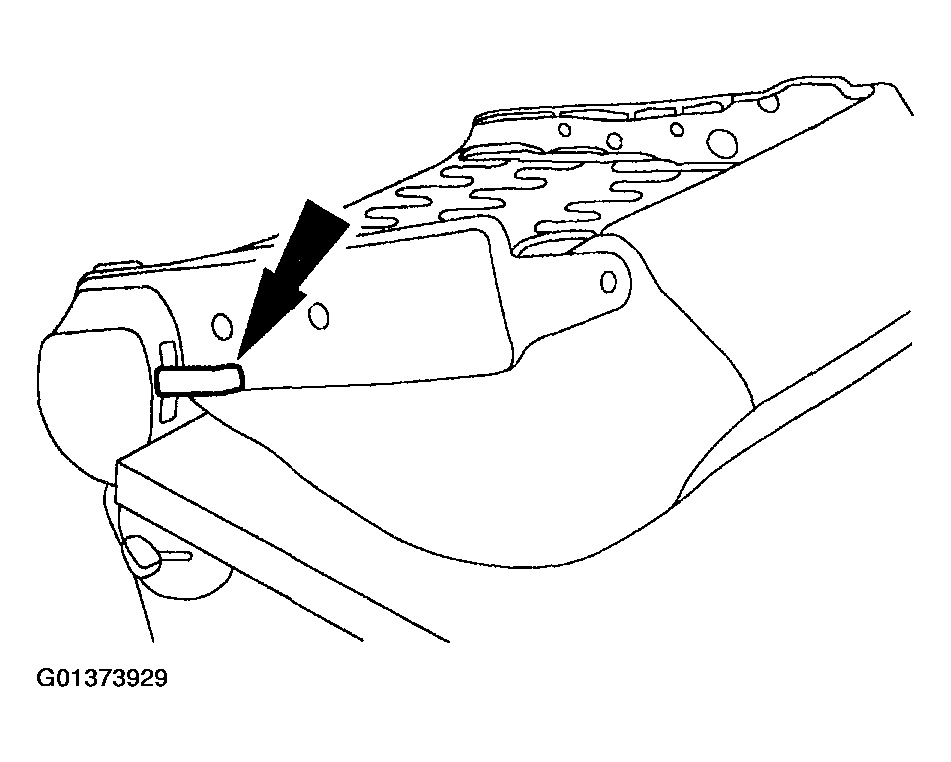

    Fig 4: Installing Front Seat Back Recline Lever
    G01373929Courtesy of FORD MOTOR CO.
  5. Position the safety belt warning indicator switch wiring.
    1. Position the safety belt warning indicator switch electrical connector wire.
    2. Install the wire ties.

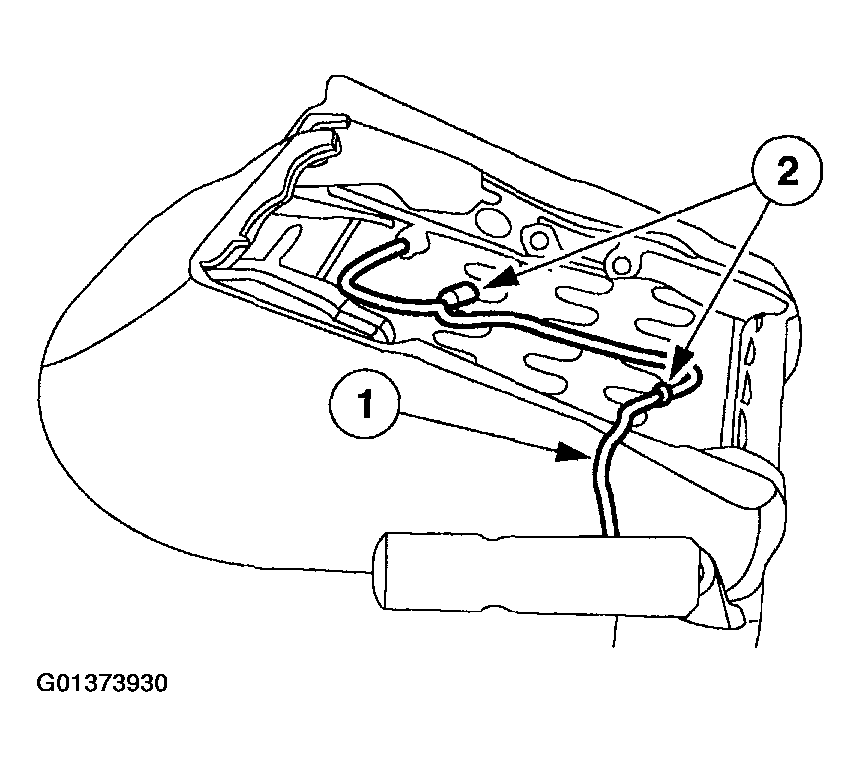

    Fig 5: Installing Safety Belt Warning Indicator Switch Electrical Connector Wire
    G01373930Courtesy of FORD MOTOR CO.
  6. Install the front seat track.
    1. Position the front seat track.
    2. Install the bolts.

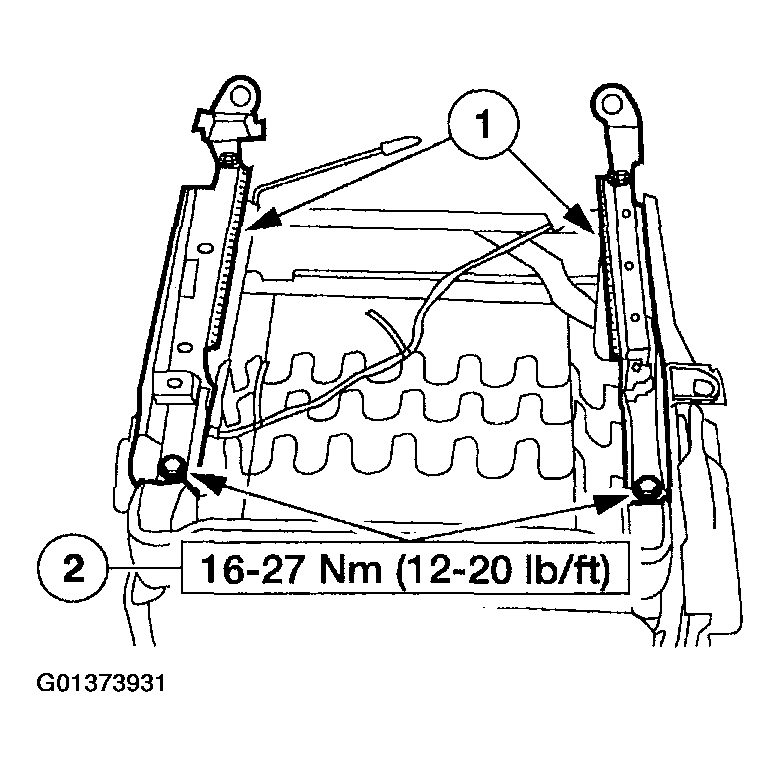

    Fig 6: Installing Front Seat Track Bolts
    G01373931Courtesy of FORD MOTOR CO.
  7. Install the front seat track rear bolts.

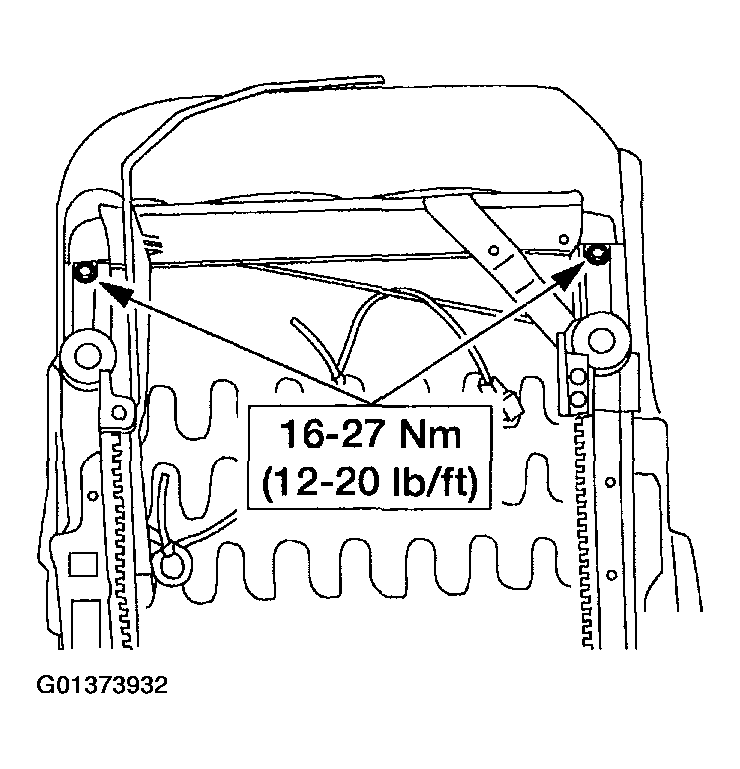

    Fig 7: Installing Front Seat Track Rear Bolts
    G01373932Courtesy of FORD MOTOR CO.
  8. Install the safety belt buckle.
    1. Position the safety belt buckle.
    2. Install the bolt.

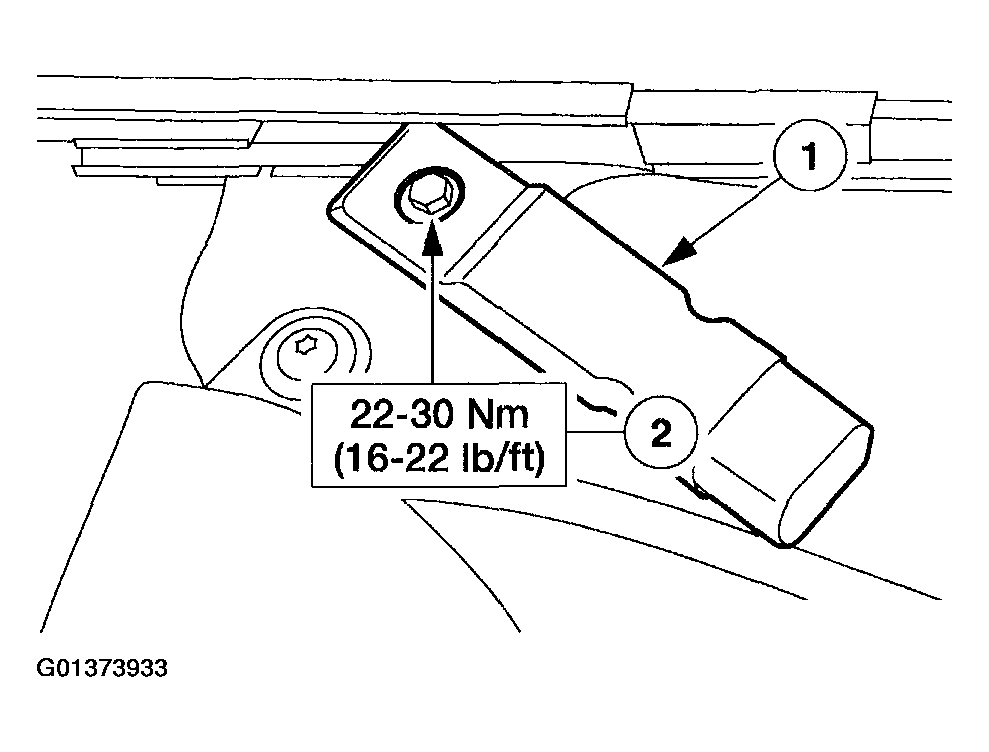

    Fig 8: Installing Safety Belt Buckle
    G01373933Courtesy of FORD MOTOR CO.
