Disassembly And Assembly: Seat-Front: Disassembly

NOTE: Driver side seat shown, passenger side seat similar.
  1. Place the front seat upside-down on a clean workbench.
  2. Remove the safety belt warning indicator switch electrical connector wire ties.

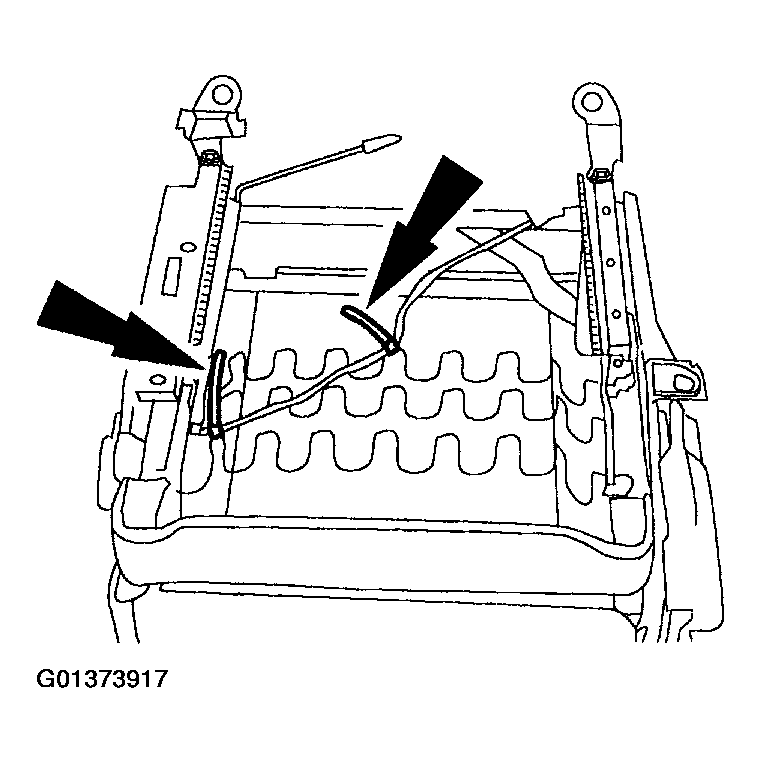

    Fig 1: Removing Safety Belt Warning Indicator Switch Electrical Connector Wire Ties
    G01373917Courtesy of FORD MOTOR CO.
  3. Remove the safety belt buckle.
    1. Remove the bolt.
    2. Remove the safety belt buckle.

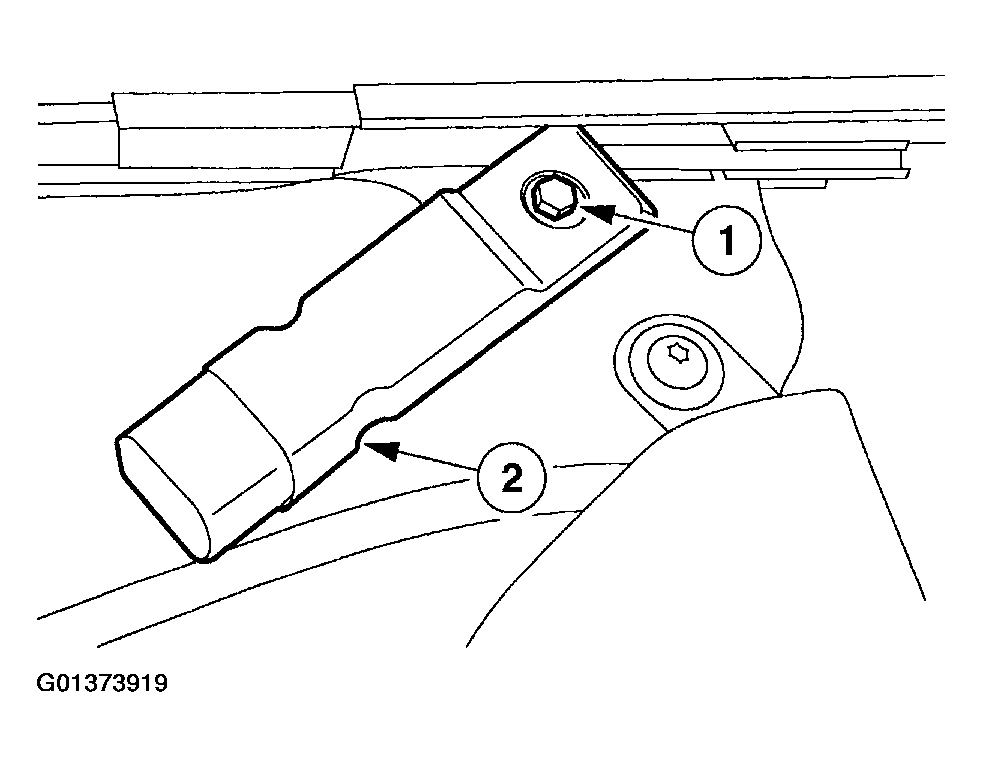

      3. Fig 2: Removing Safety Belt Buckle
      G01373919Courtesy of FORD MOTOR CO.
  4. Remove the front seat track to front seat frame bolts.

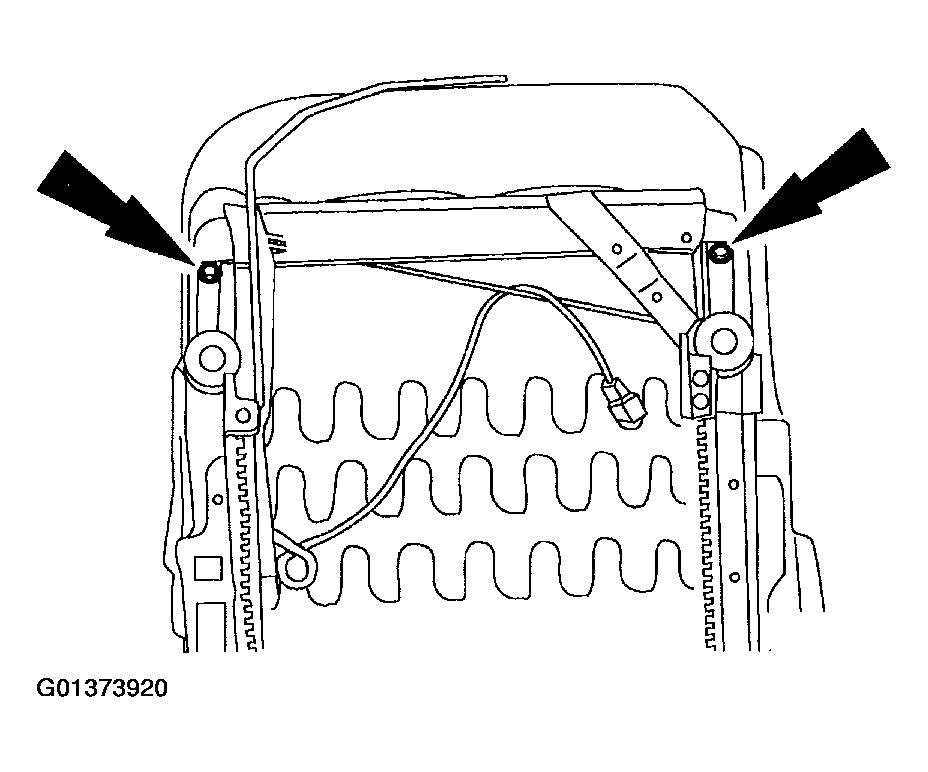

    Fig 3: Removing Front Seat Track To Front Seat Frame Bolts
    G01373920Courtesy of FORD MOTOR CO.
  5. Remove the front seat track.
    1. Remove the rear bolts.
    2. Remove the front seat track.

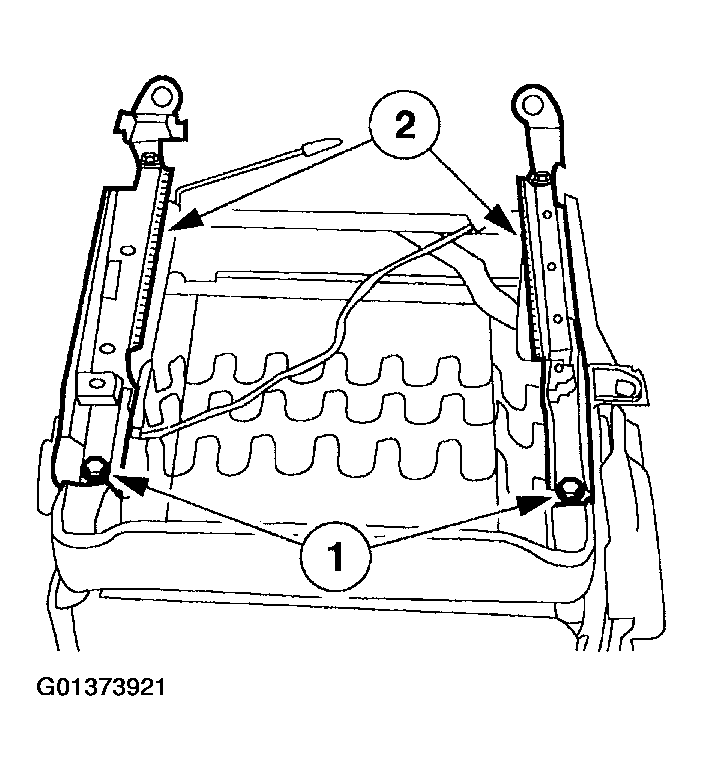

    Fig 4: Removing Front Seat Track
    G01373921Courtesy of FORD MOTOR CO.
  6. Remove the front seat back recline lever.

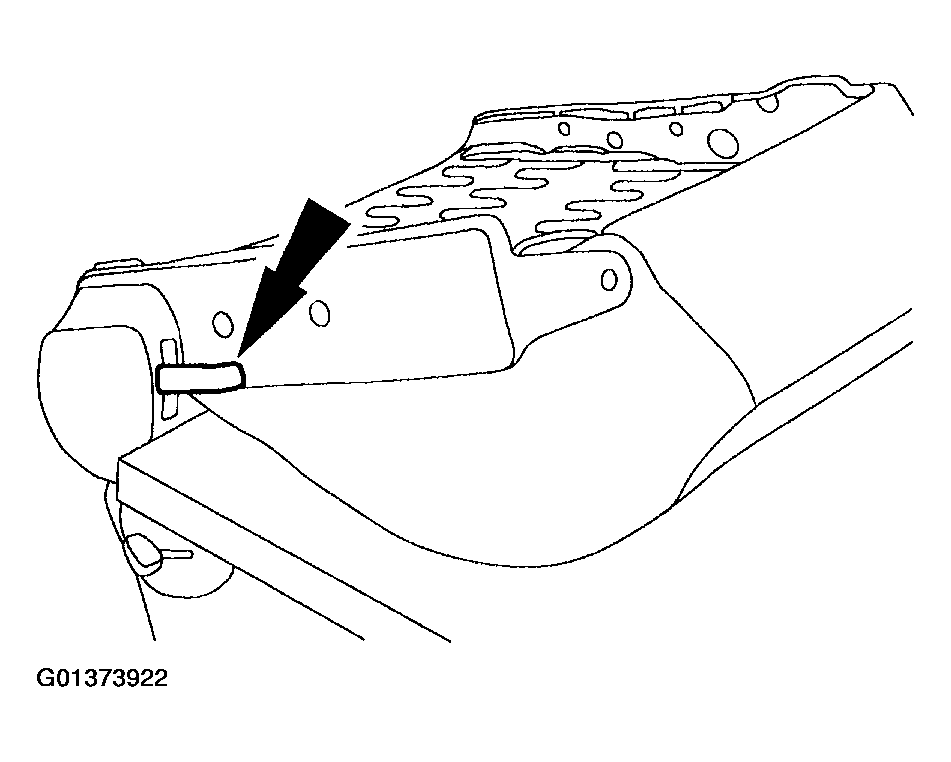

    Fig 5: Removing Front Seat Back Recline Lever
    G01373922Courtesy of FORD MOTOR CO.
  7. Remove the front seat cushion side shield cover.
    1. Remove the screws.
    2. Remove the front seat cushion side shield cover.

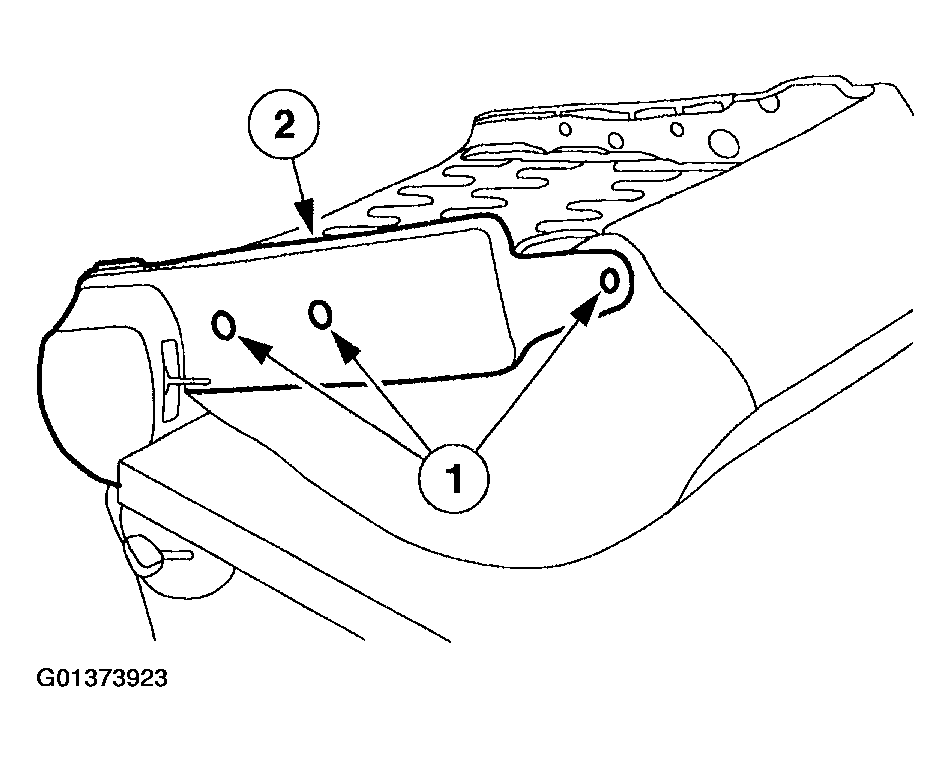

    Fig 6: Removing Front Seat Cushion Side Shield Cover
    G01373923Courtesy of FORD MOTOR CO.
  8. Remove the front seat back latch bolts.

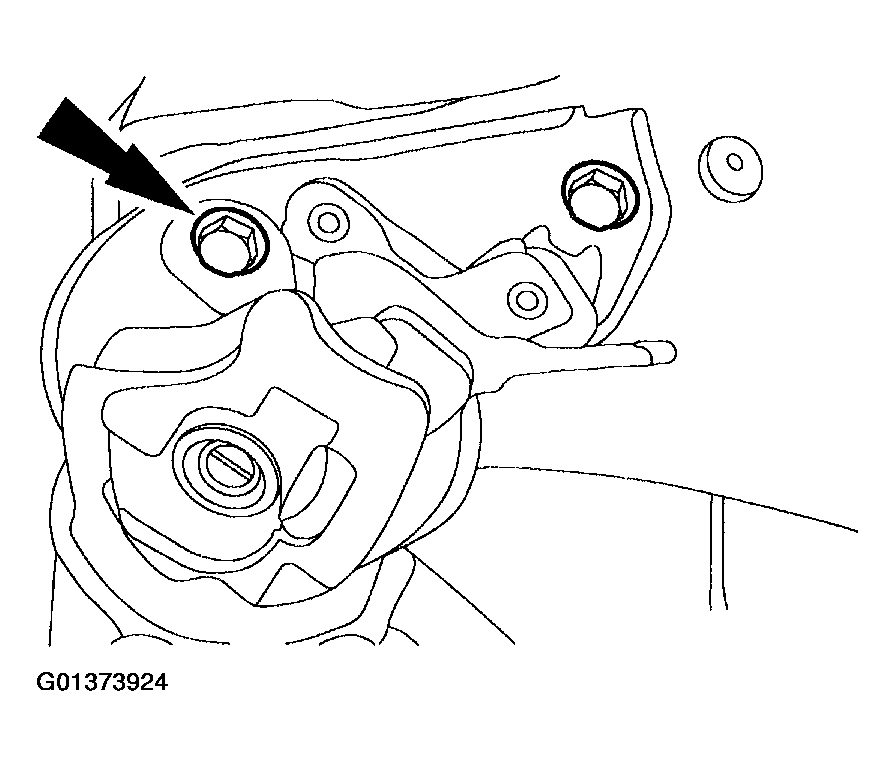

    Fig 7: Removing Front Seat Back Latch Bolts
    G01373924Courtesy of FORD MOTOR CO.
  9. Separate the front seat back from the front seat base.
    1. Remove the pivot bolt.
    2. Separate the base from the seat back.

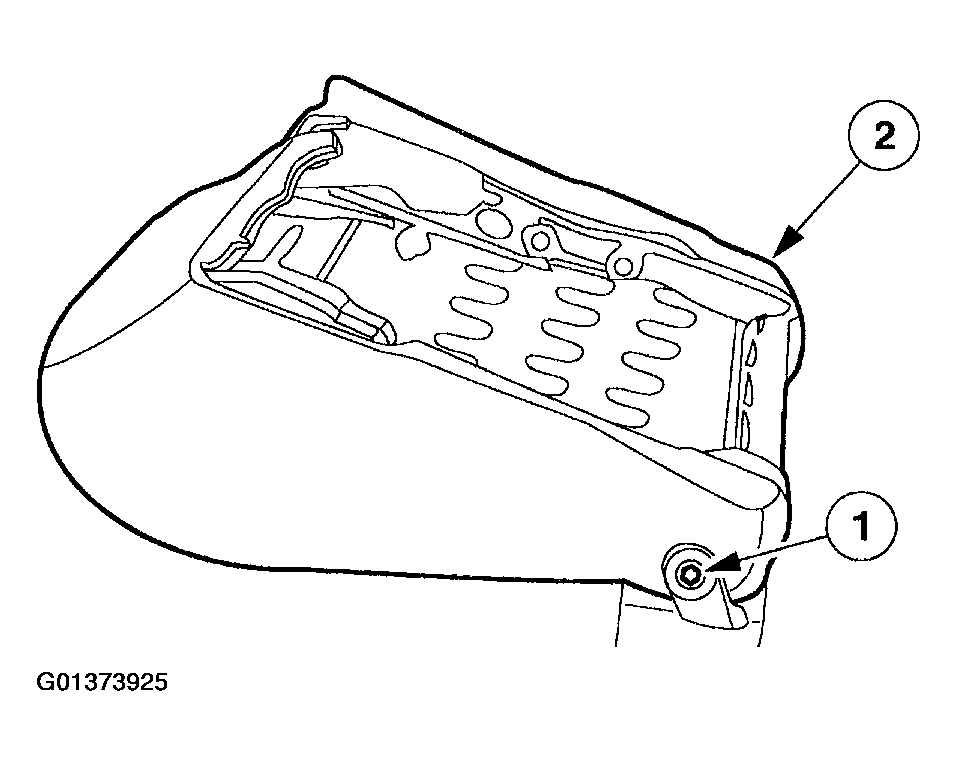

    Fig 8: Removing Base From Seat Back
    G01373925Courtesy of FORD MOTOR CO.
