Seat-Rear, With Integral Child Safety Seat: Disassembly

  1. Remove the rear seat back latches; refer to LATCH-REAR SEAT WITH INTEGRAL CHILD SAFETY SEAT .
  2. If equipped, remove the seat back release knob guides.
    1. Squeeze the tabs.
    2. Remove the seat back release knob guides.

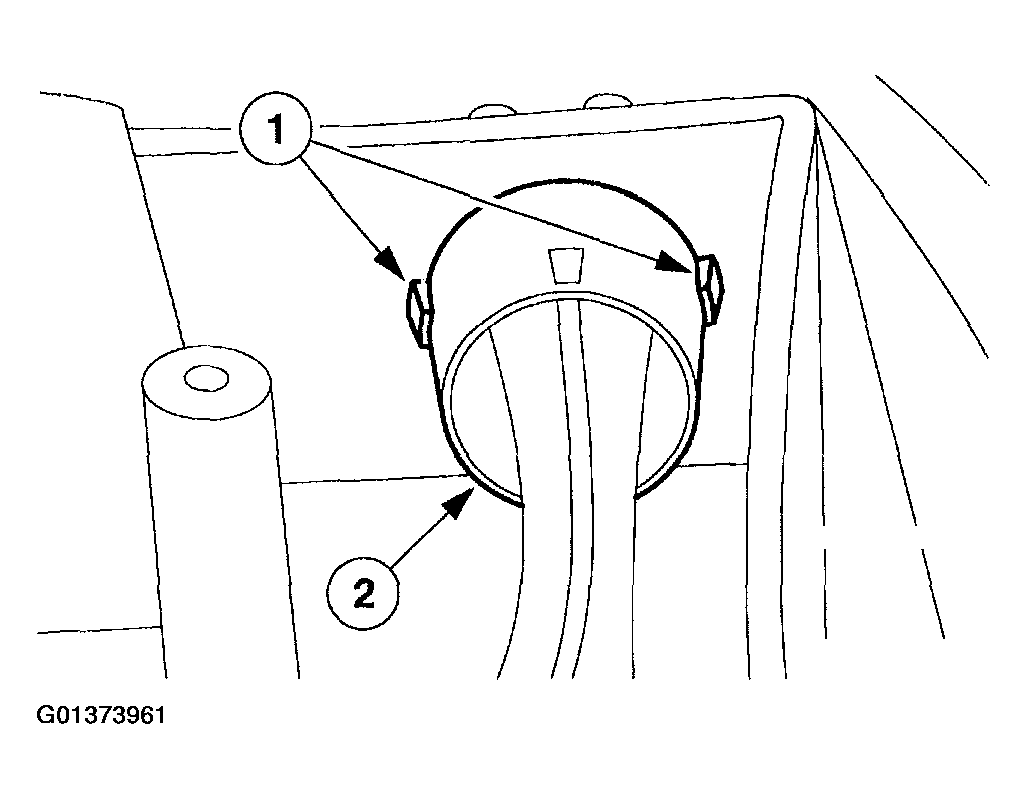

    Fig 1: Removing Seat Back Release Knob Guides
    G01373961Courtesy of FORD MOTOR CO.
  3. Remove the rear seat trim cover.
  4. Remove the rear seat back pad.

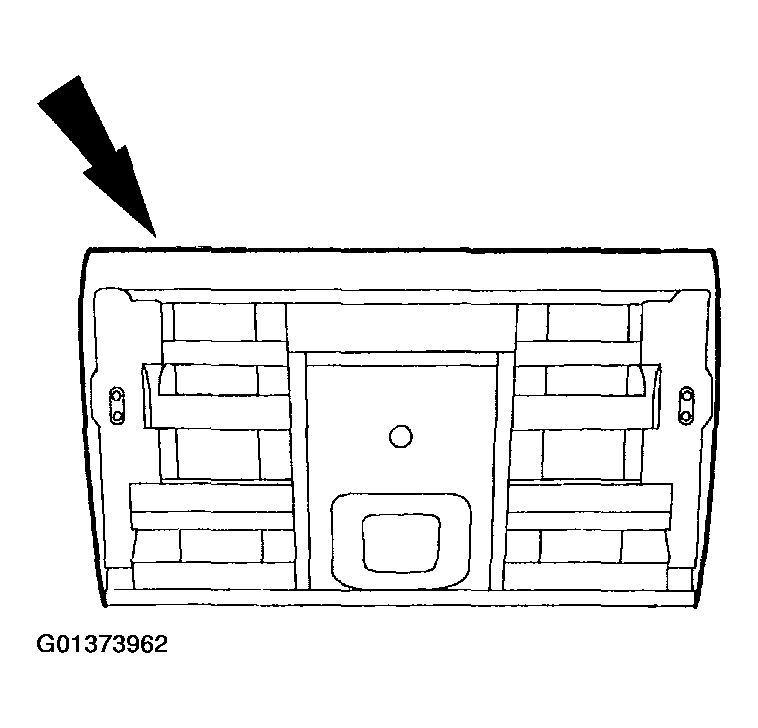

    Fig 2: Removing Rear Seat Back Pad
    G01373962Courtesy of FORD MOTOR CO.
  5. Remove the two child safety seat base pivot bolts.

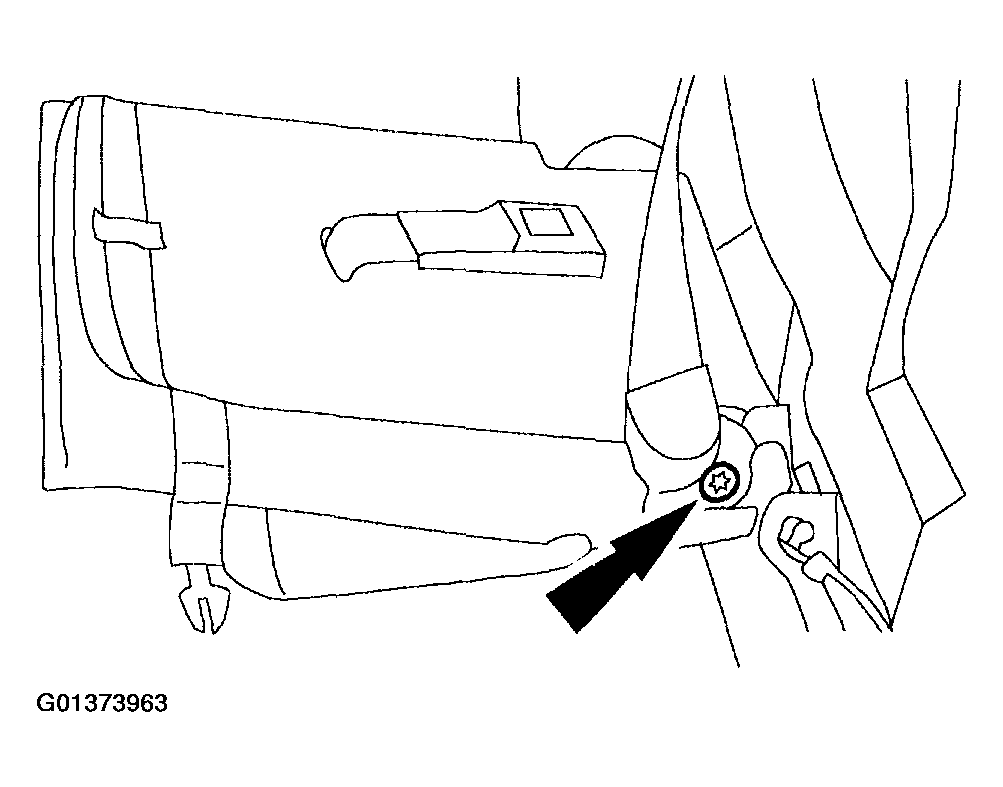

    Fig 3: Removing Child Safety Seat Base Pivot Bolts
    G01373963Courtesy of FORD MOTOR CO.
  6. Remove the child safety seat base.
    1. Retract the pin links on both sides.
    2. Remove the child safety seat base.

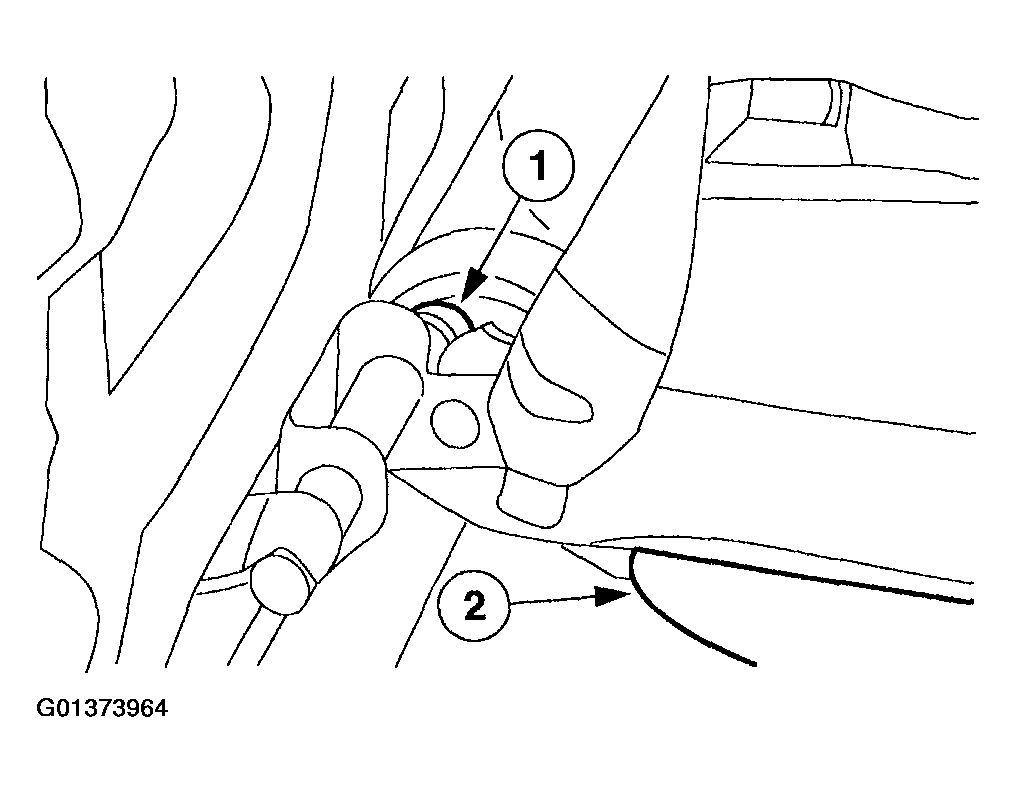

    Fig 4: Removing Child Safety Seat Base
    G01373964Courtesy of FORD MOTOR CO.
  7. Unclip the pin link.
    1. Retract the pin.
    2. Compress the tabs.
    3. Unclip the pin link.

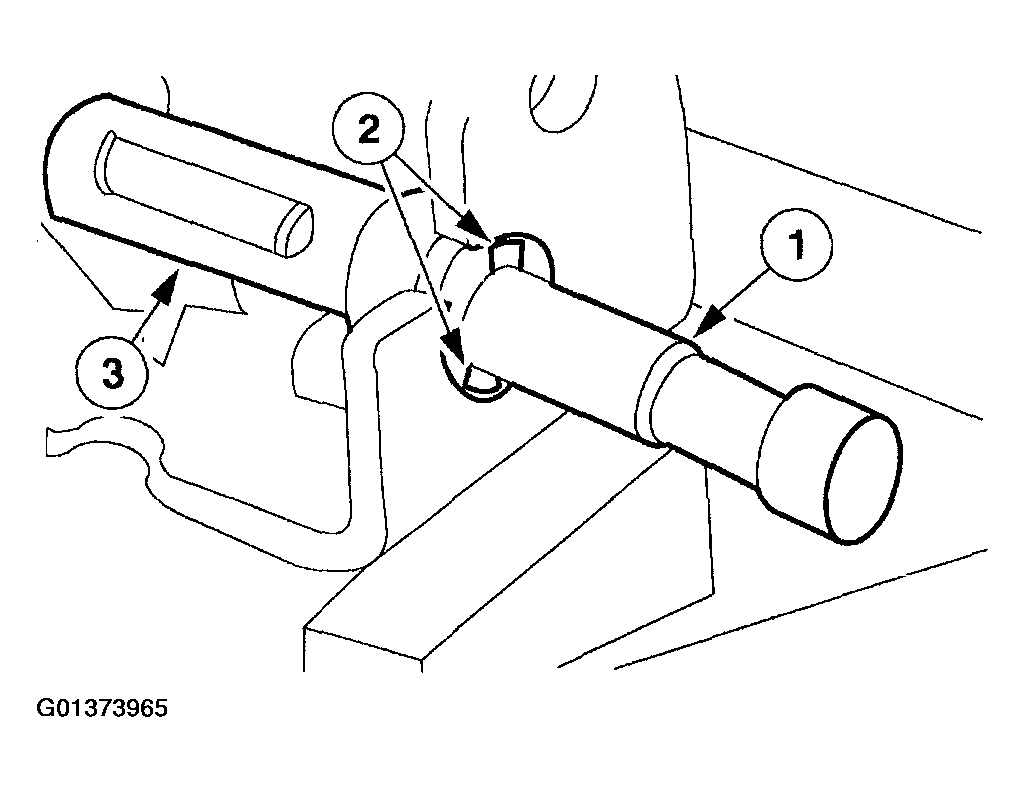

    Fig 5: Removing Pin Link
    G01373965Courtesy of FORD MOTOR CO.
  8. Remove the pin link.
    1. Remove the speed nut.
    2. Remove the pin link.

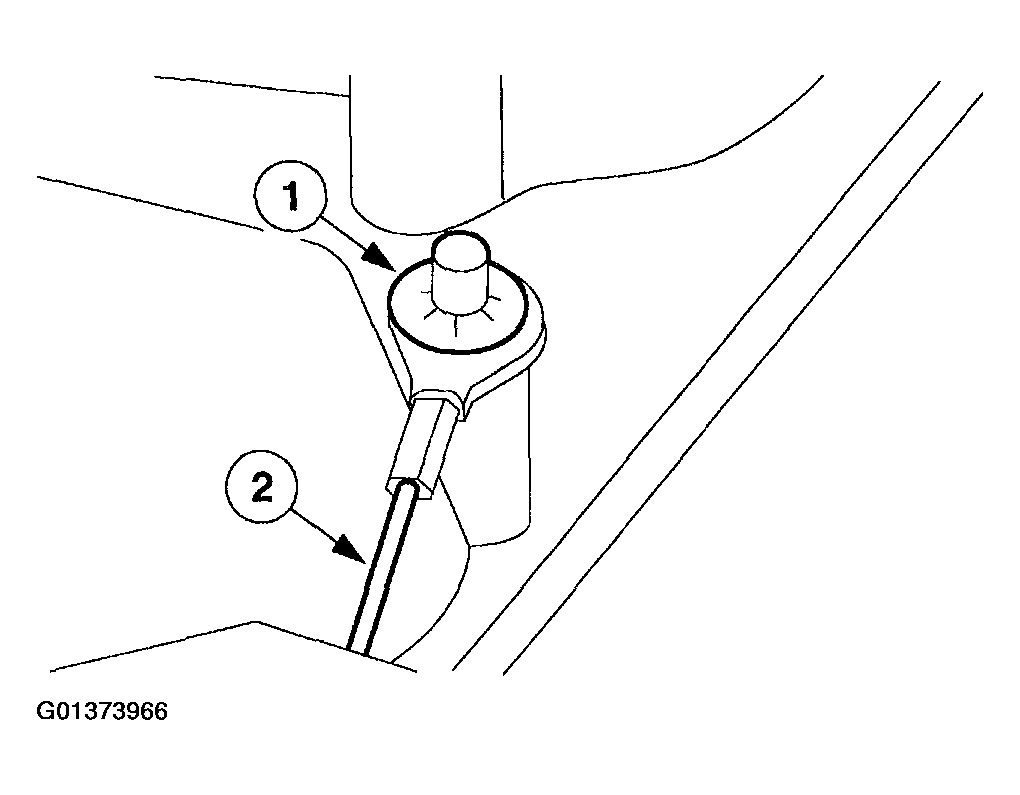

    Fig 6: Removing Pin Link
    G01373966Courtesy of FORD MOTOR CO.
  9. Remove the child safety seat safety belt cover.
    1. Remove the screws.
    2. Remove the child safety seat safety belt cover.

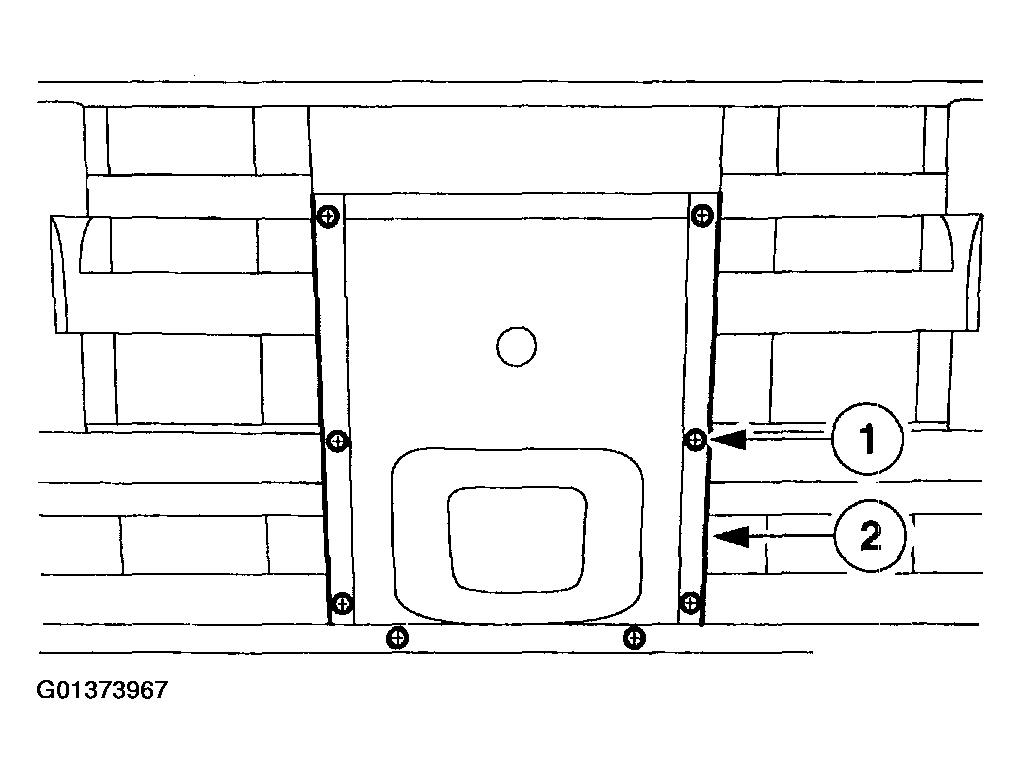

    Fig 7: Removing Child Safety Seat Safety Belt Cover
    G01373967Courtesy of FORD MOTOR CO.
