Seat-Rear Side: Removal

  1. On Sedan, Wagon, remove the rear seat cushion assembly.
    1. Release the two spring clips.
    2. Remove the rear seat cushion assembly.

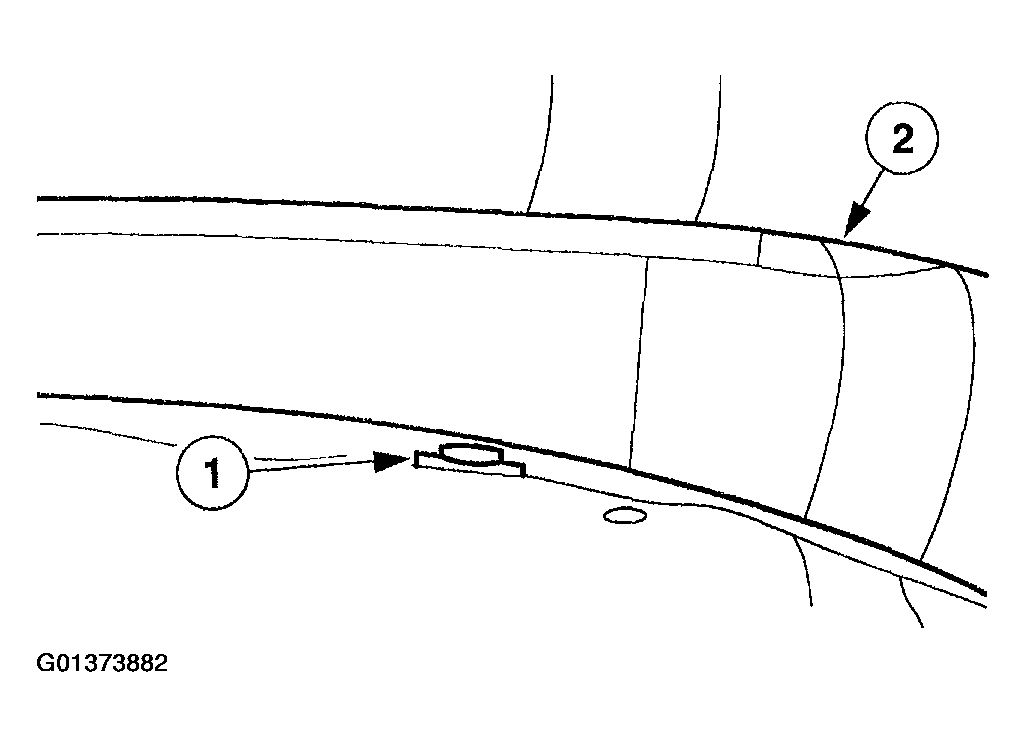

    Fig 1: Removing Rear Seat Cushion Assembly
    G01373882Courtesy of FORD MOTOR CO.
  2. Remove the rear side seat nut.

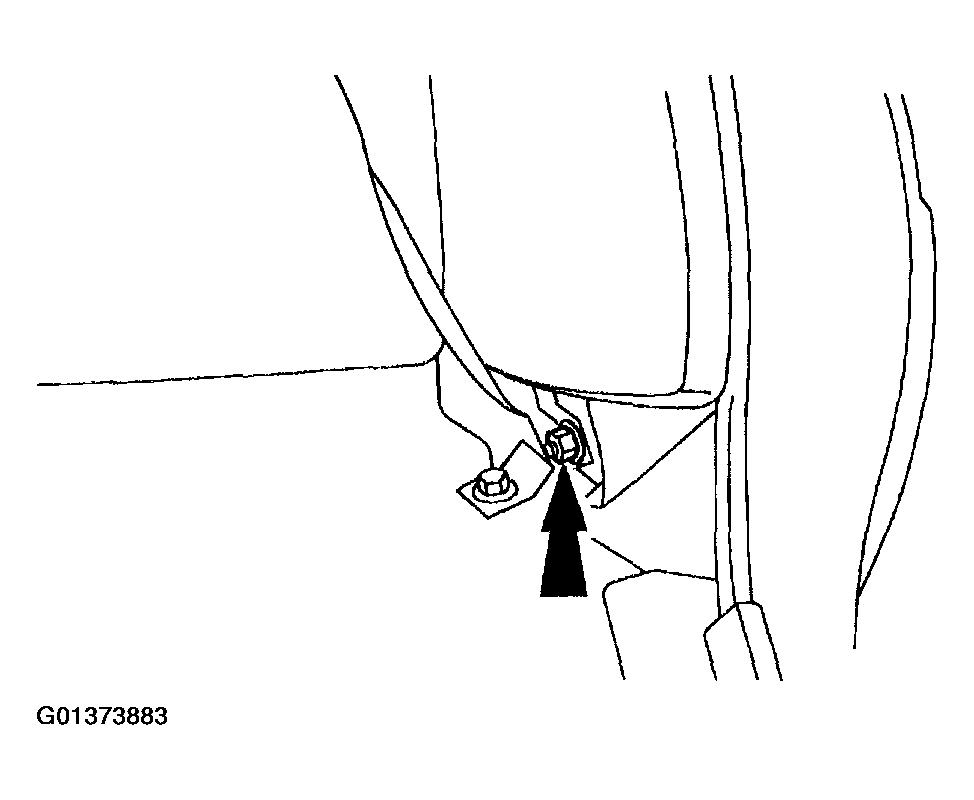

    Fig 2: Removing Rear Side Seat Nut
    G01373883Courtesy of FORD MOTOR CO.
  3. Lower the rear seat back assembly.
  4. Lift the rear side seat to disengage the upper mounting tang and remove from the vehicle.
