Exhaust System: Notes

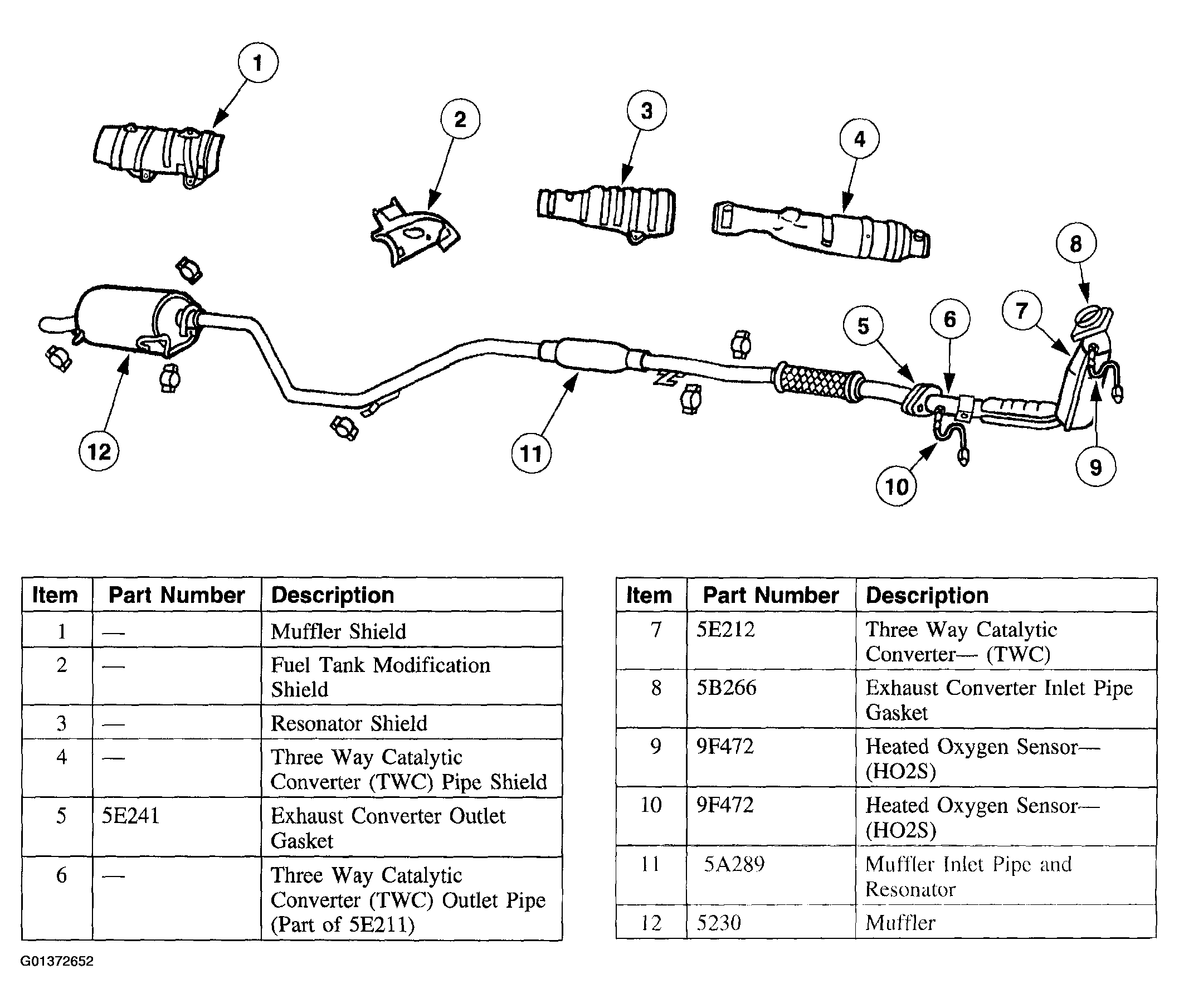

Fig 1: Exploded View Of Exhaust System Components

Courtesy of FORD MOTOR CO.

The exhaust system provides an exit for exhaust gases and reduces engine noise by passing exhaust gases through the three way catalytic converter (TWC) (5E2I2), a muffler inlet pipe and resonator (5A289) and a muffler (5230). Rubber exhaust hanger insulators (5F262) attach the exhaust system to the mounting hooks.
