Removal And Installation: Muffler: Removal

Raise and support the vehicle; refer to JACKING & HOISTING .
Remove the (A) two nuts and remove the (B) muffler inlet/outlet pipe yoke clamp (5A231).

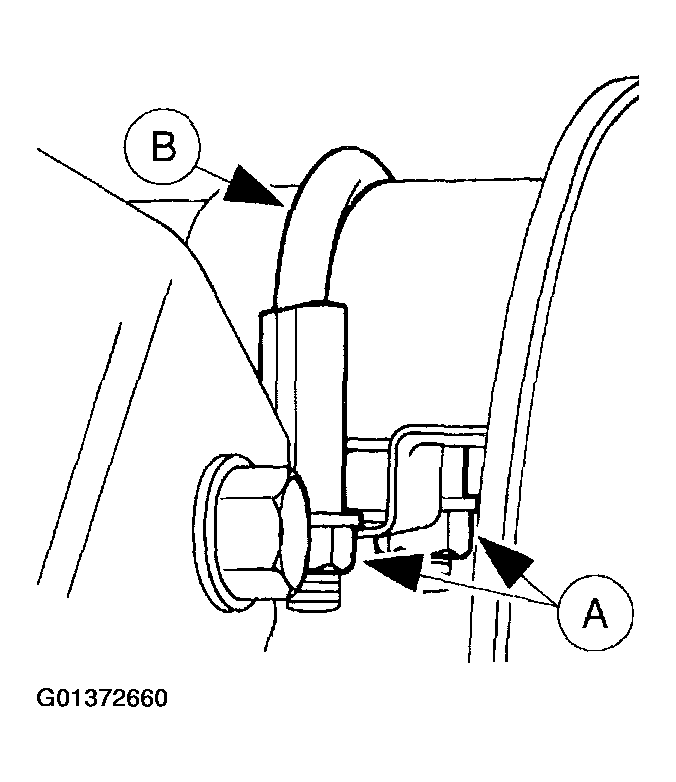

Fig 1: Removing Muffler Inlet/Outlet Pipe Yoke Clamp
Courtesy of FORD MOTOR CO.
Pry the (A) exhaust hanger insulators (5F262) from the (B) mounting hooks.

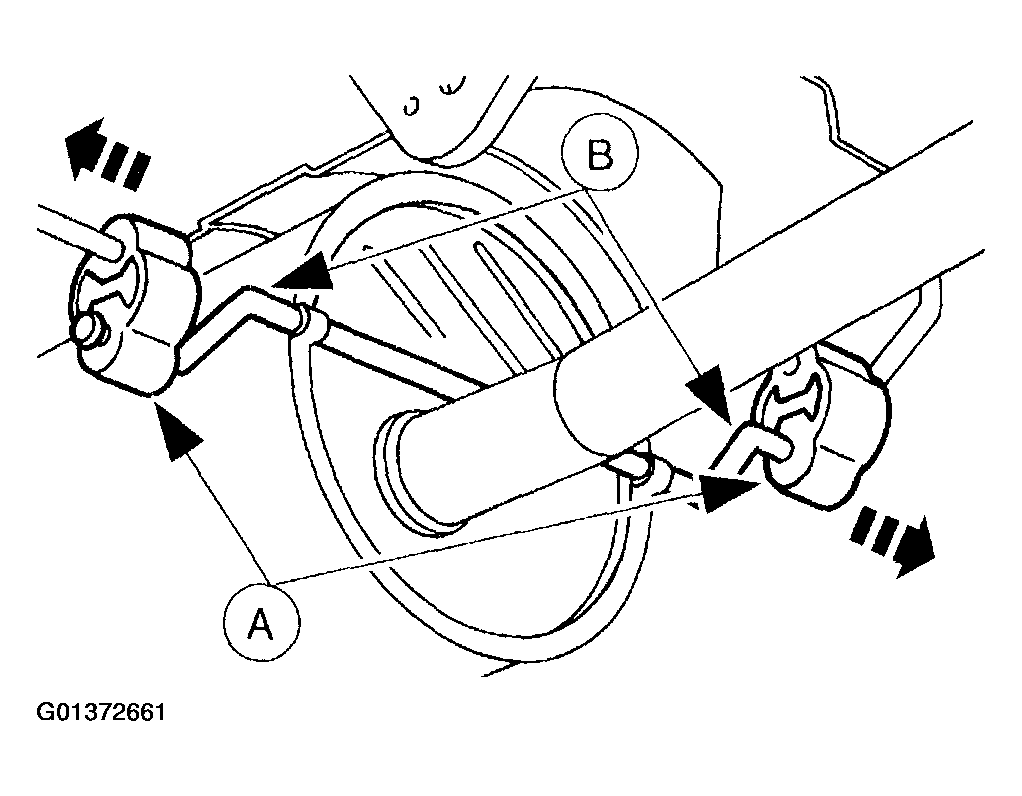

Fig 2: Prying Exhaust Hanger Insulators From Mounting Hooks
Courtesy of FORD MOTOR CO.
Remove the muffler and tailpipe assembly.
- Heat the muffler inlet pipe and resonator to muffler connection.
- Tap the muffler (5230) off the muffler inlet pipe and resonator (5A289).

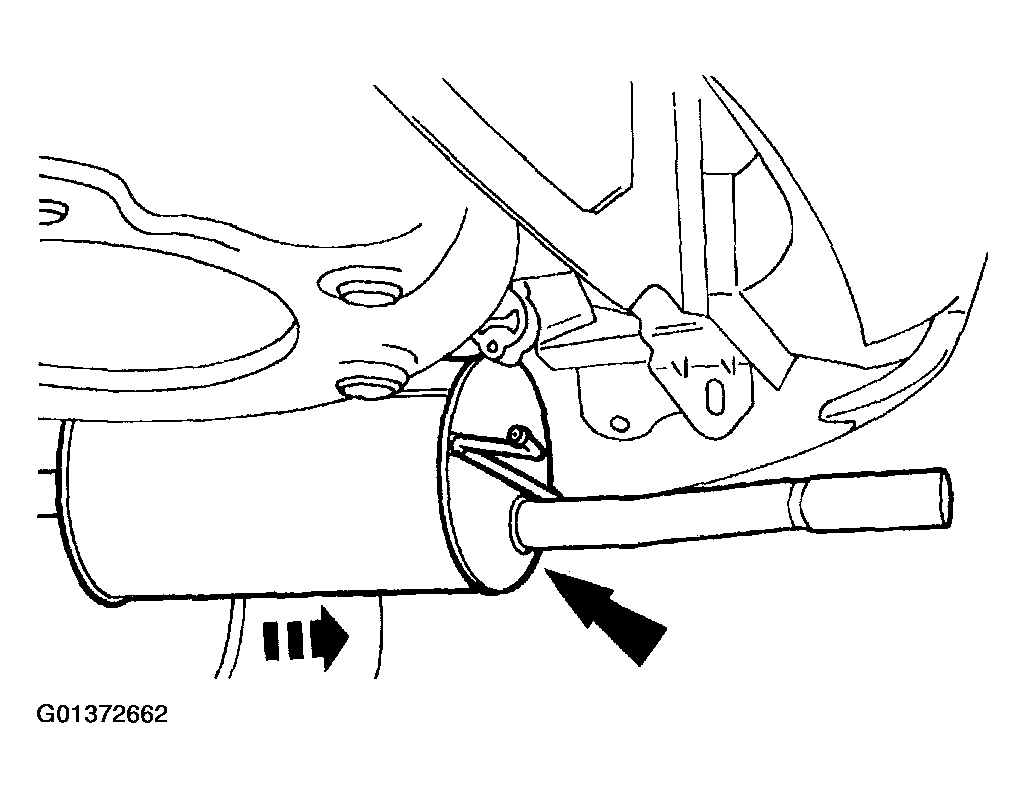

Fig 3: Removing Muffler And Tailpipe Assembly
Courtesy of FORD MOTOR CO.
