Piston - Pin Connecting Rod Assembly, Press Fit: Disassembly

  1. Use the Piston Pin Tool to press the piston pin out from the piston assembly and connecting rod.

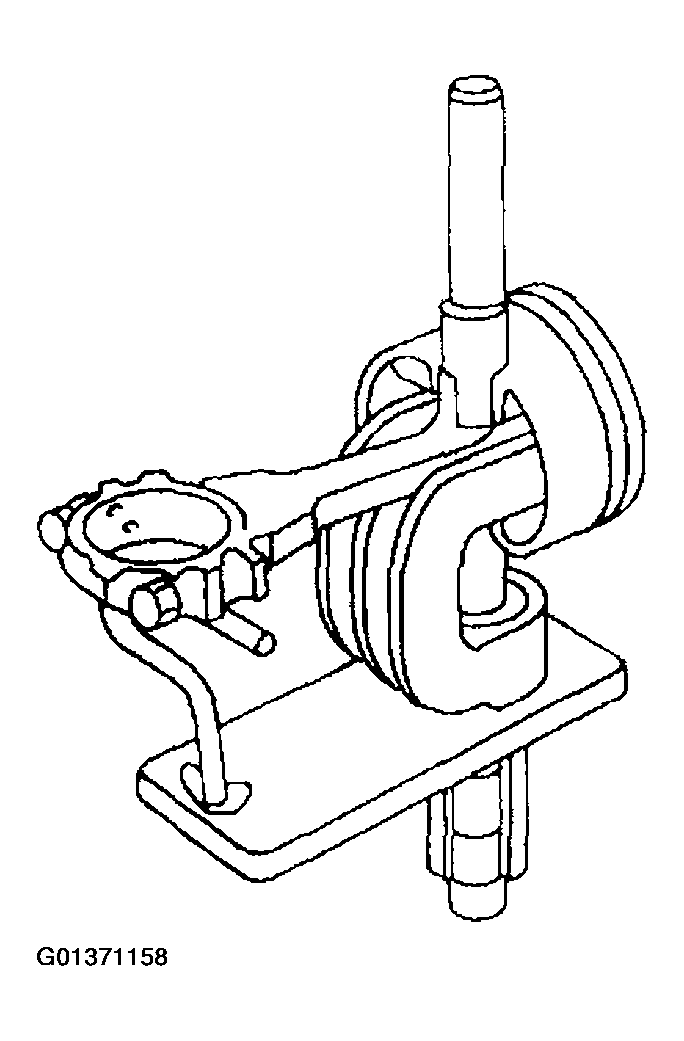

    Fig 1: Pressing Piston Pin From Piston Assembly And Connecting Rod
    G01371158Courtesy of FORD MOTOR CO.
  2. Remove the connecting rod (6200) and piston rings from the piston.

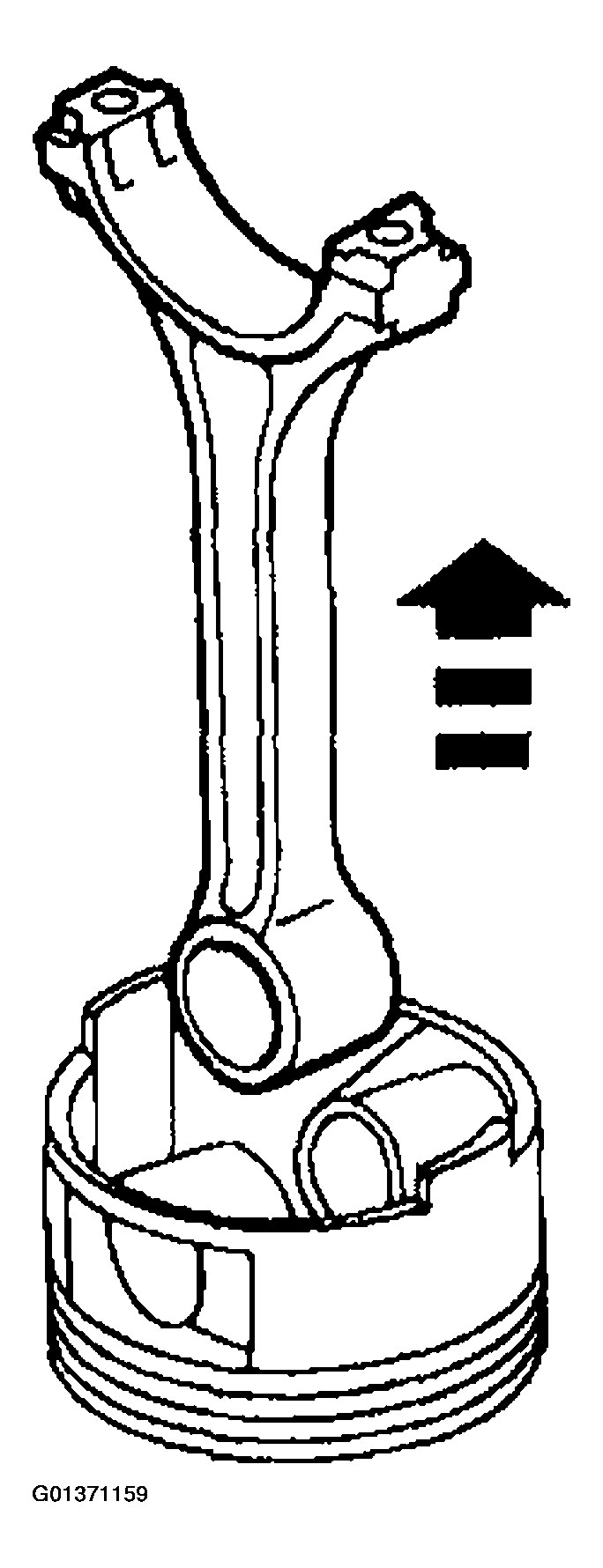

    Fig 2: Removing Connecting Rod And Piston Rings From Piston
    G01371159Courtesy of FORD MOTOR CO.
  3. Clean and inspect the piston, piston pin and connecting rod. For additional information, refer to PISTON INSPECTION .
