Cylinder Head: Removal

Remove the air cleaner outlet tube.
Remove the camshafts. For additional information, refer to CAMSHAFT .
Remove the thermostat housing. For additional information, refer to REMOVAL .
Remove the coolant recovery reservoir. For additional information, refer to REMOVAL .
Disconnect the fuel line. For additional information, refer to FUEL SYSTEM-GENERAL INFORMATION .
Remove the power steering pump and bracket assembly. For additional information, refer to PUMP--ZETEC and PUMP -- 2.0L .
Remove the generator. For additional information, refer to GENERATOR .
Remove the oil level indicator and tube. For additional information, refer to OIL LEVEL INDICATOR AND TUBE .

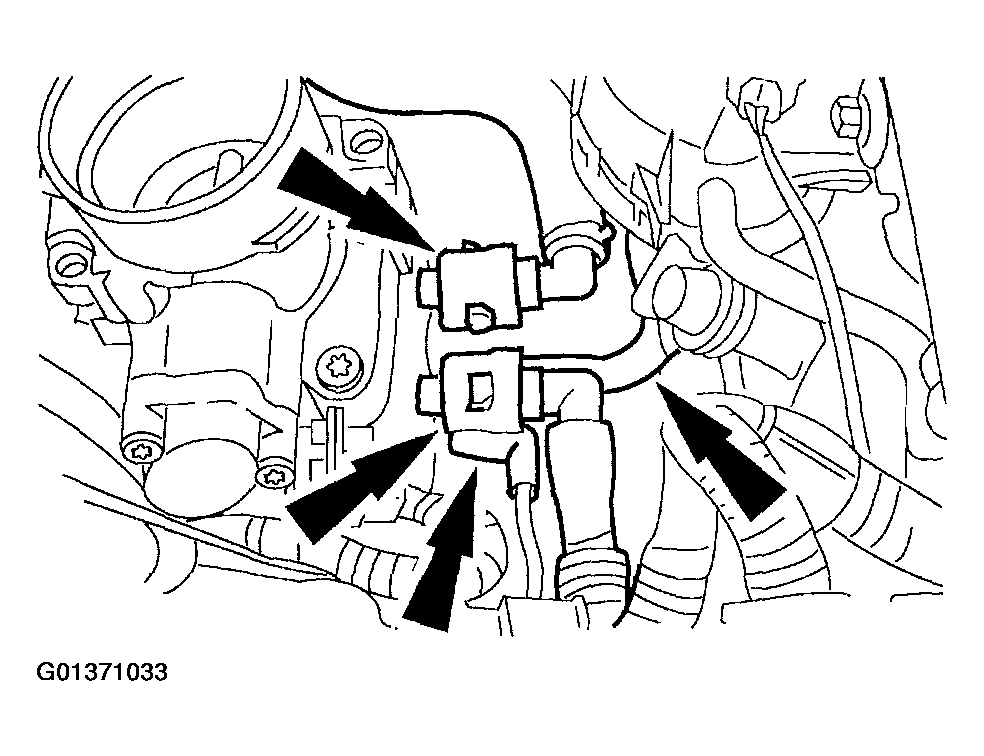

Disconnect the vacuum hoses.

Fig 1: Disconnecting Vacuum Hoses
Courtesy of FORD MOTOR CO.

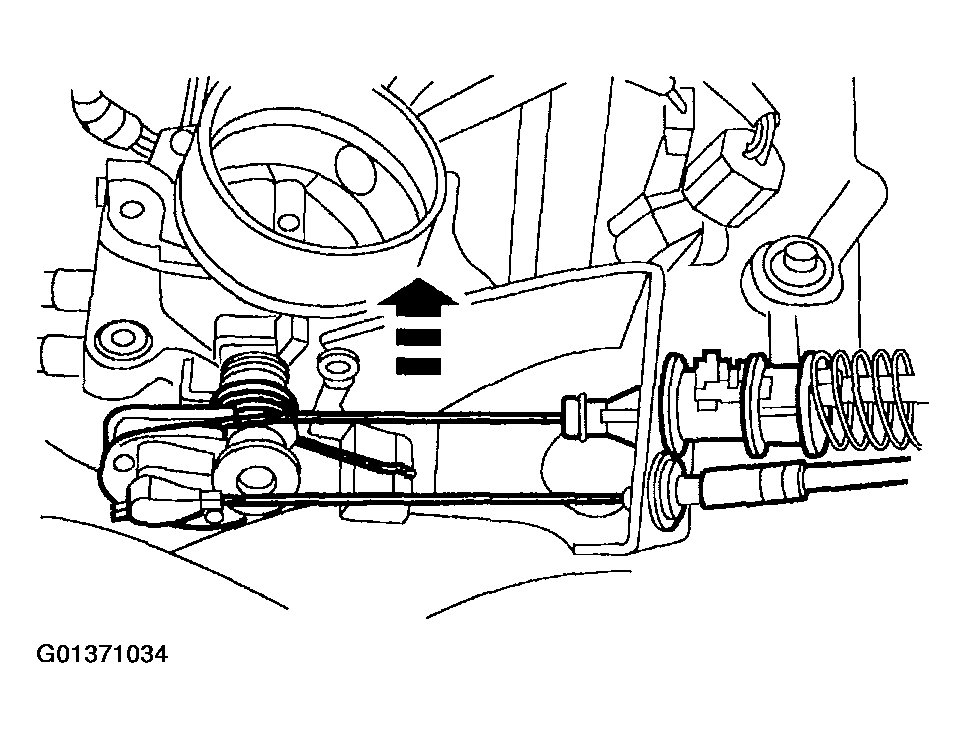

Disconnect the speed control and the accelerator control cables.

Fig 2: Disconnecting Speed Control And Accelerator Control Cables
Courtesy of FORD MOTOR CO.

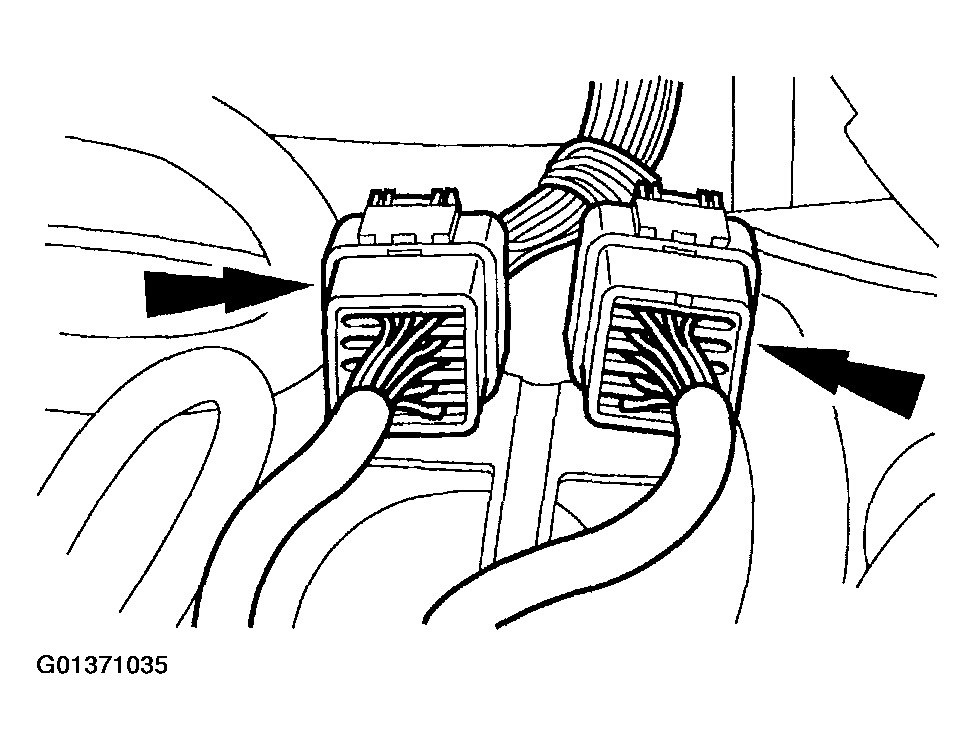

Disconnect the main engine electrical connectors.

Fig 3: Disconnecting Main Engine Electrical Connectors
Courtesy of FORD MOTOR CO.

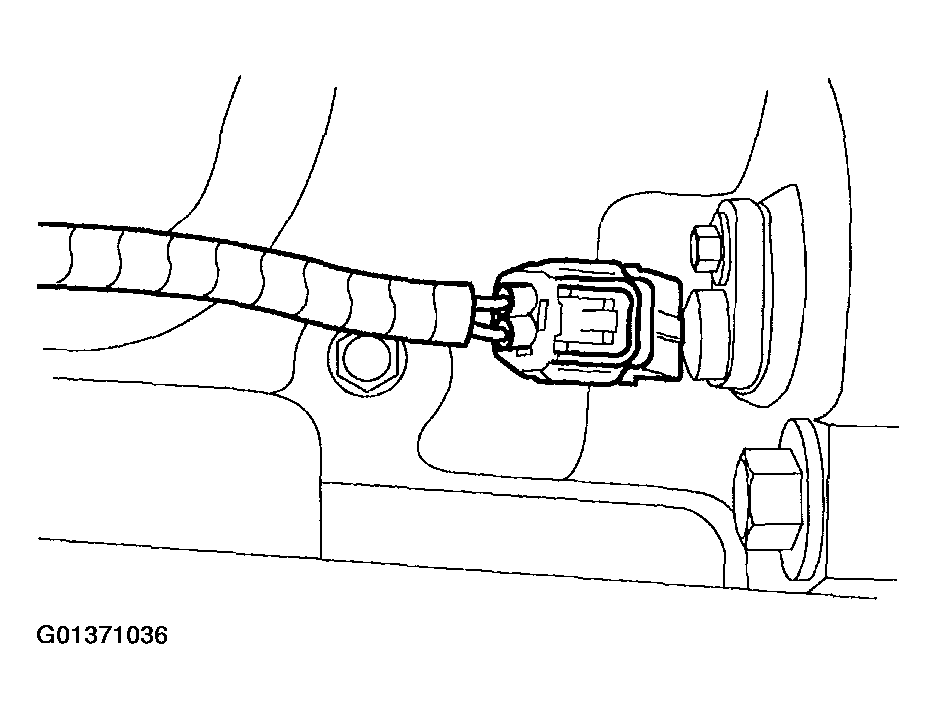

Disconnect the crankshaft position (CKP) sensor electrical connector.

Fig 4: Disconnecting Crankshaft Position (CKP) Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Raise and support the vehicle. For additional information, refer to JACKING & HOISTING .

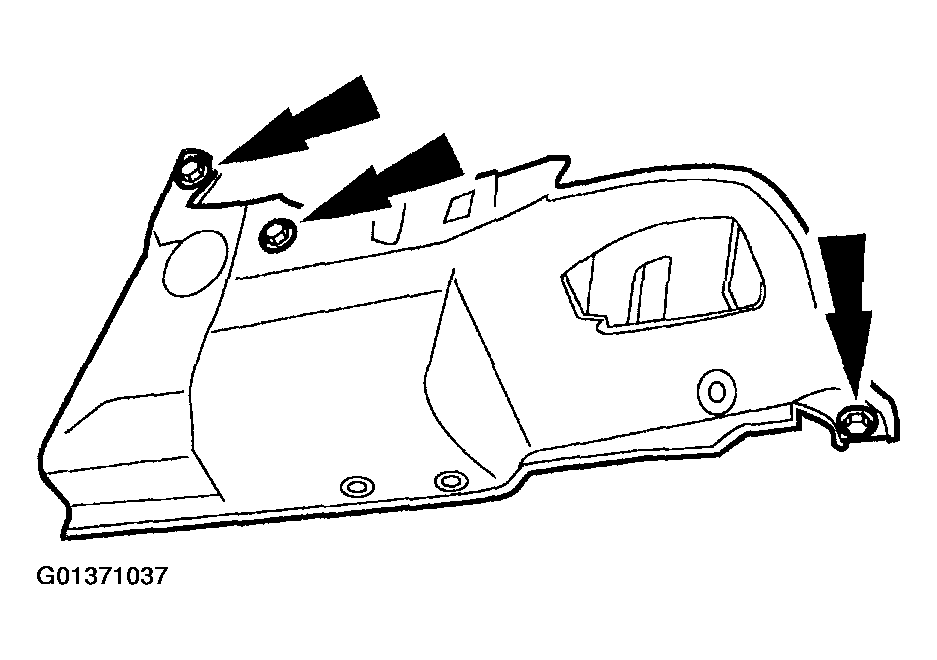

Remove the bolts and the splash shield.

Fig 5: Removing Bolts And Splash Shield
Courtesy of FORD MOTOR CO.
Lower the vehicle.

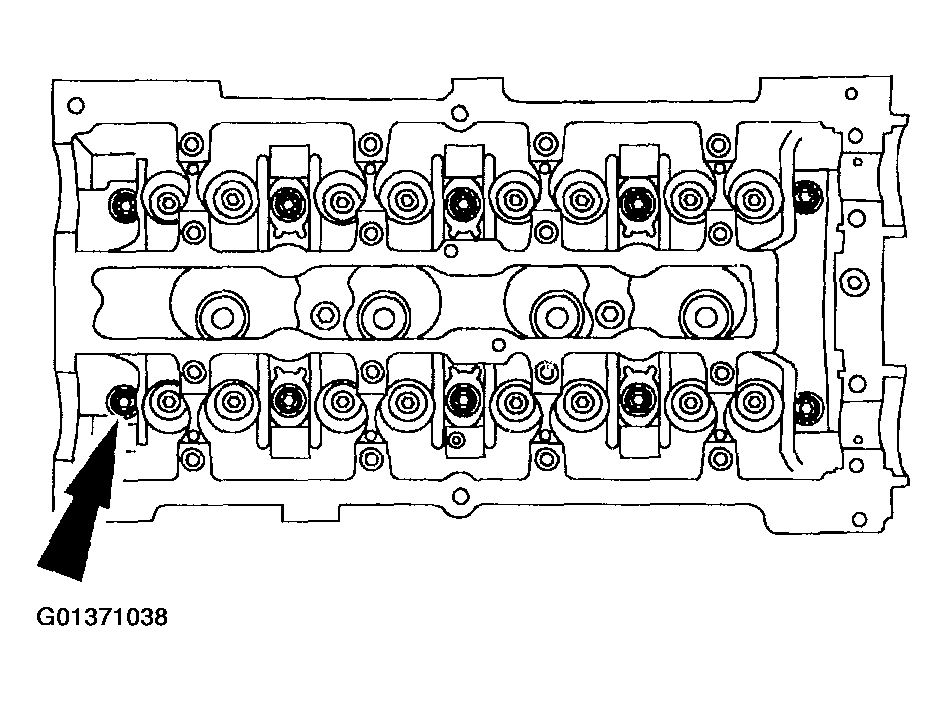

Remove the bolts and the cylinder head.
- Discard the gasket.
Fig 6: Discarding Gasket
Courtesy of FORD MOTOR CO.
