Oil Level Indicator And Tube: Removal

  1. Remove the bolt.

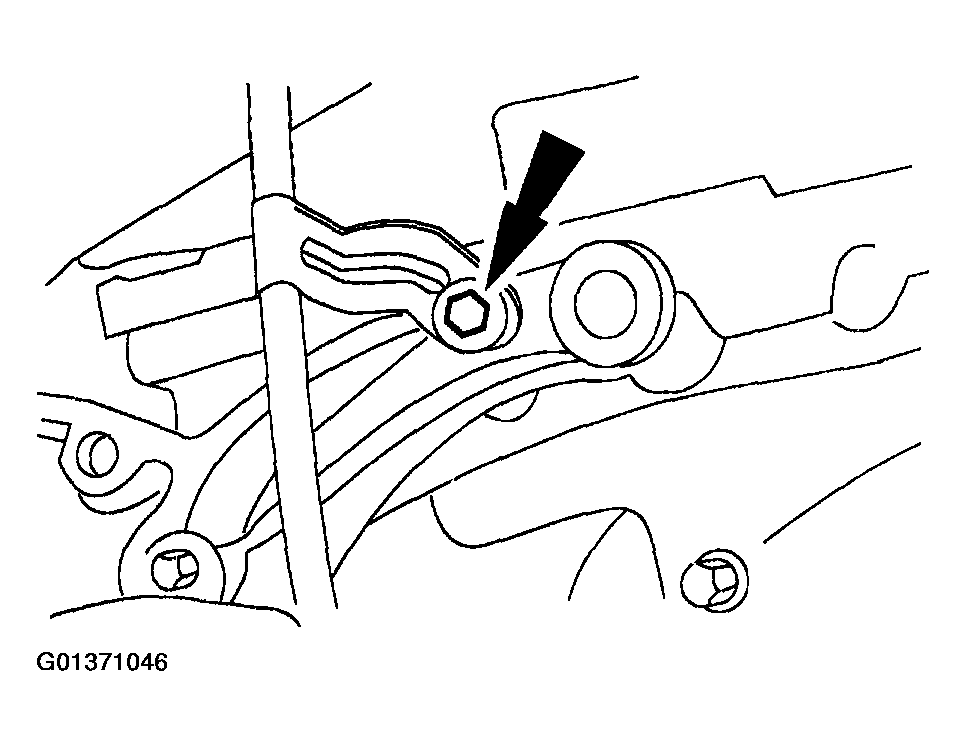

    Fig 1: Removing Bolt
    G01371046Courtesy of FORD MOTOR CO.
  2. Remove the oil level indicator tube (6754) with a twisting motion.
