Timing Drive Components - Timing Belt: Removal

Remove the spark plugs (12405).
Remove the catalytic converter. For additional information, refer to REMOVAL .
Remove the bolts and the splash shield.

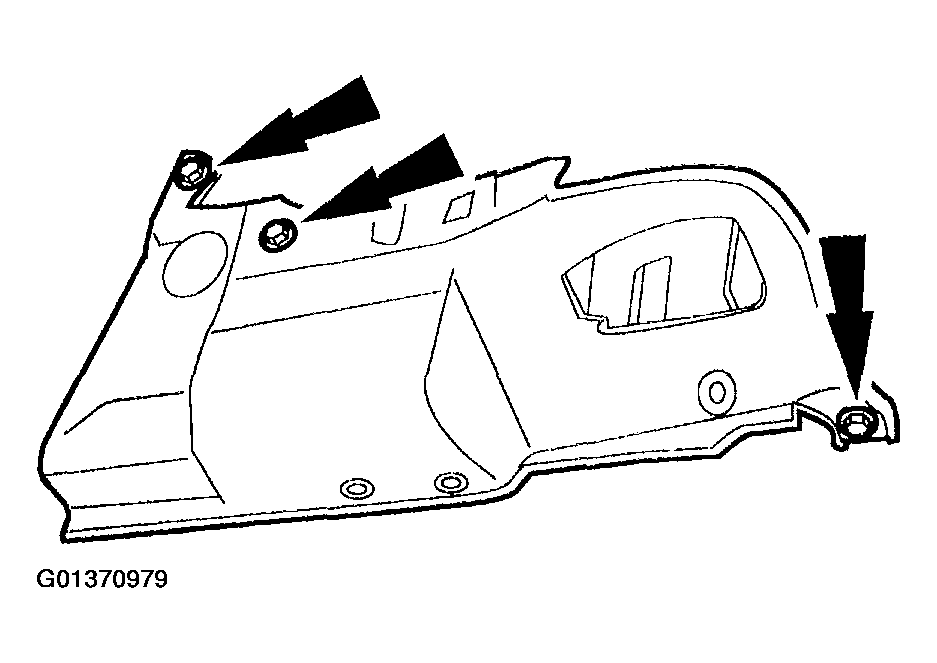

Fig 1: Removing Bolts And Splash Shield
Courtesy of FORD MOTOR CO.
Rotate the crankshaft (6303) to top dead center (No. 1 cylinder).
Install the Crankshaft TDC Timing Peg.

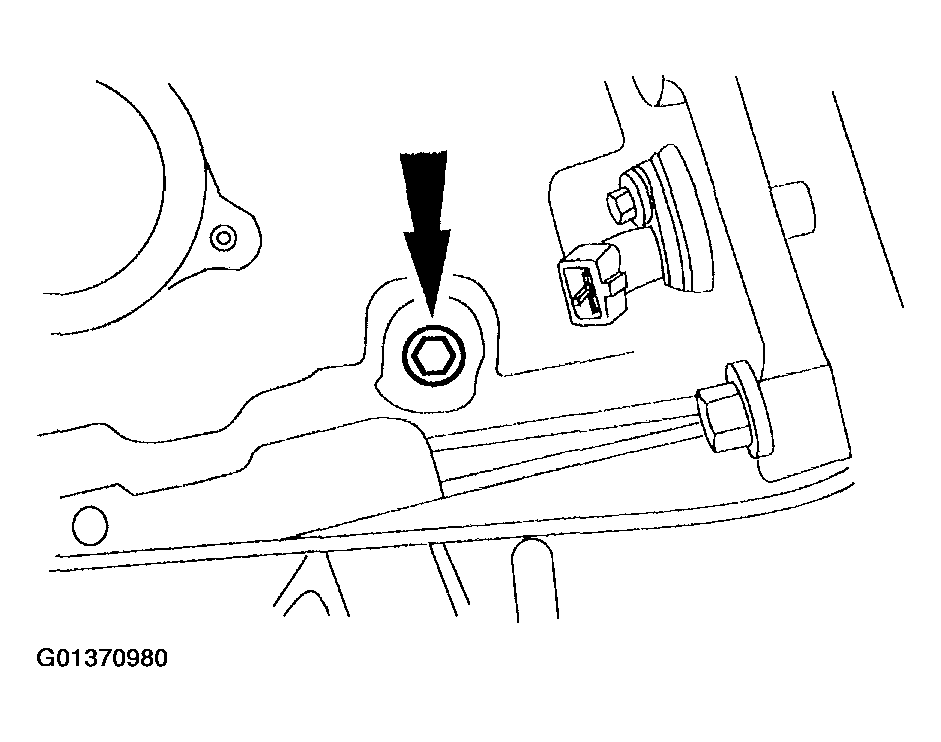

Fig 2: Installing Crankshaft TDC Timing Peg
Courtesy of FORD MOTOR CO.
Rotate the crankshaft clockwise against the peg.

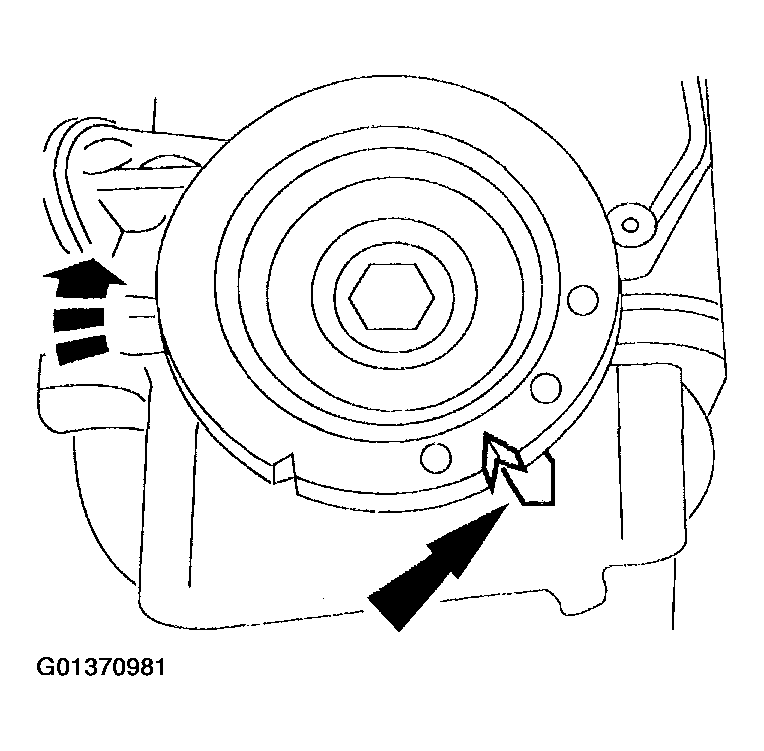

Fig 3: Rotating Crankshaft Clockwise Against Peg
Courtesy of FORD MOTOR CO.
Lower the vehicle.
Remove the water pump pulley. For additional information, refer to REMOVAL .
Remove the valve cover (6582). For additional information, refer to VALVE COVER .
Remove the timing belt covers. For additional information, refer to TIMING DRIVE COMPONENTS - TIMING BELT COVERS .
Install the Alignment Tool and align the camshafts (6250).

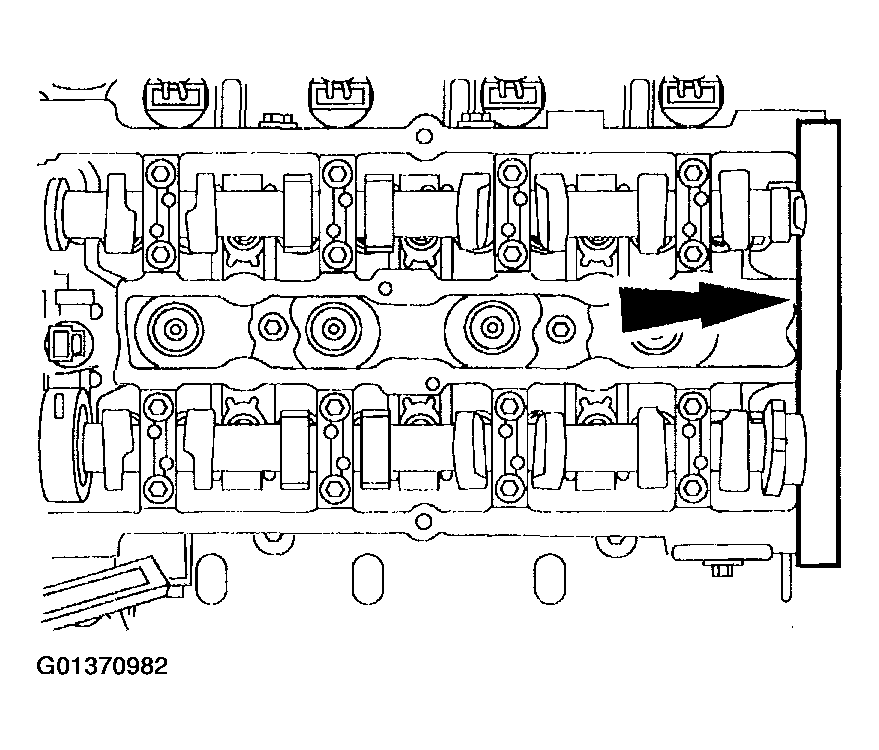

Fig 4: Aligning Camshafts
Courtesy of FORD MOTOR CO.

CAUTION: If the camshaft timing belt is to be reused, mark the direction of the camshaft timing belt to rotation of camshaft prior to removal or premature wear or failure may occur.

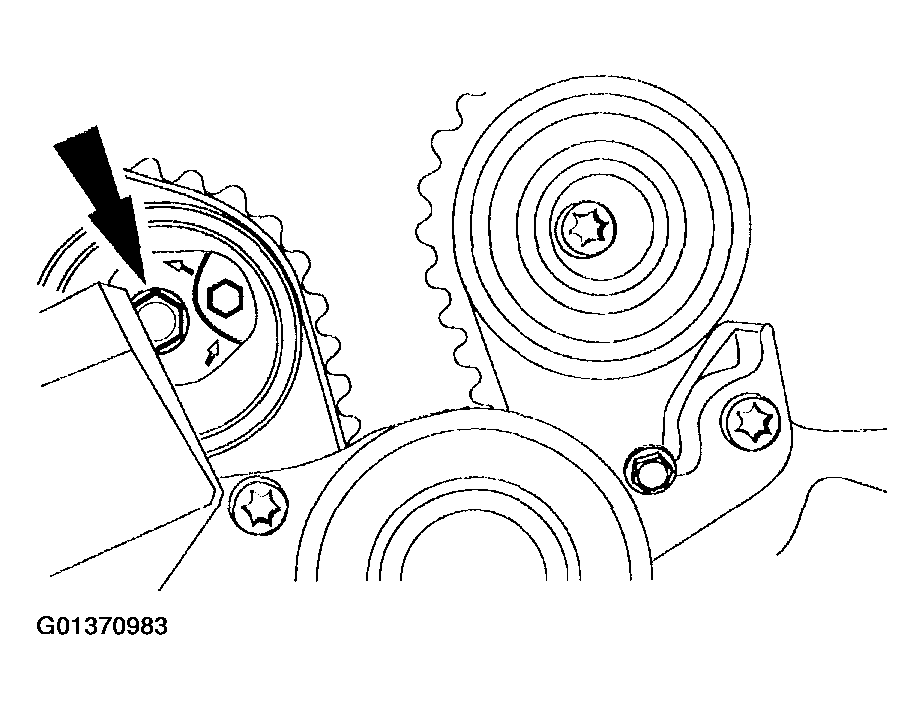

Fig 5: Releasing Tension On Timing Belt

Courtesy of FORD MOTOR CO.

Relieve the tension on the timing belt tensioner pulley.
- Loosen the tensioner pulley bolt.
- Release tension on the timing belt by disconnecting the tensioner tab from the timing cover back plate.
Slide the timing belt off camshaft sprockets (6256) and crankshaft sprockets (6306).

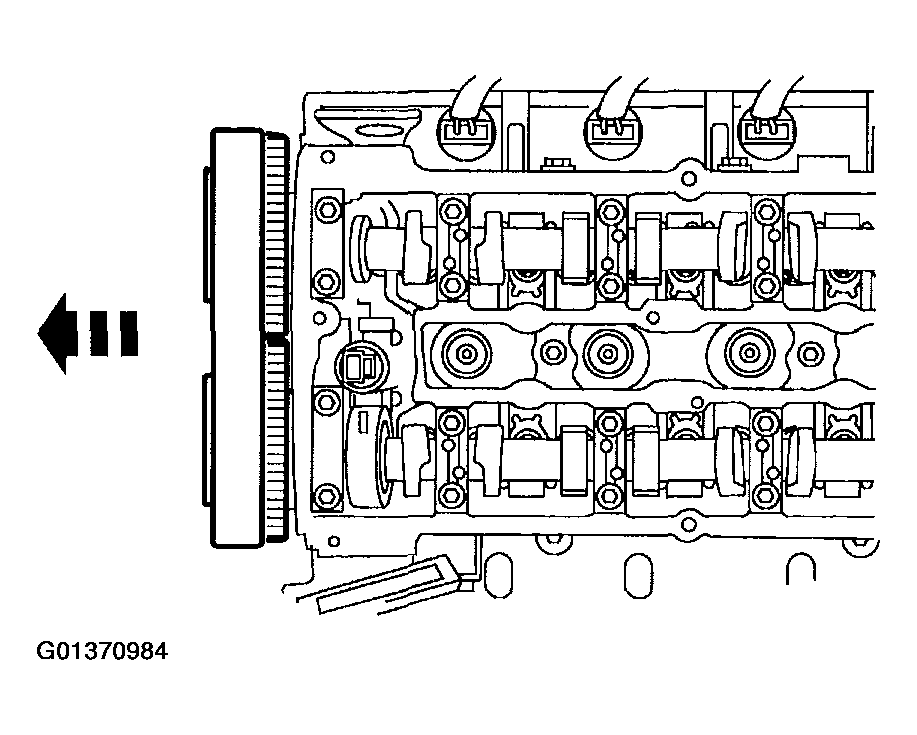

Fig 6: Identifying Slide Timing Belt Off Camshaft Sprockets
Courtesy of FORD MOTOR CO.
Inspect the timing belt for wear. Install a new timing belt as required.
