Removal & Installation

Fuel Pump Driver Module (FPDM) is located on left rear quarter panel in trunk. Remove the trunk compartment rear cover. See Fig 1. Remove the pushpins and position the trunk compartment left side trim aside. See Fig 2. Remove the FPDM retaining nuts. See Fig 3. Disconnect the FPDM electrical connector. To install, reverse the removal procedure.

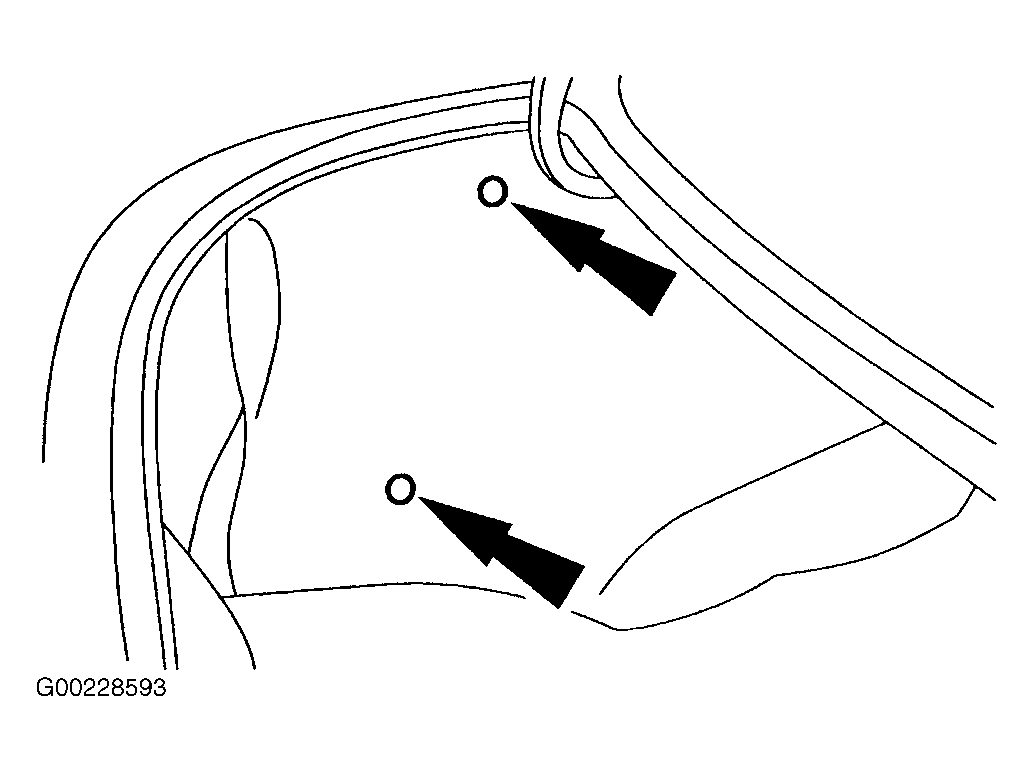

Fig 1: Locating Trunk Compartment Rear Cover Retainers

Courtesy of FORD MOTOR CO.

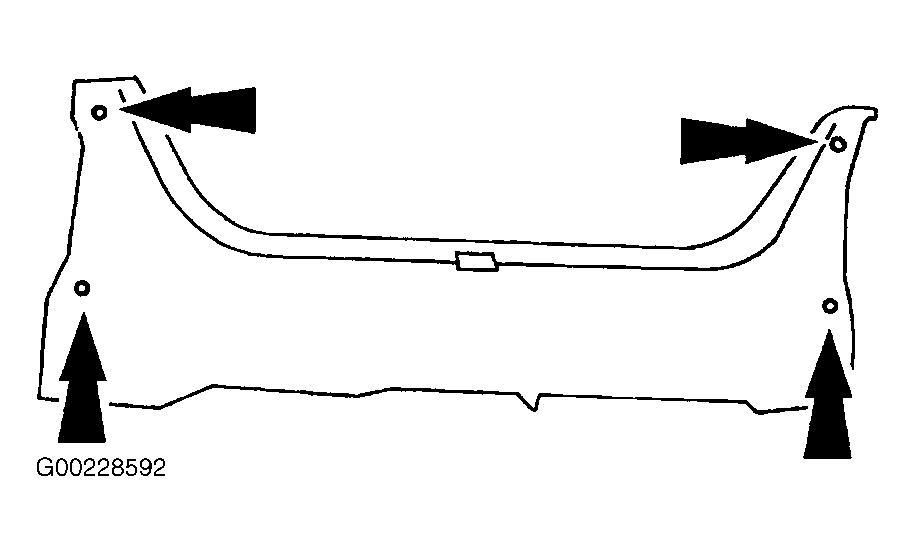

Fig 2: Locating Trunk Compartment Left Side Trim Pushpins

Courtesy of FORD MOTOR CO.

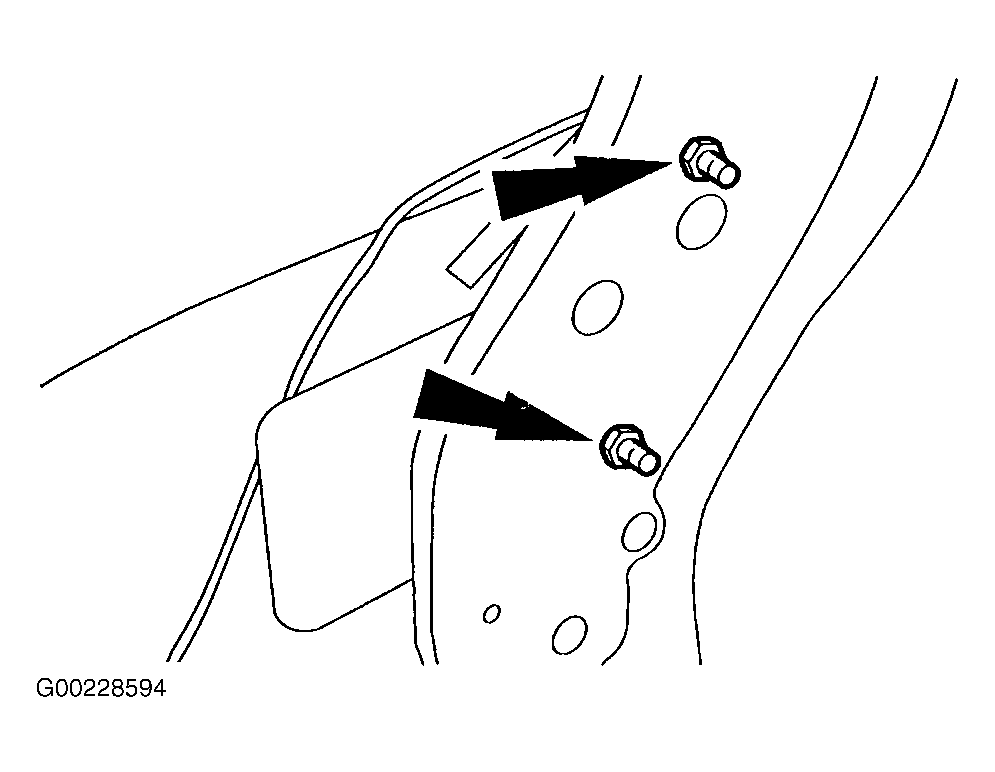

Fig 3: Locating FPDM Retaining Nuts

Courtesy of FORD MOTOR CO.
