Connector Circuit Reference

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

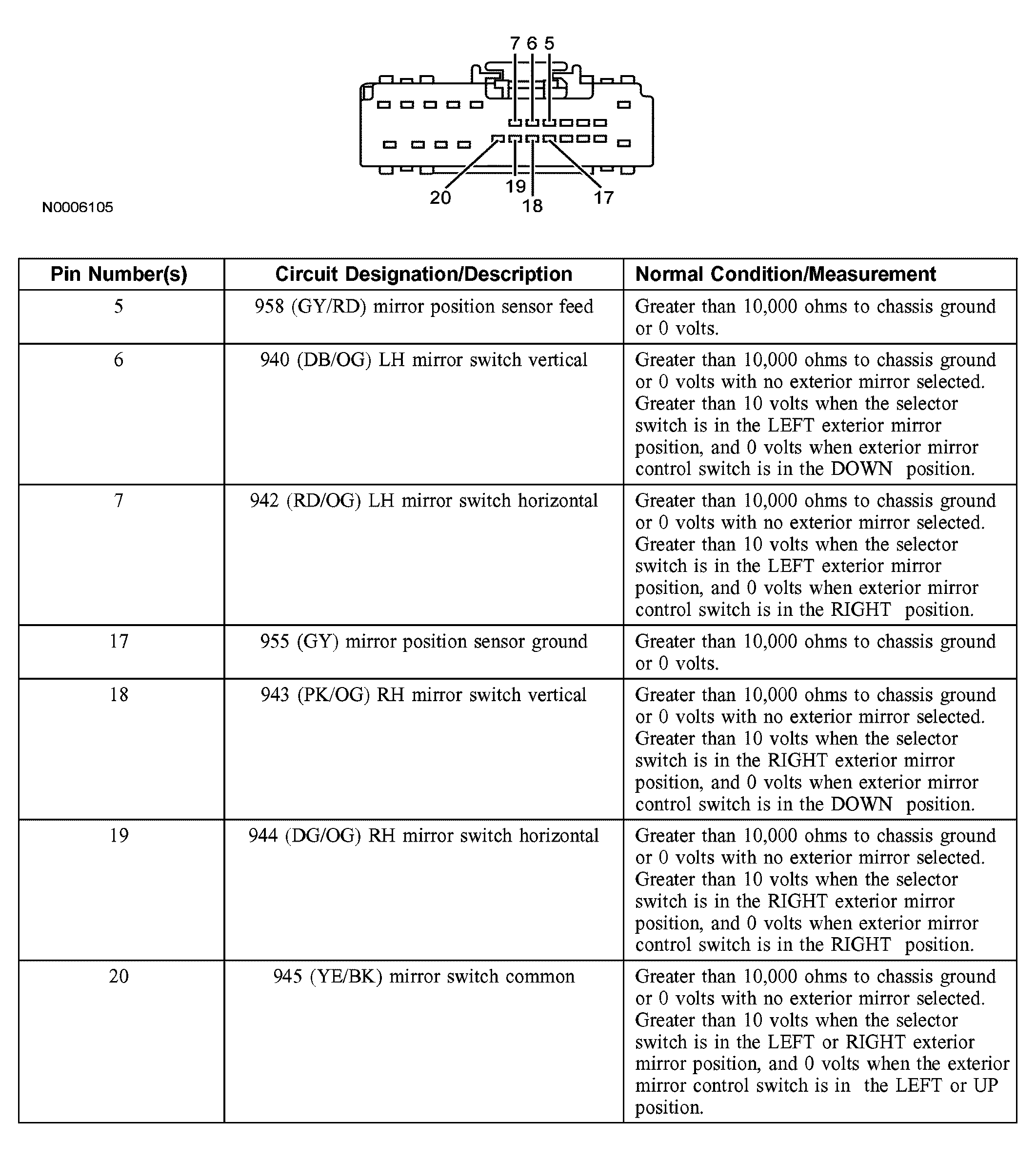

Fig 1: Identifying Driver Seat Module (DSM) connector pin C341C (Memory Mirror Only)

Courtesy of FORD MOTOR CO.

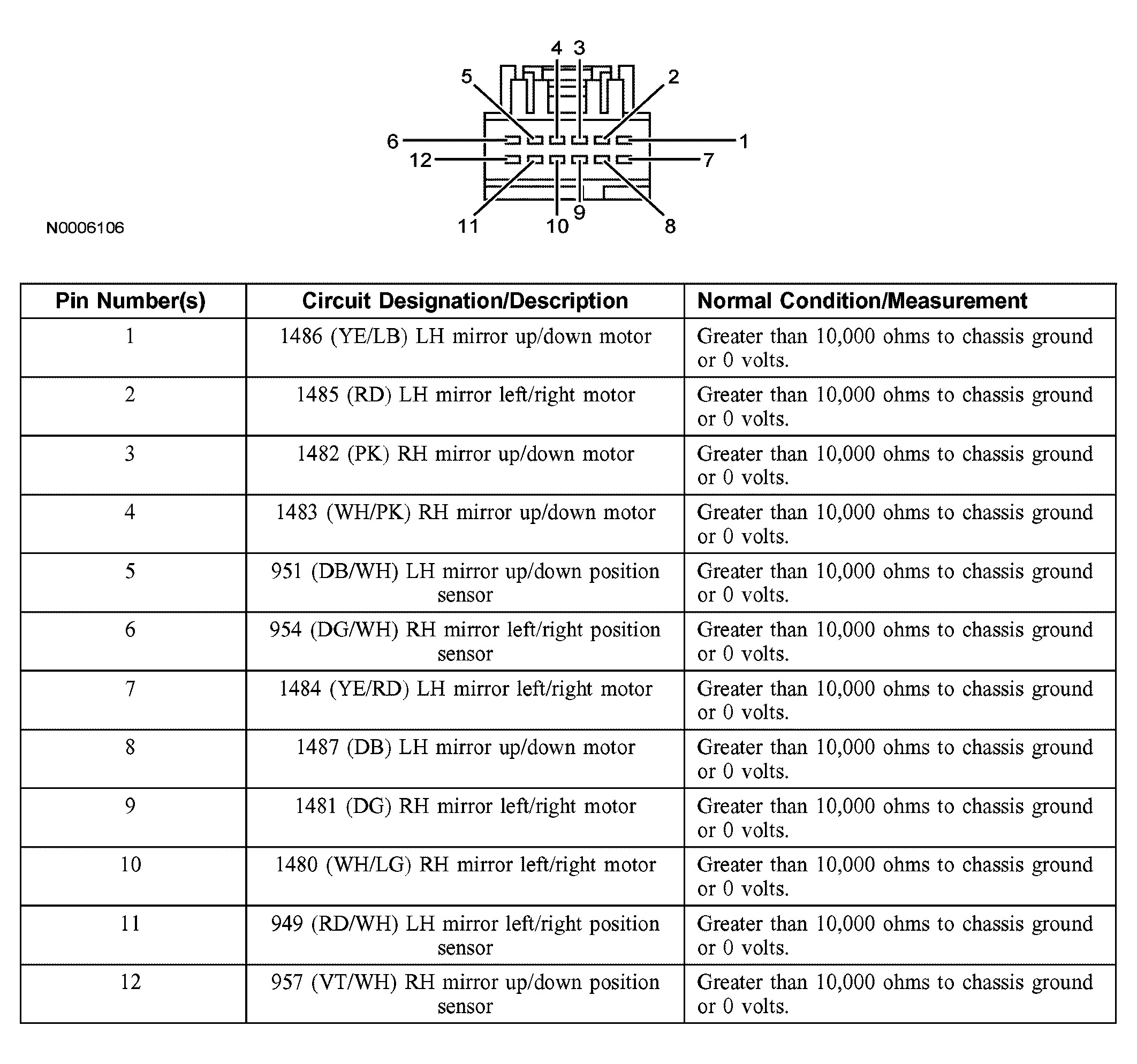

Fig 2: Identifying Driver Seat Module (DSM) Connector Pin C341D (Memory Mirror Option Only)

Courtesy of FORD MOTOR CO.

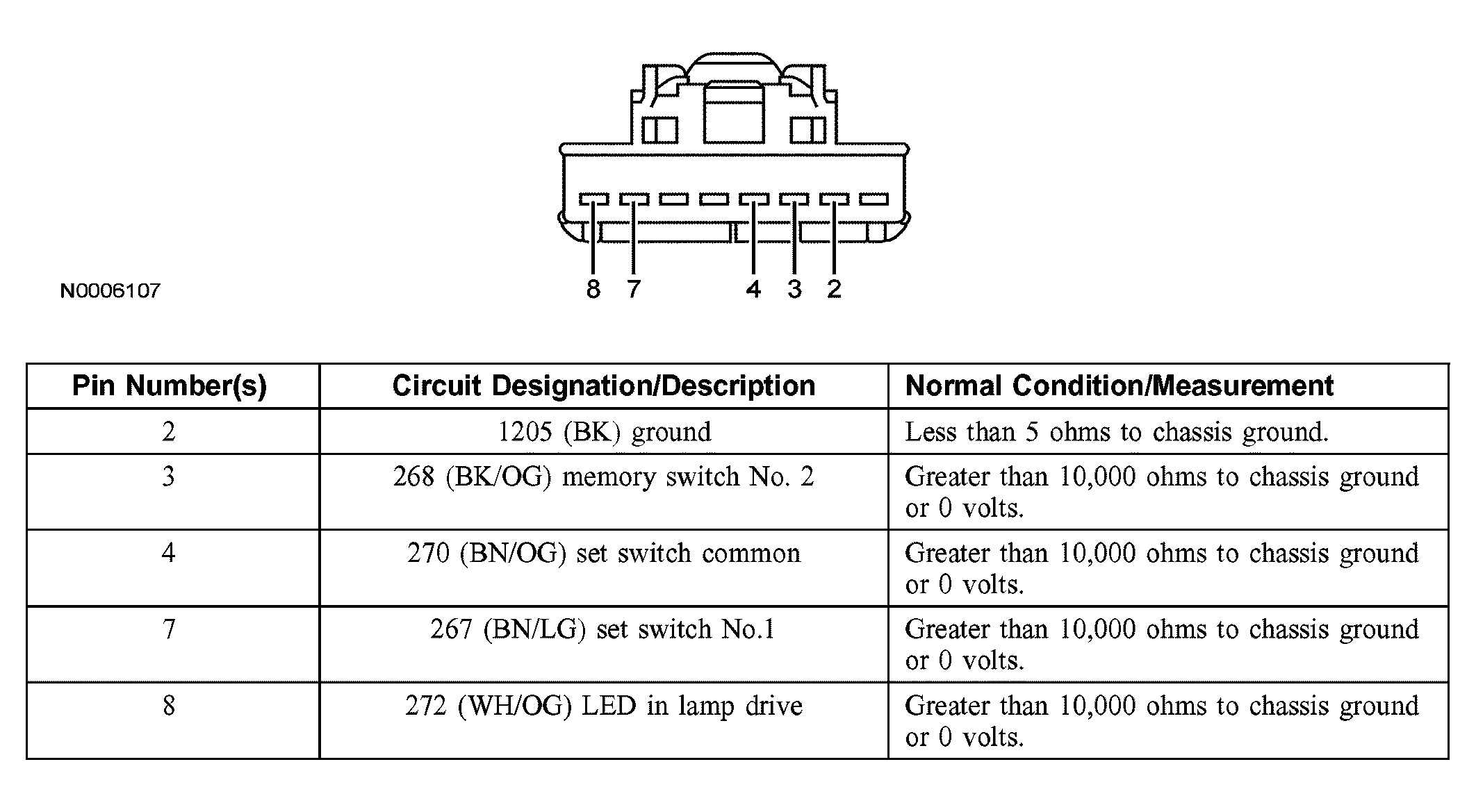

Fig 3: Identifying Memory Set Switch Connector Pin C503 (Memory Mirror Option Only)

Courtesy of FORD MOTOR CO.

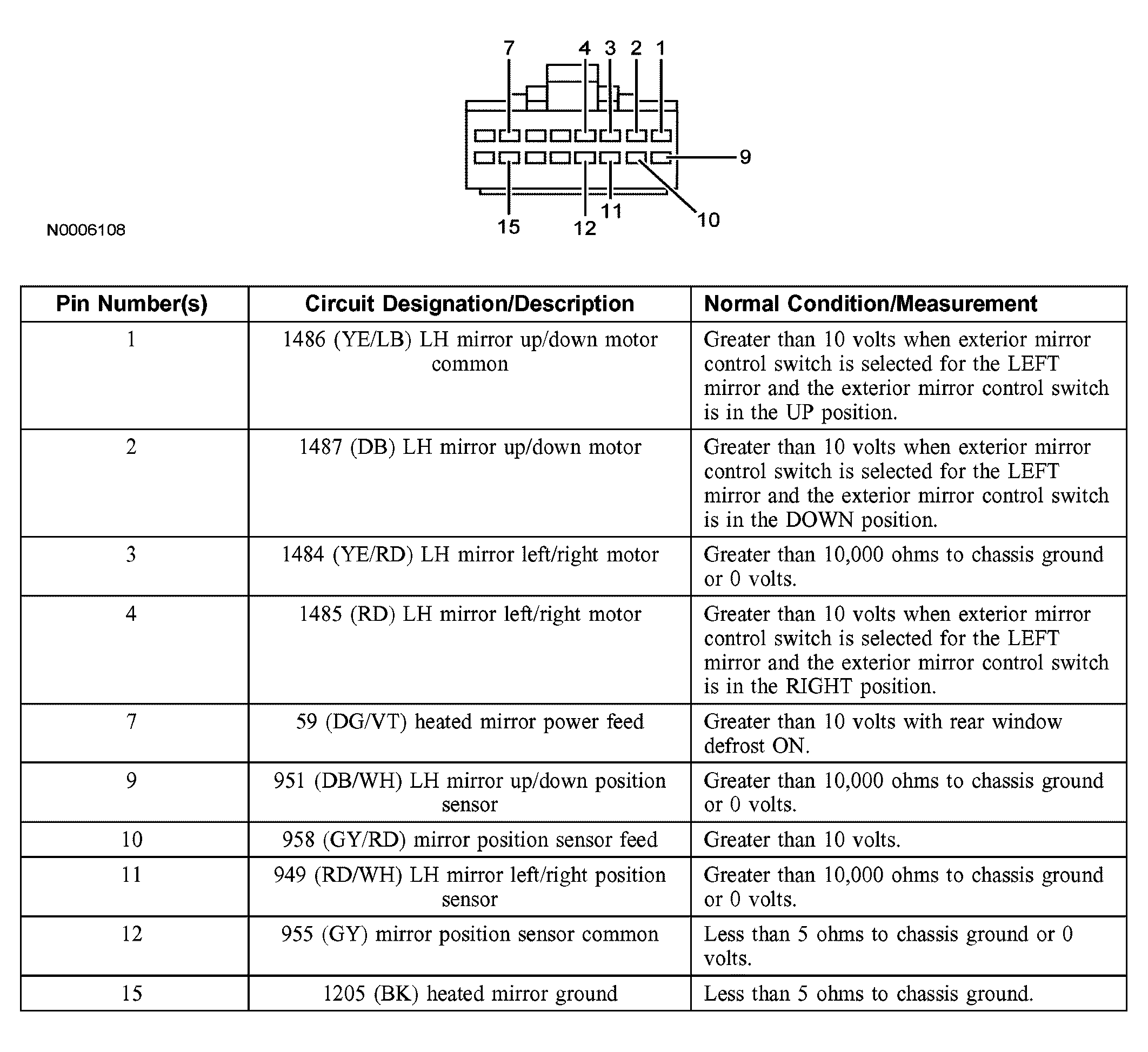

Fig 4: Identifying Exterior Mirror connector pin C516 (LH) (memory mirror option only)

Courtesy of FORD MOTOR CO.

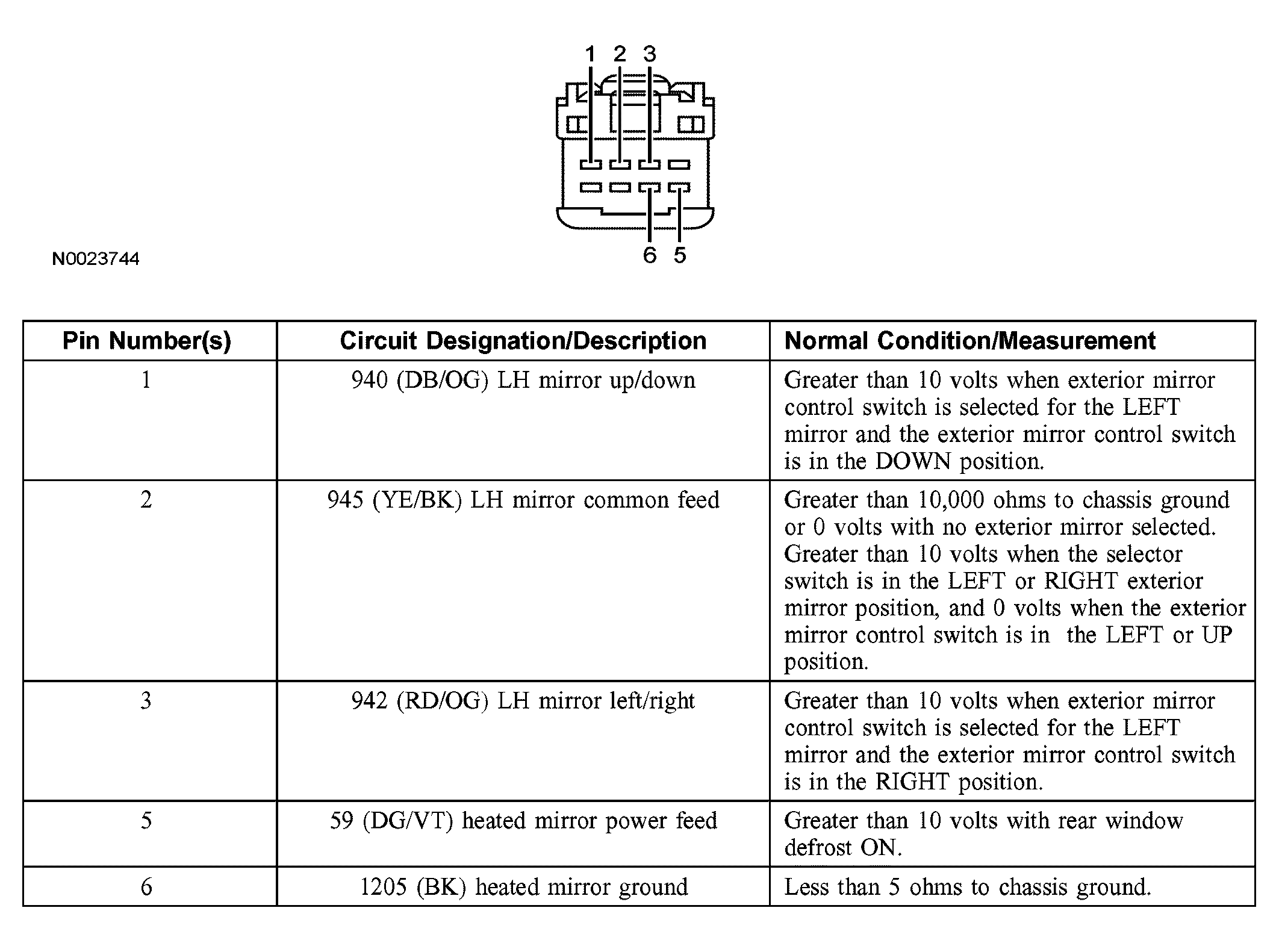

Fig 5: Identifying Exterior Mirror connector pin C522 (LH)

Courtesy of FORD MOTOR CO.

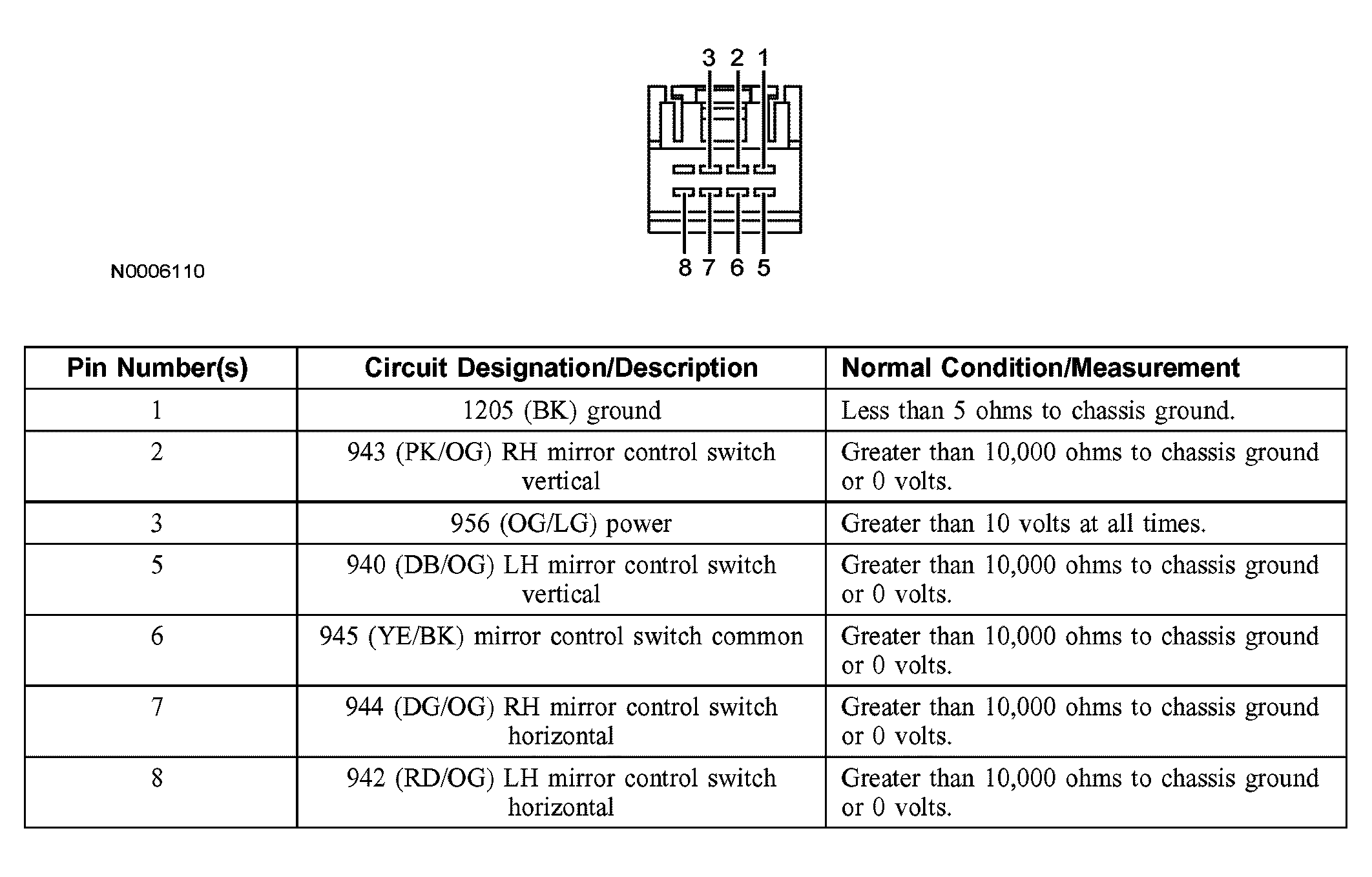

Fig 6: Identifying Mirror Control Switch Connector Pin C527

Courtesy of FORD MOTOR CO.

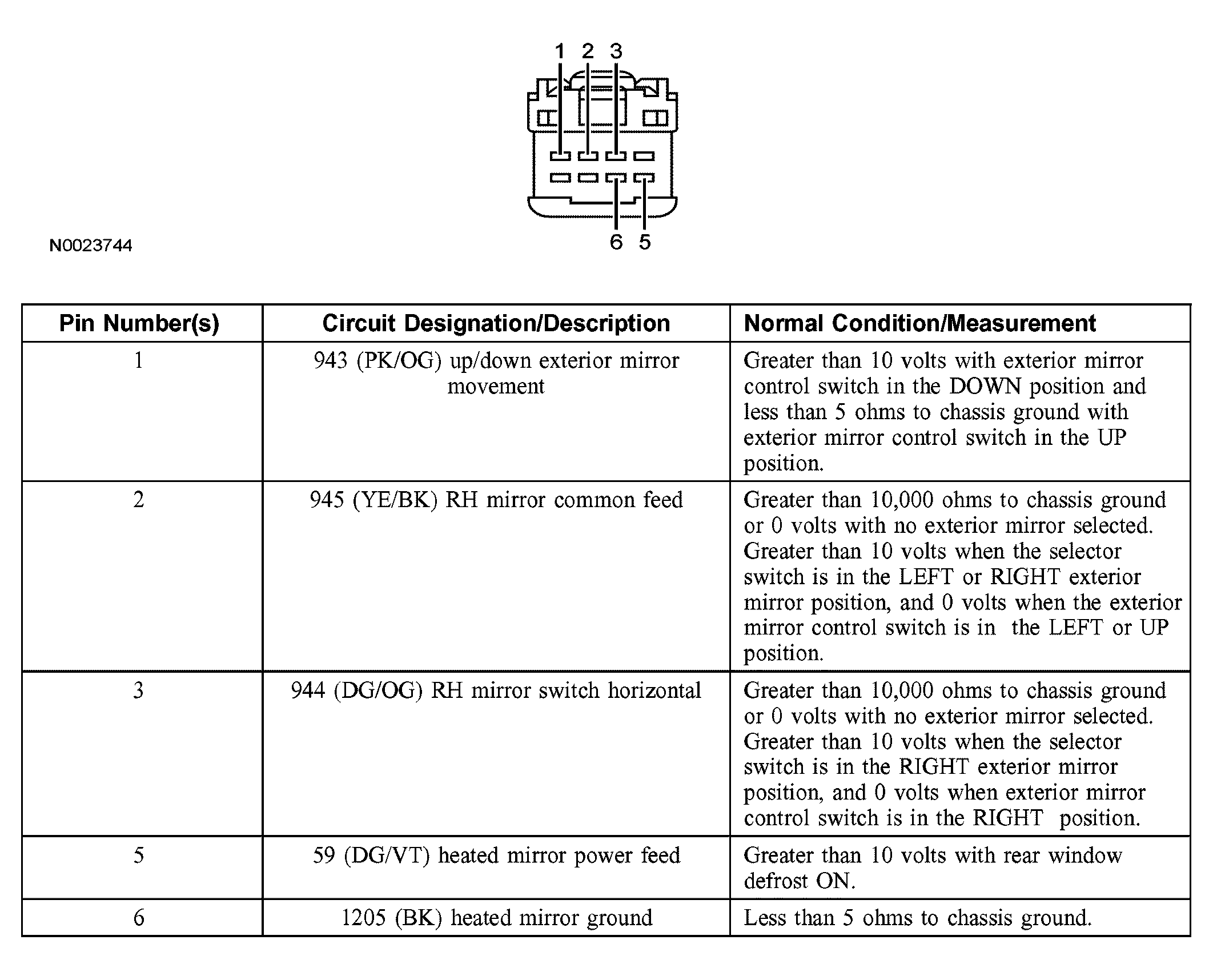

Fig 7: Identifying Exterior Mirror connector pin C622 (LH)

Courtesy of FORD MOTOR CO.

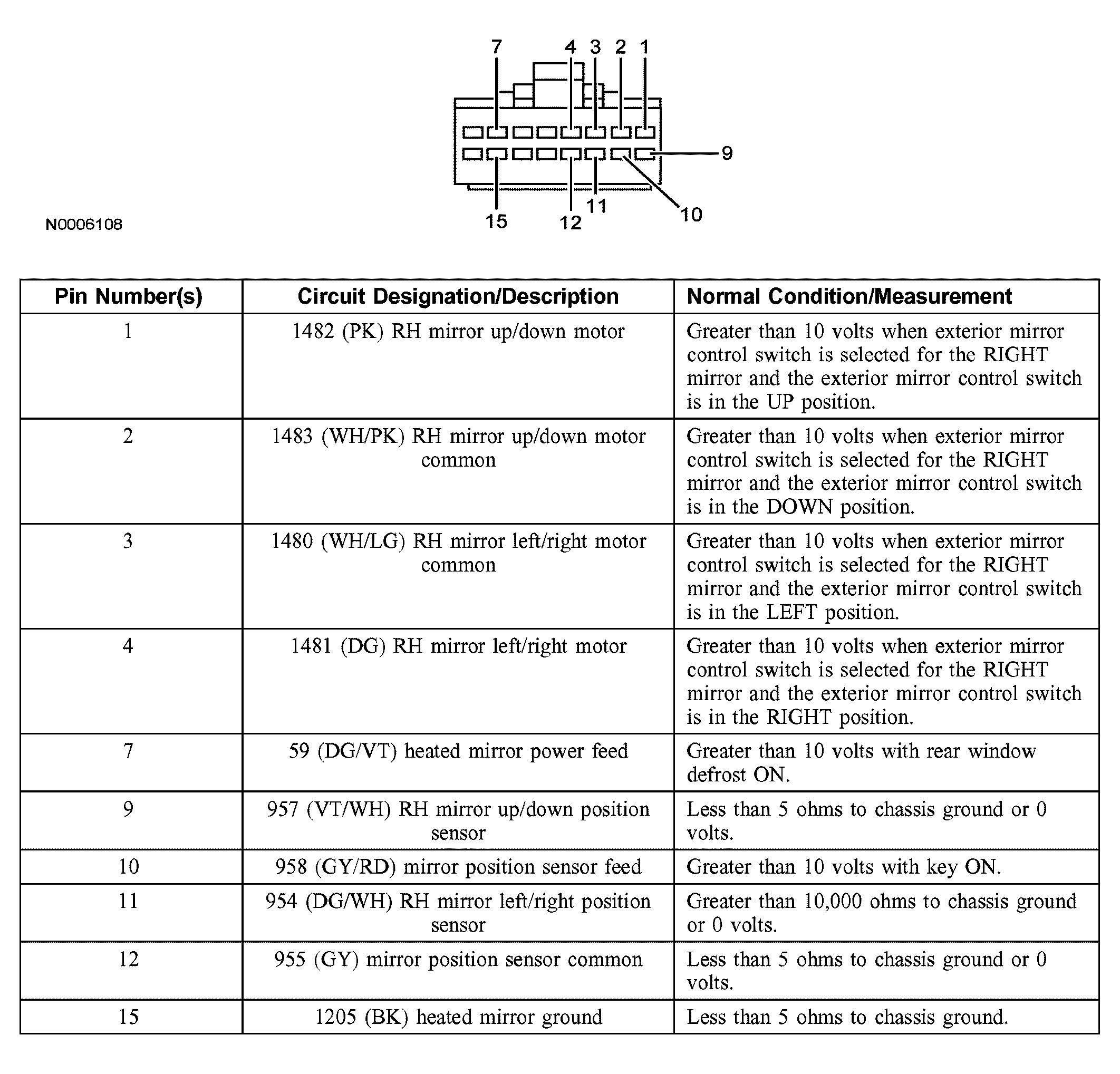

Fig 8: Identifying Exterior Mirror Connector Pin 625 (RH) (Memory Mirror Option Only)

Courtesy of FORD MOTOR CO.

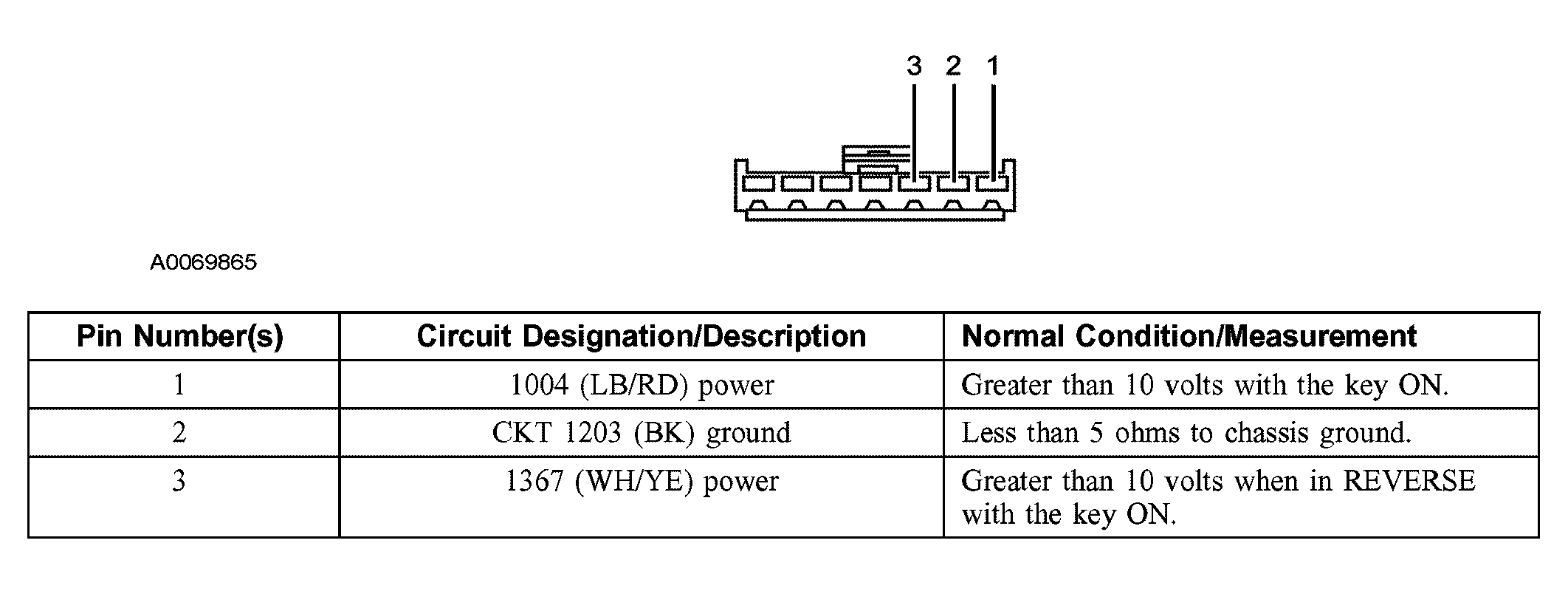

Fig 9: Identifying Auto-Dimming Mirror Connector Pin C911

Courtesy of FORD MOTOR CO.
