Compressor Manifold and Tube Assembly - 2.3L: Notes

WARNING: This page is about a different car, the 2006 Mercury Milan, 2006 Lincoln Zephyr, and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

MATERIAL CHART

Item	Specification
PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D	WSH-M1C231-B

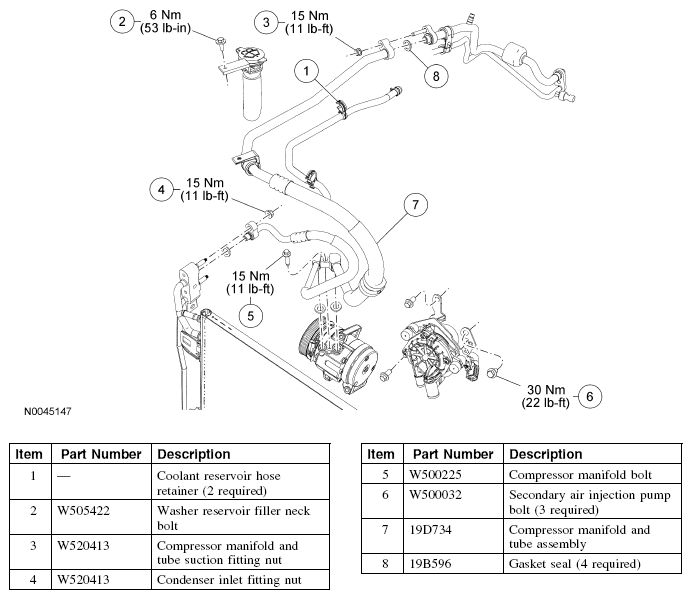

Fig 1: Compressor Manifold And Tube Assembly Replacement Components (2.3L) With Torque Specifications

Courtesy of FORD MOTOR CO.
