Pinpoint Test H: DTCS C1184 Abs System Timeout

WARNING: This page is about a different car, the 2003 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

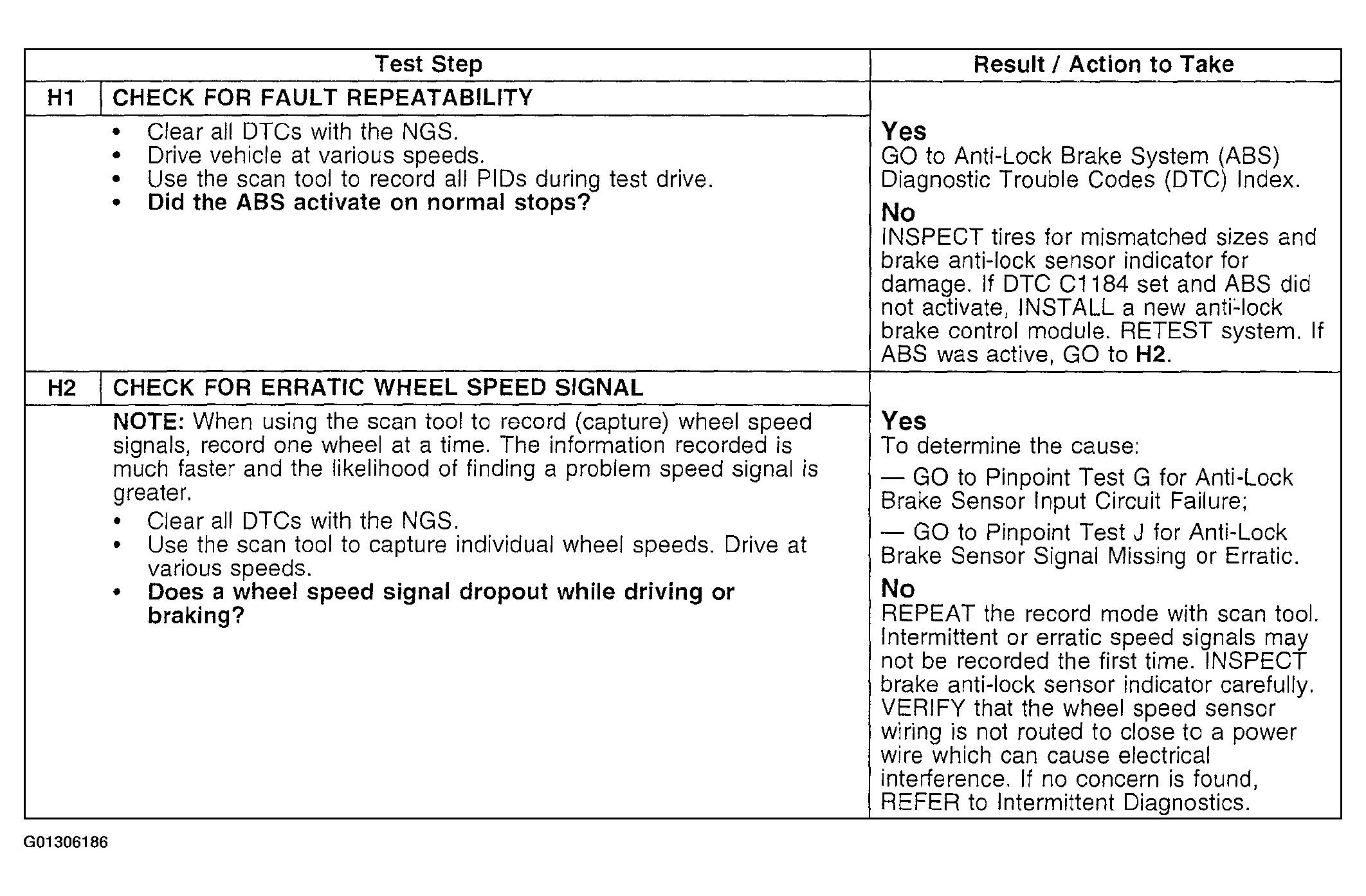

Fig 1: Pinpoint Test H: DTCs C1184 ABS System Timeout (Steps H1-H2)
G01306186Courtesy of FORD MOTOR CO.
