Pinpoint Test M: DTC-C1446 Brake Switch Circuit Failure

WARNING: This page is about a different car, the 2003 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: This code is an advisory code only. This code will not enable the ABS.

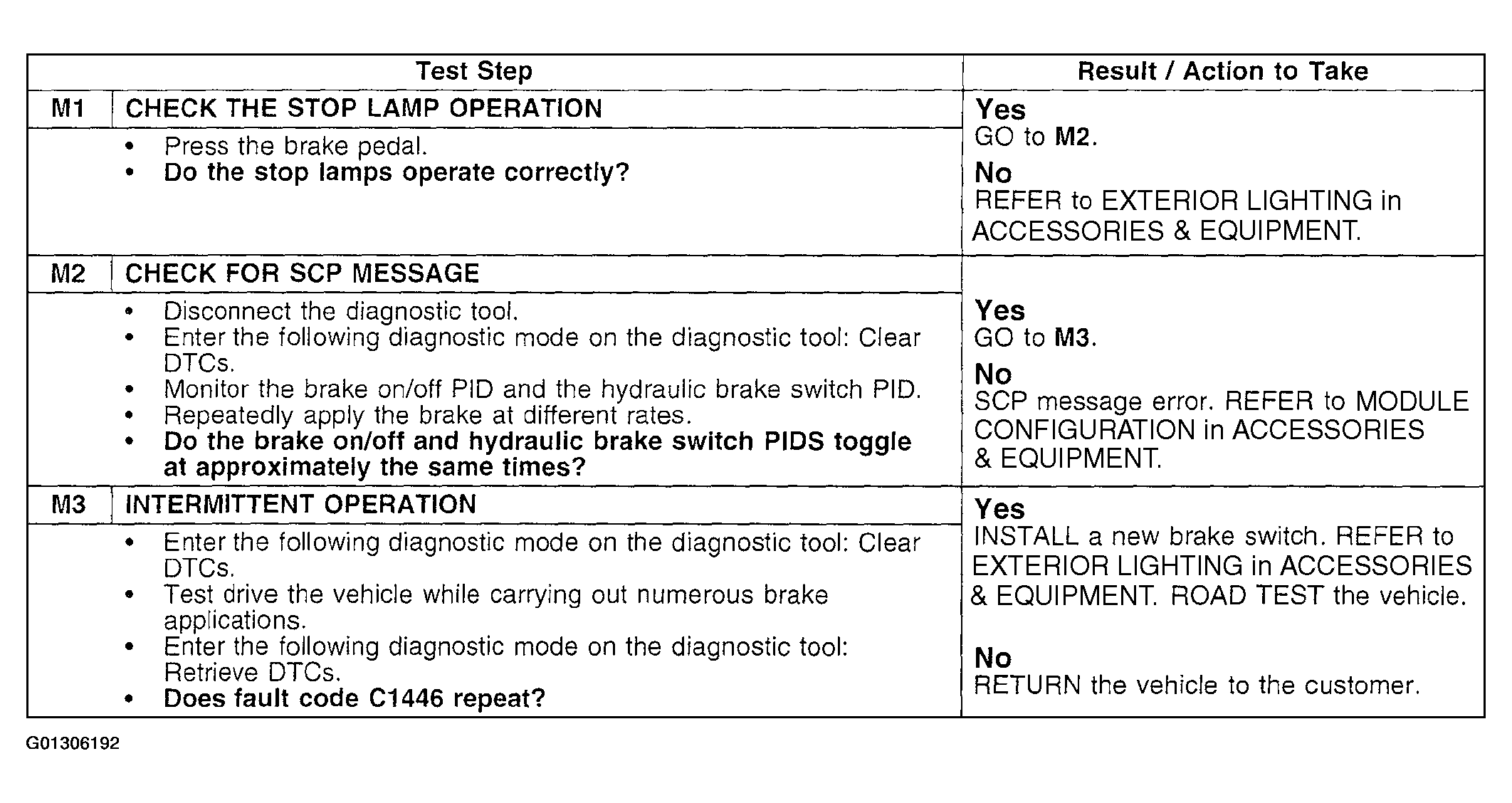

Fig 1: Pinpoint Test M: DTC-C1446 Brake Switch Circuit Failure (Steps M1-M3)

Courtesy of FORD MOTOR CO.
