Symptom Chart

WARNING: This page is about a different car, the 2003 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Failure of a mechanical brake component may not cause the yellow ABS warning indicator to illuminate or a DTC to be stored. The Symptom Chart is a starting point to begin diagnosis of these concerns.

NOTE: Refer to ANTI-LOCK BRAKES WIRING DIAGRAMS for connector numbers stated in Pinpoint Tests.

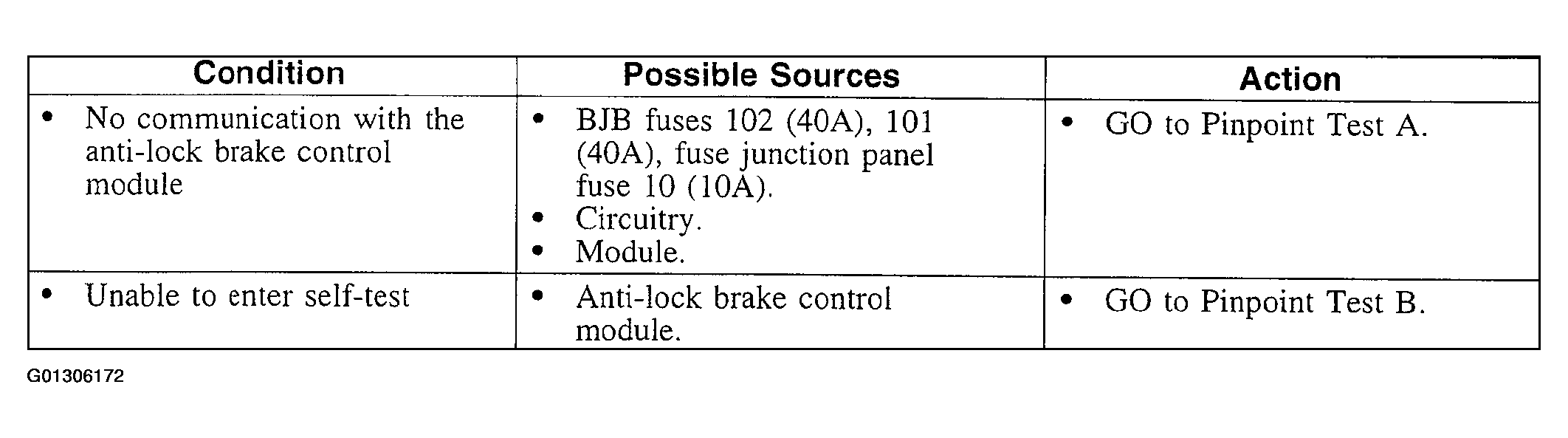

Fig 1: Mechanical Brake Component Symptom Chart (1 Of 3)

Courtesy of FORD MOTOR CO.

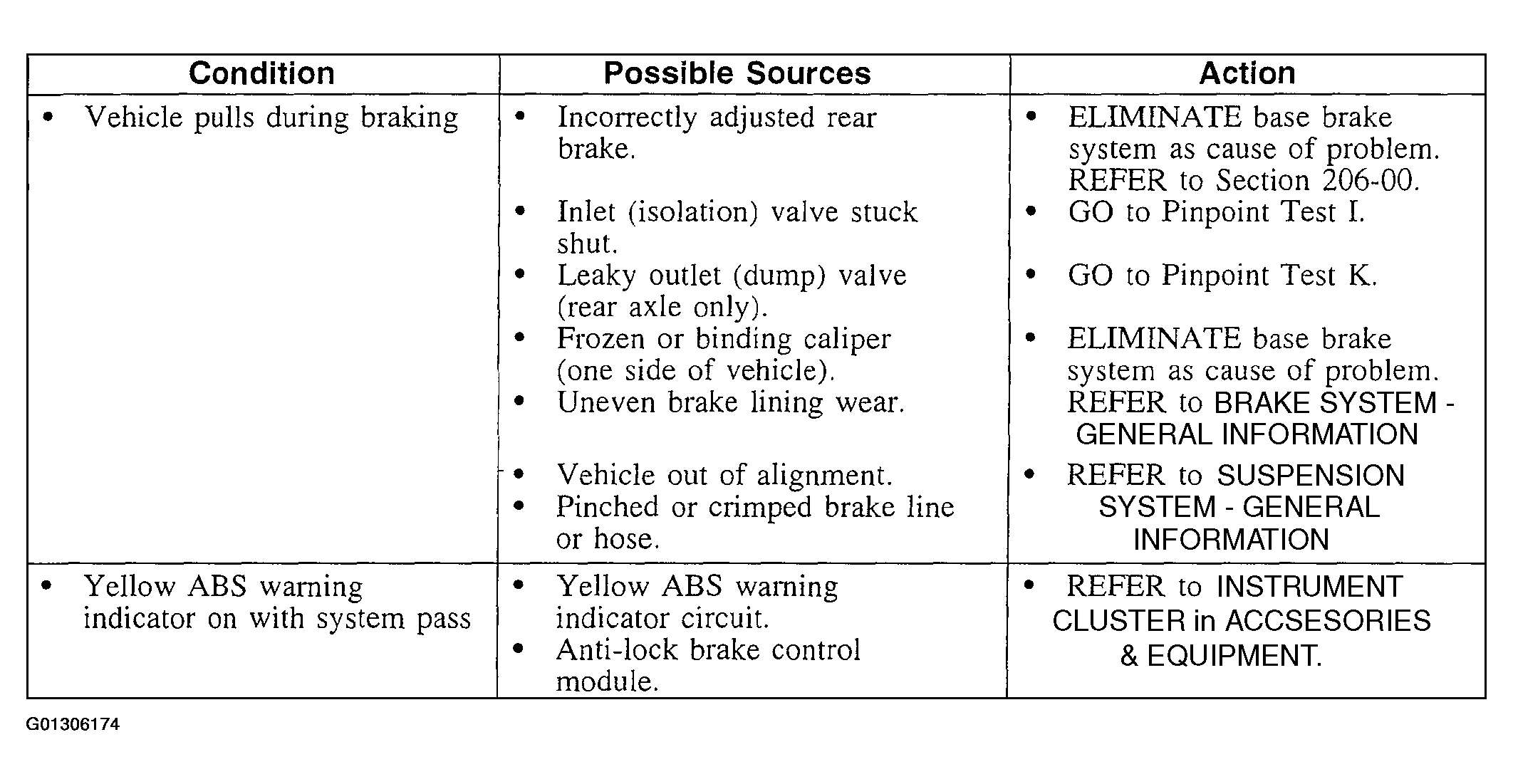

Fig 2: Mechanical Brake Component Symptom Chart (2 Of 3)

Courtesy of FORD MOTOR CO.

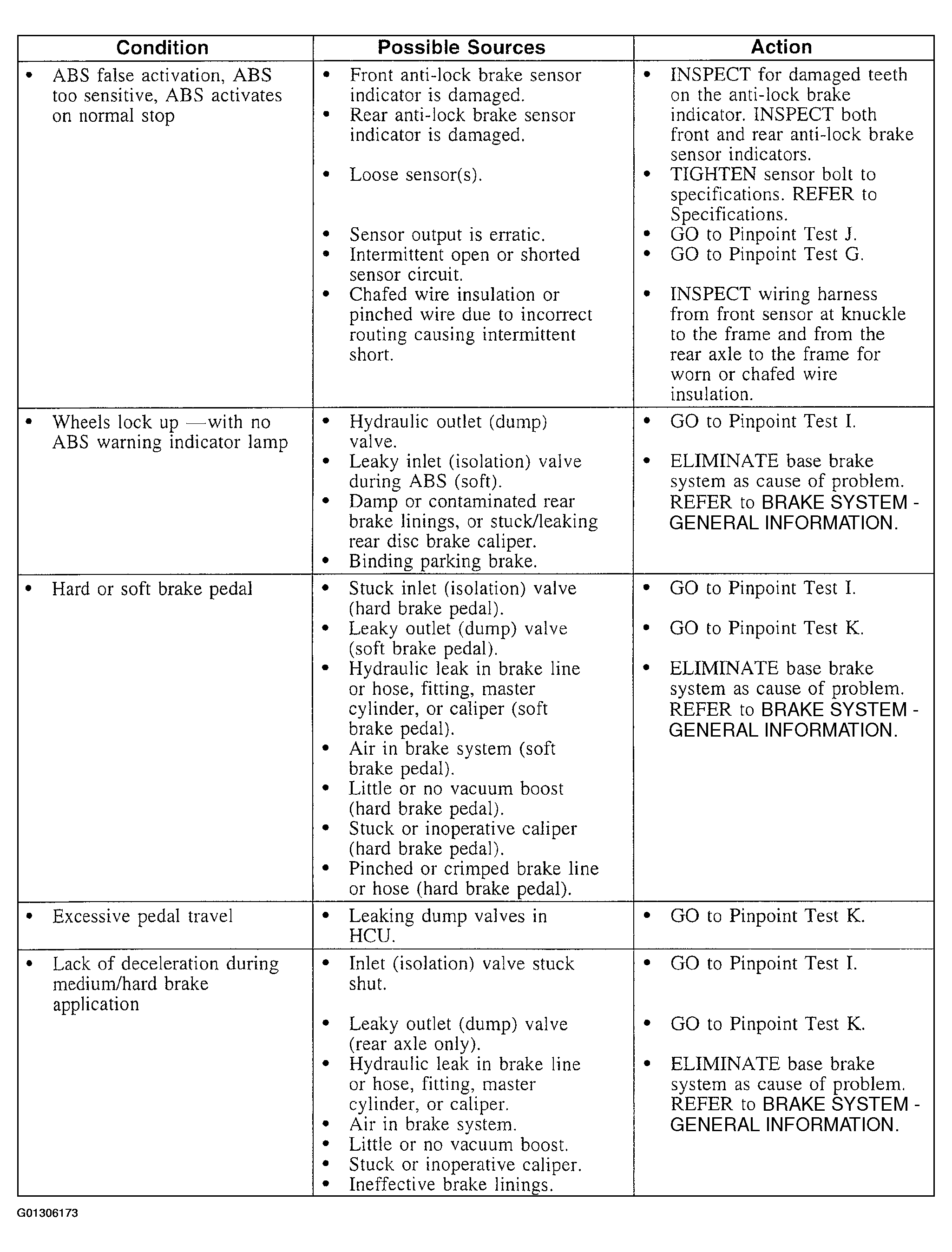

Fig 3: Mechanical Brake Component Symptom Chart (3 Of 3)

Courtesy of FORD MOTOR CO.
