Items 92-94: Intake Manifold Assembly Note

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Install new intake manifold gaskets.

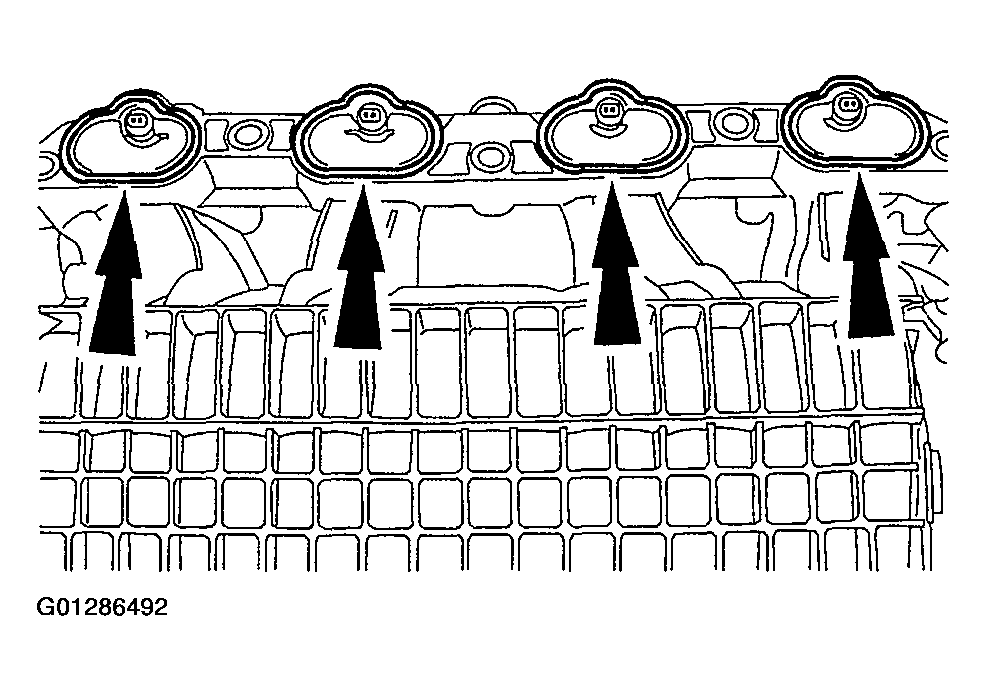

Fig 1: Installing Intake Manifold Gaskets
Courtesy of FORD MOTOR CO.

NOTE: The throttle body and adapter are shown removed for clarity. It is not necessary to remove the throttle body and adapter to remove the intake manifold.

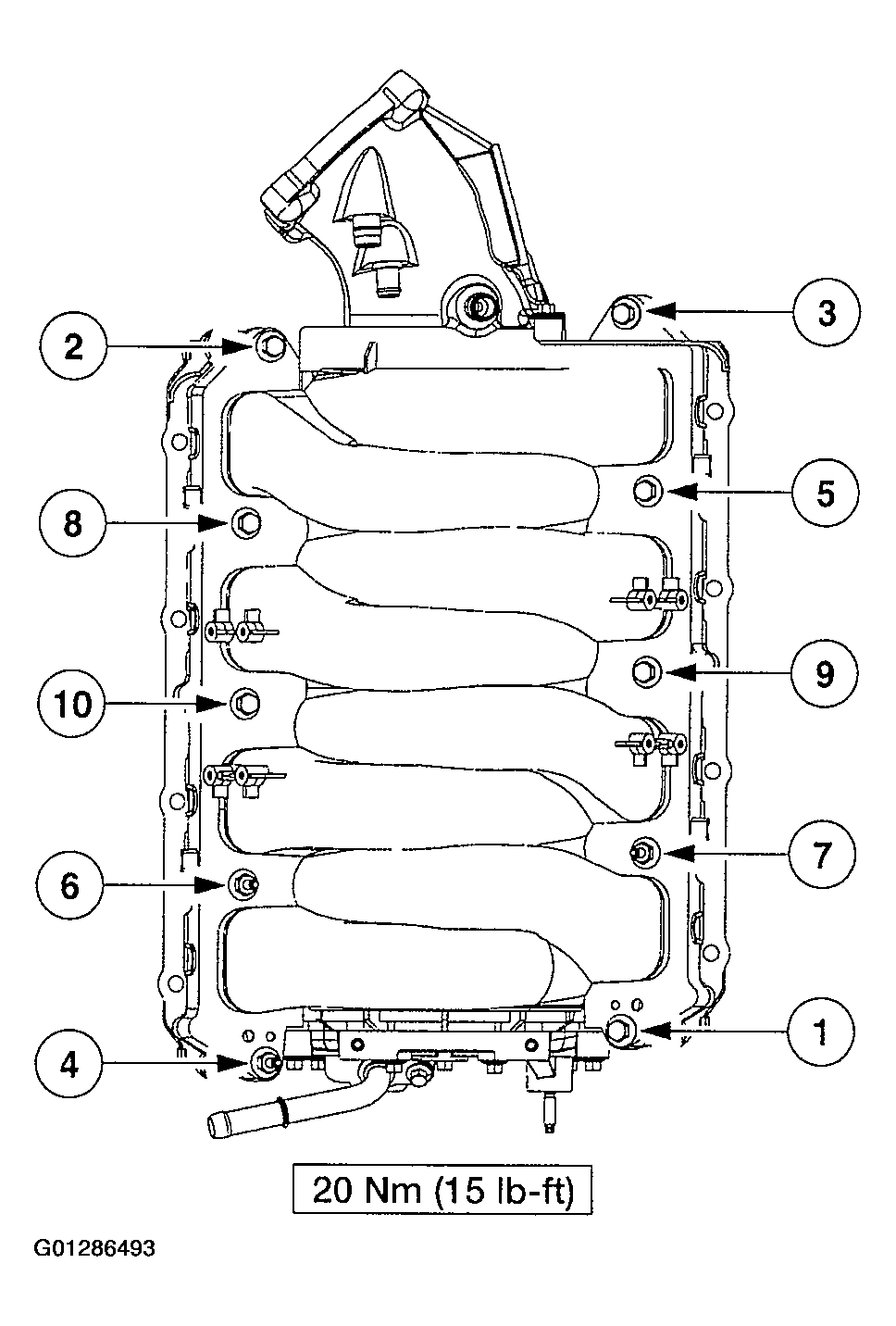

Fig 2: Installing Intake Manifold And Bolts

Courtesy of FORD MOTOR CO.

Install the intake manifold and tighten the bolts in the sequence shown.
Connect the throttle body heater hose.

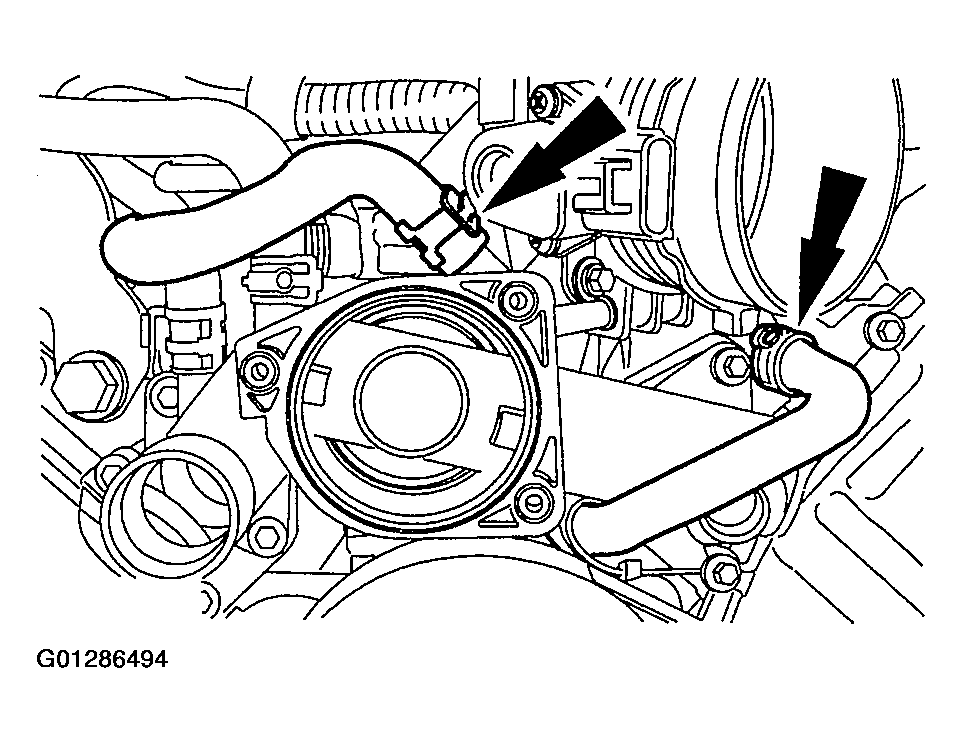

Fig 3: Connecting Throttle Body Heater Hose
Courtesy of FORD MOTOR CO.

NOTE: RH is shown, LH is similar.

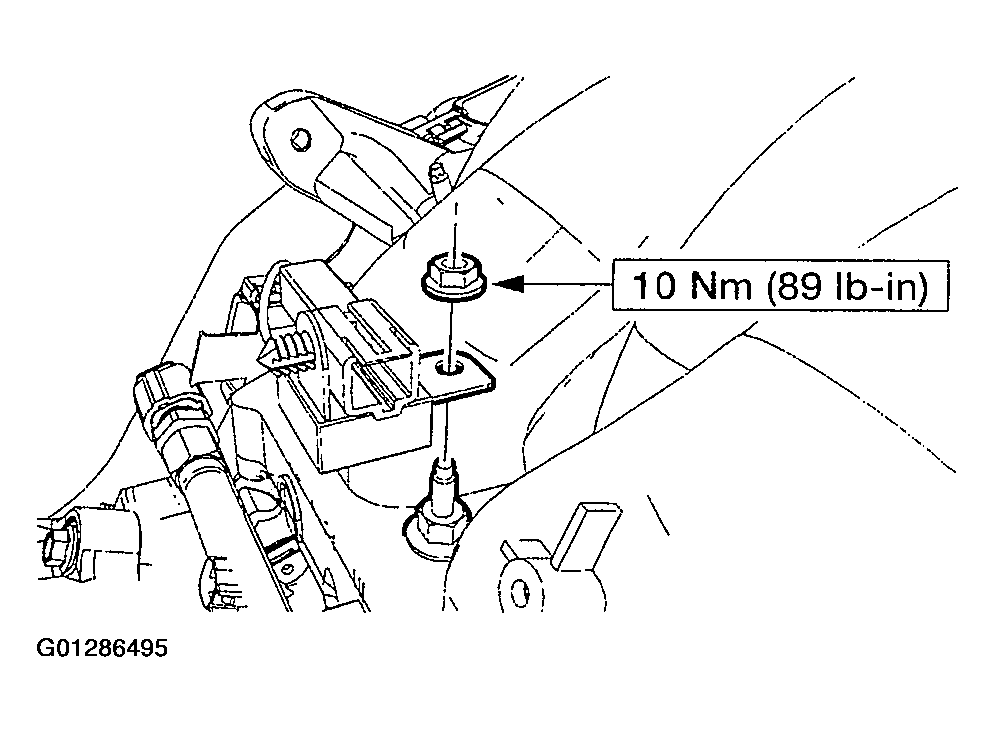

Fig 4: Installing Radio Interference Capacitor And Nut

Courtesy of FORD MOTOR CO.

Install the radio interference capacitor and the nut.
