Section 340 (Engine-3.9L): Assembly: Engine: Material

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

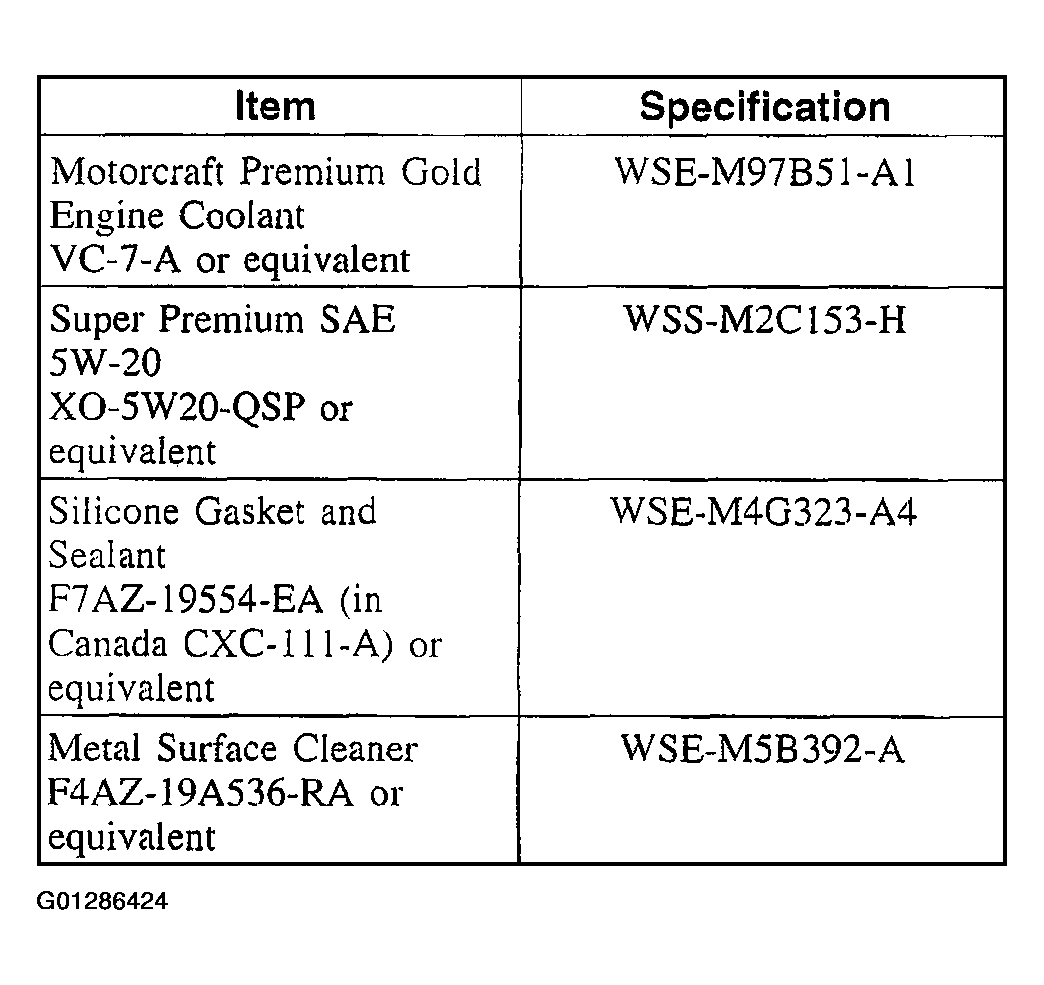

Fig 1: Material Specifications

G01286424

Courtesy of FORD MOTOR CO.

Illustration 1 of 24. Install the components in the order indicated in the following illustration and table.

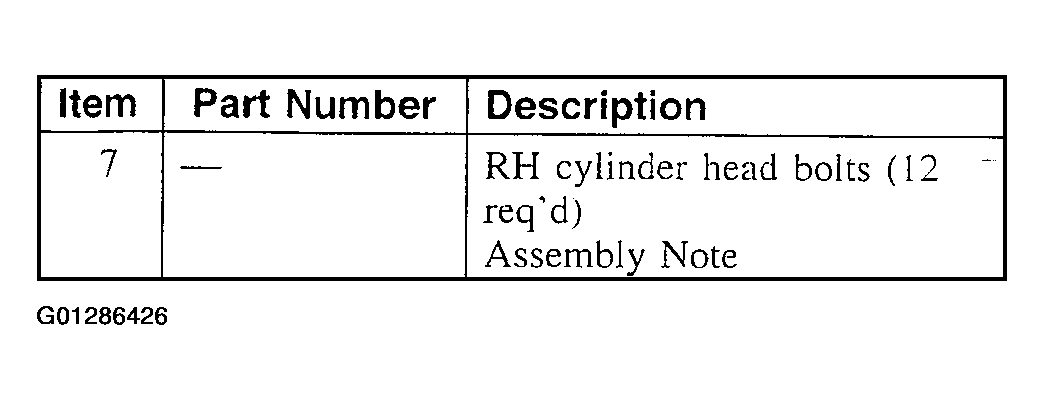

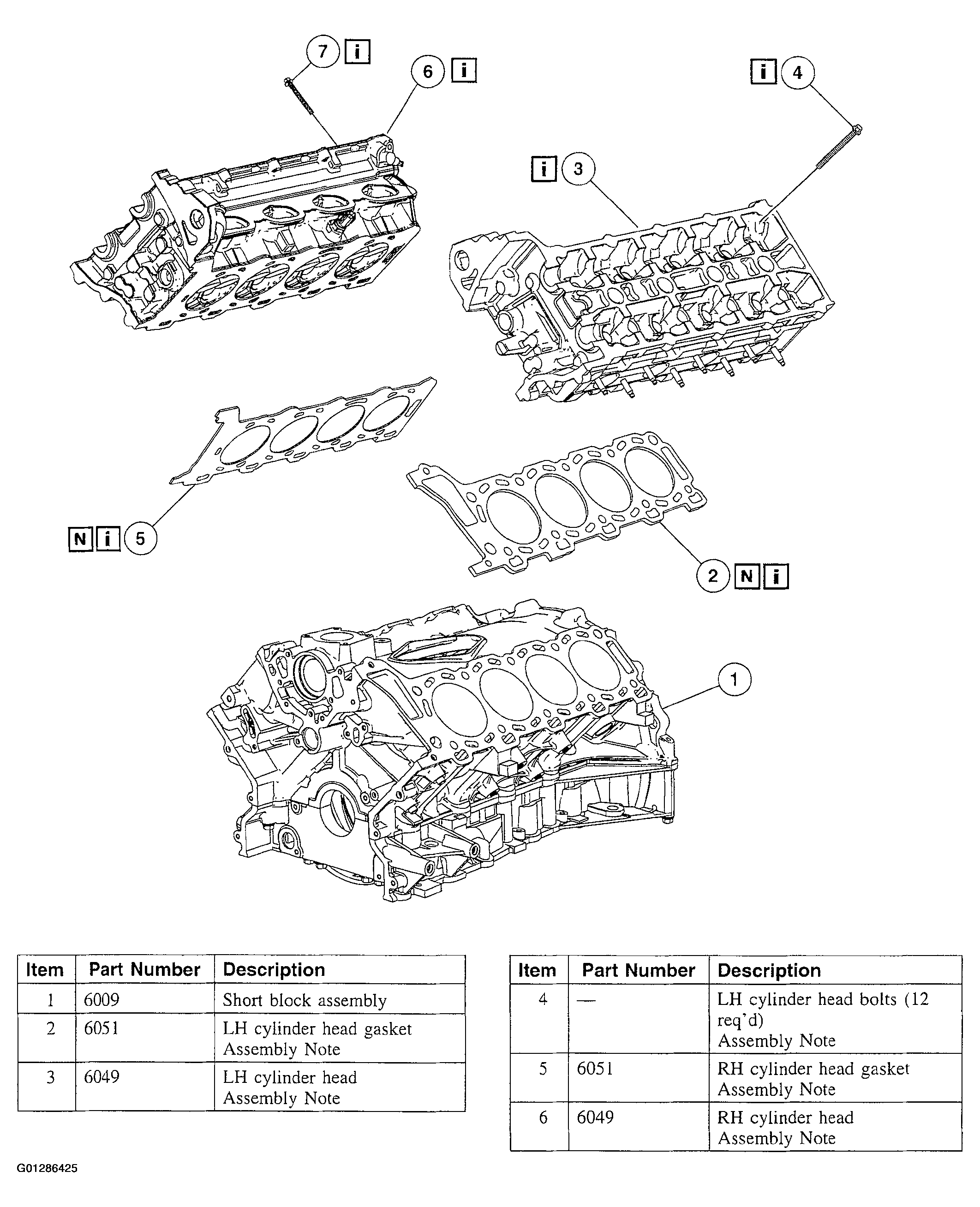

Fig 2: Removing Cylinder Head And Gaskets
Courtesy of FORD MOTOR CO.

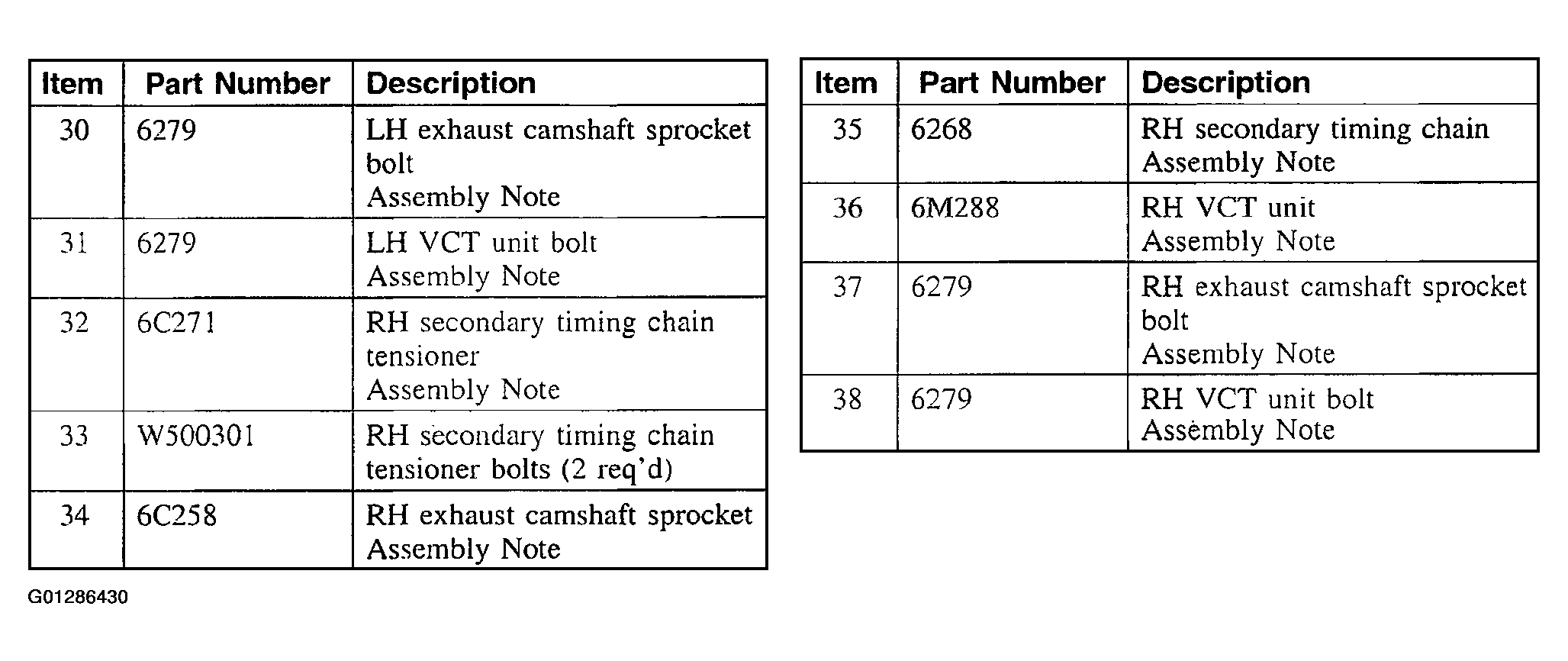

Fig 3: Parts Description Chart
Courtesy of FORD MOTOR CO.
Illustration 2 of 24. Install the components in the order indicated in the following illustration and table.

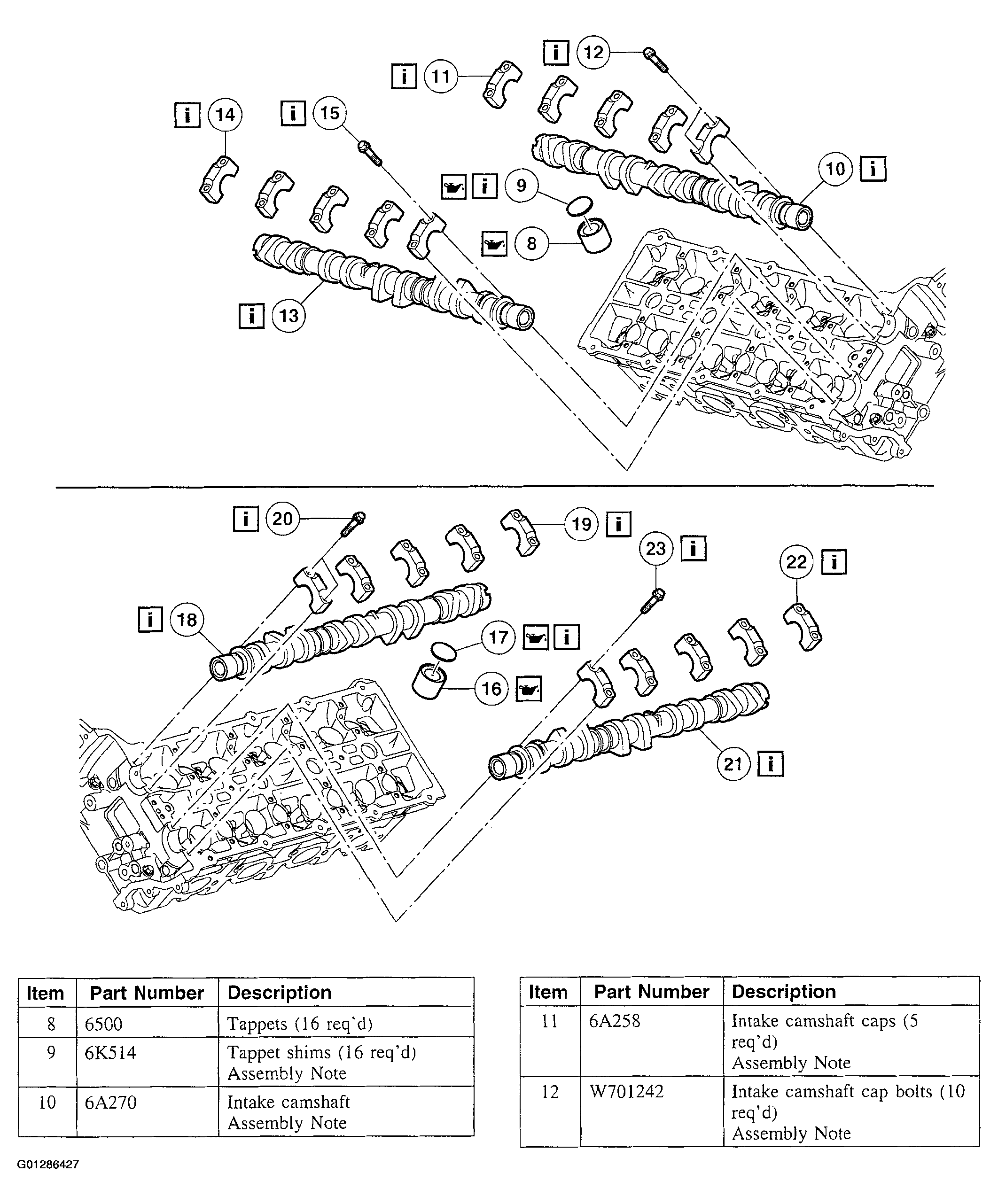

Fig 4: Removing Intake Camshafts Cap Bolts
Courtesy of FORD MOTOR CO.

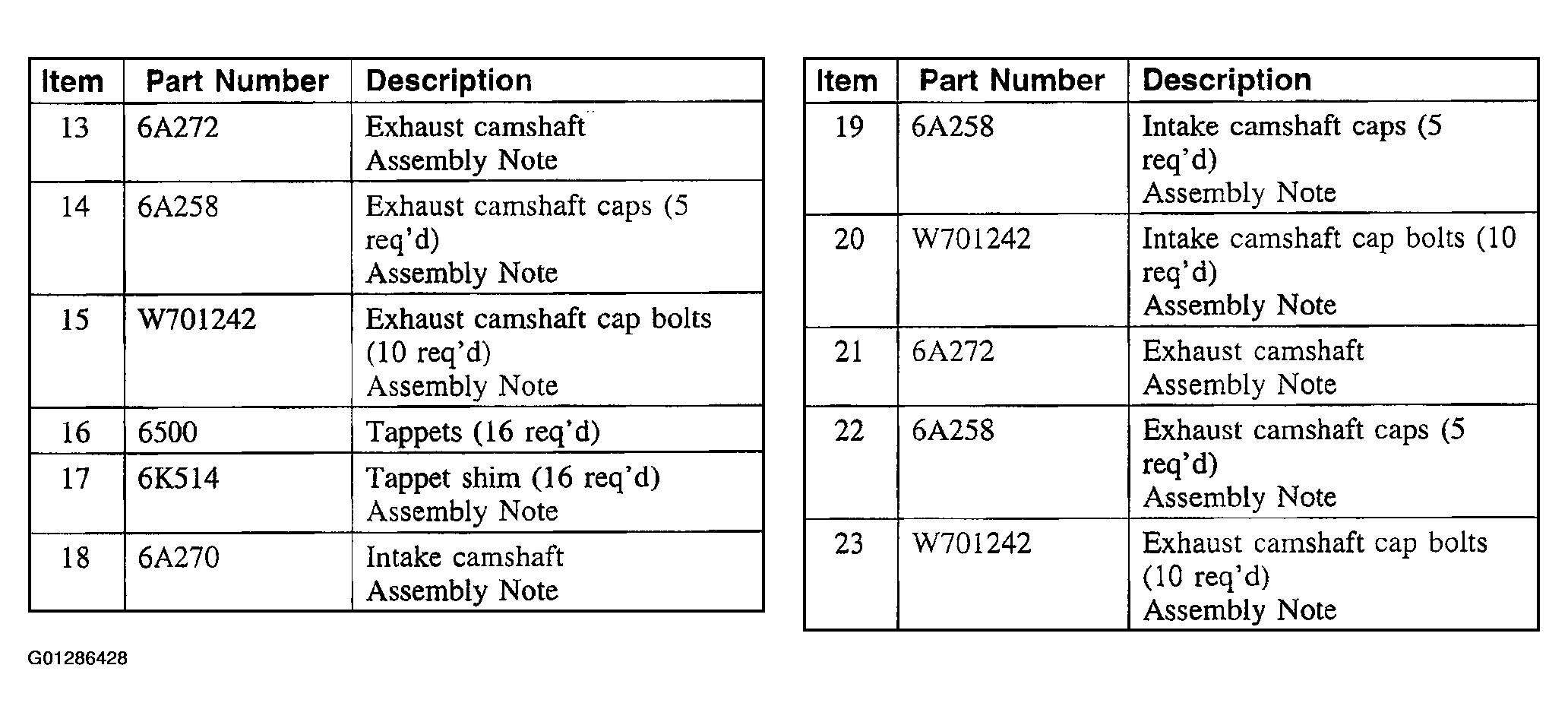

Fig 5: Parts Description Chart
Courtesy of FORD MOTOR CO.
Illustration 3 of 24. Install the components in the order indicated in the following illustration and table.

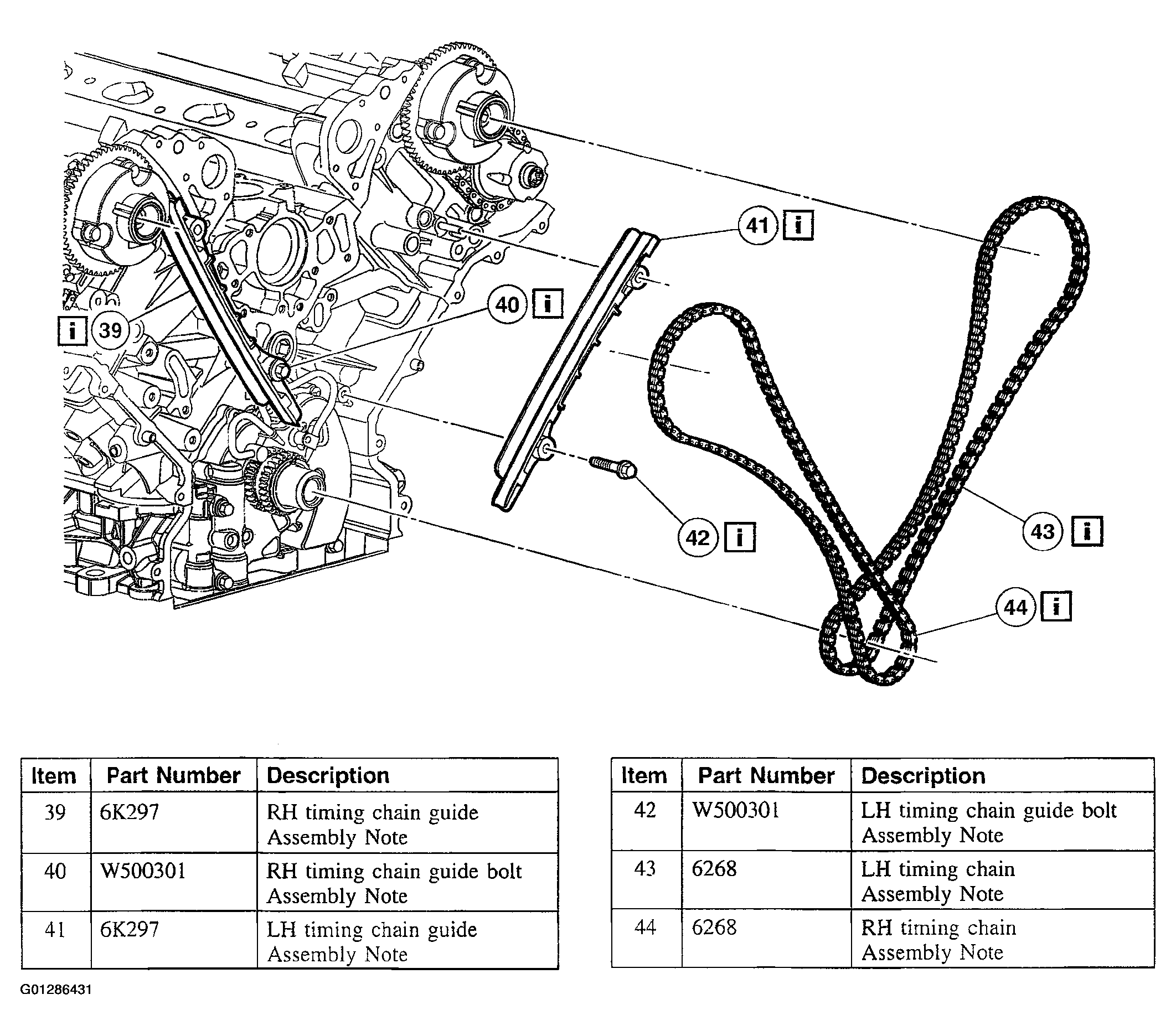

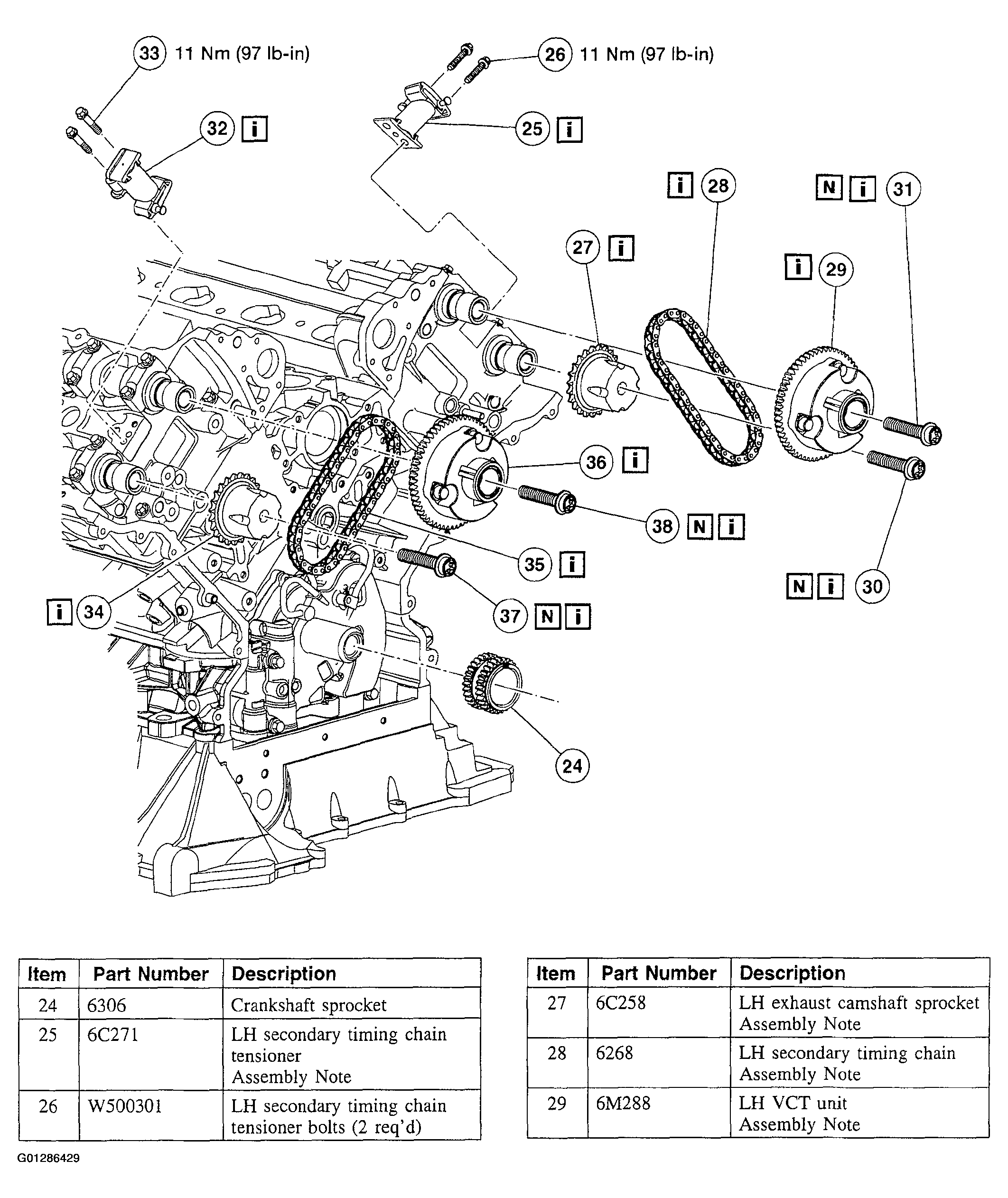

Fig 6: Removing LH Timing Chain And Sprockets
Courtesy of FORD MOTOR CO.

Fig 7: Parts Description Chart
Courtesy of FORD MOTOR CO.
Illustration 4 of 24. Remove the components in the order indicated in the following illustration and table.

Fig 8: Removing RH Timing Chain Guide Components
Courtesy of FORD MOTOR CO.
Illustration 5 of 24. Install the components in the order indicated in the following illustration and table.

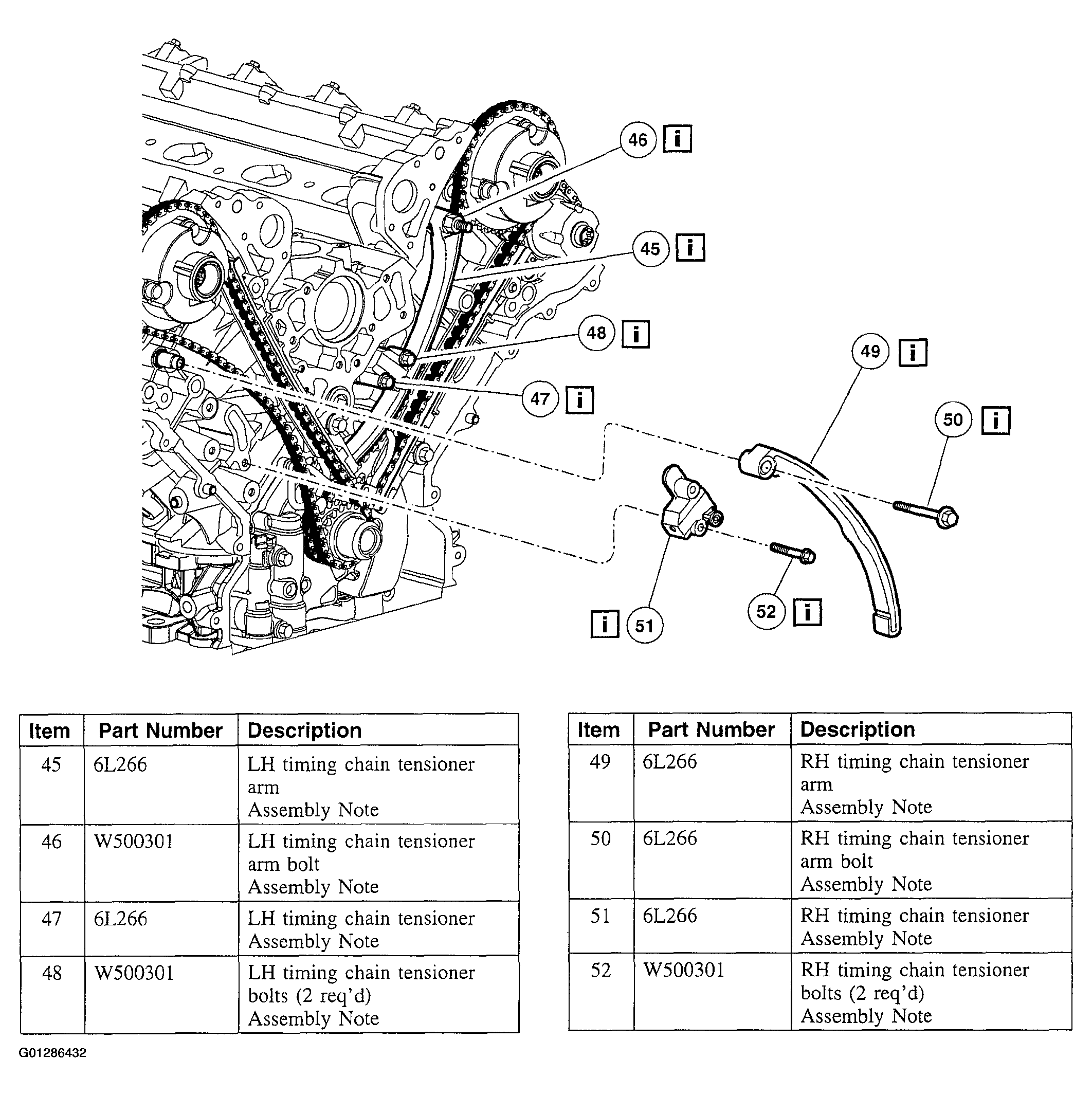

Fig 9: Removing LH Timing Chain Tensioner Arm Components
Courtesy of FORD MOTOR CO.
Illustration 6 of 24. Install the components in the order indicated in the following illustration and table.

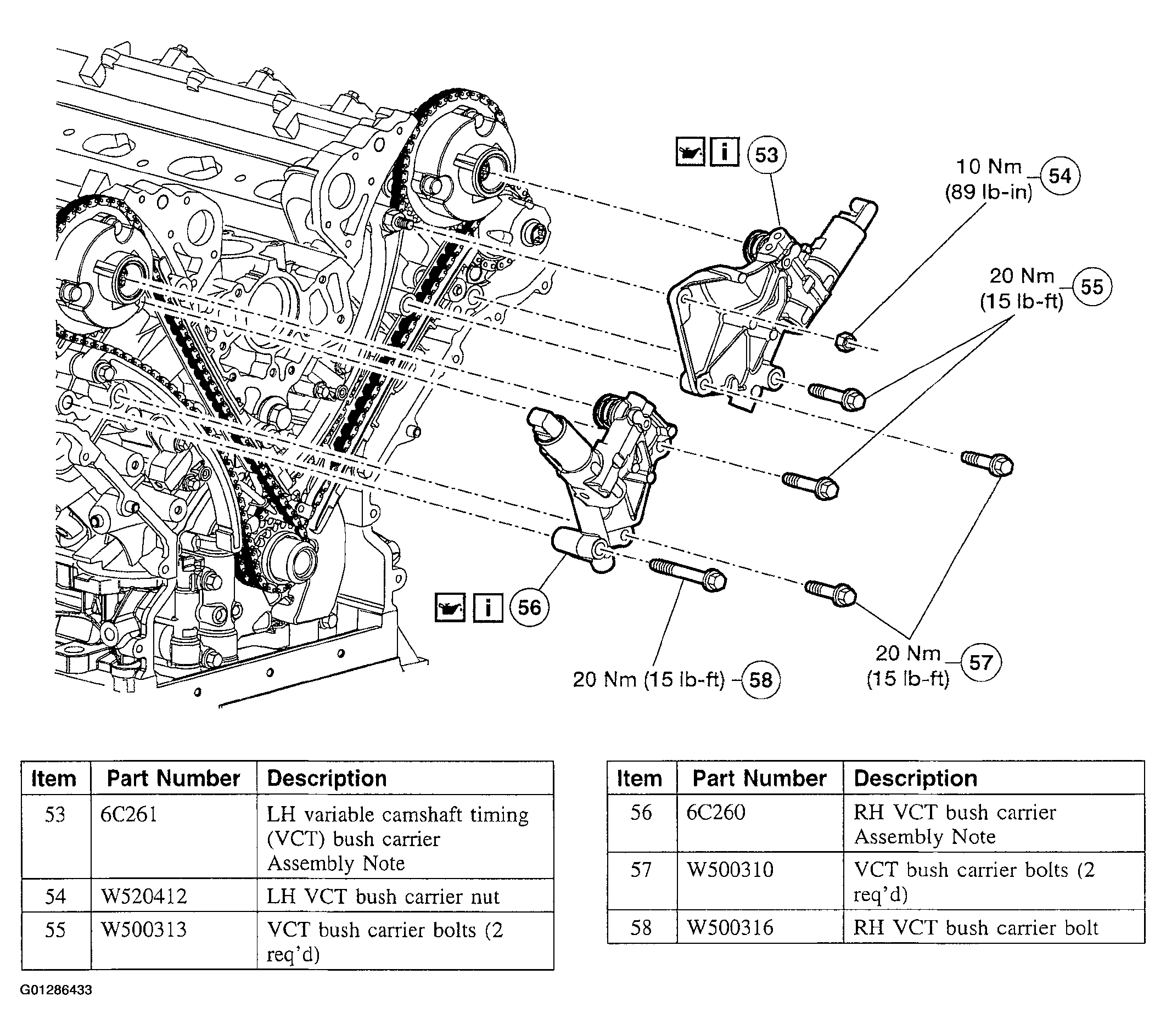

Fig 10: Removing Bush Carrier Assembly Components
Courtesy of FORD MOTOR CO.
Illustration 7 of 24. Install the components in the order indicated in the following illustration and table.

Fig 11: Removing Engine Front Cover And Sump Components
Courtesy of FORD MOTOR CO.
Illustration 8 of 24. Install the components in the order indicated in the following illustration and table.

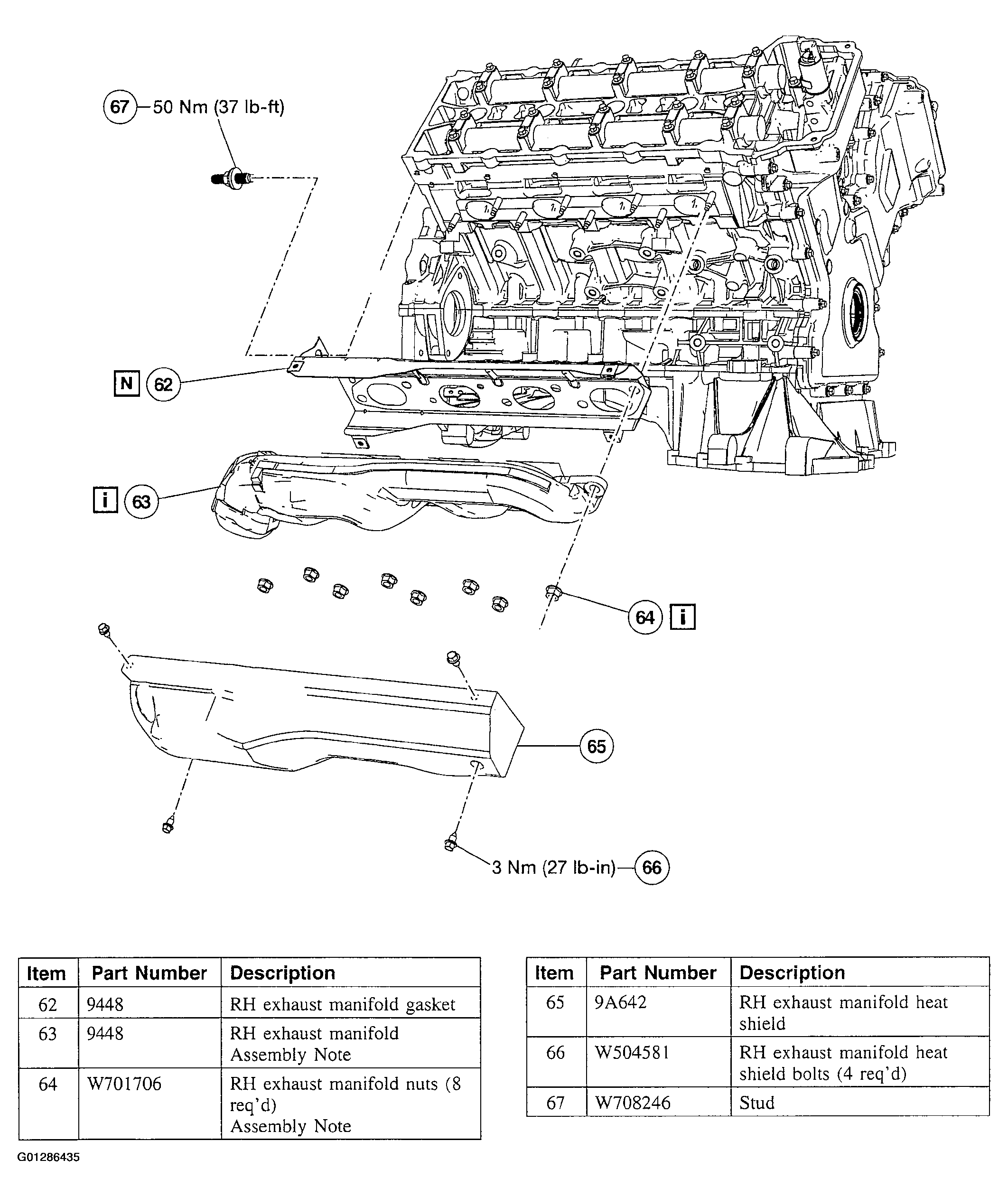

Fig 12: Removing RH Manifold Components
Courtesy of FORD MOTOR CO.
Illustration 9 of 24. Install the components in the order indicated in the following illustration and table.

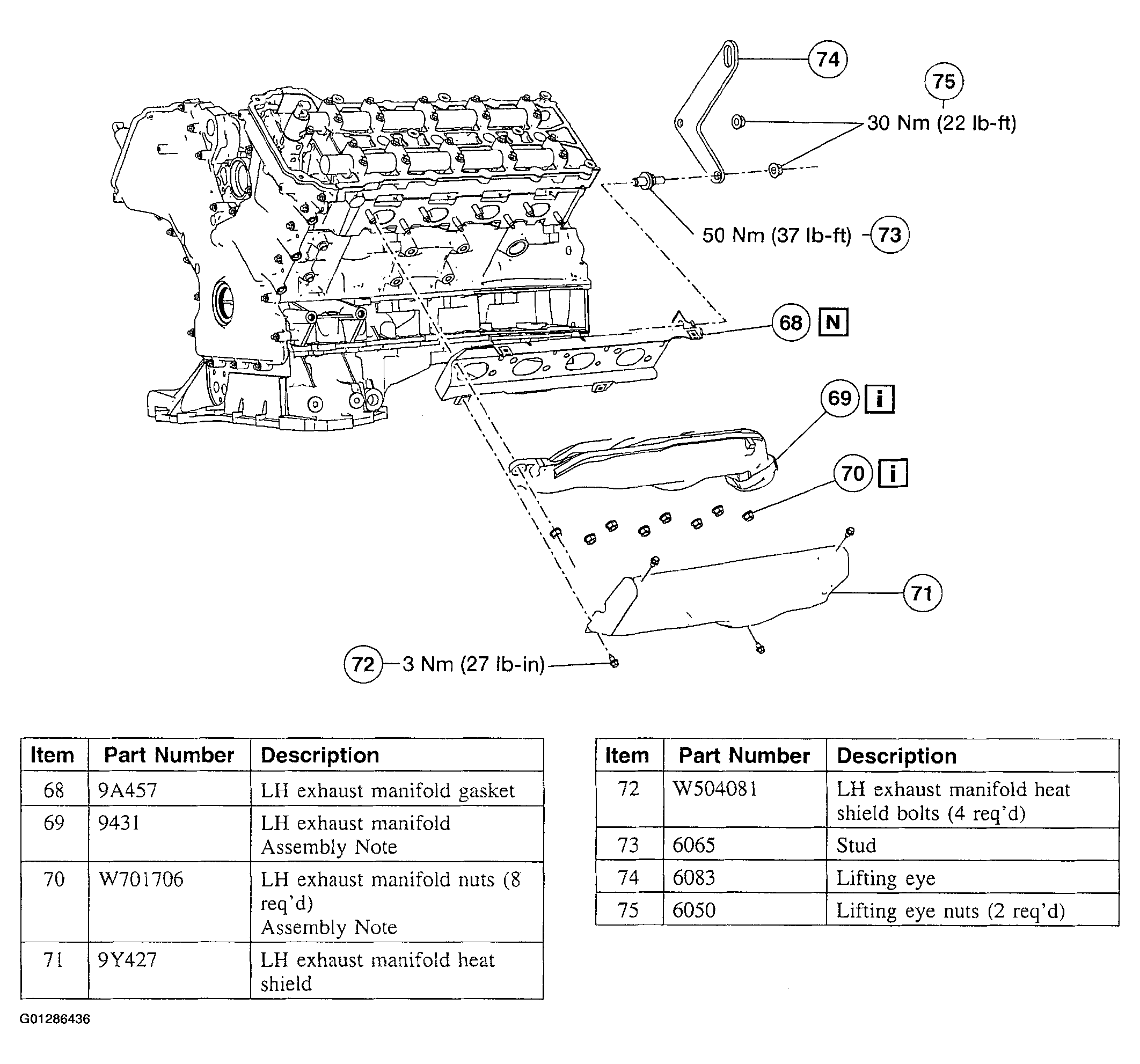

Fig 13: Removing LH Manifold Components
Courtesy of FORD MOTOR CO.
Illustration 10 of 24. Install the components in the order indicated in the following illustration and table.

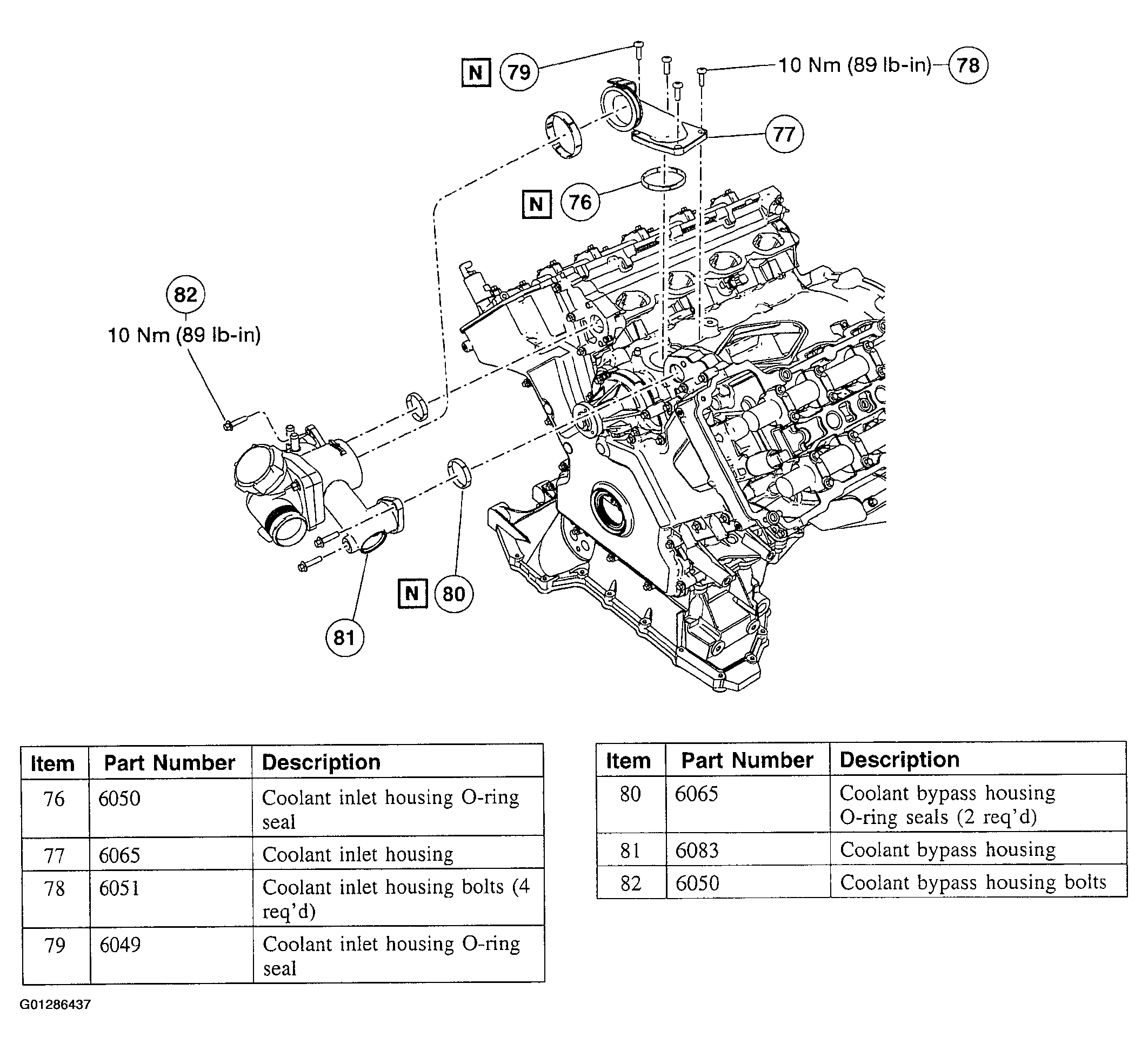

Fig 14: Removing Coolant Housing Components
Courtesy of FORD MOTOR CO.
Illustration 11 of 24. Install the components in the order indicated in the following illustration and table.

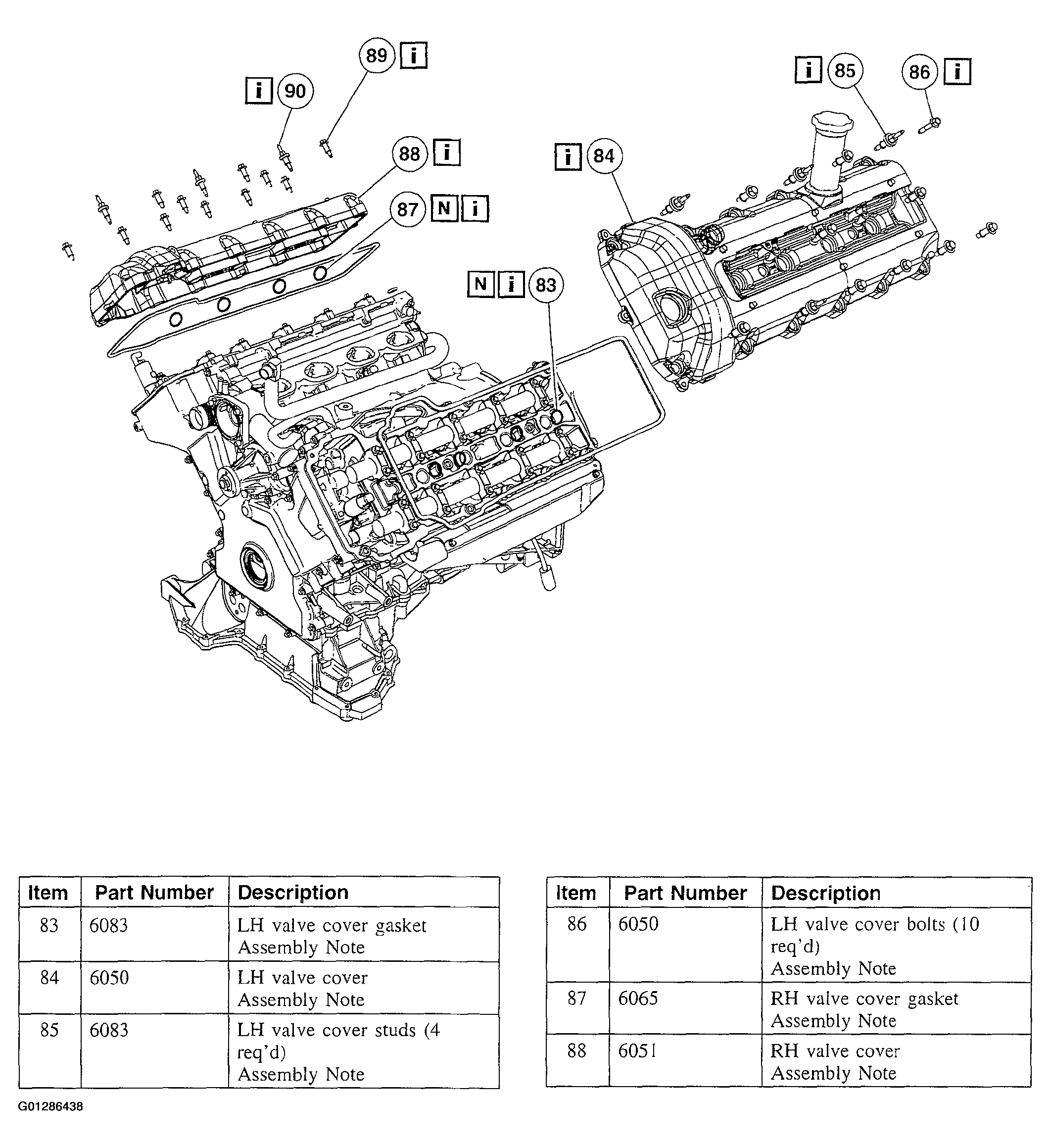

Fig 15: Removing Valve Cover Components
Courtesy of FORD MOTOR CO.

Fig 16: Parts Description Chart
Courtesy of FORD MOTOR CO.
Illustration 12 of 24. Install the components in the order indicated in the following illustration and table.

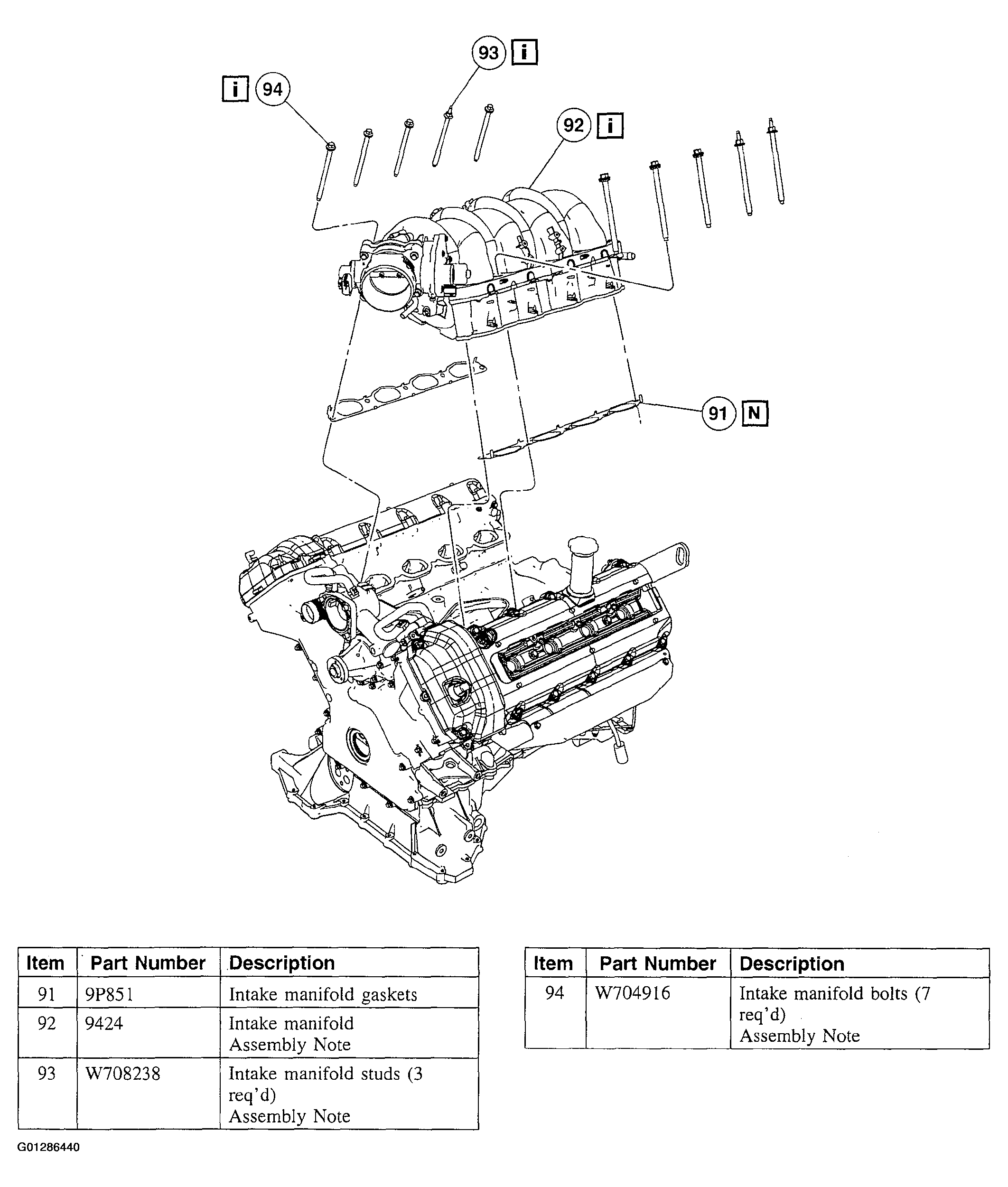

Fig 17: Removing Intake Manifold Components
Courtesy of FORD MOTOR CO.
Illustration 13 of 24. Install the components in the order indicated in the following illustration and table.

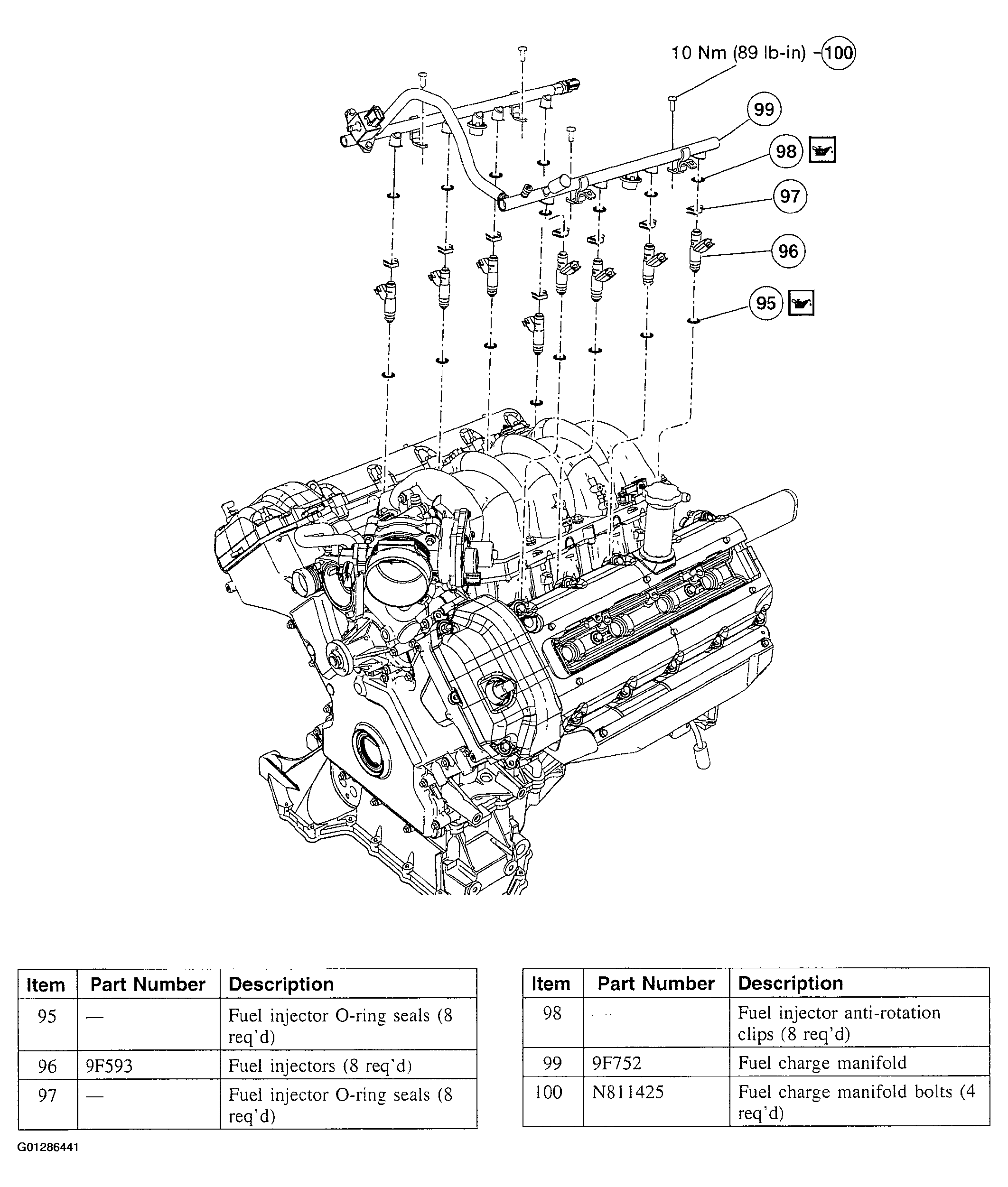

Fig 18: Removing Fuel Injectors Components
Courtesy of FORD MOTOR CO.
Illustration 14 of 24. Install the components in the order indicated in the following illustration and table.

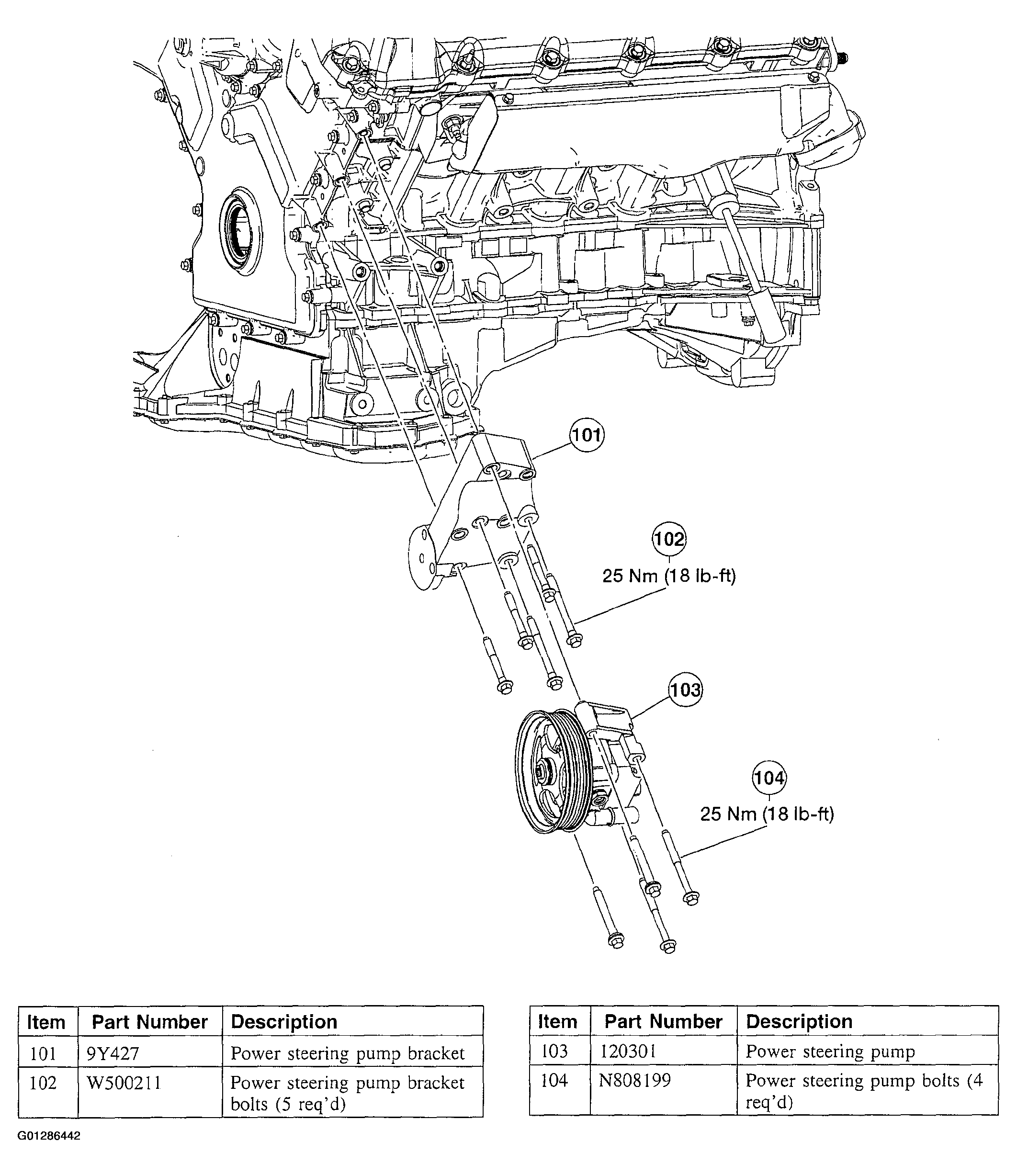

Fig 19: Removing Power Steering Pump Components
Courtesy of FORD MOTOR CO.
Illustration 15 of 24. Install the components in the order indicated in the following illustration and table.

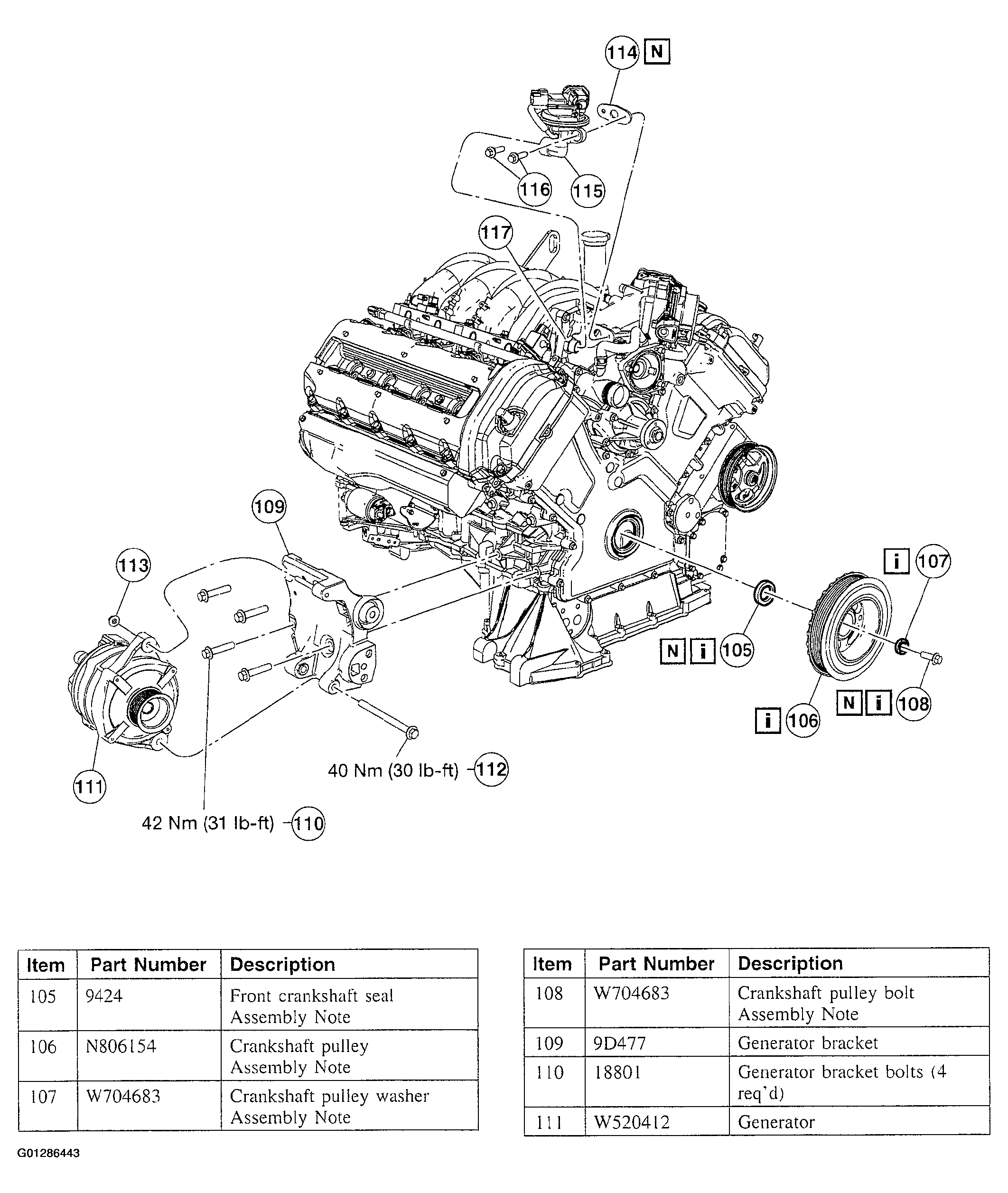

Fig 20: Removing Crankshaft Pulley Components
Courtesy of FORD MOTOR CO.

Fig 21: Parts Description Chart
Courtesy of FORD MOTOR CO.
Illustration 16 of 24. Install the components in the order indicated in the following illustration and table.

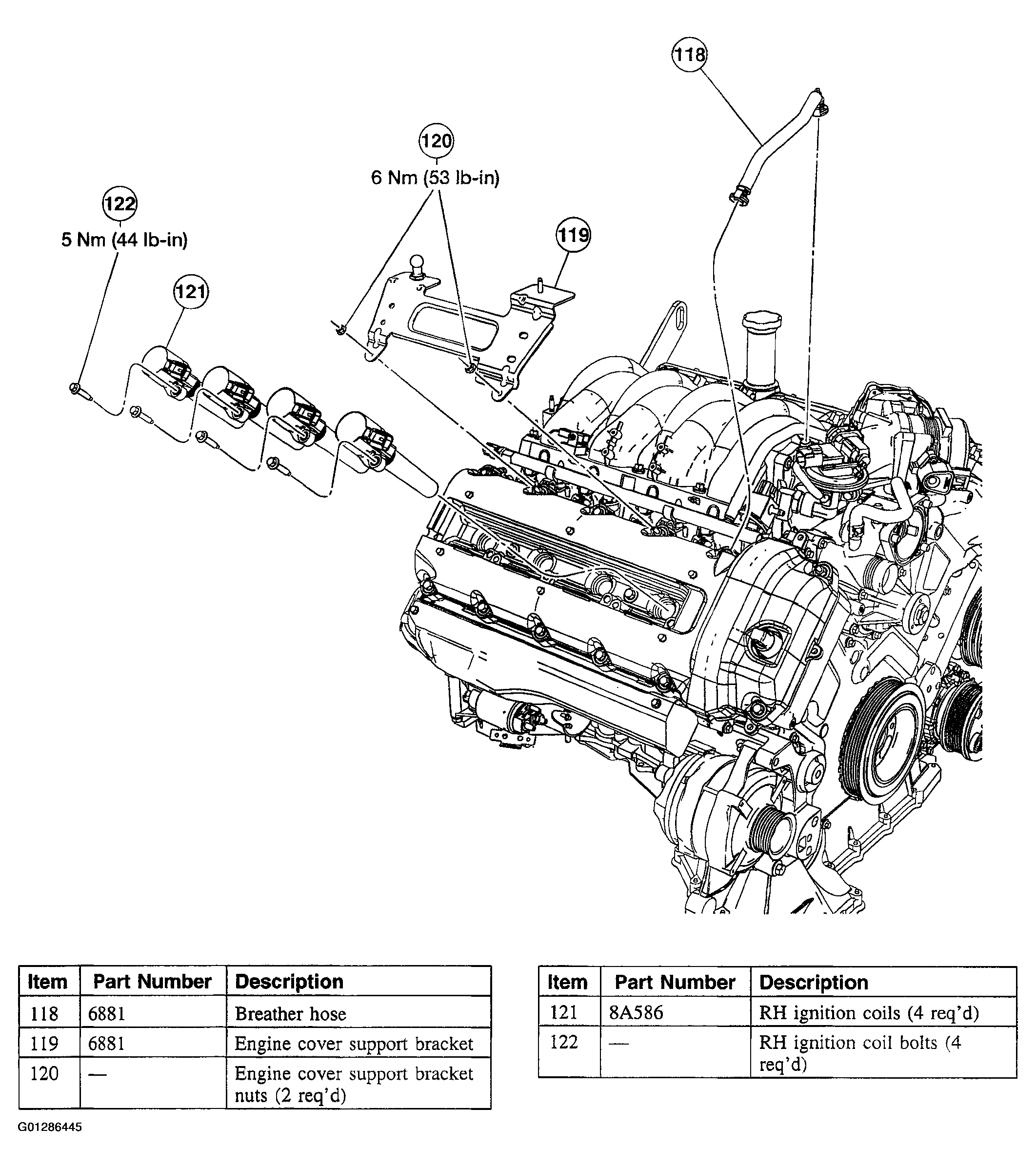

Fig 22: Removing RH Ignition Coils Components
Courtesy of FORD MOTOR CO.
Illustration 17 of 24. Install the components in the order indicated in the following illustration and table.

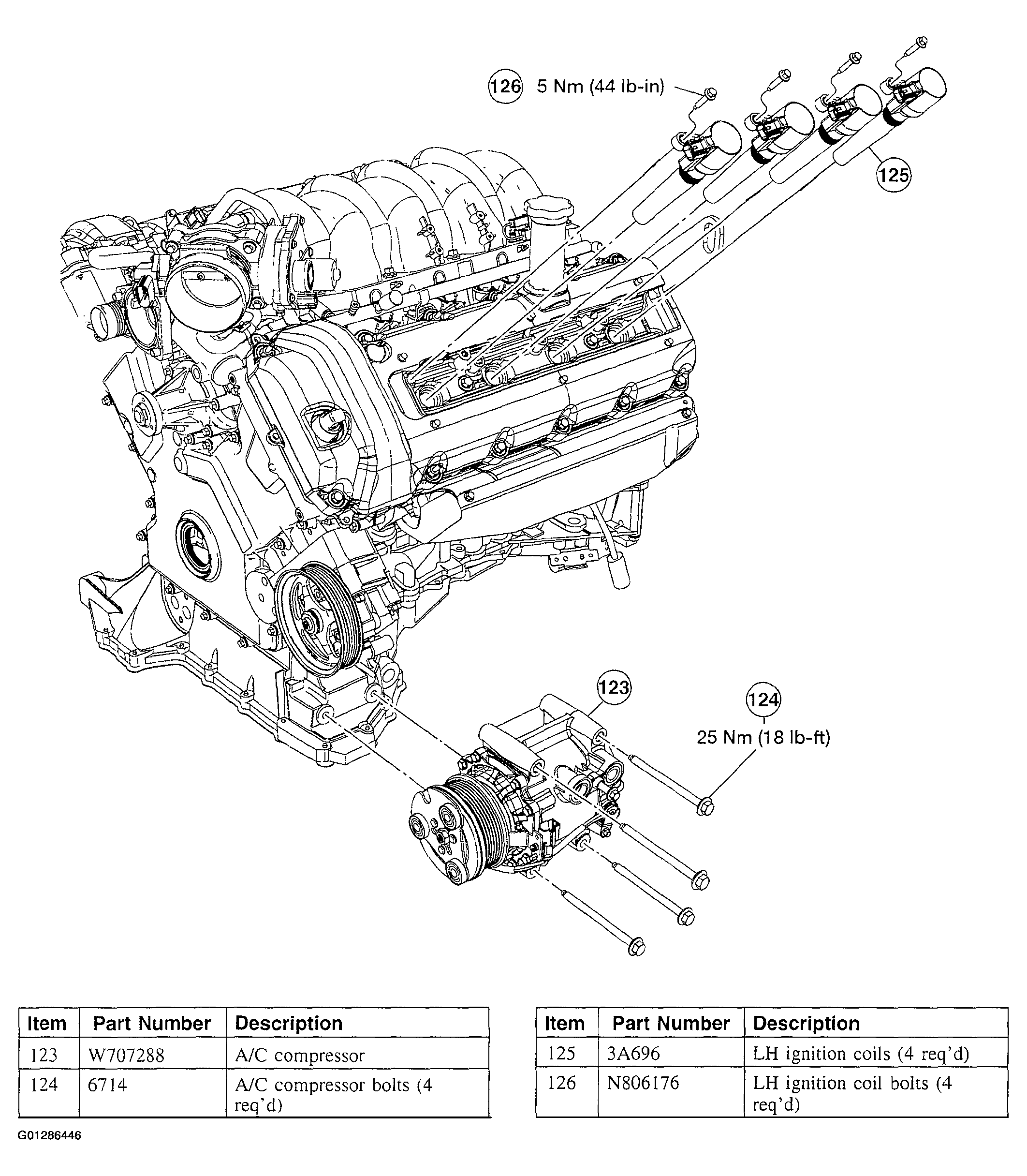

Fig 23: Removing A\C Compressor Components
Courtesy of FORD MOTOR CO.
Illustration 18 of 24. Install the components in the order indicated in the following illustration and table.

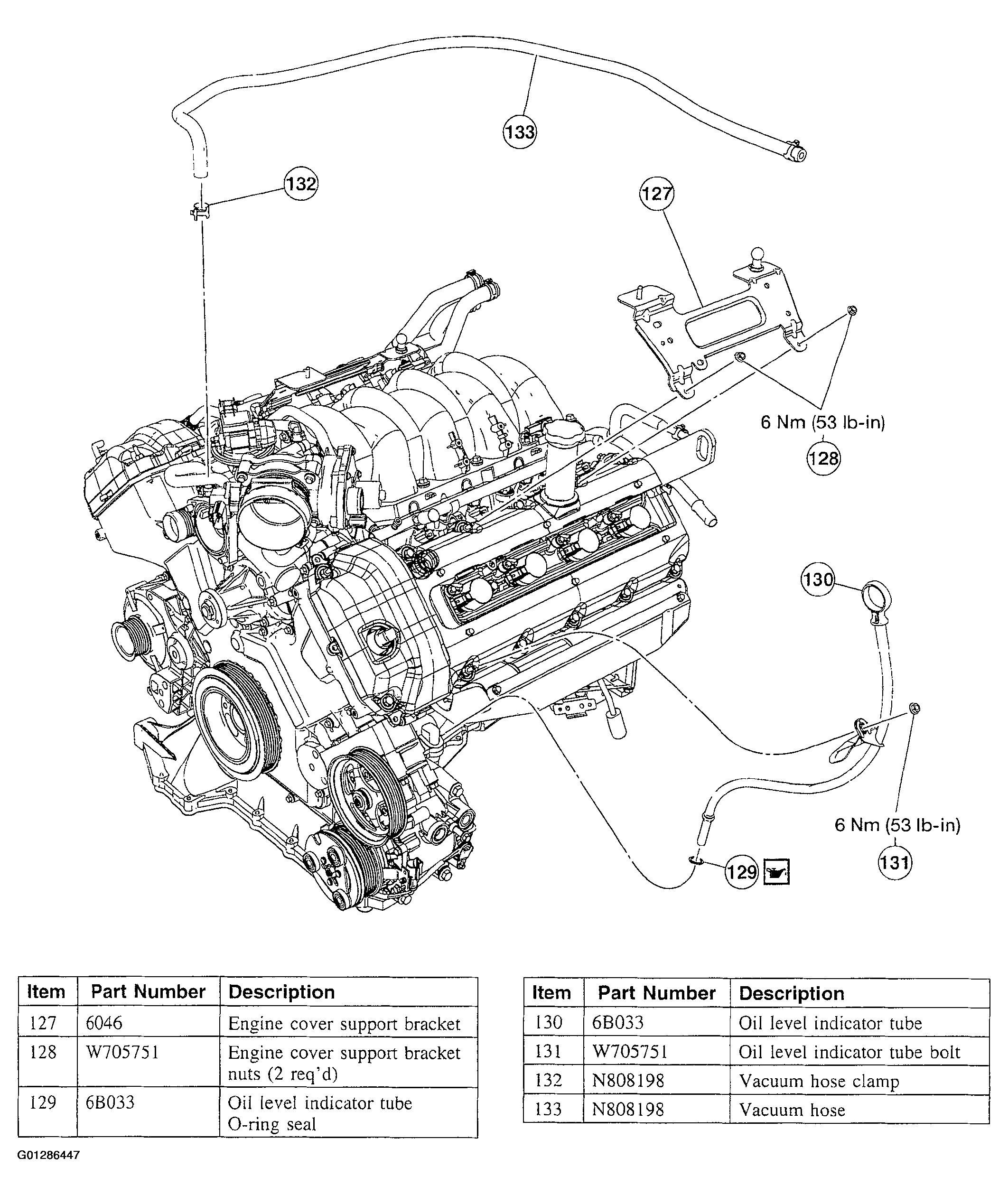

Fig 24: Removing Engine Cover Bracket Components
Courtesy of FORD MOTOR CO.
Illustration 19 of 24. Install the components in the order indicated in the following illustration and table.

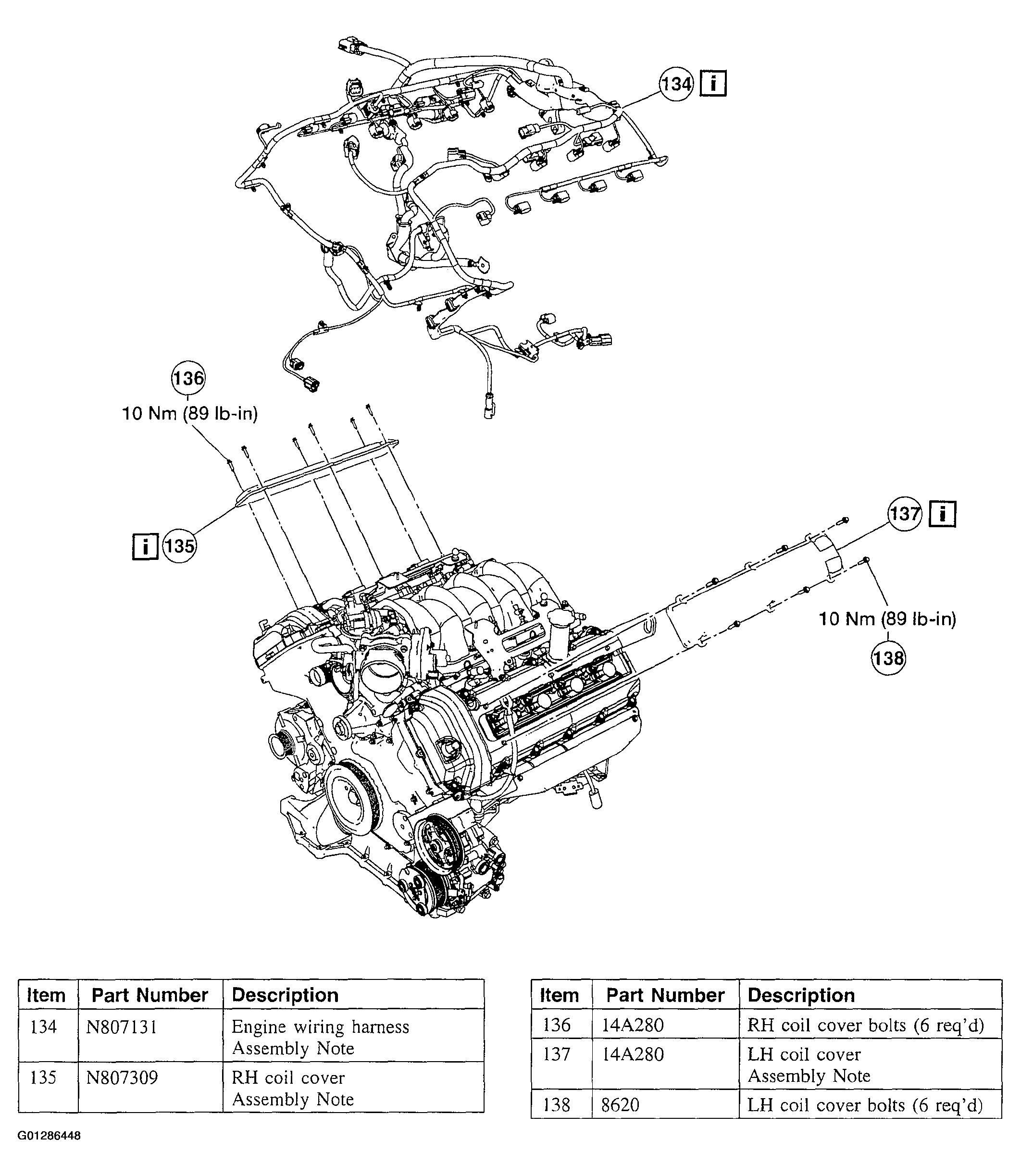

Fig 25: Removing Engine Wiring Harness Assembly Components
Courtesy of FORD MOTOR CO.
Illustration 20 of 24. Install the components in the order indicated in the following illustration and table.

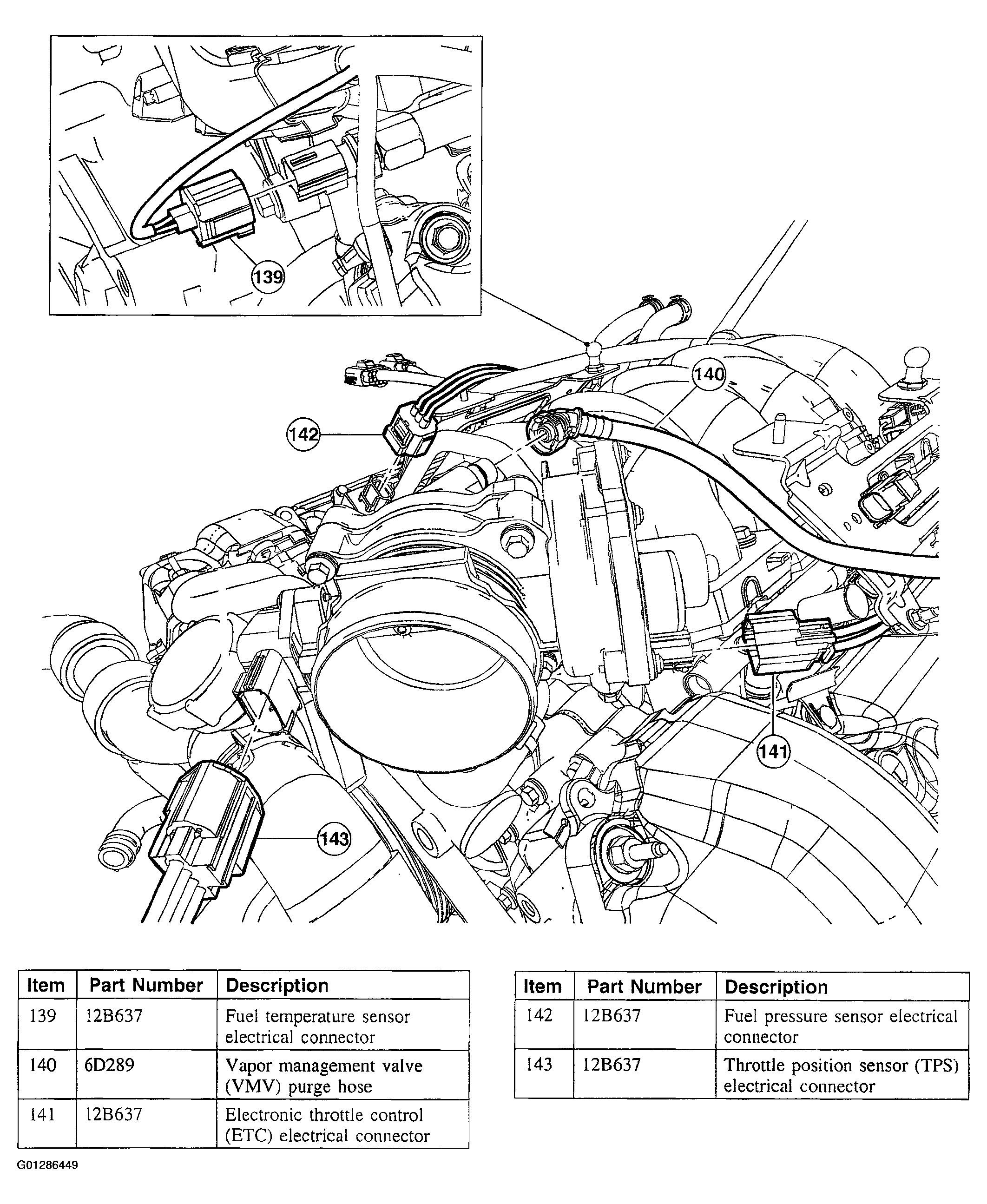

Fig 26: Removing Sensors Connectors
Courtesy of FORD MOTOR CO.
Illustration 21 of 24. Install the components in the order indicated in the following illustration and table.

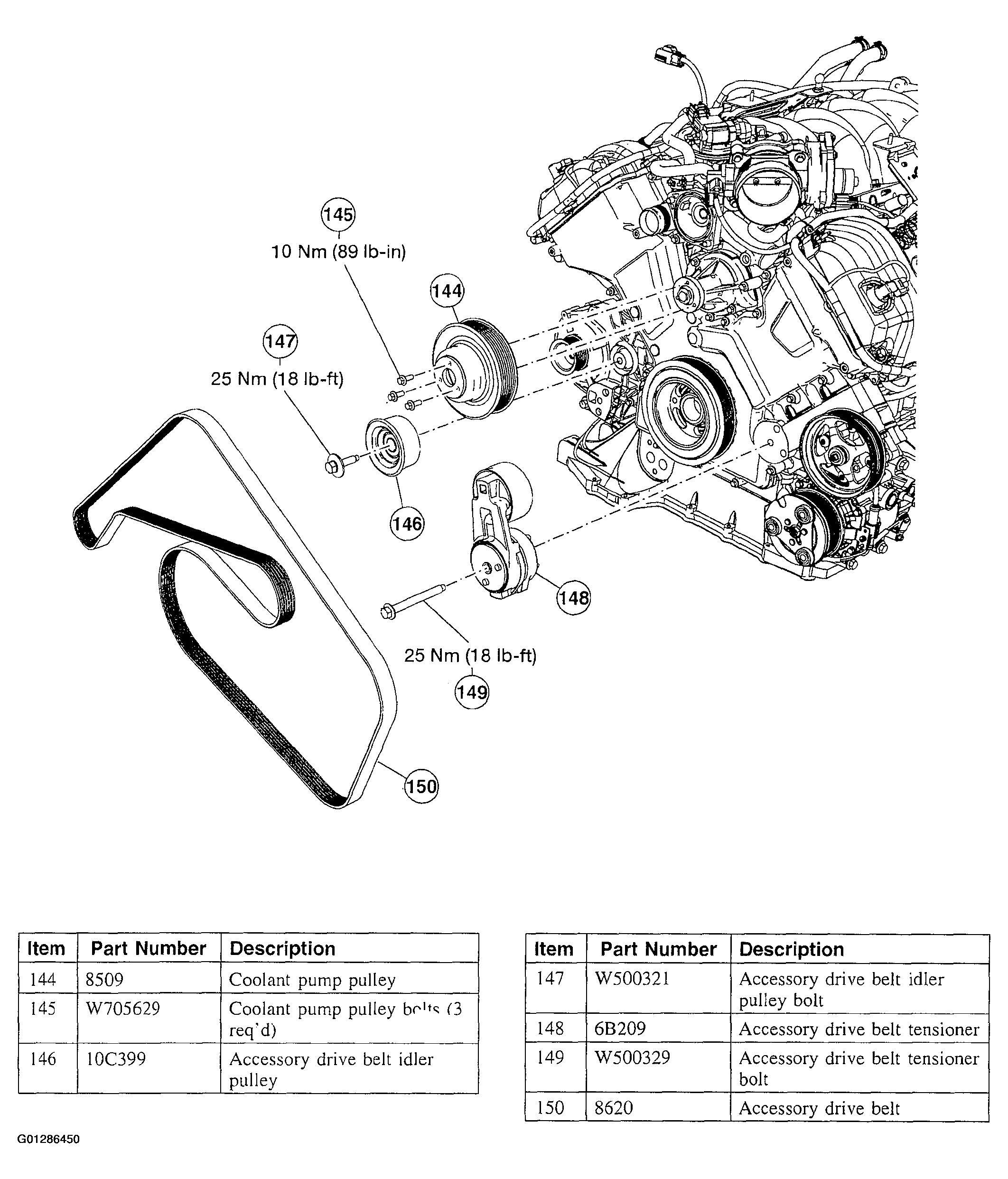

Fig 27: Removing Coolant Pump Pulley Components
Courtesy of FORD MOTOR CO.
Illustration 22 of 24. Install the components in the order indicated in the following illustration and table.

Fig 28: Removing Oil Filter Components
Courtesy of FORD MOTOR CO.

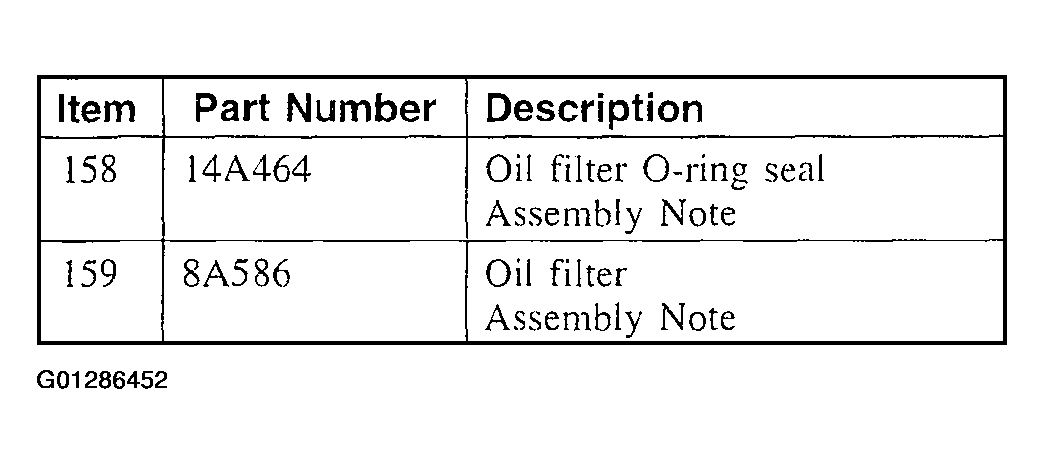

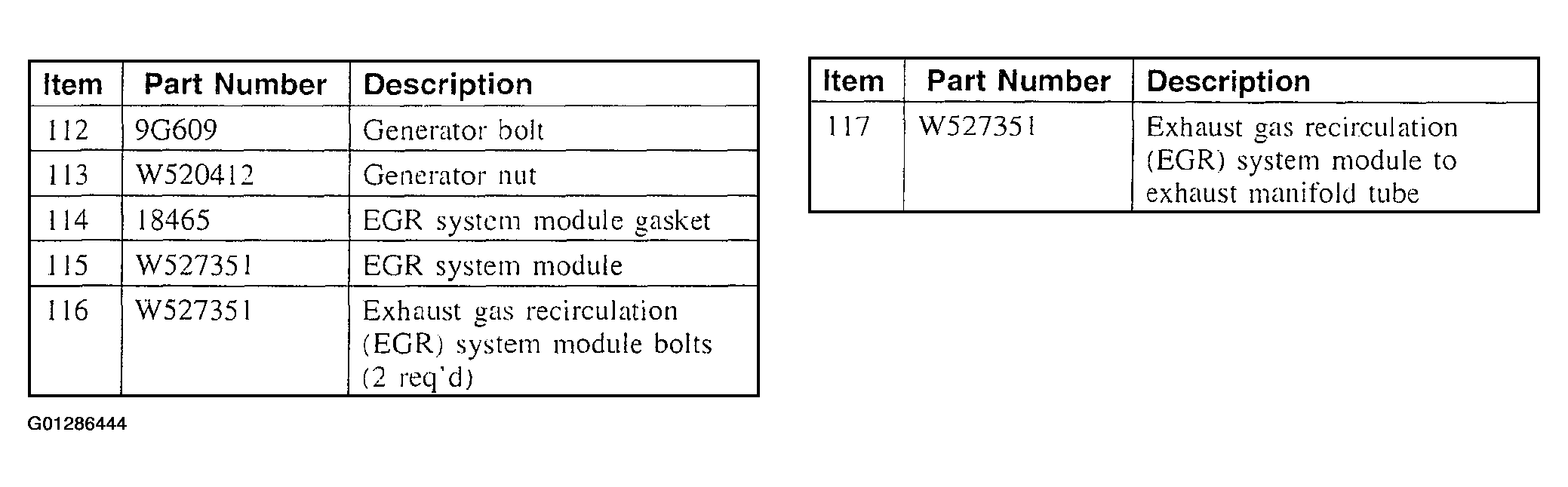

Fig 29: Parts Description Chart
Courtesy of FORD MOTOR CO.
Illustration 23 of 24. Install the components in the order indicated in the following illustration and table.

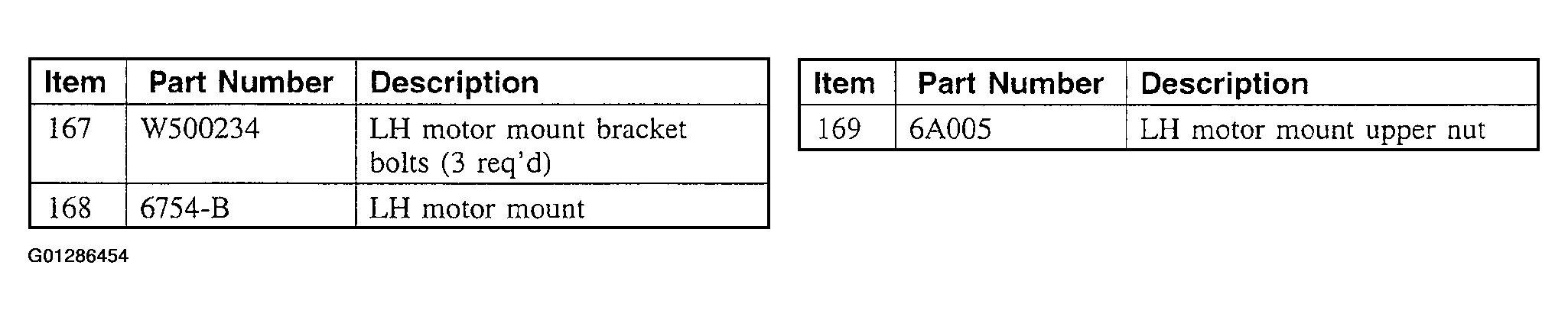

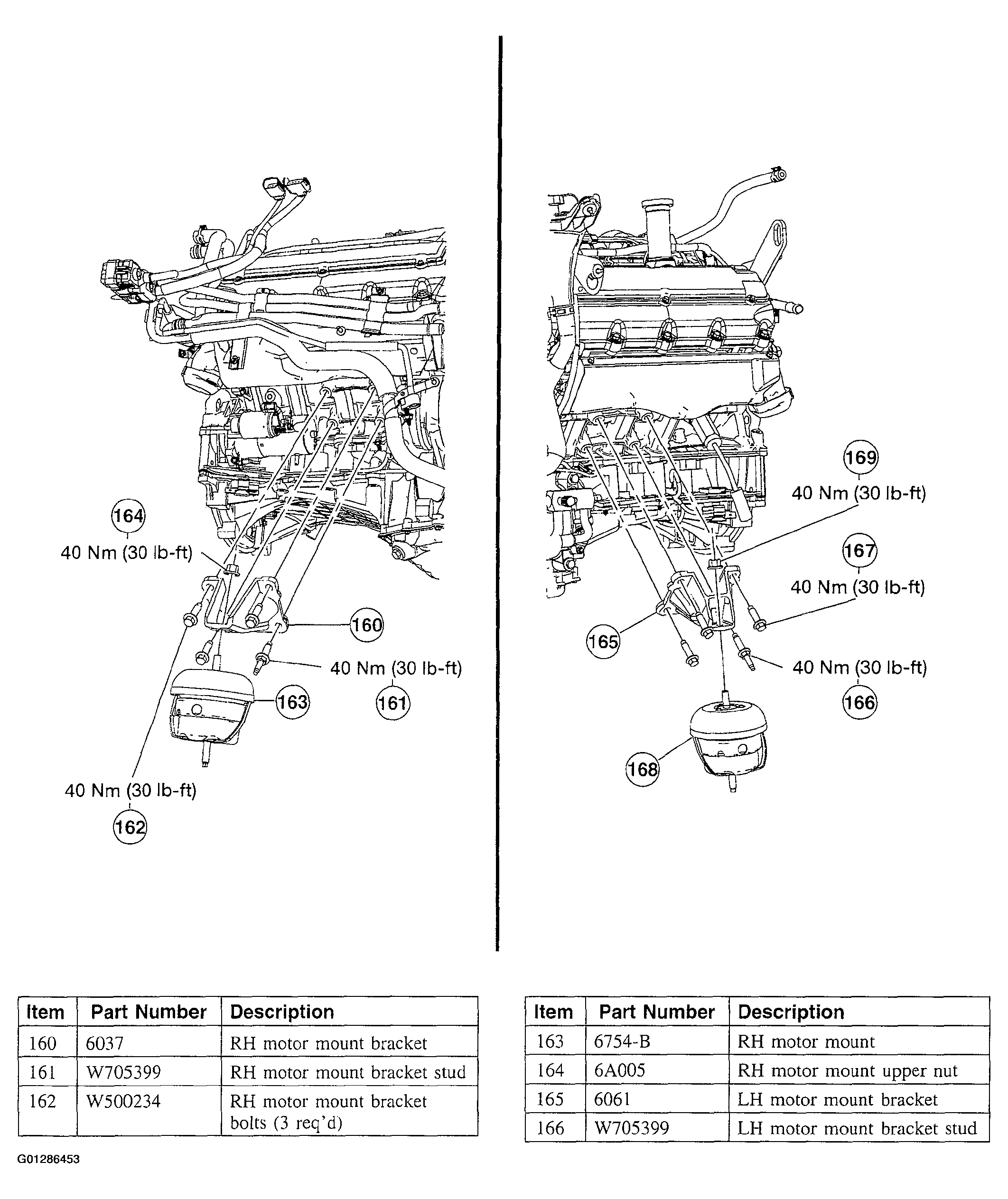

Fig 30: Removing Motor Mount Bracket Components
Courtesy of FORD MOTOR CO.

Fig 31: Parts Description Chart
Courtesy of FORD MOTOR CO.
Illustration 24 of 24. Install the components in the order indicated in the following table.

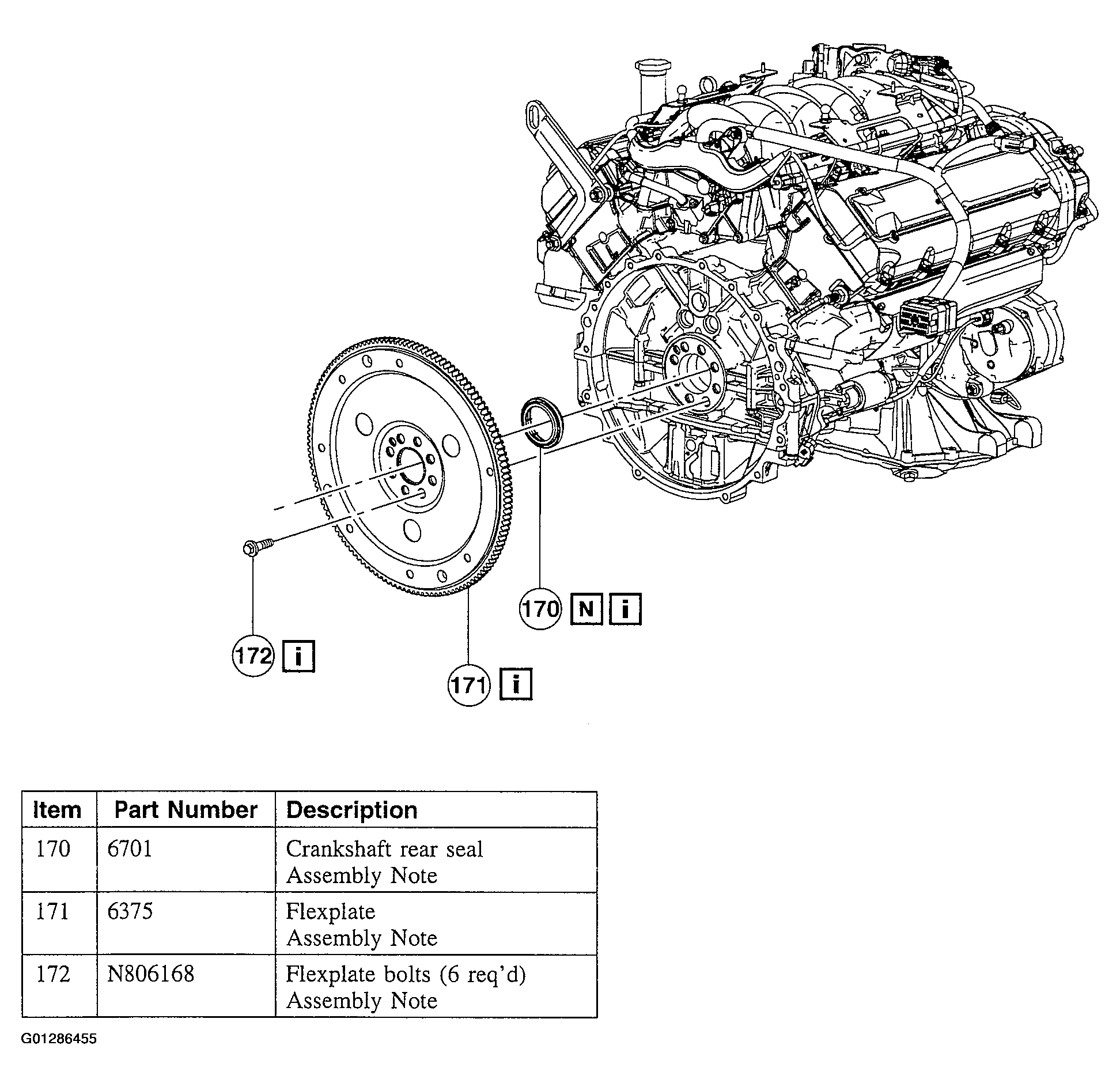

Fig 32: View Of Flywheel Components
Courtesy of FORD MOTOR CO.
