Item 114: Sump Body Assembly Disassembly Note
WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

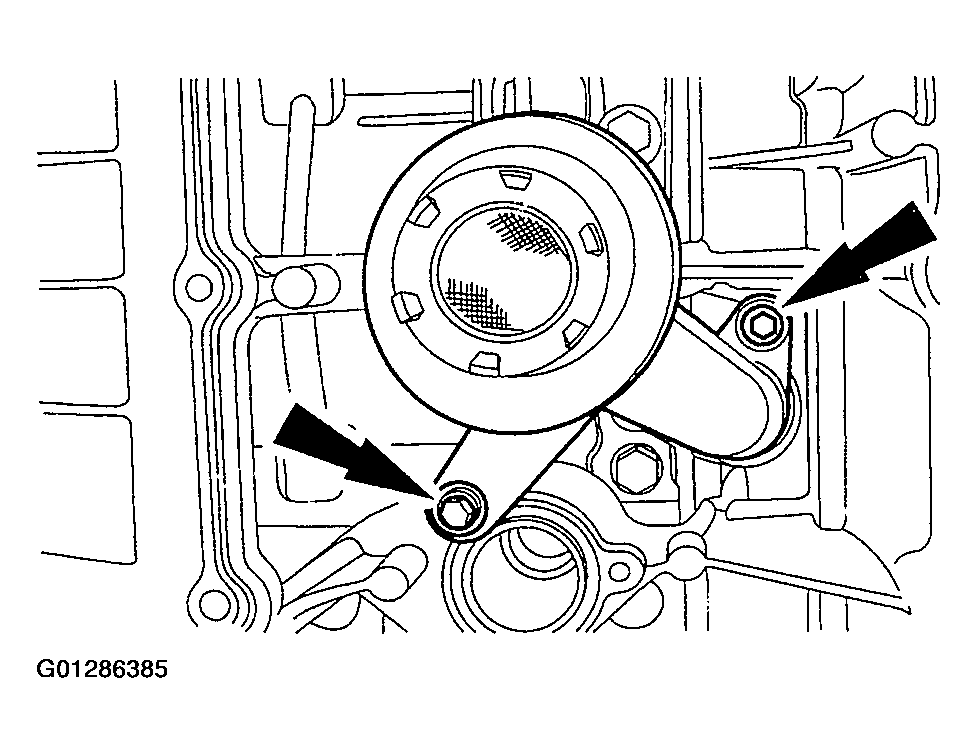

- Remove the oil pump screen and tube, and the seal.

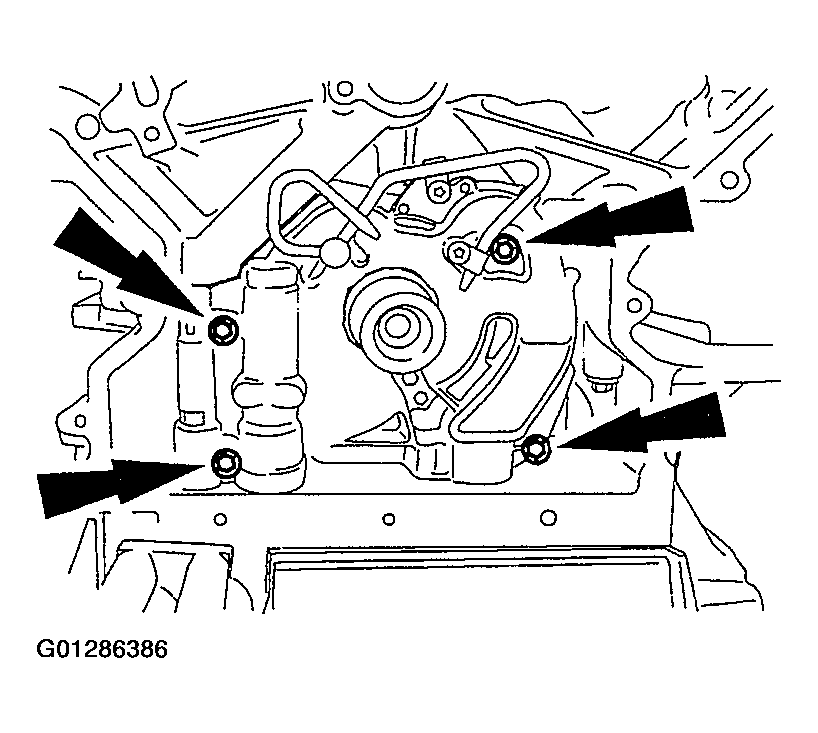

- Remove the four bolts and the oil pump.
- Discard the gasket.

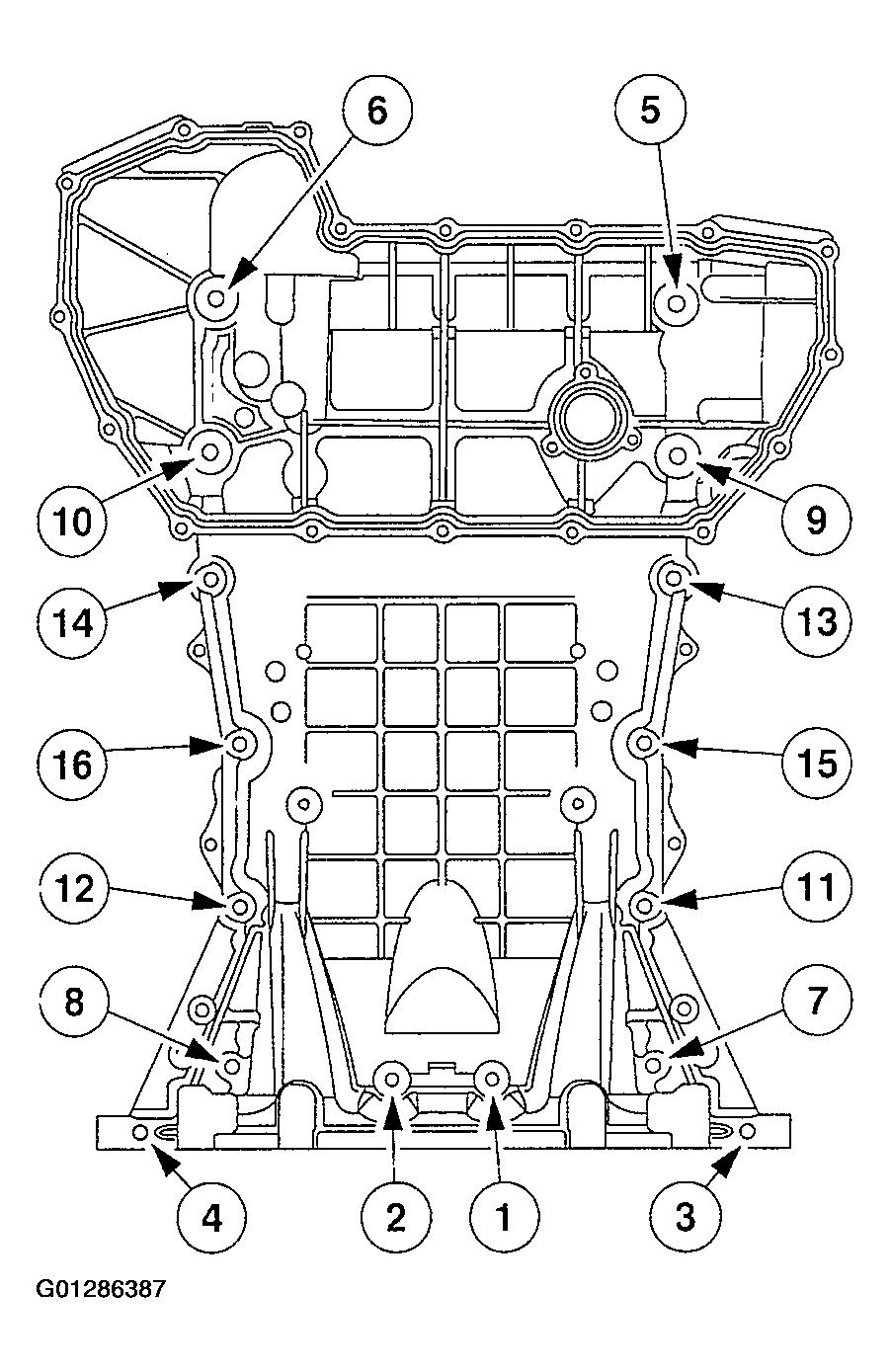

- Remove the bolts in the sequence shown and remove the sump body.
CAUTION:
Use only hand tools to remove the oil pump screen and tube.
CAUTION:
Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove all traces of the sealant.
