Items 79-81: Intake Manifold Disassembly Note

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect and remove the throttle body heater hoses.

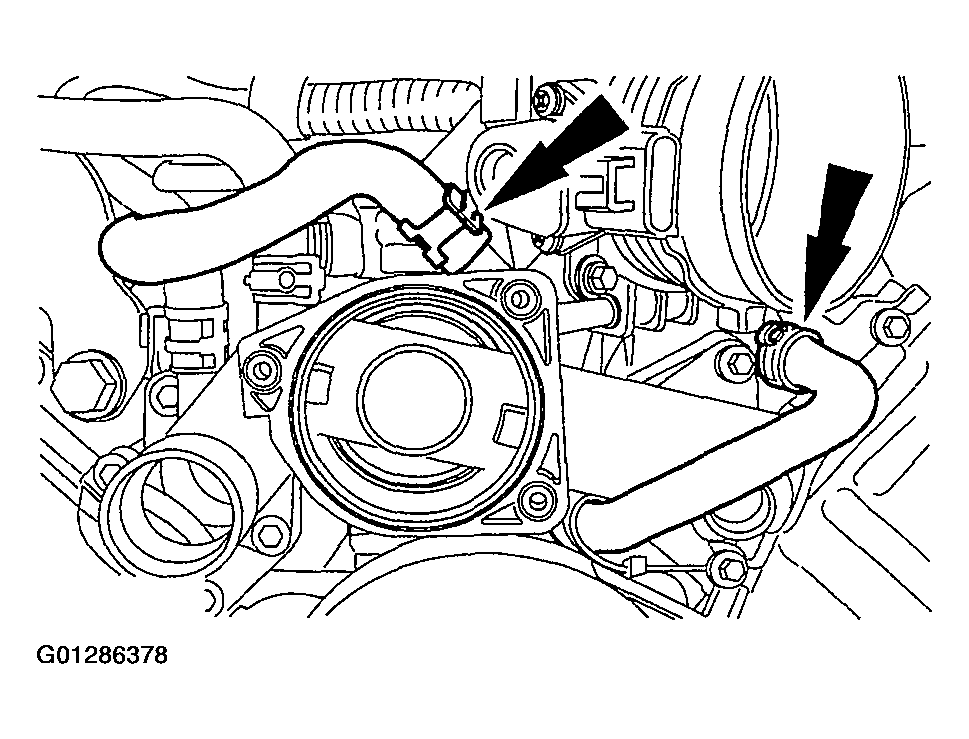

Fig 1: Removing Throttle Body Heater Hoses
Courtesy of FORD MOTOR CO.

NOTE: The throttle body and adapter are shown removed for clarity. It is not necessary to remove the throttle body and adapter to remove the intake manifold.

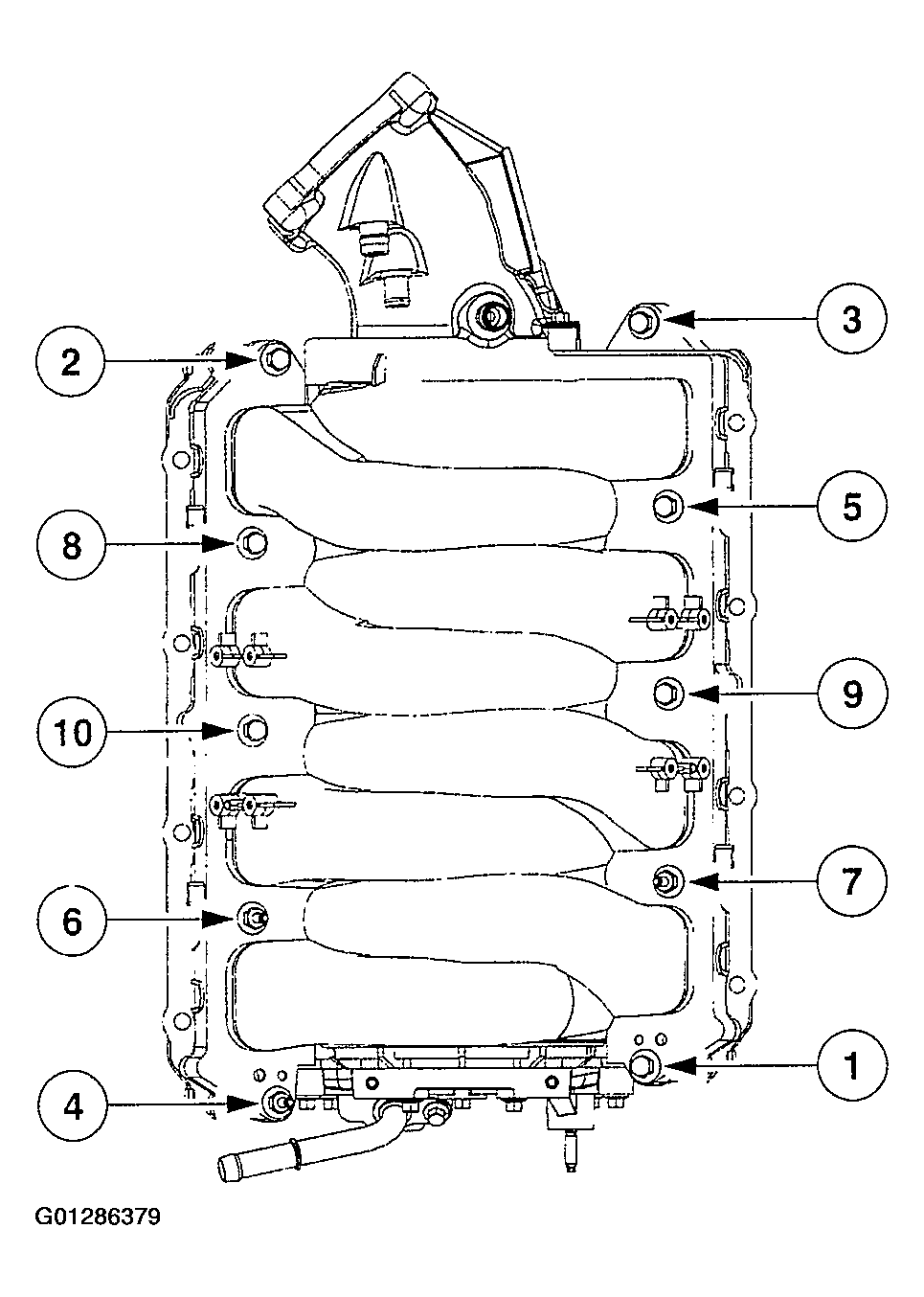

Fig 2: Removing Bolts And Studs In Sequence

Courtesy of FORD MOTOR CO.

Remove the bolts and studs in the sequence shown.
Remove the intake manifold.

CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs, or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to clean the surfaces.

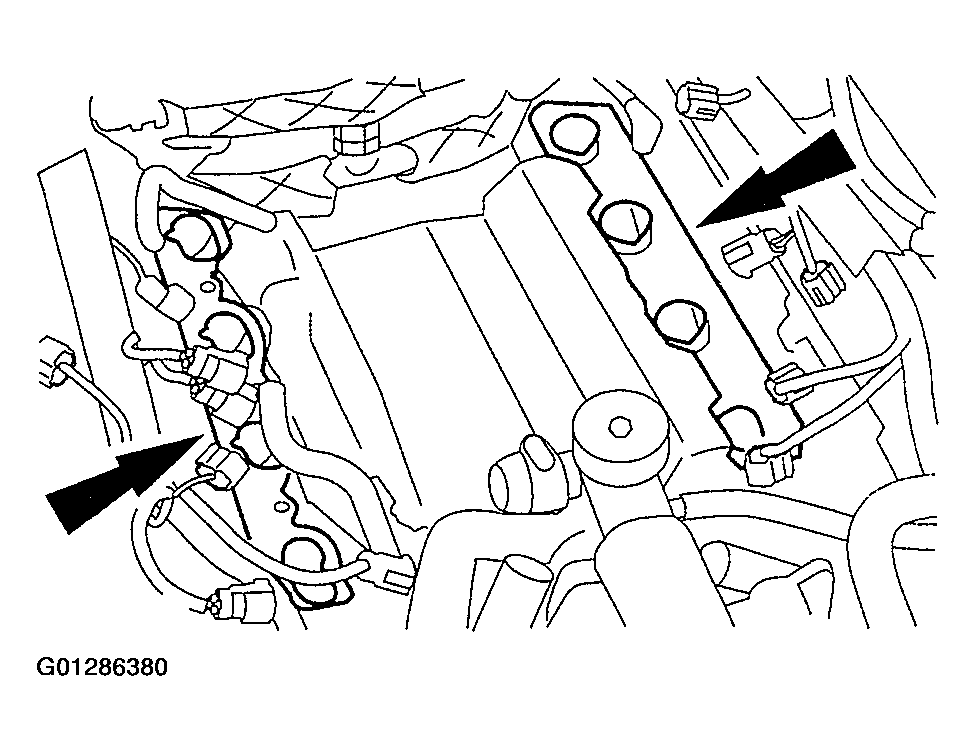

Fig 3: Removing Intake Manifold

Courtesy of FORD MOTOR CO.

Clean the sealing surfaces.
