Items 83-85: RH Valve Cover Disassembly Note

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the bolts in the sequence shown and remove the RH valve cover.

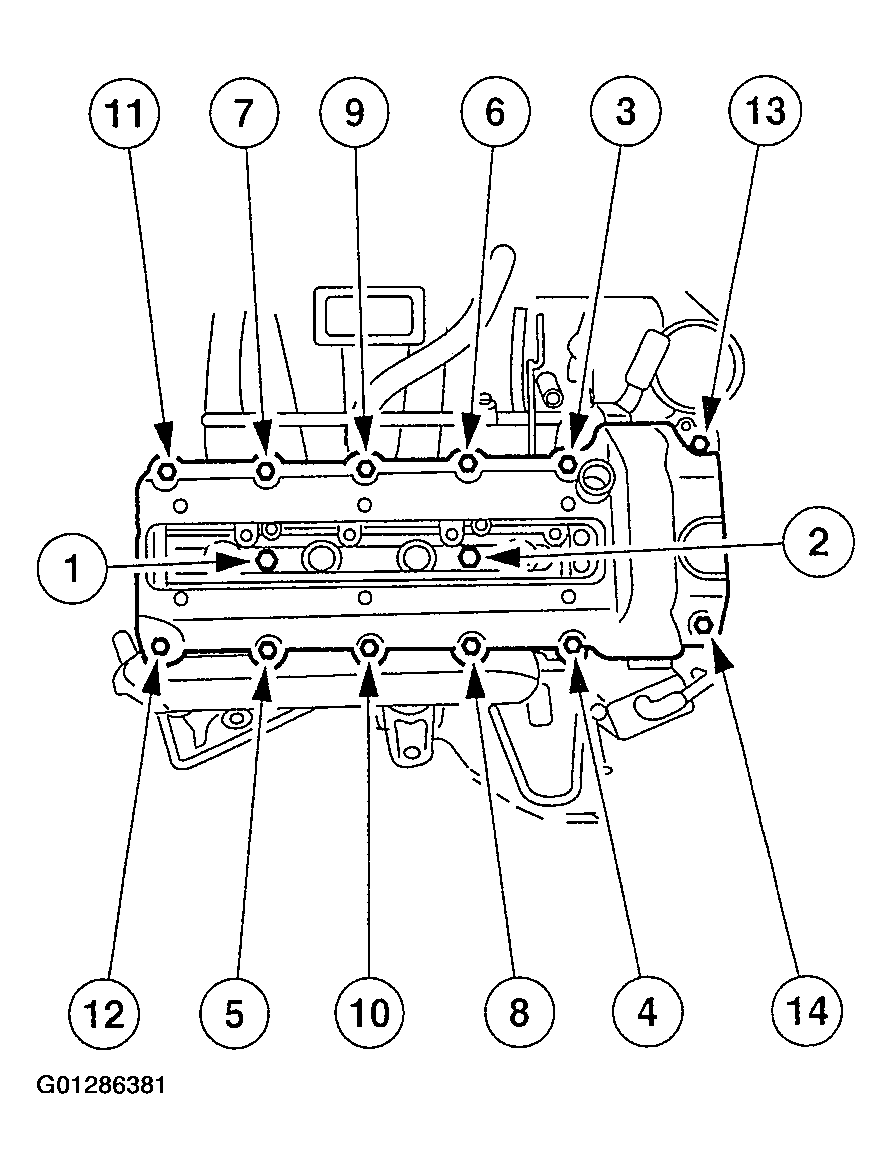

    Fig 1: Removing Bolts In Sequence
    G01286381Courtesy of FORD MOTOR CO.
