Item 3: EGR System Module Installation Note

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the EGR system module-to-exhaust manifold tube to the EGR system module.

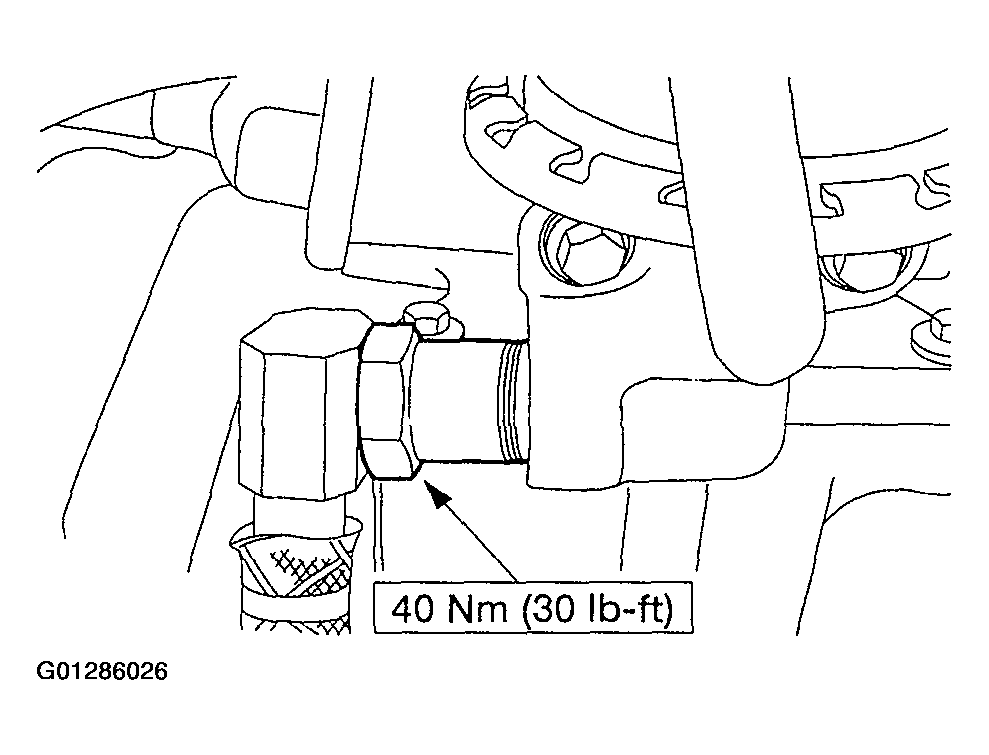

    Fig 1: Connecting EGR System Module-To-Exhaust Manifold Tube To EGR System Module
    G01286026Courtesy of FORD MOTOR CO.
  2. Install the vacuum harness.

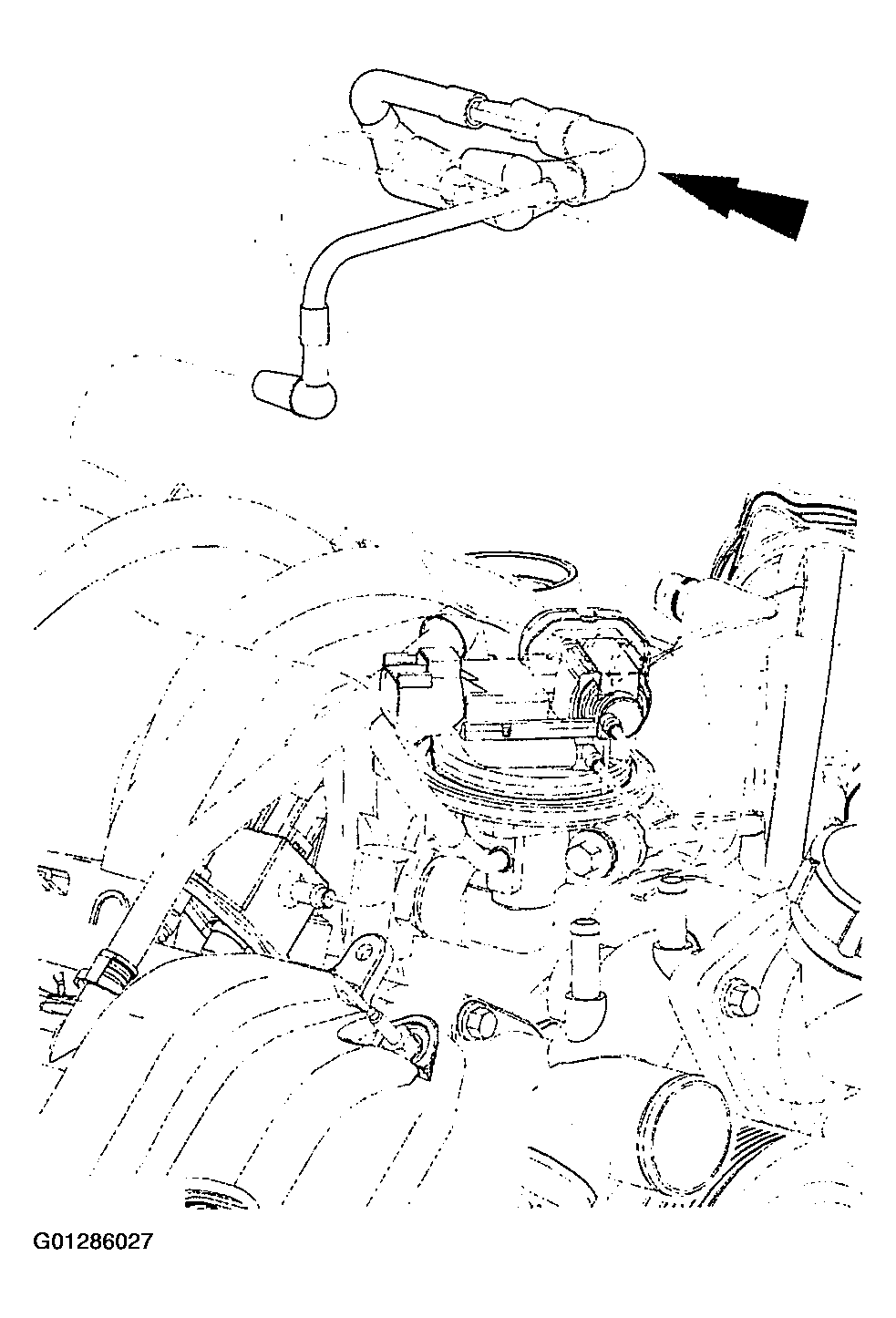

    Fig 2: Installing Vacuum Harness
    G01286027Courtesy of FORD MOTOR CO.
